Jenis Pola Semprotan Nozzle: Flat Fan, Full Cone, dan Hollow Cone untuk Aplikasi Industri

Contents

Memilih nozzle semprot yang tepat bisa membuat perbedaan besar dalam berbagai proses industri—mulai dari mencuci, melapisi permukaan, menyemprot cairan kimia, hingga irigasi pertanian. Salah satu hal penting yang perlu diperhatikan adalah pola semprotan yang dihasilkan nozzle. Ada beberapa jenis pola semprotan seperti flat fan, full cone, dan hollow cone, yang masing-masing memiliki cara kerja dan hasil semprotan yang berbeda. Di artikel ini, kami akan menjelaskan perbedaan pola-pola tersebut dan membantu Anda memahami mana yang paling cocok untuk kebutuhan industri Anda.


1. Apa Itu Pola Semprotan Nozzle?

Perbedaan Spray Pattern dan Coverage Pattern

Dalam dunia industri, istilah pola semprotan nozzle atau spray pattern nozzle merujuk pada bentuk semprotan yang dihasilkan saat cairan dikeluarkan dari nozzle semprot. Setiap jenis nozzle dirancang untuk menghasilkan pola tertentu, seperti garis lurus (flat fan), lingkaran penuh (full cone), atau lingkaran berongga (hollow cone). Pola ini akan menentukan bagaimana cairan menyebar ke permukaan dan seberapa meratanya distribusi semprotan tersebut.

Banyak orang sering menyamakan spray pattern dengan coverage pattern, padahal keduanya berbeda.

  • Spray Pattern adalah bentuk fisik semprotan yang langsung terlihat dari nozzle—misalnya garis kipas, lingkaran penuh, atau spiral.
  • Coverage Pattern adalah hasil penyebaran semprotan di permukaan target, yang memperlihatkan seberapa merata dan intens semprotan tersebut di area yang disemprot.

Sebagai contoh, dua nozzle bisa memiliki spray pattern berbentuk full cone, tapi coverage-nya bisa berbeda—yang satu menghasilkan distribusi semprotan yang merata, sementara yang lain lebih tebal di tengah dan tipis di pinggir. Inilah mengapa memahami pola semprotan tidak cukup hanya dari bentuk semprotannya saja, tetapi juga bagaimana hasil akhirnya di permukaan kerja.

Memahami perbedaan ini akan membantu Anda memilih nozzle semprot industri yang paling sesuai dengan kebutuhan aplikasi, baik itu untuk pembersihan, pelapisan, pendinginan, penyemprotan kimia, atau irigasi.


2. Jenis-Jenis Pola Semprotan Nozzle

1 ) Flat Fan – Semprotan Sempit dan Terarah

Pola Semprotan Nozzle Flat Fan

Nozzle Flat fan menghasilkan semprotan berbentuk kipas yang rata dan menyebar ke dua arah. Cocok digunakan saat Anda membutuhkan semprotan yang sempit, tapi merata.

Kelebihan: Distribusi semprotan rata, efisiensi penggunaan cairan tinggi, dan cocok untuk sistem nozzle sejajar.

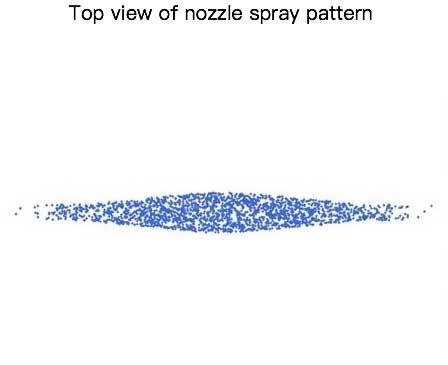

Pola cakupan nozzle flat fan
Coverage pattern nosel berbentuk kipas: Saat disemprotkan ke target, bentuk cakupannya berupa garis tunggal dengan tepi meruncing di kedua sisi.
Distribusi aliran nozzle flat fan
Distribusi aliran nosel semprotan kipas datar: Menampilkan pola aliran berbentuk lonceng, dengan intensitas yang lebih kuat di bagian tengah dan tepi yang secara bertahap lebih lemah.
Flat fan spray nozzle spray effect illustration
Contoh aplikasi Nozzle Flat Fan: Penyemprotan permukaan dalam jalur lurus, Pencucian tekanan tinggi, Pelapisan permukaan (coating)

2) Full Cone – Semprotan Menyebar Penuh

 Solid Cone Nozzles Spray Patterns
Solid cone nozzles produces a fully filled cone-shaped spray pattern as it discharges liquid or gas. The spray expands outward from the center of the nozzle, with a uniform droplet density throughout the coverage area and no gaps.

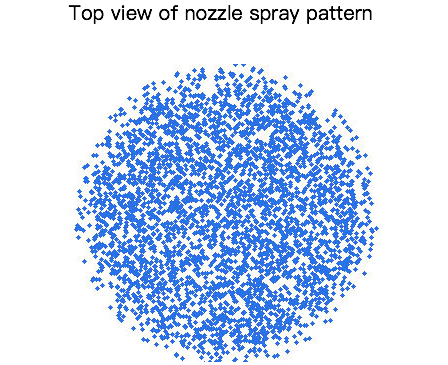

Solid cone nozzle coverage pattern

Nozzle full cone menghasilkan semprotan berbentuk kerucut padat yang menyebar merata ke seluruh area. Cocok untuk:

  • Pendinginan material
  • Pembilasan atau pencucian skala besar
  • Penyemprotan cairan kimia dalam proses industri

Kelebihan:
Distribusi cairan menyeluruh dan merata, efisien untuk cakupan luas.

Solid cone nozzle flow distribution
Solid cone nozzle flow distribution: Similar to fan-shaped nozzles, it exhibits a bell-shaped flow pattern with stronger intensity in the center and gradually weaker edges.
Solid cone spray effect illustration
Solid cone sprays are used for applications requiring dense liquid coverage over large areas, such as cooling systems, water mist fire suppression, and chemical equipment cleaning.

3 ) Hollow Cone Spray Nozzles

Hollow cone nozzle spray pattern
Hollow cone nozzle spray pattern: The spray forms a hollow cone shape, where the mist is concentrated along the outer edges of the cone, leaving the center area empty.

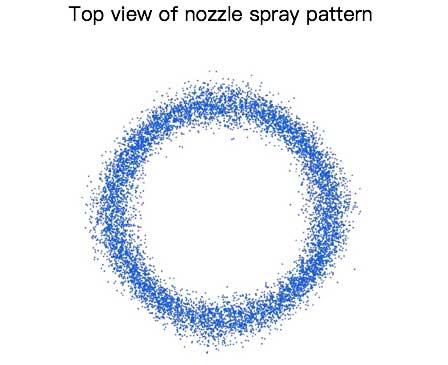

Hollow cone nozzle coverage pattern
Hollow cone nozzle coverage pattern: When the spray lands on a surface, it creates a ring-shaped coverage area around the perimeter, with the center remaining empty.

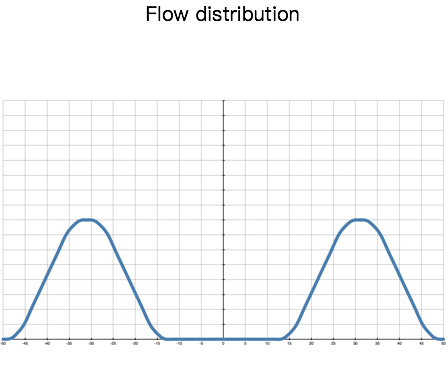

Hollow cone nozzle flow distribution
Hollow cone nozzle flow distribution: It exhibits a valley-shaped flow pattern, with stronger intensity at the edges and weaker intensity in the middle.
Hollow cone spray effect illustration
Hollow cone nozzles produce fine droplets, making them ideal for applications requiring uniform atomization and liquid conservation, such as air humidification, dust suppression, and environmental cooling in outdoor or industrial facilities.

4 ) Other Nozzles

Spiral Spray Nozzles

Spiral Nozzle Spray Pattern
Spiral nozzle spray pattern: Designed with a spiral structure, also known as a pig-tail or mosquito-coil nozzle, it produces a solid circular spray pattern.

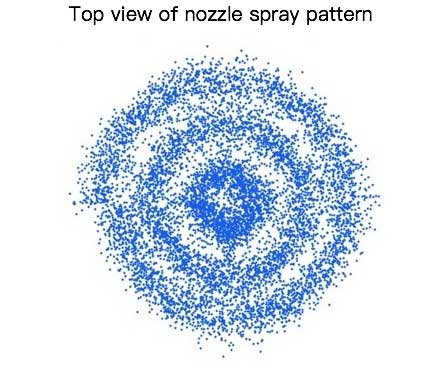

Spiral nozzle coverage pattern
Spiral nozzle coverage pattern: The spray coverage pattern of a spiral nozzle consists of multiple concentric circles.
Spiral nozzle flow distribution
Spiral nozzle flow distribution: The flow distribution of a spiral nozzle exhibits multiple valley-shaped patterns. The peaks of the valleys decrease progressively from the center outward, with the edges gradually weakening.
Spiral spray effect illustration
Spiral sprays are designed to resist clogging and provide rapid coverage over large areas. They are ideal for use in gas scrubbers, desulfurization systems, industrial fire suppression, disinfection, and dust control.

Linear Jet Nozzles

[待編輯]圖片標題
Nozzle Type: Needle nozzle, flat jet nozzle.
Shape Description: A linear spray pattern with a thin, concentrated water stream.
Features: High pressure and high velocity, delivering strong impact force.
Ideal for removing stubborn stains or deposits.
Can be paired with high-pressure pumps for long-distance cleaning.

Curtain Spray Nozzles

[待編輯]圖片標題
Nozzle Type: Water curtain nozzle.
Shape Description: A wide, uniform thin layer of water, creating a "water wall" or "barrier" effect.
Features: In fire scenarios, the water curtain acts as a barrier to prevent the spread of flames and heat, block smoke, toxic gases, or fire, and rapidly absorb heat to lower ambient temperatures.
Curtain sprays can also serve decorative purposes, such as in water shows or fountain displays.

Dual Fluid Spray

[待編輯]圖片標題
Nozzle Type: Air atomizing nozzle.
Shape Description: Produces extremely fine mist, resembling fog or smoke, and can be designed as a cone (solid or hollow) or fan shape depending on the application.
Features: High-precision atomization, suitable for applications like painting automobiles and furniture or humidification.
Also effective for dust suppression and cooling purposes.
[1]
