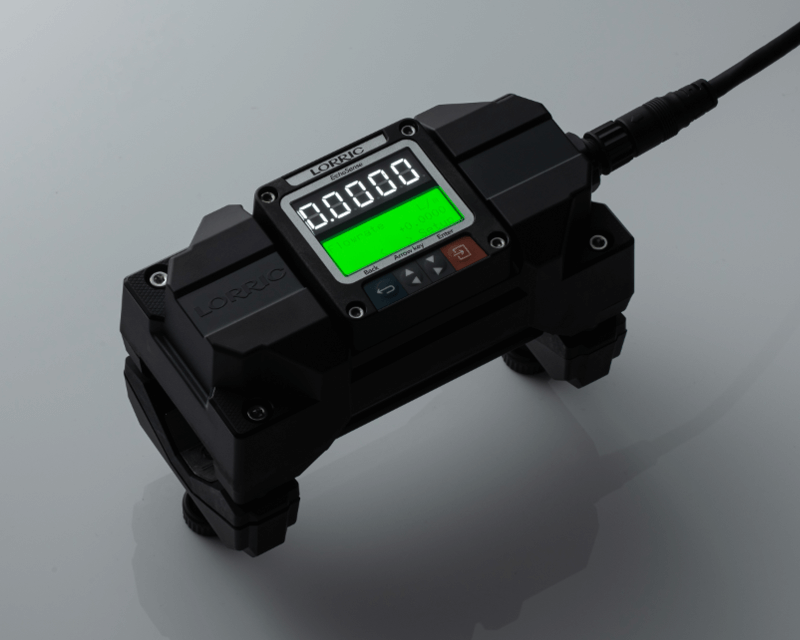

FU-ES

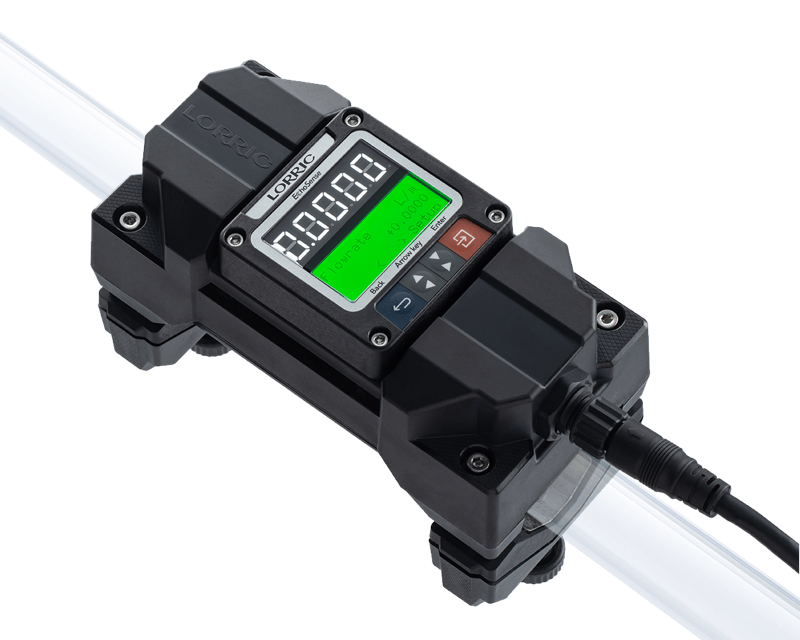

EchoSense Clamp-on Type Ultrasonic Flowmeter

Simple Technology, Made in Taiwan!

Experience the effortless power of EchoSense - ready-to-use without complicated setup. Our easy clip-on installation design saves time and effort, with no downtime or pipe cutting during maintenance. EchoSense is installed externally, preventing pipe damage, clogging, leaks, and pressure problems. Enjoy the cost-effective solution that reduces installation and maintenance expenses. Say goodbye to complexity and hello to efficiency with EchoSense!

Applicable for
Semiconductor Industry│Water Treatment Industry│Chemical Industry│Energy-Saving Monitoring│Water-Saving Management│Industrial Uses│Tap Water, Cooling Water, Hot Water, Raw Water, Sea Water, Beverages, Oil and Other Liquids│Power Plants (Nuclear Power, Thermal power, Hydraulic Power), Heating Place

Download Product Catalogue

Product Instruction manual

Features Specs Product Size

Features

Newly Invented "EchoSense" Technology

LORRIC, driven by innovative software thinking, tackles customer challenges with hardware solutions. EchoSense, an integrated technology powered by LORRIC's patents, revolutionizes flow monitoring. With our exclusive algorithm and ultrasonic wave detection, EchoSense simplifies the process. It automatically completes basic settings and enables immediate flow monitoring, setting it apart as the only ultrasonic flowmeter in the market that works right after installation. Say goodbye to delays and hello to instant results with LORRIC's EchoSense ultrasonic flowmeter

*EchoSense 1.0 now comes with intelligent detection and automatic pipe specification and material settings. And get ready for EchoSense 2.0, which will introduce the amazing feature of detecting and obtaining sound velocity data. Stay tuned for even more advancements in the world of EchoSense!

Suitable for various fluid flow detection in various states

No matter the liquid type—water, raw water, sea water, beverages, chemicals, solvents, or oils—EchoSense ultrasonic flowmeters excel in challenging conditions like high temperature, viscosity, and bubbles. They deliver highly accurate flow data, with a measurement precision of less than ±2%, even when there are small amounts of solids or bubbles. Count on EchoSense for reliable and precise flow measurements in any situation.

*Specific liquids with exceptionally high or low sound velocities may create abnormal conditions.

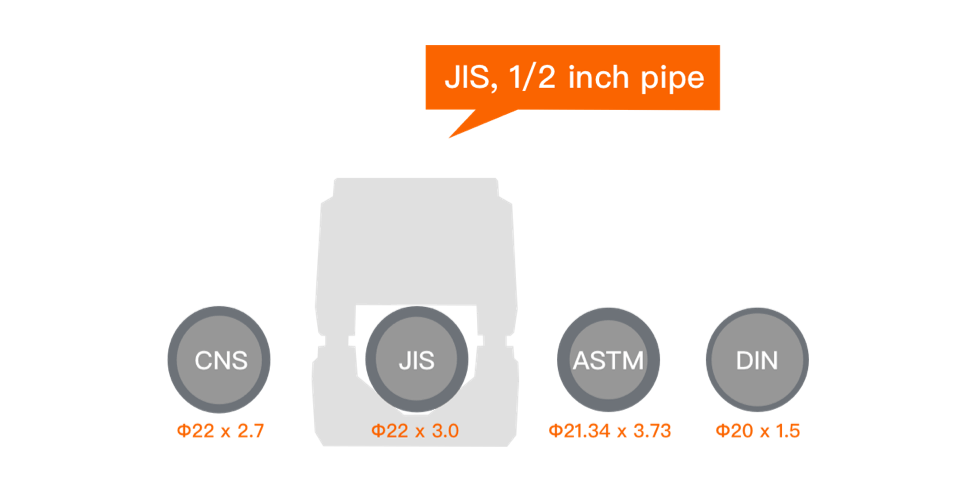

Automatic detection of pipe specifications

With "EchoSense" technology installation, you can skip the hassle of additional settings. It automatically detects and adapts to various pipe regulations used worldwide, such as Taiwan regulations, Japanese regulations, American regulations, and more. Say goodbye to manual configurations and enjoy the convenience of seamless integration with EchoSense.

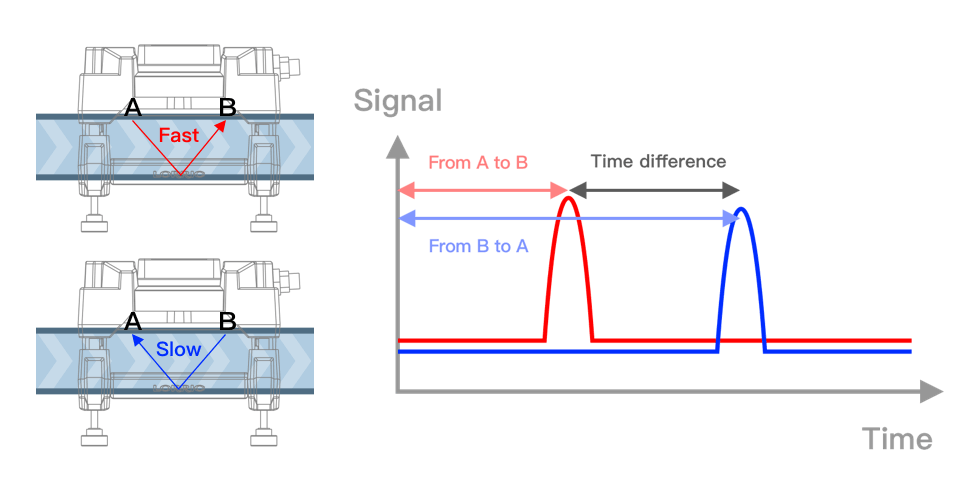

Monitoring Principle

Delta TOF (transit time difference method) is detected by the time difference between upstream and downlstream. If there are too many air bubbles, measurement will not be possible.

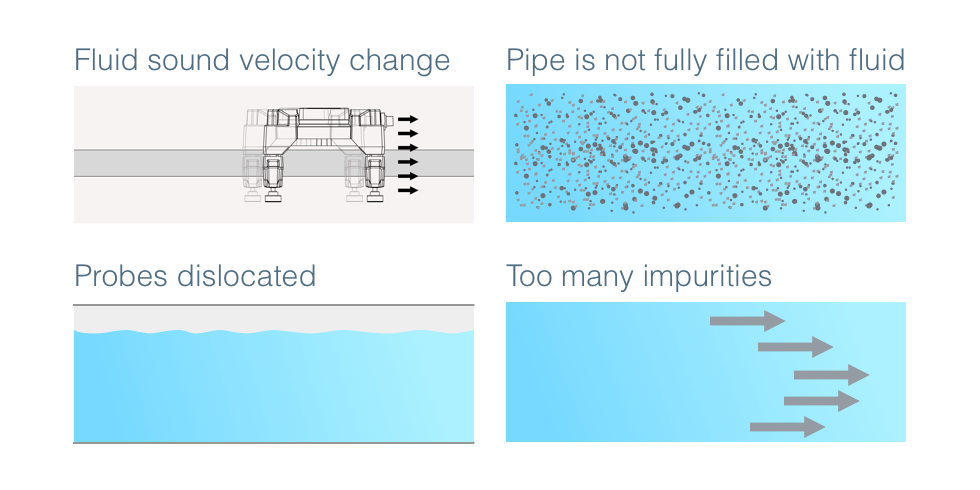

Real-time intelligent detection of common issues involve in using ultrasonic flowmeters.

EchoSense technology goes beyond acquiring pipeline-related data. It also collects ultrasonic detection data and applies advanced algorithms to analyze the fluid state within the pipeline.

Unlike other external ultrasonic flowmeters in the market that struggle to differentiate between zero flow, flowmeter misalignment, excessive impurities in the liquid, and changes in fluid sound velocity, EchoSense takes a different approach.

Instead of displaying zero flow or poor signal strength, it detects and distinguishes these situations. When a pipeline issue arises, EchoSense issues a warning, enabling users to accurately monitor the pipeline status, quickly identify the problem's cause, and find an instant solution. Say goodbye to misjudgment and troubleshooting delays with LORRIC's exclusive EchoSense technology.

Comparison of abnormal message display between LORRIC and other brands of ultrasonic flowmeters

	LORRIC EchoSense Ultrasonic Flow Meter	Other brands of clamp-on ultrasonic flowmeter
Abnormal installation or dislocation of flowmeter	Incorrect Installation	Abnormal Signal Strength or Zero Flowrate
Pipe Blockage, Excessive Impurities	Abnormal Fluid	Abnormal Signal Strength or Zero Flowrate
Flow is Zero	Flow is Zero	Flow is Zero
The change of liquid's sound velocity makes it impossible to measure	Abnormal Fluid Velocity	Abnormal Signal Strength or Zero Flowrate

Automatic detection of pipe specifications

Automatic detection of pipe specifications

EchoSense technology automatically senses the sound velocity of liquid in pipes and continuously corrects it in real time. This reduces flow monitoring errors and ensures precise measurements at all times. With EchoSense, say goodbye to monitoring inaccuracies and enjoy reliable flow measurement like never before.

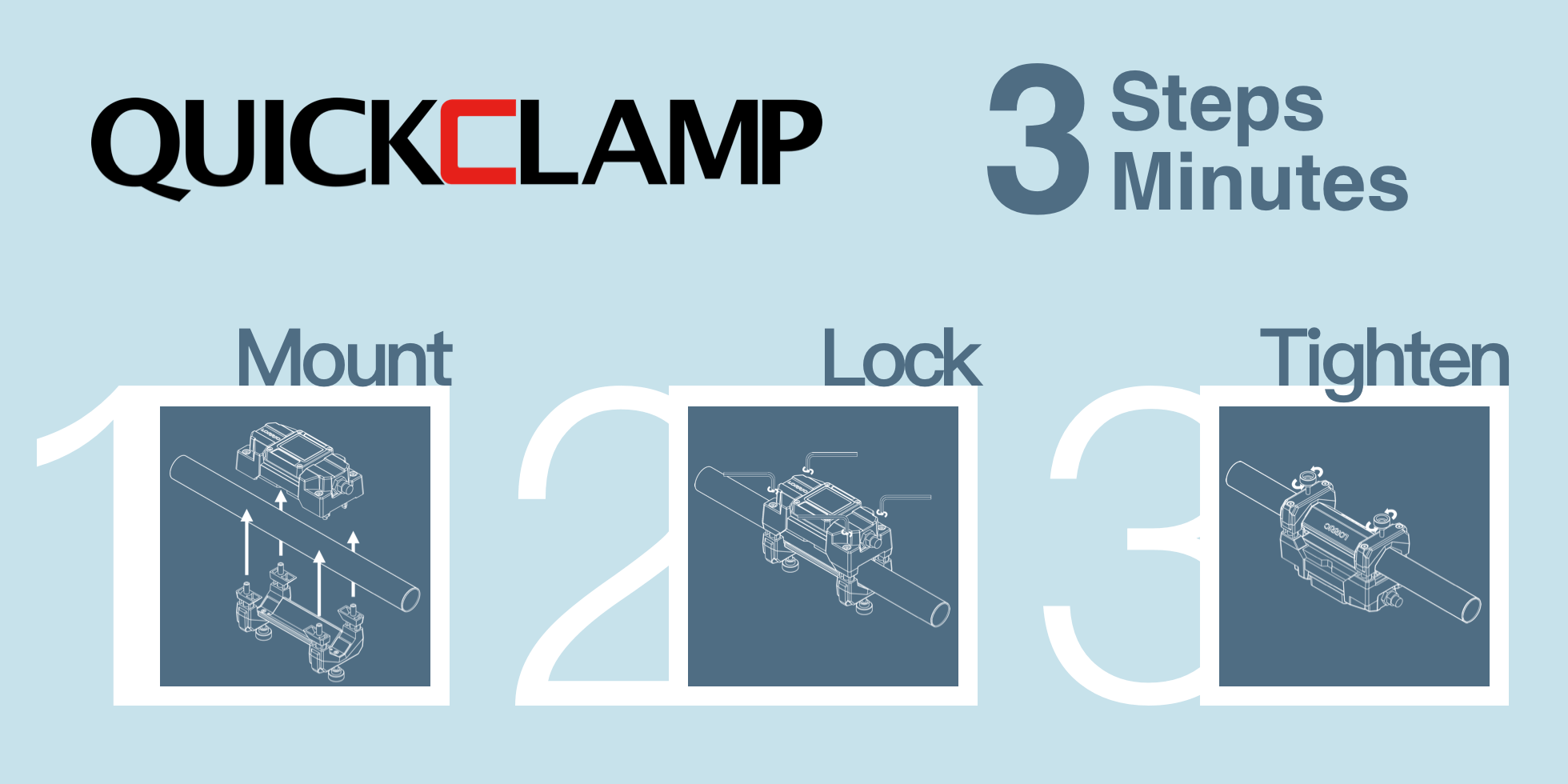

Just 3 Steps in 3 Minutes!

Ultrasonic flowmeters offer the advantage of easy installation without the need to cut the pipe. No machine downtime or pipe damage occurs during installation, eliminating the risks of pressure loss, leakage, and liquid deterioration. Say goodbye to complex pipe cutting and hello to seamless installation with ultrasonic flowmeters.

Even More Simplified Installation Experience

LORRIC understands the pain points of users and strives to enhance the installation experience. With the goal of simplicity and independence, we've designed our flowmeter with two easy-to-use horseshoe-shaped buckles. Just connect and insert them into the flowmeter body, and they securely clamp onto the pipe. No more hassle with screws that cause damage or misalignment. Our four-corner anti-falling screw design allows you to lock the sensor and buckle in place effortlessly using a hexagonal wrench, all with just one hand. And the top configuration knob ensures a perfect fit, tightly hugging the pipe's outer wall. It's a straightforward process that anyone can handle, even if you're new to it. No engineering background or experience required—installation has never been easier with LORRIC.

*The minimum flow rate may vary slightly depending on factors such as pipe diameter and fluid properties

Suitable for Different Types of Piping

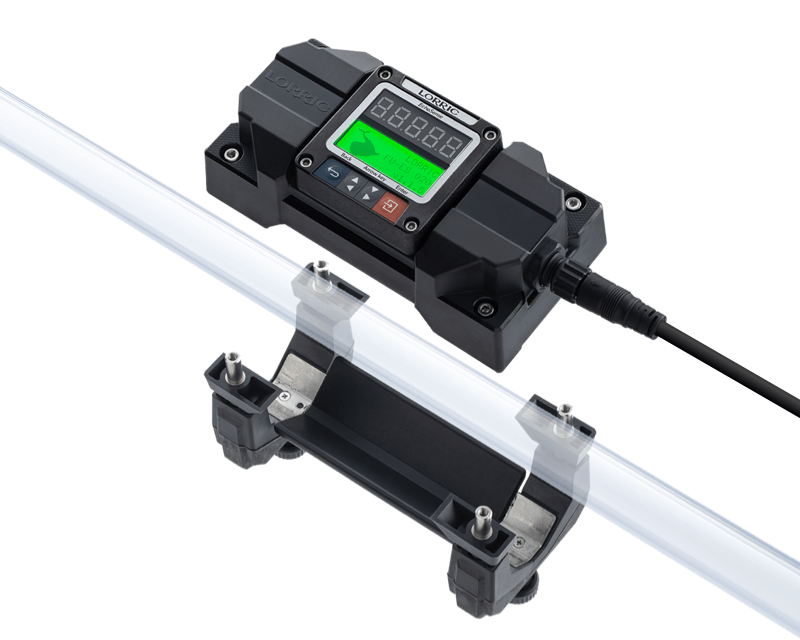

The EchoSense ultrasonic flowmeter is designed with a simple and convenient buckle system, allowing for easy installation on different types of pipes, including metal (such as iron and stainless steel) and plastic (such as PVC, PVDF, PP) pipes. It is compatible with various pipe specifications, such as American, Japanese, and Taiwanese standards. With EchoSense, you can effortlessly start monitoring the flow rate in no time.

*PVDF and PP pipes with special dimensions may have weaker signal strength

Other Important Features

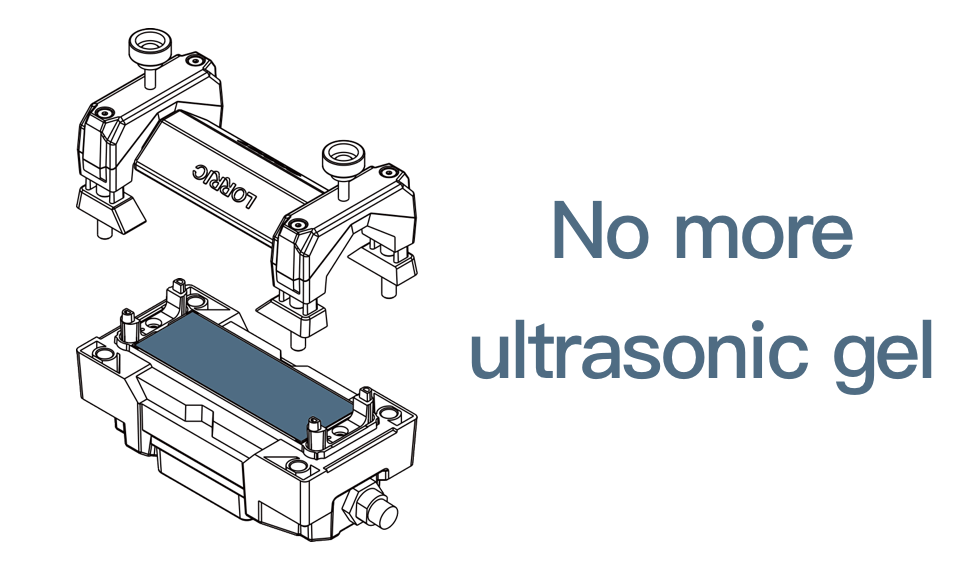

No More Need for Ultrasonic Gel

The EchoSense ultrasonic flowmeter has a special design called the "ultrasonic gasket pad" at the bottom. It eliminates the need for ultrasonic gel and doesn't require frequent replacement. This saves time, money, and reduces the need for manual labor.

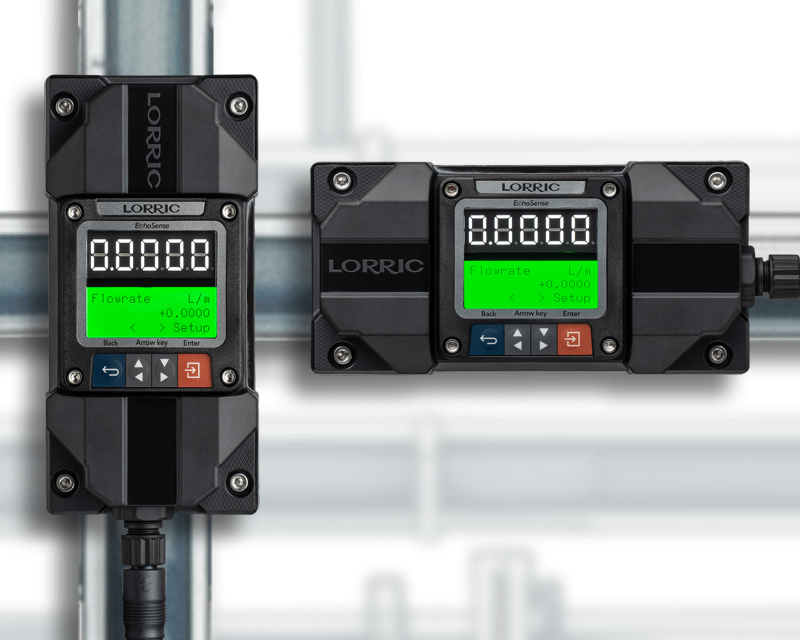

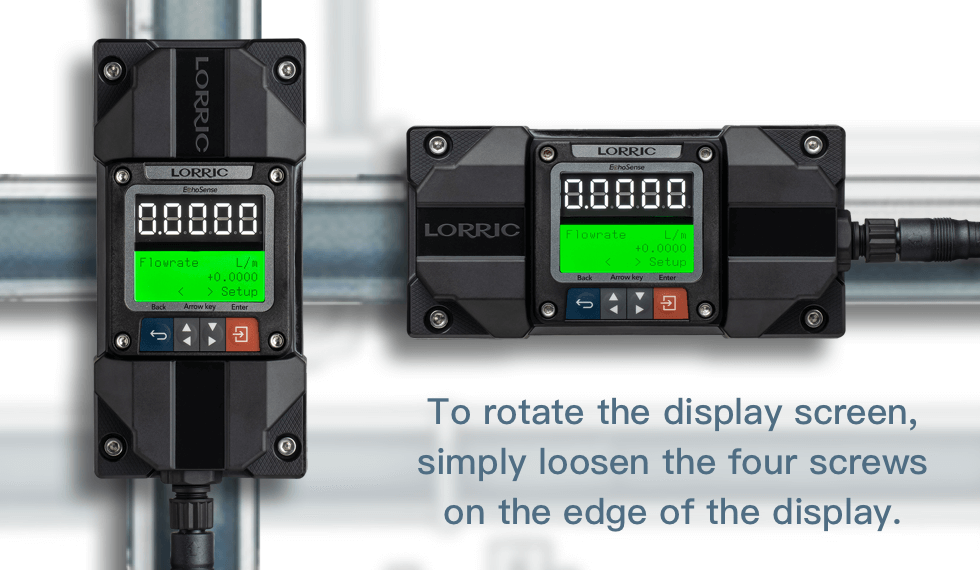

EchoSense display screen can be switched based on whether the pipe is vertical or horizontal

The LORRIC pipe clamp type ultrasonic flowmeter head screen display panel adjusts its viewing direction according to the piping orientation, whether horizontal or vertical. This allows for convenient flow monitoring in different piping situations.

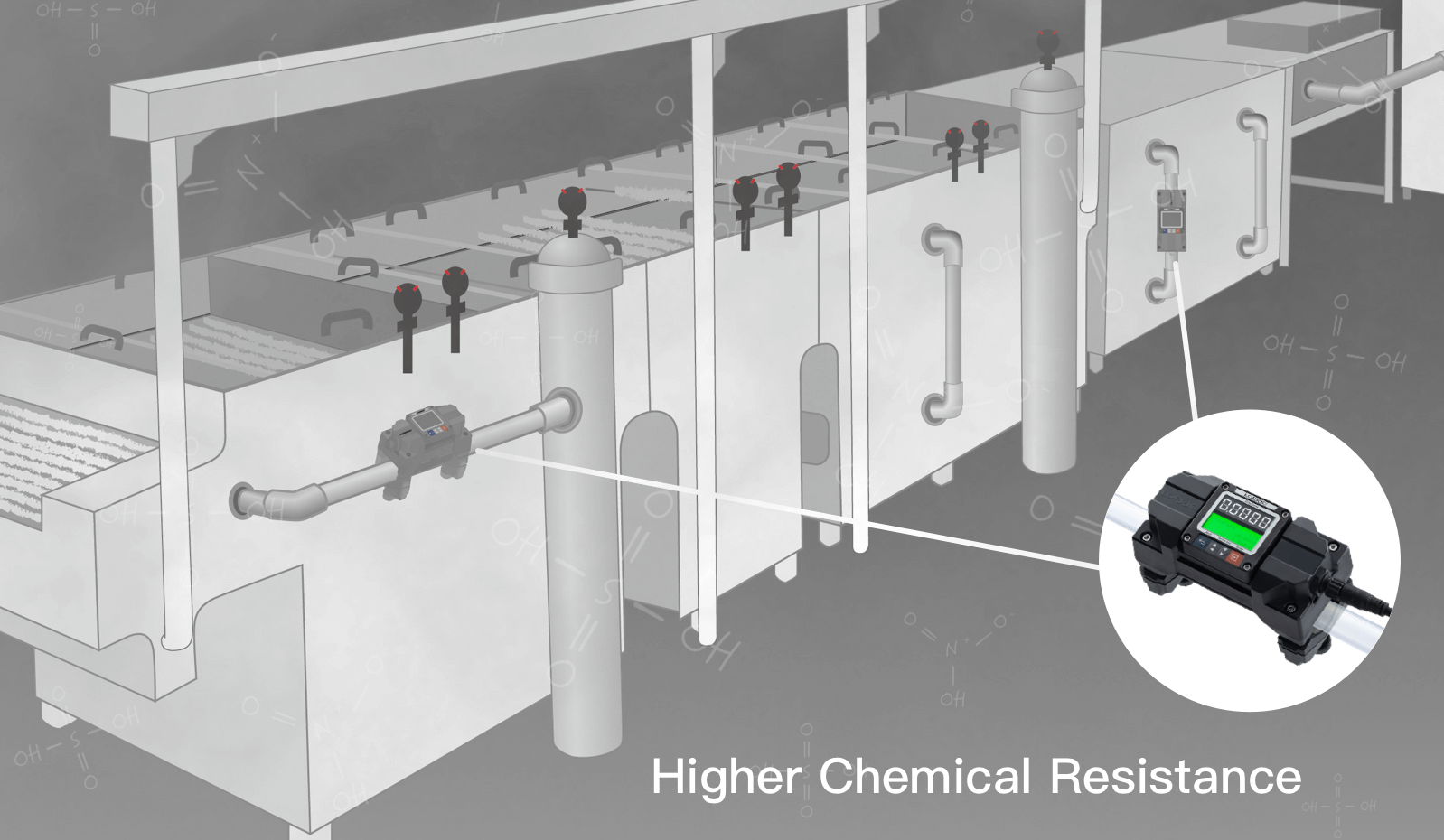

Provides the Highest Chemical Resistance Up-to-Date

Except for a few metal components such as screws and buckles made of 304 stainless steel, the overall construction of the device is composed of engineering plastics such as Nylon, PPS, and PEEK. With excellent chemical resistance and a durable appearance, it's perfect for any environment. Plus, it embraces the 5S management concept for streamlined efficiency and offers a long service life you can rely on.

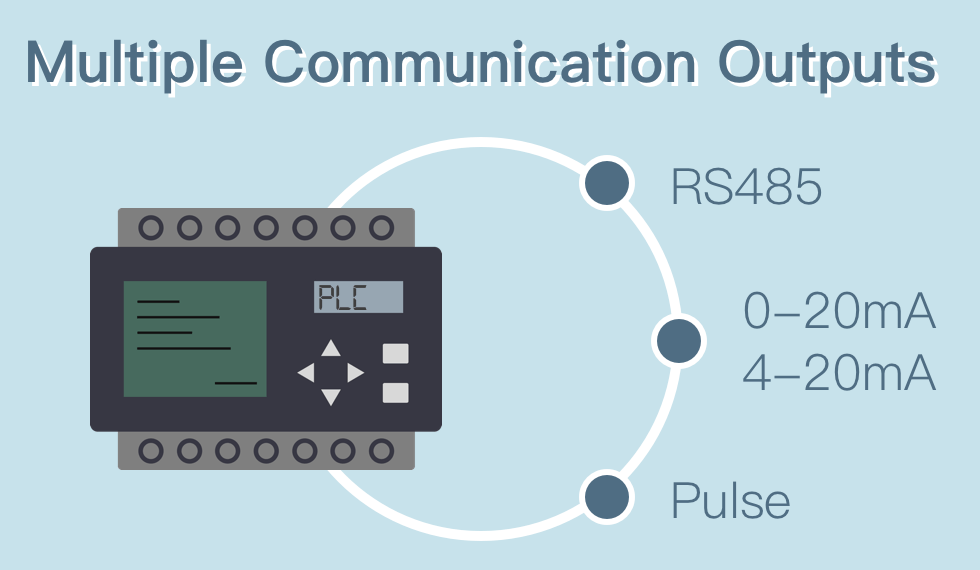

Multiple Communication Outputs

Built-in communication modes such as Rs485, 0-20mA/4-20mA, Pulse, etc., can switch programs and communication modes according to environmental needs.

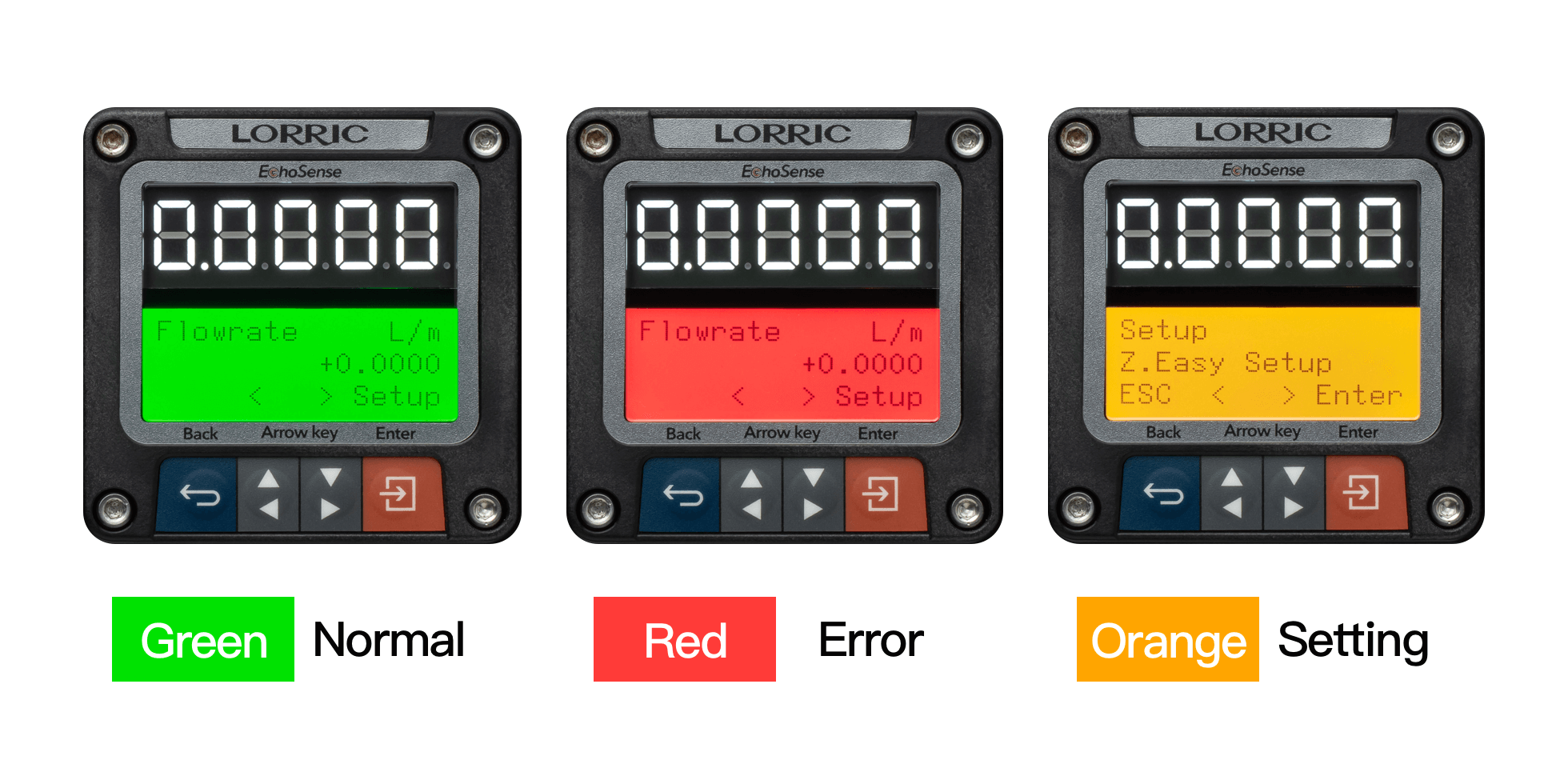

Large green, orange and red alarm indicator lights

◉ Large bright LED screen allows for data monitoring at any time from far away, which saves the need to constantly check the screen from up close.。

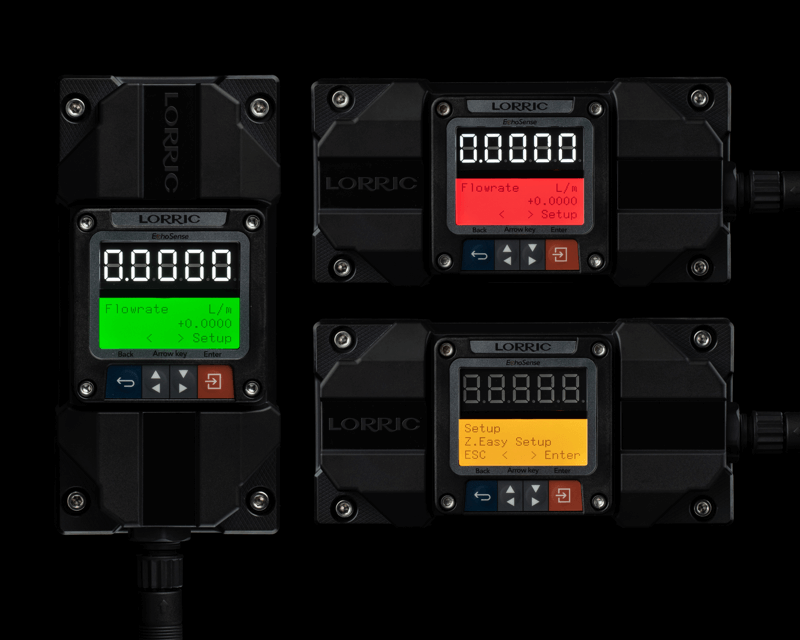

◉ Green, orange and red indicator lights: Red – Major abnormality; Green – Normal operation; Orange – Non-urgent data display. This system’s big advantage is that no matter how far the user stands from the screen, the changing indicator light’s color can clearly indicate the status of the equipment and whether any abnormality occurs.

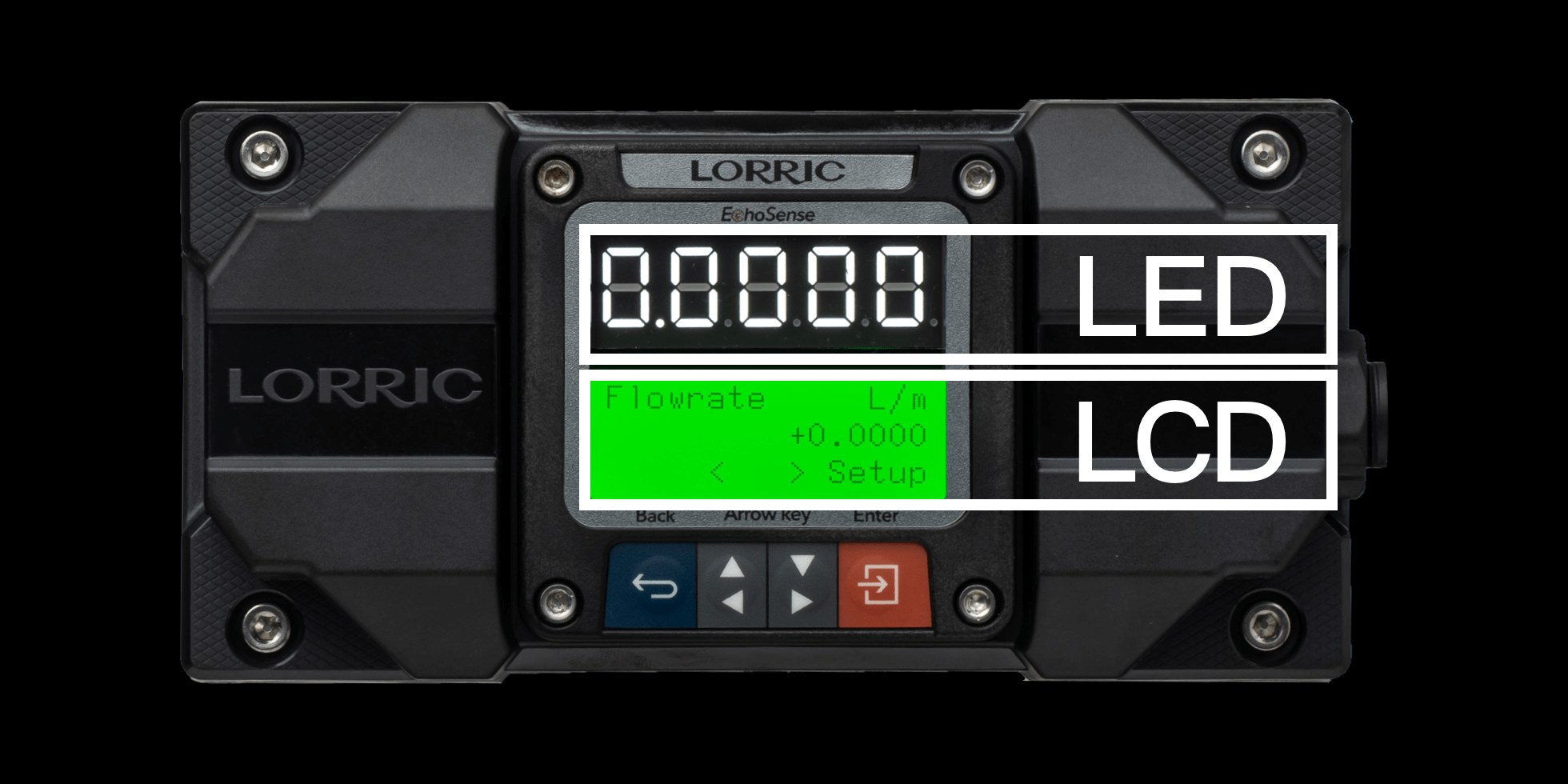

Exclusive LCD/LED double screen design, double screen monitoring

Currently in the process of filing for a patent trademark in the whole world

◉ Double screen display：LED-5 digits LED/LCD 16x3 LCD backlight display

◉ Large bright LED digits display screen for flow observation：LED’s brightness is best suited for long-distance monitoring. Because of limited display space – numbers are better suited than words. In LORRIC’s design philosophy, we chose to line up a large LED screen to display mostly numerical data for flow monitoring. This allows the users standing further away to clearly observe the immediate flow conditions without the need to get closer.

◉ LCD screen best suited for the display of more complex text-based details：Software interface, screen clarity, and button design all contribute to a superior more convenient installation experience, especially at times when attempting to use small narrow spaces for flowmeter installation. LORRIC’s paddlewheel flowmeter’s LCD screen can be used for the task of installation and setup, as the LCD screen’s ability to display more detailed text makes it easier for the user to clearly identify all needed options, thus contributing to smoother and quicker flowmeter installation process.

Complete and easy-to-understand instruction

LORRIC provides detailed product instructions on different platforms: Users can view electronic manuals on their mobile phones, which increases the convenience of on-site operations. Users can also better understand the operation process through our youtube educational videos. LORRIC increases the user's ease of use of product instructions, which improves the efficiency of completing tasks.

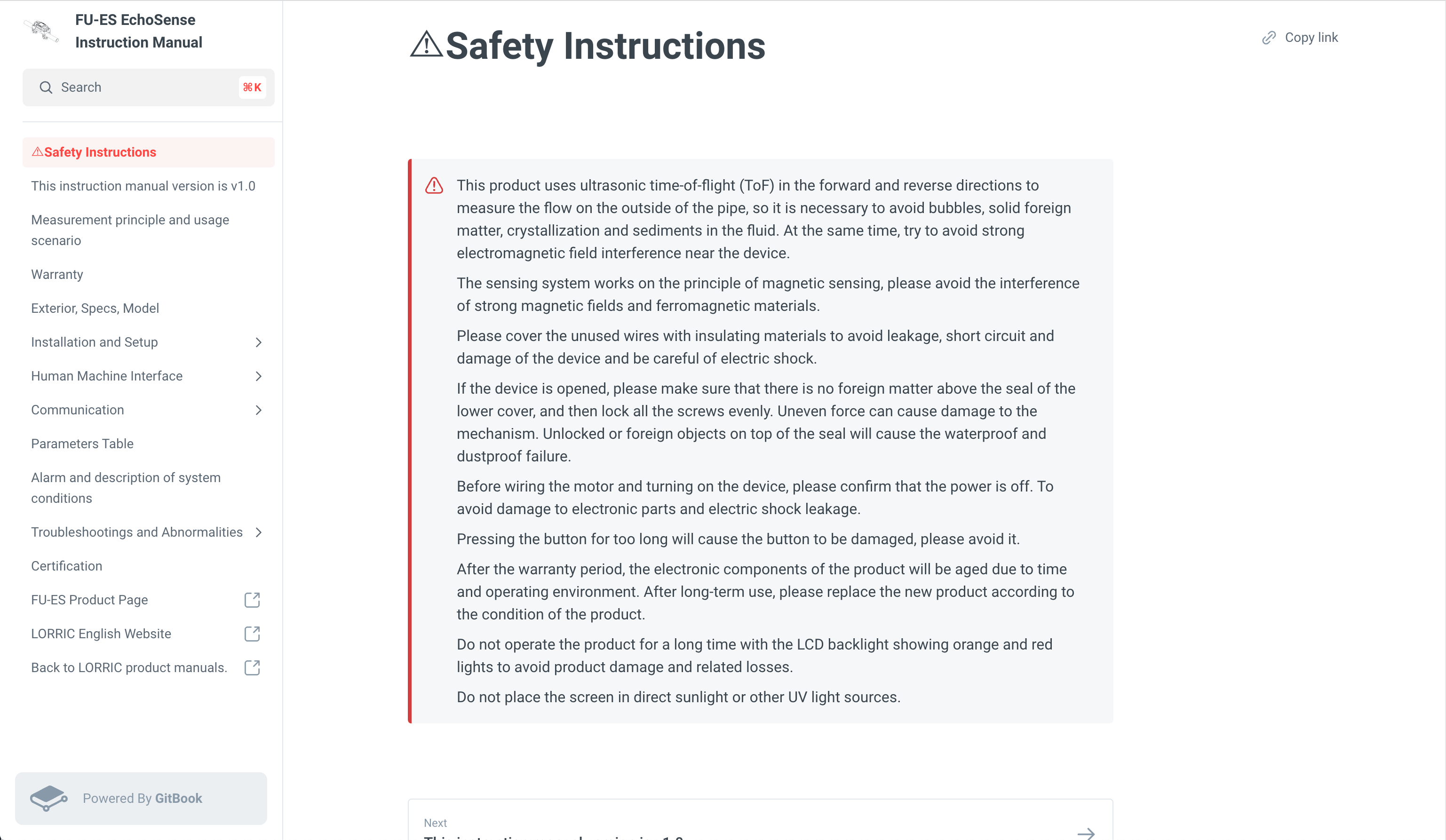

FU-ES EchoSense Clamp-on Type Ultrasonic Flowmeter instruction Manual

The manual includes product safety instructions, hardware/firmware version instructions, measurement principles, usage scenarios, warranty, product appearance, etc.

➔EchoSense Clamp-on Type Ultrasonic Flowmeter Instruction Manual v1.0

Youtube Channel- LORRIC

➔ Watch the videos and subscribe the channel.

Comparison with Other Measurement Principles on the Market

	Variable area flowmeter	Paddle wheel flowmeters	EchoSense Clamp-on Type Ultrasonic Flowmeter	Electromagnetic flowmeter	Ultrasonic flowmeters
Pipeline loss	Low	Low	No	No	No
Non-invasive install	No	No	Yes	No	Yes
Installation Difficulty	High	High	Low	High	Middle
Installation Time Required	Slow	Slow	Extremely fast	Slow	Fast
Precision	Middle	Middle	High	highest	High
Bidirectional flow detectable	No	No	Yes	Yes	Yes
Automatic Detection of Pipe Specifications	No	No	Yes	No	No
Blockages	Possible	Possible	Not possible	Not possibl	Not possibl
Applicable fluid	Air / Liquid	Liquid	Liquid (contains impurities)	Conductive liquid	Liquid
Cost	Lowest-costs in small diameter pipe, cost increases with pipe diameter	Low-costs, cost increases with pipe diameter	Average Price, the price does not increase with the pipe diameter	High-costs, cost increases with pipe diameter	Middle-costs Cost does not increase with pipe diameter

Specs

	FU-ES015	FU-ES020	FU-ES025	FU-ES032	FU-ES040	FU-ES050	FU-ES065	FU-ES075
Installation method	Outside the pipe (clamp-on type)
Applicable diameter	20-22 mm	25-27.2 mm	32-34 mm	38-42.16 mm	48-50 mm	60-63 mm	73-76.3 mm	88.9-90 mm
Applicable diameter	0.79-0.87 inch	0.83-0.87 inch	1.26-1.34 inch	1.5-1.66 inch	1.89-1.97 inch	2.36-2.48 inch	2.87-3 inch	3.5-3.54 inch
Applicable pipe material	Metal pipe, Plastic pipe (UPVC, PPH, PVDF)
Applicable fluid	Various liquids (no impurities or air bubbles)
Applicable fluid temperature	0 ~ 85°C (no ice on the piping surface)
Velocity range	±0.3 to 6.0 m/s recommended, ±0.1 to 10m/s measurable
Flow range	1.5-120 LPM	2-200 LPM	3-300 LPM	5-470 LPM	8-770 LPM	13-1320 LPM	22-1670 LPM	30-1870 LPM
Flow range	0.4-31.7 gpm	0.53-52.83 gpm	0.53-52.83 gpm	1.32-124.16 gpm	2.11-203.41 gpm	3.43-348.71 gpm	5.81-441.17 gpm	7.93-494 gpm
Language	English, Traditional and Simplified Chinese (others can be customized)
Units	Metric - Meters, Cubic Meters, Liters Time - Seconds, Minutes, Hours, Days Imperial - Feet, Cubic Feet, UK gallon, US gallon
Display mode	Dual screen display: 5-digit LED + 3-color backlight, 3-line 16-character LCD
Display update cycle	0.5s、1s
Measurement Accuracy	±3.0% RD at 10% to 100% of F.S. ±0.3% F.S. at 0% to 10% of F.S.*
Display resolution	Maximum resolution 0.0001 (finest)
Power demand	DC 12V to 36V
Power I/O Connector	M12 8-pin connector
Input/Output	Analog output with self-powered 16-bit 4-20mA Modbus RTU RS485 two-wire optocoupler switch signal (with 2 meters long signal line)
Consumption current	<200mA@12V when starting up and working stably (not included in the communication current)
Protection circuit	Power reverse connection protection, Power surge protection
waterproof level	IP66 **
Ambient temperature	-10 ~ 60°C (no freezing)
Relative humidity	35~ 85%RH (non-condensing)
material	PPS+GF、PEEK、NBR、Silicon、PA66+GF、PC+GF、SS304、PMMA
weight (g)	770	770	785	800	1390	1540	1580	1650

* The measurement accuracy is established in a controlled laboratory environment where the pipe and fluid conditions are set and the instrument is calibrated to zero before conducting tests at 25°C. Although statistical results are obtained under these conditions, there may be variances in accuracy when used in customer environments.

** Incorrect installation when rotating the screen by loosening the screws around it may affect the IP66 waterproof protection.

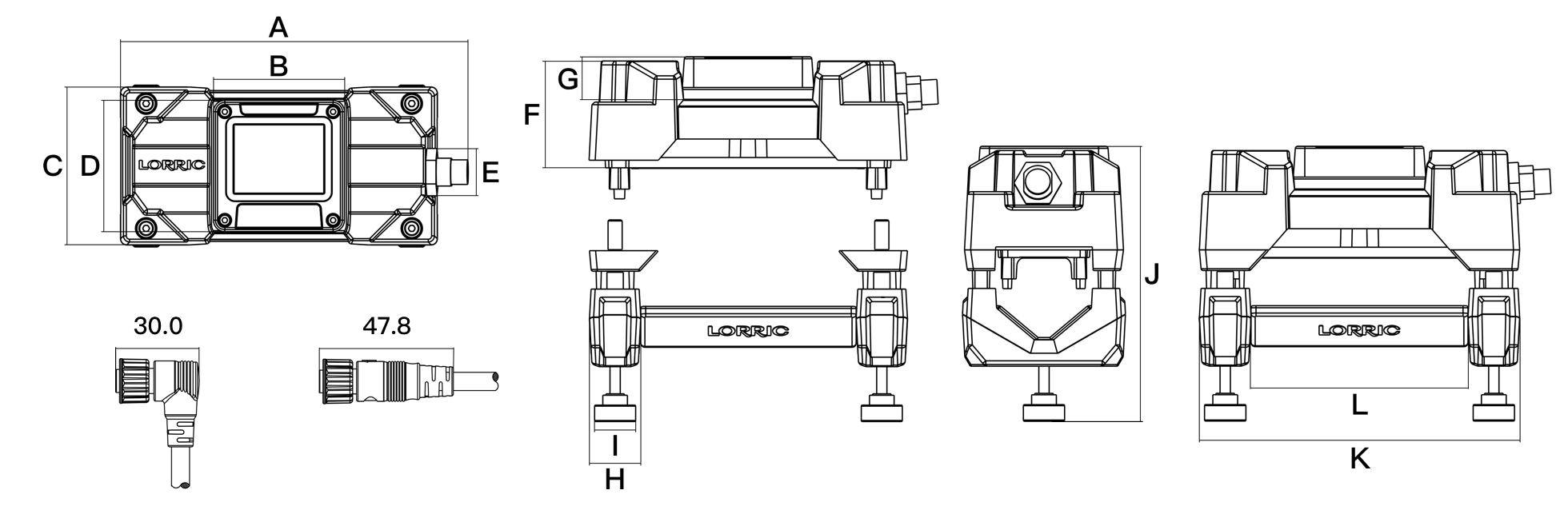

Size

EchoSense 單件式易扣超音波流量計 (超聲波流量計) 尺寸表

FU-ES series (mm)
Model	A	B	C	D	E	F	G	H	I	J	K	L
FU-ES015	169.85	64	79	64	22	54	22	25	20	120.53	155	105
FU-ES020	169.85	64	79	64	22	54	22	25	20	124.02	155	105
FU-ES025	169.85	64	79	64	22	54	22	25	20	133.52	155	105
FU-ES032	169.85	64	79	64	22	54	22	25	20	143.02	155	105
FU-ES040 / FU-ES050 / FU-ES065 / FU-ES080 Coming soon

⚠Safety instructions:

1. After the warranty, the electronic components of the product will age due to time and operating environment. Under long-term use, please replace the new product according to the condition of the product.

2. Do not operate the product under an Orange or Red LCD Backlight for a long time. Product damage and related losses may occur.
