KLD20S 2-way Motorized Ball Valve

KLD 20S Series Electric Ball Valve, rated for up to 70,000 cycles. Compact design with multiple small-diameter options. CE and ISO 9001 certified. Optional handwheel operation available.

Brand: KLD
Valve Type: 20S Series Electric Ball Valve
Size: 1/4 ～ 1-1/4"
Voltage: DC 5V, DC 12V, AV/DC 5V, AC 220V, DC 24V optional
Media Pressure: Up to 1.0 MPa (PN10)
Media Temperature: 0°C to 100°C
Ambient Temperature: -20°C to 45°C
Ambient Humidity: IP67 type – ≤85% RH (non-condensing)
Moisture-resistant type – >85% RH

Catalog Manual

Inquire now
Ball Valve

Ball Valve

A ball valve controls flow by adjusting the opening of a spherical element. It forms a tight seal with the seat for zero or minimal leakage, and operates with a quick 90° turn. The full-bore design ensures low pressure loss, while its compact size suits space-constrained or modular systems. Ideal for tight shutoff and emergency stop applications.

20S Series Actuator

The 20S electric ball valve actuator supports a wide voltage range from DC 5V to AC 220V. Compact in size, it delivers up to 70,000 cycles with a fast 2-second open/close response. Certified with CE and ISO 9001, it passes insulation and dielectric tests to ensure safe, stable operation. Rated IP67 for water and dust protection, and available in a moisture-resistant version for humid or low-temperature environments. Features flexible wiring, easy installation, low noise, and maintenance-free performance.

20S Series Actuator
20S Series Metal Valve Body

20S Series Metal Valve Body

•Body Materials: Nickel-plated brass, 304 stainless steel, 316L stainless steel
•Ball Materials: 304, 316L, PPO
•Seal Materials: EPDM, NBR, FKM
•Applicable Media: Liquids and gases
•Size Range: Refer to valve specifications; available from DN8 to DN32

Multiple Valve Body Designs and Connection Types

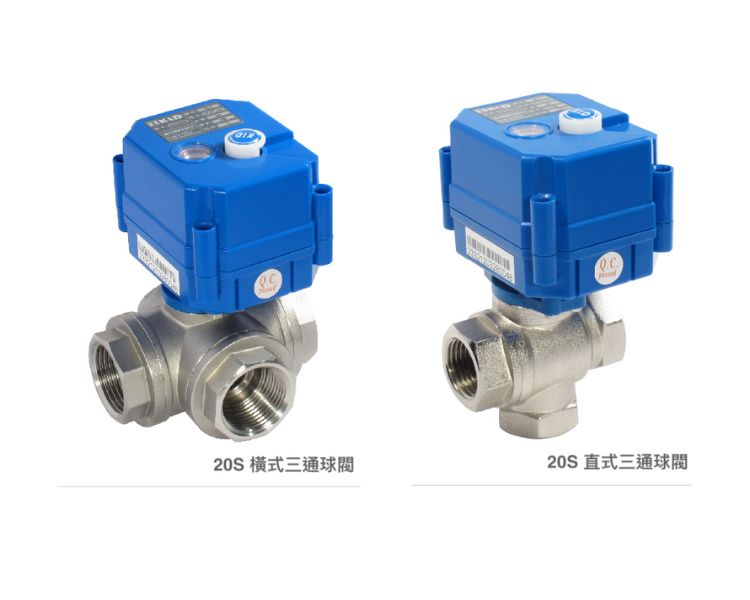

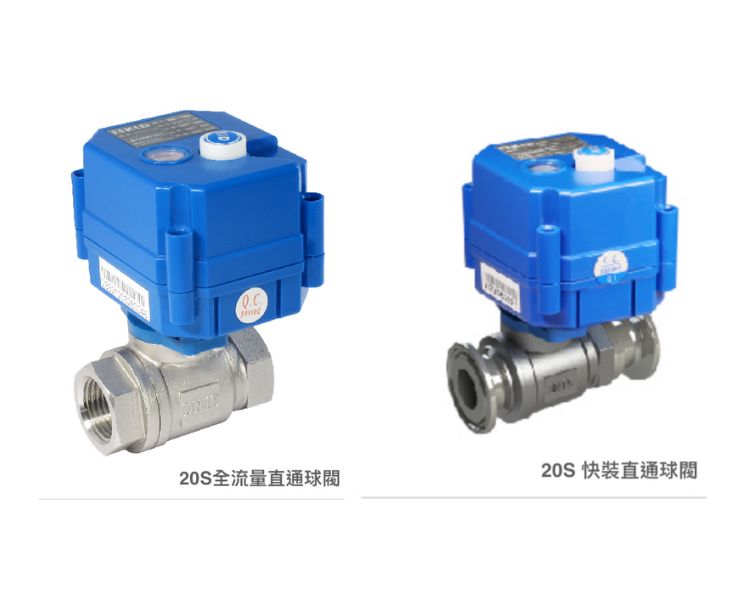

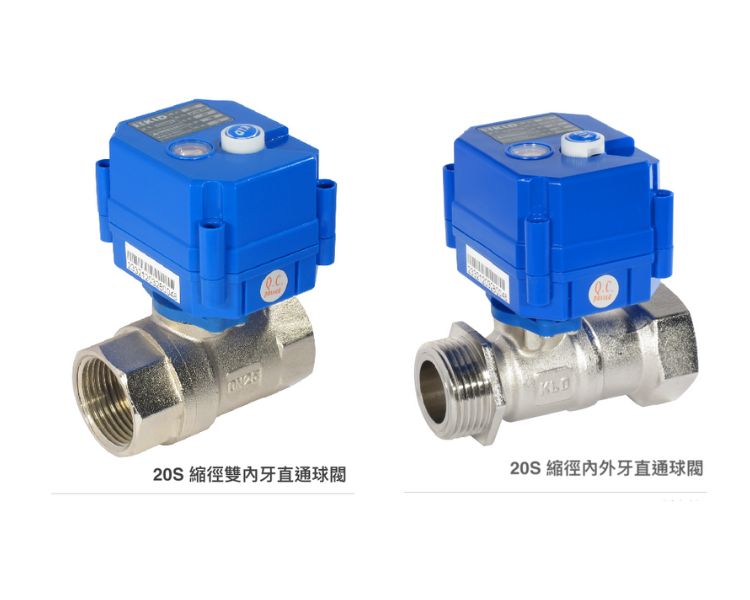

The 20S series offers various ball valve body structures and connection options:
• Flow Configurations: 2-way (straight-through), 3-way
• Connection Types: Female thread, male thread
• Bore Types: Full bore, reduced bore

Multiple Valve Body Designs and Connection Types
Optional Handwheel

Optional Handwheel

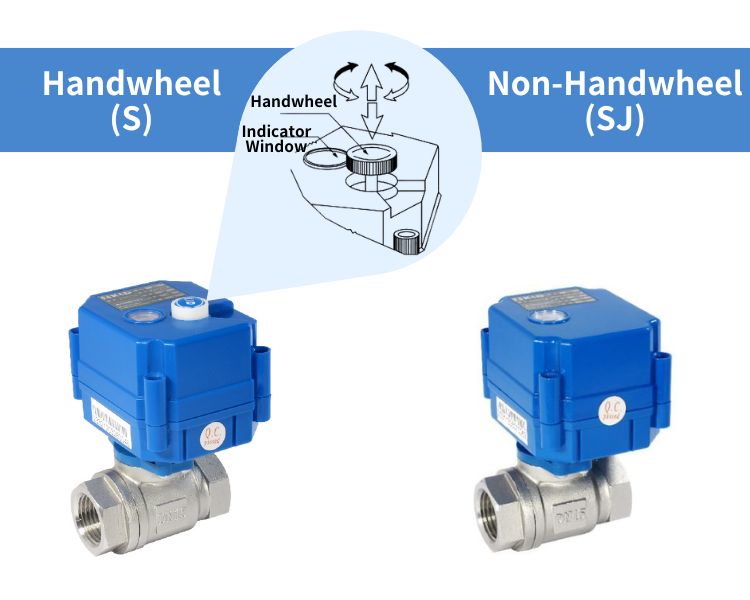

The actuator comes in two versions: handwheel (S) for manual override, and non-handwheel (SJ) for fully automatic electric operation.
■ Handwheel Operation Instructions
1. Manual operation must be performed with power off. To operate, lift the manual override button and slowly turn the handwheel to the desired valve position.
2. In the indicator window, the red line parallel to the pipeline indicates "open", while perpendicular indicates "closed."

Applications

■ Industrial automation equipment and instrumentation
■ Smart water-saving controllers and system actuators
■ Environmental protection, low flow rate, water supply and drainage, and water treatment projects

Applications
No. Part Name Optional Materials
1 Valve Body Nickel-plated Brass / 304 / 316L
2 Ball 304 / 316L / PPO / Special Wear-Resistant Ball
3 Valve Cover Nickel-plated Brass / 304 / 316L
4 Stem Brass / 304 / 316L
5 Ball Seat ※1 PTFE
6 Valve Cover O-ring EPDM / NBR / FKM ※2
7 Stem O-ring EPDM / NBR / FKM ※2
8 Mounting Bracket PA66
9 Coupling 304
10 Window Transparent PC
11 Handwheel ※3 POM
12 Label PC
13 Upper Cover PC Alloy ※4
14 Cable Gland Nut PA66
15 Lower Cover PC Alloy ※4

全流量直通型





閥體類型 接口形式 口徑 d L1=L2 L H
 H1 H2 F G1 材質 W (Kg)
全流量 雙內牙 DN8 8.00 11.00 43.00 89.00 11.00 18.25 17.00 G1/4" Cu/304/316L 0.25
DN10 10.00 11.50 50.00 92.00 12.50 19.75 20.00 G3/8" 304/316L 0.28
DN15 15.00 13.00 57.00 97.50 16.50 21.25 27.00 G1/2" Cu/304/316L 0.38
DN20 20.00 16.00 70.00 107.00 21.50 25.75 32.00 G3/4" Cu/304/316L 0.54

注：表格若無顯示完全，可左右滑動
1.接口螺紋可選NPT、G等，訂貨時需注明。
2.介質溫度為100℃-120℃時，需加高溫支架，產品總高度=H+57mm。
3.介質溫度為120℃—150℃時，需加高溫支架，產品總高度=H+107mm。

快裝型
閥體類型 接口形式 口徑 d d1 d2 L L1 H1 H2 F H W(Kg)
全通徑 快裝 DN10 10.00 34.00 25.00 75.00 45.00 19.75 17.00 8.50 96.50 -
DN15 14.00 34.00 27.50 75.00 45.00 21.75 17.00 13.00 98.00 -
DN20 18.50 34.00 50.50 90.00 50.00 25.75 25.25 17.50 110.75 -

注：表格若無顯示完全，可左右滑動
1.接口螺紋可選NPT、BSPT、RC等，訂貨時需注明。
2.介質溫度為100℃-120℃時，需加高溫支架，產品總高度=H+57mm。
3.介質溫度為120℃—150℃時，需加高溫支架，產品總高度=H+107mm。

橫式三通型
閥體類型 接口形式 口徑 d L1=L2=L3 L L4 H H1 H2 F G1 材質 W(Kg)
橫式三通 全內牙 DN8 6.00 11.70 50.00 38.50 89.00 11.00 18.25 17.00 G1/4" Cu/304/316L 0.31
DN10 8.00 13.00 55.00 44.00 92.00 13.00 19.25 20.00 G3/8" 304/316L 0.35
DN15 12.00 15.00 67.00 54.50 98.00 17.00 21.25 27.00 G1/2" Cu/304/316L 0.54
DN20 15.00 15.00 77.00 64.00 103.25 20.25 23.25 31.00 G3/4" Cu/304/316L 0.71
DN25 15.00 18.00 94.00 72.50 103.25 20.25 23.25 38.00 G1" Cu/304/316L 0.98

注：表格若無顯示完全，可左右滑動
1.接口螺紋可選NPT、BSPT、RC等，訂貨時需注明。
2.介質溫度為100℃-120℃時，需加高溫支架，產品總高度=H+57mm。
3.介質溫度為120℃—150℃時，需加高溫支架，產品總高度=H+107mm。

直式三通型





閥體類型 接口形式 口徑 d L1=L2=L3 L H (S) H (J) H1 H2 F G1=G2=G3 材質 W(Kg)
直式三通 全內牙 DN15 13 13 57 109.5 106 28.5 21.25 27 G1/2" Cu/304 0.42
DN20 18 16 70 122.5 119 37 25.75 32 G3/4" Cu 0.46
DN25 18 18 76 129.5 126 44 25.75 38 G1" Cu 0.66

注：表格若無顯示完全，可左右滑動
1.接口螺紋可選NPT、BSPT、RC等，訂貨時需注明。
2.介質溫度為100℃-120℃時，需加高溫支架，產品總高度=H+57mm。
3.介質溫度為120℃—150℃時，需加高溫支架，產品總高度=H+107mm。

縮口雙內牙型
閥體類型 接口形式 口徑 d L1=L2 L H (S) H1 H2 F G1=G2 材質 W(Kg)
縮徑兩通 雙內牙 DN20 15 15 64.5 97.5 16.5 21.25 30 G3/4" Cu/304/316 0.41
DN25 20 18 76.0 106.0 21.5 24.75 38 G1" Cu/304/316 0.60
DN32 20 20 80.0 108.5 24.0 24.75 48 G1-1/4" Cu 0.70

注：表格若無顯示完全，可左右滑動
1.接口螺紋可選NPT、BSPT、RC等，訂貨時需注明。
2.介質溫度為100℃-120℃時，需加高溫支架，產品總高度=H+57mm。
3.介質溫度為120℃—150℃時，需加高溫支架，產品總高度=H+107mm。

縮口內牙＋外牙型
閥體類型 接口形式 口徑 d L1 L2 L H (S) H1 H2 F G1=G2 材質 W(Kg)
縮徑兩通 內外牙 DN20 14.0 10.0 15.0 67.5 97.5 16.5 21.25 30 G3/4" Cu 0.43
內外牙 DN25 14.0 12.0 15.0 80.0 99.5 18.5 21.25 37.00 G1" Cu 0.49
內外牙加長 DN25 14.0 12.0 15.0 90.0 99.5 18.5 21.25 37.00 G1" Cu 0.53
內外牙 DN32 18.5 20.0 13.0 85.0 108.5 24.0 24.75 48.00 G1-1/4" Cu 0.73

注：表格若無顯示完全，可左右滑動
1.接口螺紋可選NPT、BSPT、RC等，訂貨時需注明。
2.介質溫度為100℃-120℃時，需加高溫支架，產品總高度=H+57mm。
3.介質溫度為120℃—150℃時，需加高溫支架，產品總高度=H+107mm。

20S Electric Ball Valves Full Port Quick-Connect Horizontal 3-Way Vertical 3-Way Reduced Port Female-Female Reduced Port Male-Female
Reference
Size (DN) 8/10/15/20 10/15/20 8/10/15/20/25 15/20/25 20/25/32 20/25/32
Rotation Angle 90°±2° 90°/180°/270°
Media Liquids, Gases
Media Temperature 0–100°C
Working Pressure ≤1.0 MPa
Body Material Stainless Steel 304, 316L
Seal Material EPDM, NBR, FKM
Thread Type NPT
20S Electric Ball Valves Full Port Quick-Connect Horizontal 3-Way Vertical 3-Way Reduced Port Female-Female Reduced Port Male-Female
Reference
Size (DN) 8/10/15/20 10/15/20 8/10/15/20/25 15/20/25 20/25/32 20/25/32
Rotation Angle 90°±2° 90°/180°/270°
Media Liquids, Gases
Media Temperature 0–100°C
Working Pressure ≤1.0 MPa
Body Material Stainless Steel 304, 316L
Seal Material EPDM, NBR, FKM
Thread Type NPT
