HUSKY Air Operated Diaphragm Pumps (AODD)

Husky features an advanced modular air-valve design and rugged materials to deliver low-pulsation, high-efficiency fluid transfer. It is self-priming, can idle and run dry, and its robust yet easy-to-service construction makes it ideal for demanding chemical, mining and industrial environments.

Brand:	GRACO
Pump Type:	Air-Operated Double-Diaphragm Pump (AODD)
Size:	1/4″ – 3″ available
Max Pressure:	Up to 7 – 8.6 bar, depending on model
Max Flow:	Up to 5 – 240 gpm, depending on model

ดาวน์โหลดไฟล์

Technical Specifications

สอบถามตอนนี้

Air-Operated Diaphragm Pumps (AODD)

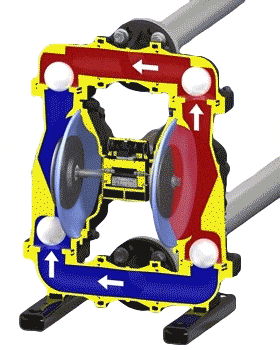

Powered by compressed air, AODD pumps use dual diaphragms to alternately squeeze and transfer liquids. With a simple, rugged design, they have no complex electrical components or spark risks, making them explosion-proof and highly durable with low maintenance costs. Featuring excellent self-priming and dry-run capabilities, they are ideal for harsh environments such as chemical and mining industries.

Difference Between Traditional and Husky Air-Operated Pumps

Traditional air-operated pumps often use fixed valve systems that are complex to maintain and cause high pulsation, leading to unstable flow. Husky pumps feature modular valve systems and durable materials like polypropylene, PVDF, stainless steel, and aluminum, reducing pulsation and enhancing flow stability. Their robust, heavy-duty design handles various fluids with strong self-priming and clog-resistant features, ensuring reliable system performance and lower maintenance costs.

Seal-less, Leak-Free

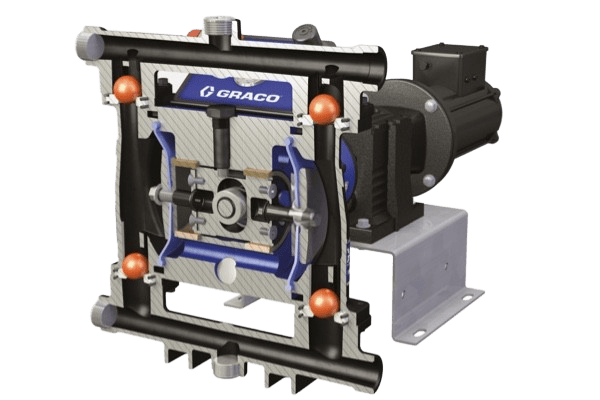

No mechanical seals to cause fluid leaks or failures: flexible diaphragms keep process fluid totally isolated, so dry-run episodes never turn into costly clean-ups. Our modular air valve and check-ball assemblies drop out from the pump exterior in just a few steps, letting technicians swap wear parts without unbolting the entire unit. The result? Faster maintenance, shorter downtime, and production lines that stay on tempo.

Husky Air-Operated Diaphragm Pump Series Overview

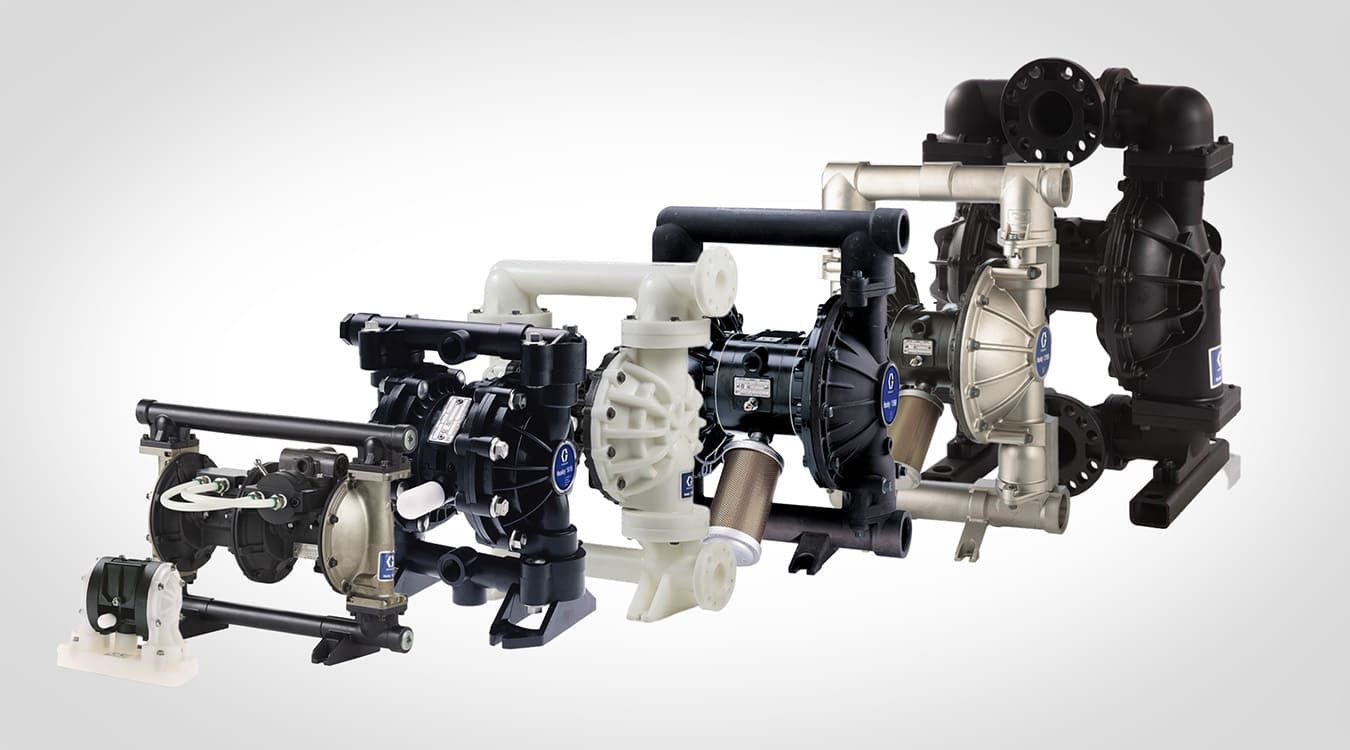

The Husky series offers a broad range of sizes and materials, from lightweight to heavy-duty industrial pumps, tailored to meet diverse industry demands.
• Husky 205 / 307 / 515 / 716 Lightweight Series Small ports, lightweight, and cost-effective—perfect for general chemical and light industrial uses. Primarily made of polypropylene and aluminum.

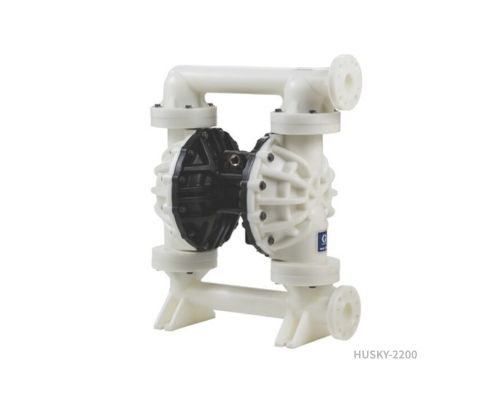

• Husky 1050 / 15120 / 2200 Mid-to-Large Plastic Series Mid-to-large pumps featuring corrosion-resistant plastics and multiple material options for tougher conditions and chemical applications.
• Husky 1590 / 2150 Mid-to-Large Metal Series Durable metal construction built for mining, heavy industry, and demanding environments.
• Husky 3300 Heavy-Duty Industrial Series Large, advanced pumps combining tough materials and modular designs for high flow and extreme conditions.

Valve Seats, Balls, and Diaphragm Material Options

Husky offers various materials to match different fluids and conditions. POM and polypropylene (PP) are durable and cost-effective for general chemicals. PTFE and G.E.T. resist strong acids, bases, and high temperatures. Santoprene rubber is good for abrasive fluids with particles. Fluoroelastomer (FKM) and neoprene (CR) work well with oils and solvents. Nitrile rubber (NBR) suits general liquids and greases. Thermoplastic elastomer (TPE) is flexible and weather-resistant, great for moving seals. Metals like stainless steel and aluminum provide strength and durability for tough industrial and high-pressure uses.

Effective Noise Reduction

Air-operated diaphragm pumps generate significant airflow noise during operation due to compressed air use. To reduce this, Husky pumps are equipped with specialized silencers featuring advanced noise-reducing designs and efficient airflow paths. These silencers minimize exhaust noise, suppress pulsation, and improve overall pump smoothness and efficiency.

Husky Modular Air Valve and Seal Design

Mid-to-large and heavy-duty Husky pumps feature modular air valves for easy maintenance, reduced pulsation, and stable flow. Spring-loaded pilot valves speed up operation, while four-bolt sealing ensures leak-free, reliable performance.
Applies to Husky 3300, 1050/15120/2200, and 1590/2150 series.

Optional Real-Time Leak Protection

Equipped with a leak detector installed inside the pump’s control housing and connected to the diaphragm chamber via tubing. If a diaphragm rupture occurs, leaking fluid enters the detector’s sensing area, triggering a yellow LED warning light on the pump and automatically stopping pump operation to prevent further leakage and equipment damage.

【Husky Lightweight Series 】


HUSKY Model	205	307	515	716
Size	1/4 in.	3/8 in.	1/2 in.	3/4 in.
Max Pressure	0.7 MPa	0.7 MPa	0.7 MPa	0.7 MPa
Max Flow Range	18.9 lpm	24.6 lpm	57 lpm	61 lpm
Max Particle Size	1.5 mm	1.6 mm	2.5 mm	2.5 mm

【Husky Mid-to-Large Series】


HUSKY Model	1050	15120	2200
Size	1 in.	1.5 in. (38 mm) ANSI/DIN flange	2 in. (50 mm) ANSI/DIN flange
Max Pressure	0.86 MPa	0.86 MPa	0.86 MPa
Max Flow Rate	189 lpm	435 lpm	757 lpm
Max Particle Size	3.2 mm	6.3 mm	9.5 mm

【Husky Mid-to-Large Metal Series 】


HUSKY Model	1590	2150
Size	1.5 in.	2 in.
Max Pressure	0.84 MPa	0.8 MPa
Max Flow Range	378.5 lpm	568 lpm
Max Particle Size	4.8 mm	6.3 mm

【Husky Heavy-Duty Industrial Series 】


HUSKY Model	3300
Size	3 in.
Max Pressure	0.86 MPa
Max Flow Rate	908 lpm
Max Particle Size	9.5 mm

Feel free to leave a message or call us to inquire about models, or click the link below to select your Husky pump: HUSKY Model Selector

About GRACO

GRACO Inc. (GGG. US) is a publicly traded American company founded in 1926 in Minnesota, specializing in the design and manufacture of high-quality pumps, spray equipment, and fluid control systems. With a wide range of applications from industrial manufacturing, construction painting, and automotive repair to everyday consumer markets, GRACO offers flexible, technology-driven solutions for diverse industries. Guided by its commitment to "Continuous Innovation, Superior Quality, Customer First," GRACO is dedicated to providing reliable fluid management solutions, earning the trust and recognition of customers worldwide through its engineering expertise and relentless innovation.
