Graco Quantm Sanitary/Hygienic EODD Pump

The GRACO QUANTM Hygienic EODD Pump meets strict sanitary standards with FDA-compliant wetted materials.

Brand:	GRACO
Pump Type:	Sanitary Electric Operated Double Diaphragm Pump (Hygienic EODD)
Category:	Food Grade (FG)	High Sanitary (HS)	Pharmaceutical (PH)	3A Certified (3A)	Large Particle Model (LP)
Applicable Materials:	General food and beverage transfer, sauces	High-level sanitary applications	Pharmaceutical use, such as medical creams and solvent transfer (USP Class VI)	3A-certified applications such as dairy products and yogurt	Large particle materials such as cooked eggs, meat, and poultry products
Surface Finish:	125 Ra	32 Ra	Up to 20 Ra	32 Ra	Handles solid particles up to 3.8 inches

파일 다운로드

Hygienic Diaphragm Pump Catalog Manual Other Manuals

즉시 문의

QUANTM Hygienic EODD

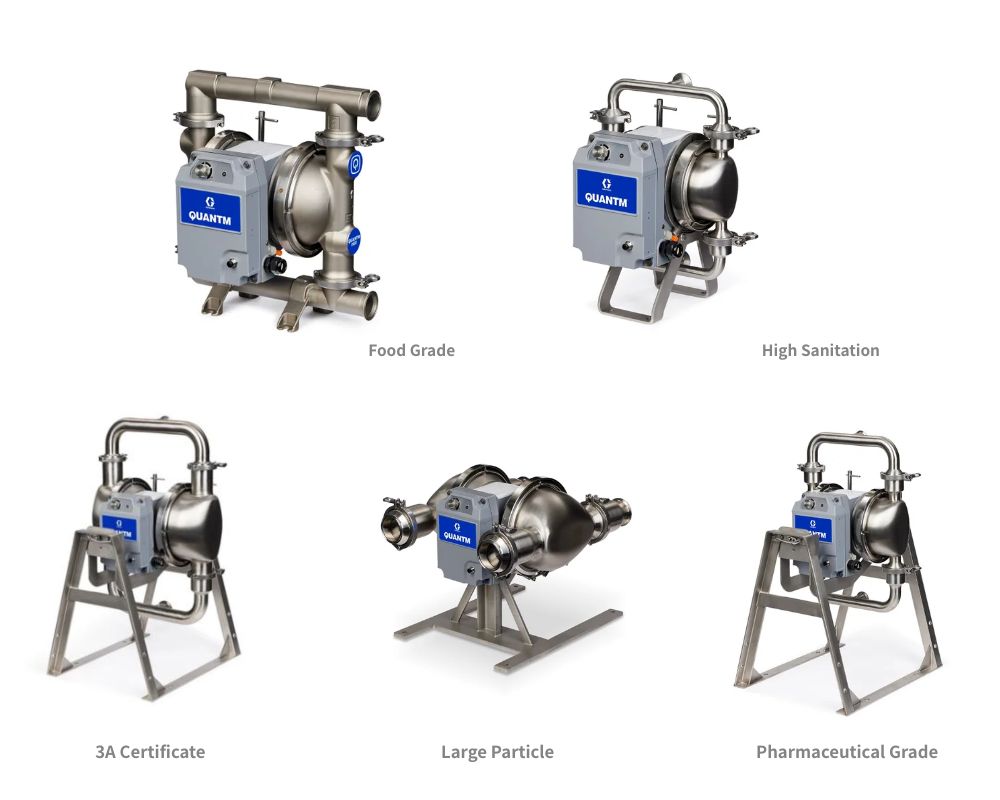

The QUANTM Hygienic Electric Diaphragm Pump is engineered for applications that demand the highest hygiene standards, including food and beverage, pharmaceutical, and personal care industries. Its wetted parts are FDA-compliant, made from traceable food- or pharma-grade materials, and feature a highly polished surface finish. With an IP66-rated washdown housing, it delivers superior performance in clean environments. Available in five configurations: FG, HS, PH, 3A, and LP.

FluxCore Motor – Lightweight Power, Minimal Maintenance

GRACO’s exclusive FluxCore motor combines a flux-concentrated stator with a direct-drive eccentric shaft, removing the need for gearboxes, belts, or chains. This results in lower mechanical loss, higher torque—up to 8× that of traditional motors at low speeds—and smooth, efficient performance even with high-viscosity fluids or back pressure. The design is energy-efficient, lightweight, and easy to maintain.

Reliable Power and Smart Control – Self-Priming, Dry-Run Safe, and Backpressure Protection

The QUANTM Electric Diaphragm Pump is engineered for dependable performance in demanding conditions. It self-primes automatically, clearing air from suction lines without manual priming, and can run dry safely while handling solids and abrasive fluids. When the outlet line reaches maximum pressure, the pump automatically shuts off, preventing damage and ensuring stable operation—no external sensors or controllers required.

High Efficiency. Low Noise. Smart Performance

Tests by GRACO show that the QUANTM pump cuts energy use by up to 80% compared with conventional air-operated pumps. With no need for compressed air, it eliminates freezing and exhaust issues entirely—delivering whisper-quiet performance with a 23 dBA noise reduction. The result: lower energy costs, a safer and more comfortable workplace, and greater operational sustainability.


Category	Food Grade FG
Model	QUANTM h30 FG	QUANTM h80 FG	QUANTM h120 FG
Maximum Flow	114 lpm (30 gpm)	300 lpm (80 gpm)	454 lpm (120 gpm)
Maximum Pressure	0.7 MPa (100 psi, 7 bar)	0.8 MPa (120 psi, 8 bar)	0.4 MPa (60 psi, 4 bar)
Fluid Passage Size	1 in. (25.4 mm)	1.5 in. (38 mm)	2 in. (51 mm)
Maximum Solids Diameter	1/8 in. (3.2 mm)	3/16 in. (4.8 mm)	1/4 in. (6.3 mm)
Surface Finish	125 Ra finish
Pump Material	Cast 316 SST
Applications	General food, beverages, juices, and sauce transfer
Certification	FDA Compliant


Category	High Sanitation HS
Model	QUANTM h30 HS	QUANTM h80 HS	QUANTM h120 HS
Maximum Flow	114 lpm (30 gpm)	300 lpm (80 gpm)	454 lpm (120 gpm)
Maximum Pressure	0.7 MPa (100 psi, 7 bar)	0.8 MPa (120 psi, 8 bar)	0.4 MPa (60 psi, 4 bar)
Fluid Passage Size	1 in. (25.4 mm)	1.5 in. (38 mm)	2 in. (51 mm)
Maximum Solids Diameter	0.42 in. (10.7 mm)	0.5 in. (12.7 mm)	0.5 in. (12.7 mm)
Surface Finish	32 Ra finish
Pump Material	316 L SST
Applications	Applications requiring higher sanitation standards
Certification	FDA Compliant


Category	Pharmaceutical PH
Model	QUANTM h30 PH	QUANTM h80 PH	QUANTM h120 PH
Maximum Flow	114 lpm (30 gpm)	300 lpm (80 gpm)	454 lpm (120 gpm)
Maximum Pressure	0.7 MPa (100 psi, 7 bar)	0.8 MPa (120 psi, 8 bar)	0.4 MPa (60 psi, 4 bar)
Fluid Passage Size	1 in. (25.4 mm)	1.5 in. (38 mm)	2 in. (51 mm)
Maximum Solids Diameter	0.42 in. (10.7 mm)	0.5 in. (12.7 mm)	0.5 in. (12.7 mm)
Surface Finish	20 Ra finish
Pump Material	316 L SST
Applications	Pharmaceutical applications, such as medical creams and solvent transfer
Certification	FDA Compliant, USP Class VI

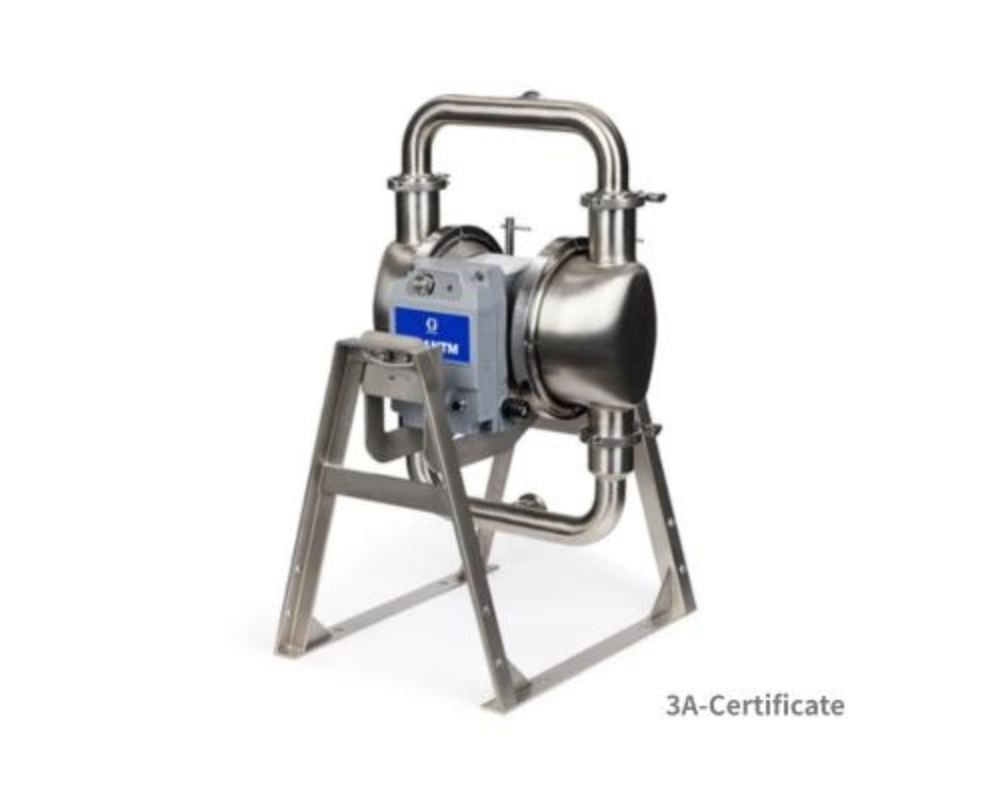

Category	3-A Sanitary Standards 3A
Model	QUANTM h80 3A	QUANTM h120 3A
Maximum Flow	300 lpm (80 gpm)	454 lpm (120 gpm)
Maximum Pressure	0.8 MPa (120 psi, 8 bar)	0.4 MPa (60 psi, 4 bar)
Fluid Passage Size	1.5 in. (38 mm)	2 in. (51 mm)
Maximum Solids Diameter	0.5 in. (12.7 mm)	0.5 in. (12.7 mm)
Surface Finish	32 Ra finish
Pump Material	316 L SST
Applications	3A certified applications, such as dairy products and yogurt
Certification	FDA Compliant, 3A Certified


Category	Large Particle LP
Model	QUANTM h80 2-in. LP	QUANTM h120 3-in. LP
Maximum Flow	340 lpm (90 gpm)	398 lpm (105 gpm)
Maximum Pressure	0.7 MPa (100 psi, 7 bar)	0.4 MPa (60 psi, 4 bar)
Fluid Passage Size	1.5 in. (38 mm)	3 in. (76.2 mm)
Maximum Solids Diameter	1.2 in. (30.5 mm)	2.46 in. (62.5 mm)
Surface Finish	32 Ra finish
Pump Material	316 L SST
Applications	Large particle materials, such as cooked eggs, meat, and poultry applications
Certification	FDA Compliant

Model Index

▸ h30 (QHC) FG
▸ h30 (QHC) HS/PH/3A
▸ h80 (QHD) FG
▸ h80 (QHD) HS/PH/3A/LP
▸ h120 (QHE) FG

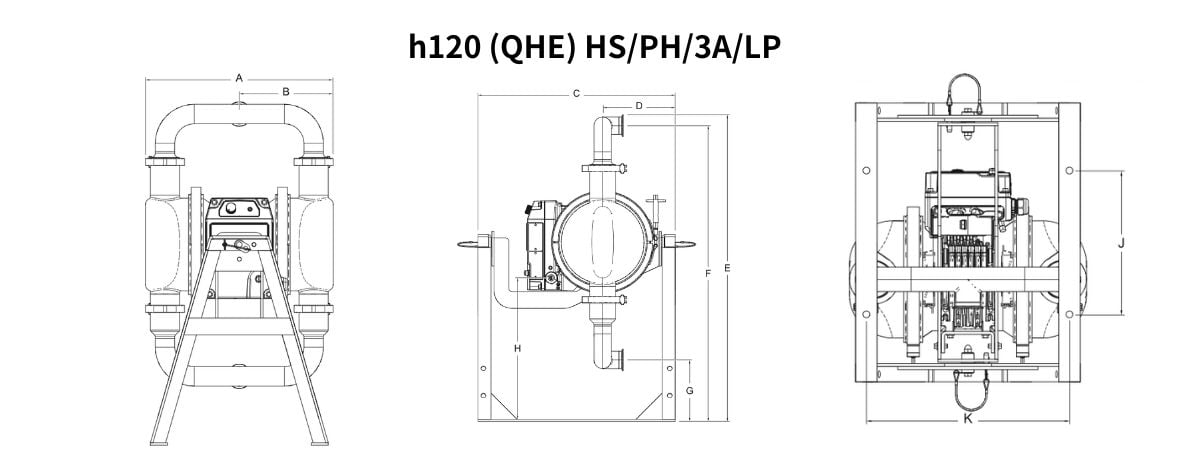

▸ h120 (QHE) HS/PH/3A/LP
▸ h120 (QHE) LP Horizontal Flap

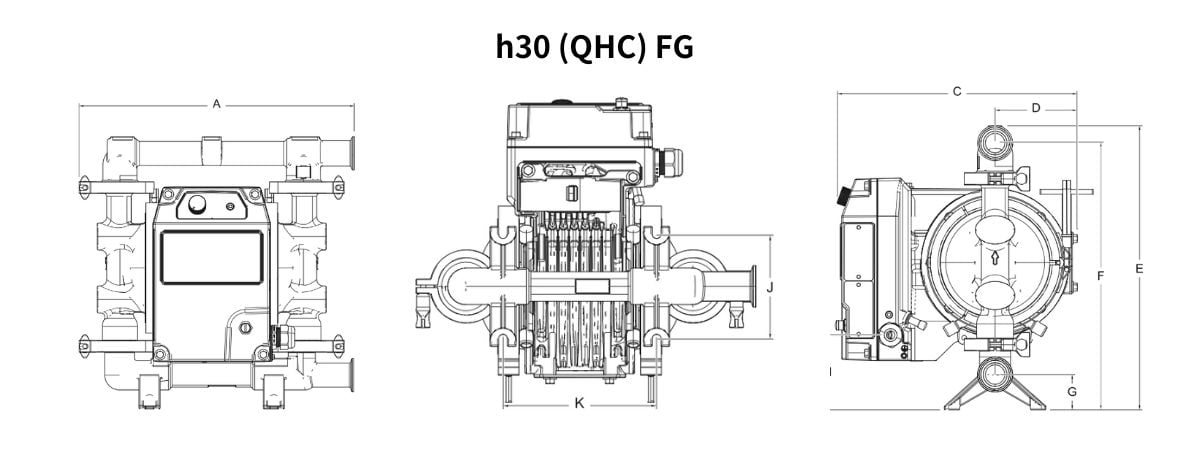

No.	h30 FG Ball Valve
No.	in.	cm
A	16.30	41.40
B	---	---
C	13.60	34.54
D	4.65	11.81
E	16.10	40.90
F	15.12	38.40
G	2.00	5.08
H	4.24	10.77
J	5.00	12.70
K	7.35	18.67

No.	h30 HS, PH, 3A Ball Valve
No.	in.	cm
A	14.70	37.34
B	7.35	18.67
C	13.60	34.54
D	9.10	23.11
E	19.68	49.99
F	18.68	47.45
G	3.02	7.67
H	6.75	17.15
J	8.50	21.59
K	3.75	9.53

No.	h80 FG Ball Valve
No.	in.	cm
A	19.50	49.53
B	---	---
C	14.17	36.00
D	5.22	13.26
E	20.54	52.17
F	19.28	48.97
G	2.44	6.20
H	6.65	16.90
J	6.00	15.24
K	7.73	19.63

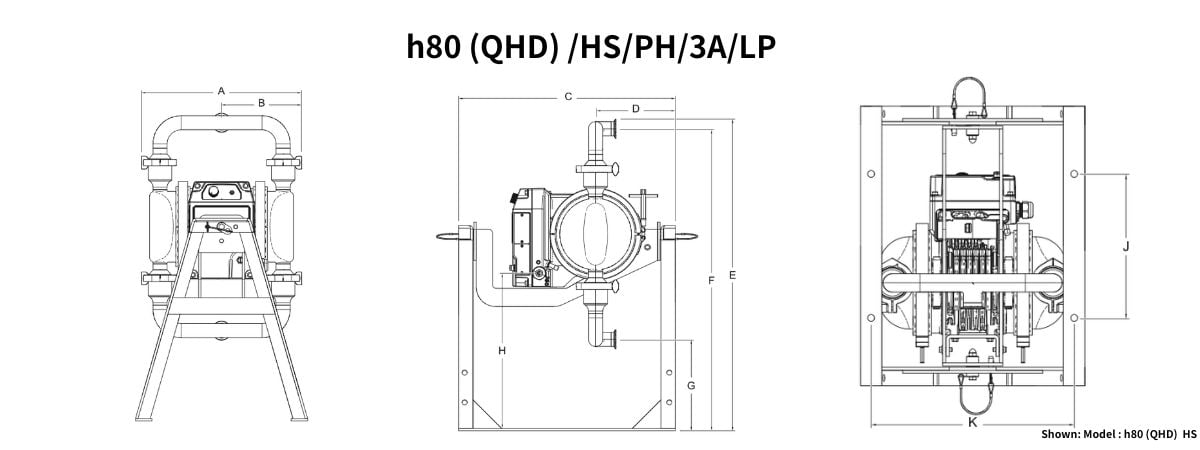

No.	HS/PH/3A		LP
	Ball Valve		Flapper Valve
	in.	cm	in.	cm
A	17.90	45.47	17.90	45.47
B	8.95	22.73	8.95	22.73
C	22.70	57.66	22.70	57.66
D	9.10	23.11	9.10	23.11
E	32.68	83.00	32.18	81.74
F	31.67	80.44	31.17	79.17
G	9.67	24.56	10.09	25.63
H	16.53	41.99	16.53	41.99
J	11.70	29.72	11.70	29.72
K	16.52	41.96	16.52	41.96

No.	h120 FG Ball Valve
No.	in.	cm
A	22.03	55.96
B	---	---
C	15.28	38.81
D	6.33	16.08
E	25.95	65.91
F	24.40	61.98
G	2.50	6.35
H	9.82	24.94
J	6.25	15.88
K	8.16	20.73

No.	HS/PH/3A		LP
	Ball Valve		Flapper Valve
	in.	cm	in.	cm
A	20.75	52.71	22.4	57.0
B	10.37	26.34	11.2	28.5
C	22.70	57.66	22.7	57.7
D	9.10	23.11	9.1	23.1
E	35.31	89.69	38.8	99.0
F	34.05	86.49	37.2	94.4
G	7.09	18.01	4.1	10.3
H	16.53	41.99	16.5	42.0
J	11.70	29.72	11.7	29.7
K	16.52	41.96	16.5	42.0

No.	LP Horizontal Flap
No.	in.	cm
G	19.9	50.5
H	22.4	56.9
J	14.0	35.6
K	15.2	38.6
L	54.5	138.4
L2	24.3	61.7
M	16.0	40.6
N	21.2	53.8

Pump Performance Curve

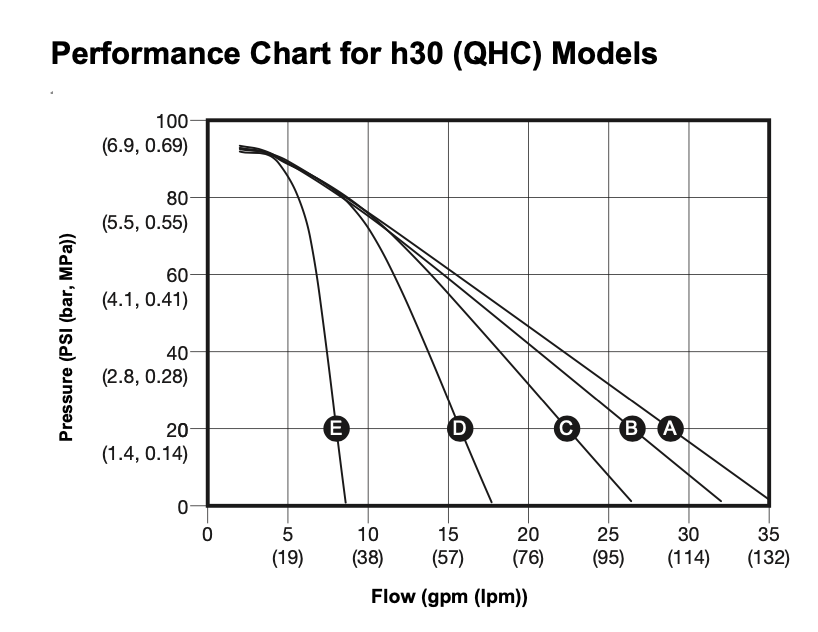

Model h30

Model h80

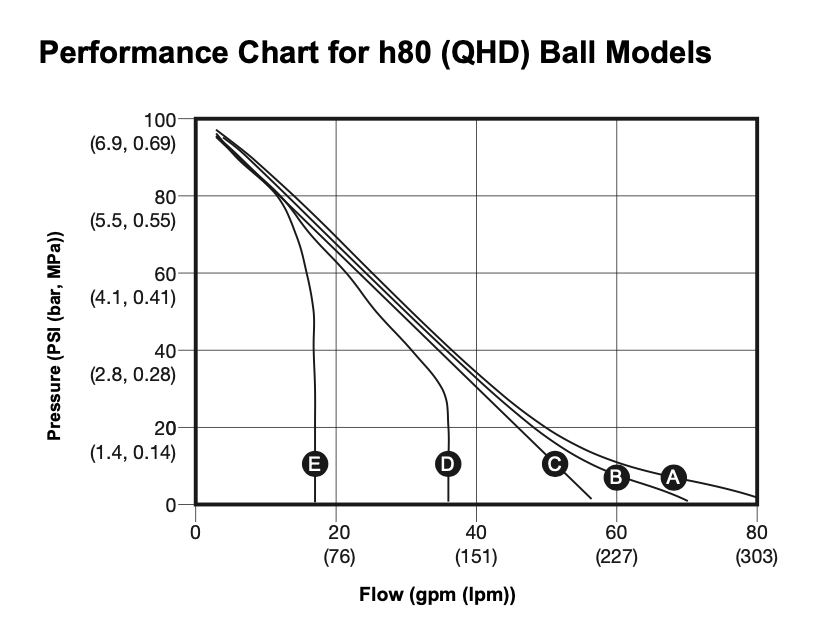

h80 Ball Valve

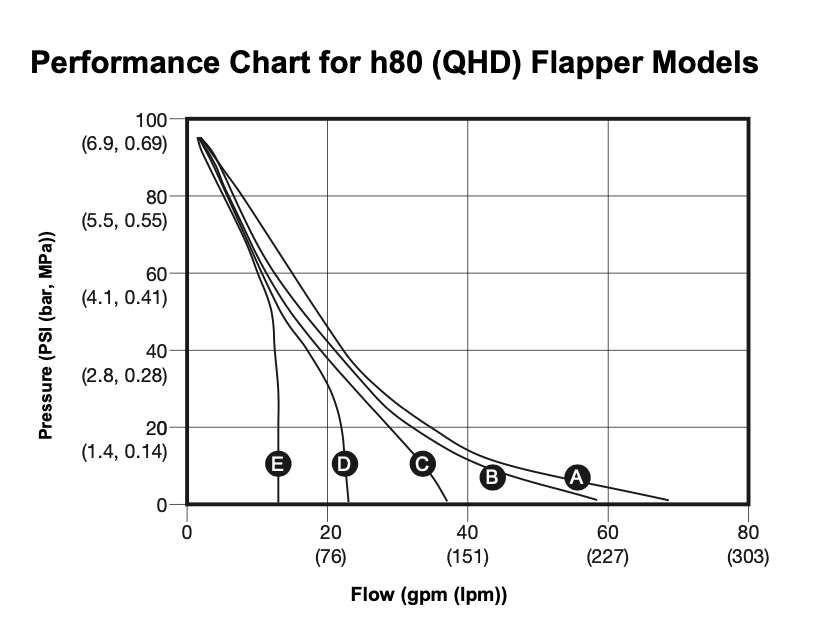

h80 Flapper Valve

Model h120

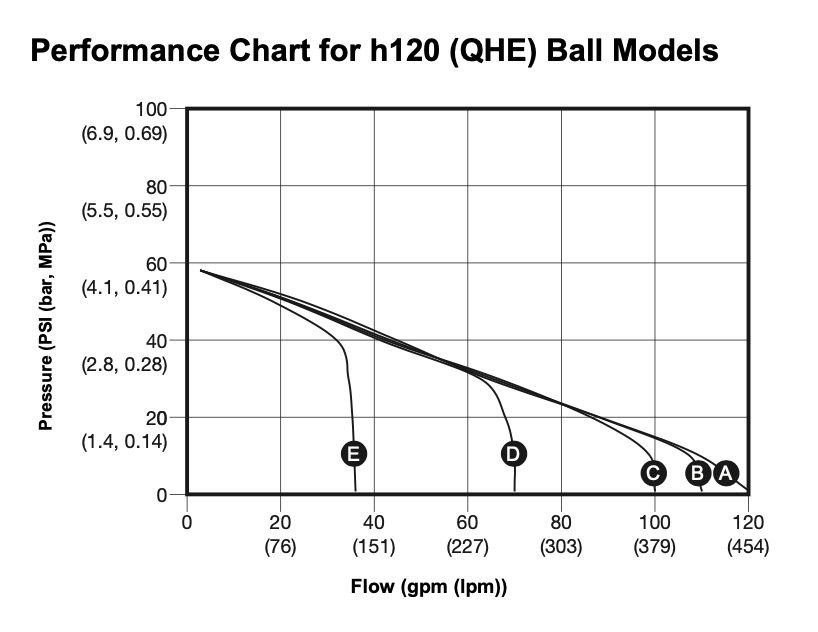

h120 Ball Valve

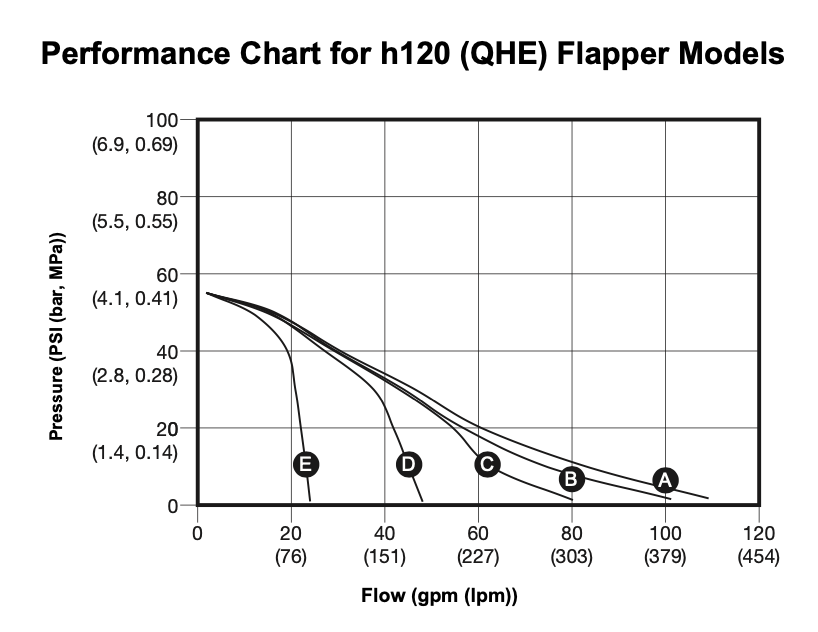

h120 Flapper Valve

Graco QUANTM Hygienic EODD Pump Construction
