FU-TX 310 Clamp-on Ultrasonic Flowmeter

Taiwan-made, clamp-on design (clamp-on, pipe clamp), installation without stopping or cutting pipes, easily maintained and disassembled at any time, significantly reducing installation and maintenance costs. External pipe installation, zero damage to pipes, no blockages, no leakage, and pressure resistance.

Fluid Temperature: -100 to 300°C with 0.1°C resolution
Measurable Fluids: Clearwater, oil, or chemicals with minimal impurities
Accuracy: <2% F.S.
Probe Waterproof Rating: Standard probe IP61 / Adhesive probe IP65 / Waterproof and chemical-resistant probe IP68
Power Supply: 9-30VDC / 100-240 50/60Hz AC transformer
Communication: Analog output 4-20mA / Modbus RS485 two-wire
Applicable Pipe Size (mm): 2" to 16" (Specifications TM1: 2" to 8" and TL1: 8" to 16")
When purchasing, please include 1. FU-TX310 main unit + 2. Probe + 3. Fasteners.

File download

CATALOGUE PRODUCT MANUAL



Monitoring Principles

V-Method

V-Method

Content One: Probes installed on the same side using Delta TOF (Time of Flight difference) method, detecting by the time difference between upstream and downstream. Measurement is not possible in high bubble conditions.

Z-Method

Z-Method

Probes installed on opposite sides, measuring the time difference in flow and counter-flow times using ultrasonic (ultrasound) transmission between probes A and B. The direction of flow and counter-flow creates a time difference proportional to the flow rate. * Accuracy up to 2% * LORRIC's special noise resistance technology reduces interference from bubbles and solids.

Built-in RS485 and Dual Communication Modes

Supports two communication modes: RS485 and 4-20mA.



Built-in RS485 and Dual Communication Modes

Patent-Designed Probe Clamp

The EchoSense ultrasonic flowmeter is suitable for a wide range of fluids, including common substances such as water and oil, as well as various chemicals. It is compatible with a broad spectrum of piping materials, including stainless steel and PVC, as well as others like PP and PVDF. The device can accommodate piping sizes from 1/2 inch to 3 inches, offering extensive application versatility.

Metal Clasps

Metal Clasps

Patented metal clasps designed for use with detachable metal straps, suitable for pipe diameters ranging from 2” to 16”. Tailored for TM1 (2 to 8 inches) and TL1 (over 8 inches), they ensure the highest long-term installation stability, resistant to measurement failure caused by environmental temperature and vibrations. An 8mm wrench or hex socket is recommended for quick zebra ring fastening. The specially designed clasp allows for both same-side and opposite-side installation scenarios. Not sold separately, must be purchased with LORRIC ultrasonic flowmeter FU-TX-310.

Plastic Clasps

Plastic Clasps

Designed according to probe size, suitable for 2” to 16” pipe diameters. The all-plastic clasps can be installed with glue or welding, significantly enhancing probe installation convenience and reliability, addressing the issue of strap installations loosening due to temperature and vibration. It also prevents incorrect installation during maintenance that could affect product functionality. The patented clasps fit tightly around the pipeline, greatly improving flow detection accuracy and stabilizing detection results. The only all-plastic clasp on the market that ensures long-term use of the probe and clasp even in environments filled with chemicals like in electronics, chemical, and environmental protection industries. Not sold separately, must be purchased with LORRIC ultrasonic flowmeter FU-TX-310.

Spec

Installation method in-line
Applicable pipe diameter TM TL 1
 DN 50 - 150  DN 200
2 - 6 inch 8 inch

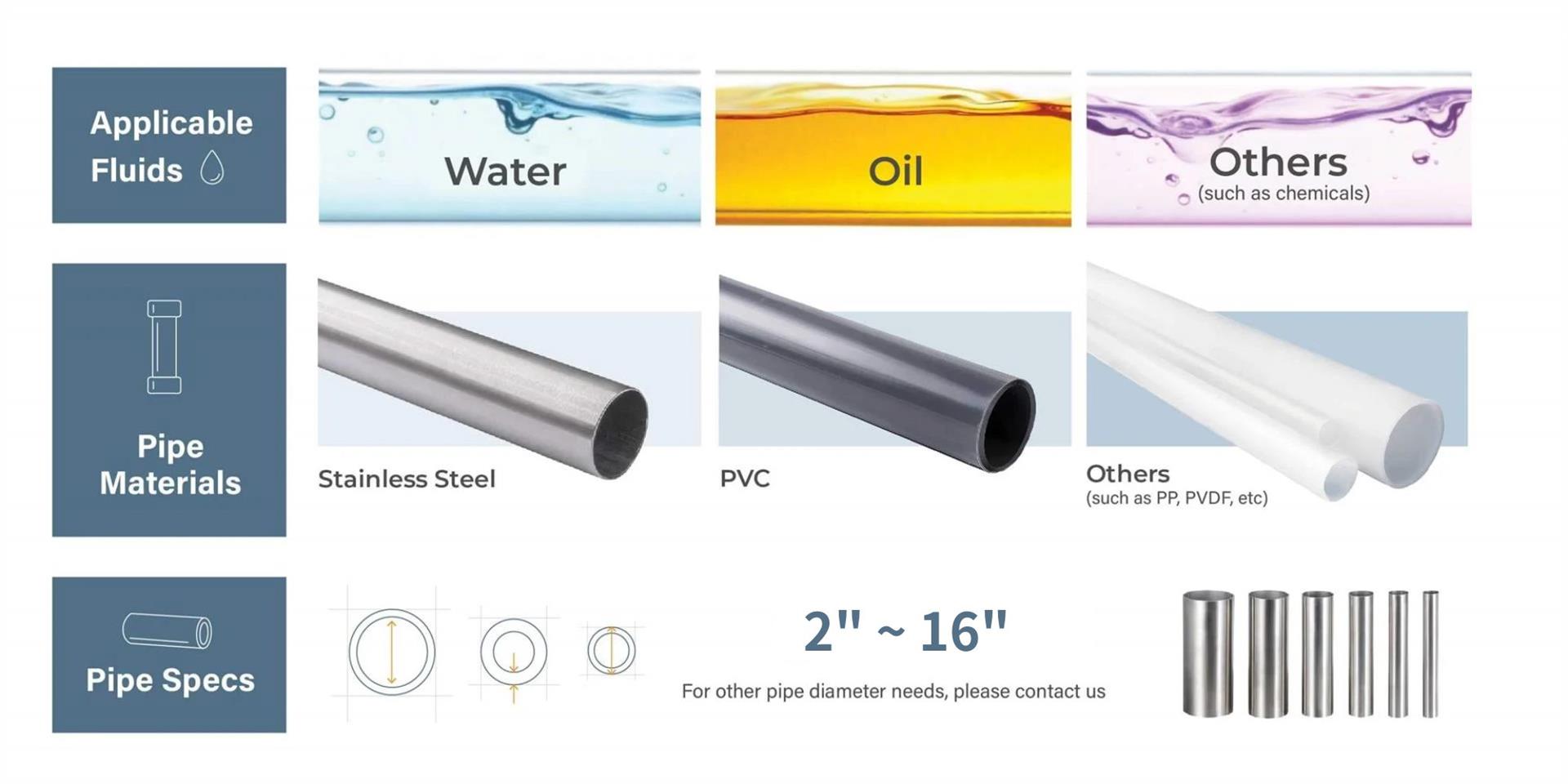

Applicable piping materials Cast iron, carbon steel, stainless steel, PVC pipe and others
Applicable fluid Clean water, oil or chemicals containing small amounts of impurities
Applicable fluid temperature Standard probe:0~80°C / High temperature probe:0~150°C
Velocity range ±0.1~20m/s
Language
English
Unit Metric and imperial systems can be switched
Display 128x64 LDC Backlight display
Display update cycle < 1s
measurement accuracy ±0.2% F.S.*
 Display resolution 0.0001 m/s
Power supply DC 9~30V
Power I/O Connector 100-240 50/60Hz AC Transformer
Input/Output Analog output is self-charged 16bits  4-20mA / Modbus RTU RS485
Consumption current > 2W
Protection circuit Power reverse connection protection, power surge protection
Waterproof level Since there is no waterproof design, it should be installed in the control box. If you need outdoor installation, you need to purchase an additional waterproof box.
Probe waterproof level   General probe IP61 / Glue probe IP65 / Waterproof and chemical-resistant probe IP68
Ambient temperature -10~60°C (14~140°F)
Relative humidity 35~ 85%RH (Condensation-free)
Material Host-ABS
Temperature measurement  Two sets of external PT1000

Product Size

A B C D E F G
149.45 98.32 137.79 90.45 52.42 9.5 34.85

A B C D E
68.3 45.2 32.2 25.3 42.6
Unit:mm

Applications

Semiconductor

Semiconductor

Flow meters monitor chemical liquids and pure water treatment fluids supply; nozzles control the spraying of chemical liquids to ensure process purity and stability.

PCBs

PCBs

Flow meters in PCB electroplating, developing, and etching processes monitor precise chemical and cleaning fluid flow; nozzles control chemical coating and rinsing

Purified Water Industries

Purified Water Industries

Flow meters monitor water usage at each stage to control process efficiency; nozzles optimize water spray to ensure water purification efficiency and reduce treatment costs

Wastewater Treatment

Wastewater Treatment

Flow meters monitor the flow of inlet and outlet water, enhancing treatment efficiency and accuracy; nzzles spray chemicals in wastewater treatment, meeting environmental standards

Steel Industries

Steel Industries

Flow meters monitor cooling water and gas flow, ensuring accuracy and optimal efficiency; nozzles precisely control chemical liquid spraying, making even coating and stable quality

AC

AC

Flow meters monitor and control cooling and hot water flows, tracking chiller energy use; nozzles balance water flow in these systems, enhancing efficiency

Car Wash

Car Wash

Flow meters ensure cleaning efficiency and reduce water wastage; nozzles uniformly distribute water, enhancing the cleaning effect while simultaneously reducing water consumption

  • Energy Monitoring
  • Water Conservation Management
  • Industrial Applications
  • Tap water, cooling water, hot water, raw water, seawater, beverages, oil, and other liquids
  • Power plants (nuclear, thermal, hydro), thermal energy, heating facilities

In Just 6 Minutes : Let's Install FU-TX310
