F201 Water, Air Rotameter, 1/2"-3/4" Pipe Size, 1.0-10 LPM to 5.0-50 LPM

Effortless installation and precise flow control with our compact, leak-proof design water rotameter, air rotameter. Featuring a patented dual-pointer and laser-engraved scale for accurate monitoring, this product offers space-saving convenience and reliable performance.

Brand: LORRIC
Adapter size: 1/2" , 3/4"
Body material: PC / PSU
Applicable fluid: Tap water  (PC)
  Acid-base solutions (PSU)
  Air (F201 Air)
Float material: SS316, Ti, Hastelloy C
Measure accuracy: ± 5% OR
Pressure resistance:
5.0kg/cm²

Catalogue (Liquid) Catalogue (Gas)



Rotameters

The area-type rotameter measures flow by balancing fluid buoyancy and float weight, ideal for direct flow observation. It requires vertical installation with fluid flowing bottom to top. Reading the float position varies by model. Widely used in chemical, pharmaceutical, and food processing industries to monitor liquid or gas flow.
Learn more: How to Read the Float

Rotameters
Patented dual-indicator

Patented dual-indicator

From the user's perspective, LORRIC employs a dual-pointer design to monitor upper and lower limit intervals, enabling users to easily identify the flow status at a glance. Users can simply flick the pointer to instantly set the flow monitoring range.

Laser engraved degree scales

LORRIC precisely calibrates each flow meter at the factory to compensate for float weight variations, ensuring ultimate performance. Unlike competitors using mass printing or stickers, our laser engraving offers both accuracy and durability.

Laser engraved degree scales
Guide Rail Design

Guide Rail Design

The guide rail design effectively limits the movement of the float within the pipe, reducing turbulence-induced oscillation or rotation. This design enhances measurement precision by ensuring the float remains aligned along the flow meter's axis, contrasting with models lacking a guide rod which may lead to off-axis float movement and impact flow rate accuracy.

PC for Water, PSU for Chemical Solutions

The flow meter body is available in two materials: transparent PC (Polycarbonate) for tap water, and light yellow PSU (Polysulfone), which is acid, alkali, and electrolyte resistant, suitable for chemicals like sulfuric acid and sodium hydroxide, etc.

PC for Water, PSU for Chemical Solutions
Delicate machining for float

Delicate machining for float

LORRIC leverages 30 years of industry expertise, applying fluid mechanics to refine float design. Using precision CNC machining, each float is crafted with jewelry-like precision, guaranteeing stable monitoring for water rotameters and air rotameters.

The unique turning-processed joint, ensuring smooth installation and insertion

Don't settle for subpar joints! While most are injection-molded, resulting in uneven surfaces due to cooling shrinkage, LORRIC's original turning-processed joints offer unmatched quality. With a flawlessly smooth surface, O-ring seal for safety, and zero leakage, choose LORRIC for superior performance!

The unique turning-processed joint, ensuring smooth installation and insertion
The flat joint surface ensures O-ring seal without leakage

The flat joint surface ensures O-ring seal without leakage

Don't settle for subpar joints! While most are injection-molded, resulting in uneven surfaces due to cooling shrinkage, LORRIC's original turning-processed joints offer unmatched quality. With a flawlessly smooth surface, O-ring seal for safety, and zero leakage, choose LORRIC for superior performance!

Flowmeter scale customization

Chemicals vary in specific gravity, affecting float buoyancy. LORRIC offers tailored customization for specific gravity, eliminating the need for on-site height adjustments.


Flowmeter scale customization

Please place your order according below information

How to place an order for LORRIC flowmeters?
  • Select the ideal flow meter based on your material requirements for each component

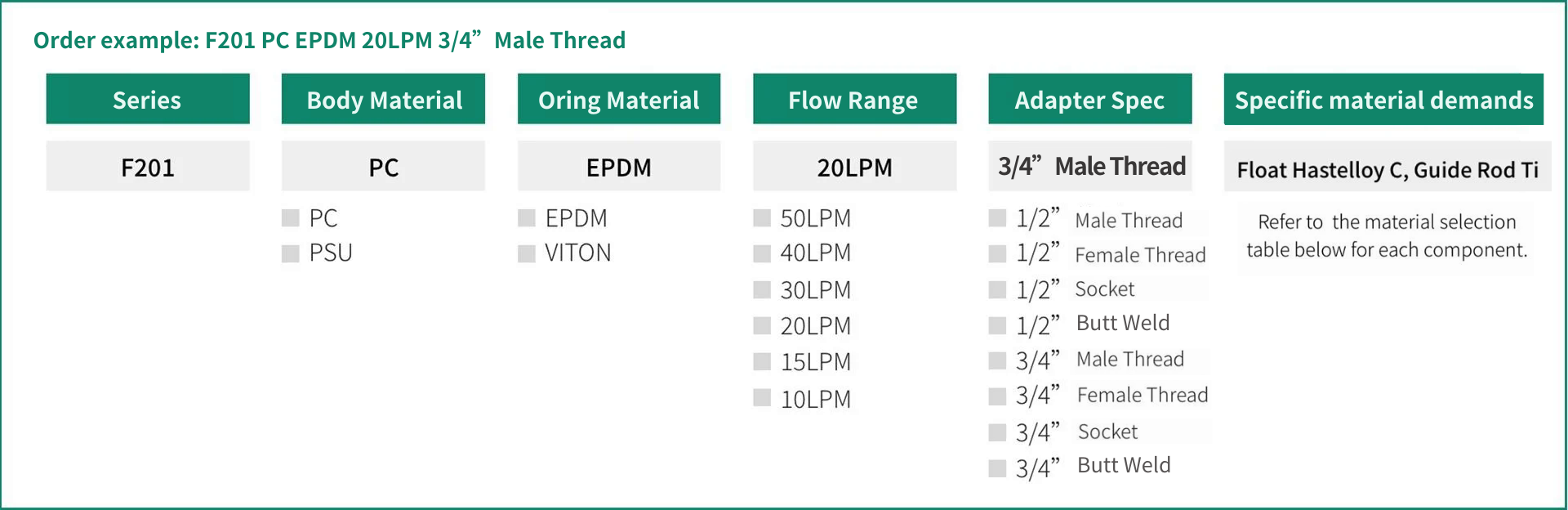

  • Please refer to following order example for placing order to LORRIC
Order form
Series
F201 PC F201 PSU  F201H PSU  F201A PSU
Applicable Fluid Tap Water Tap Water or
Non-organic Solvents
When chemicals are corrosive
to stainless steel
Air
Body Material PC PSU  PSU PSU
Float Material SUS 316 SUS 316  Ti / Hastelloy C PVC / SUS 316 / Ti
Guide Rod Material SUS 316 / Hastelloy C
O-ring Material
EPDM / VITON    EPDM / VITON
Union Nuts Material
 UPVC   UPVC
Guide Rod Bottom Material
PP
PP

Scale Rang(L/min)

1.0 - 10 L/min 3.0 - 30 NLPM
 1.5 - 15 L/min  5.0 -50 NLPM
2.0 - 20 L/min 10 - 100 NLPM
3.0 - 30 L/min 35 - 350 NLPM
4.0 - 40 L/min 50 - 500 NLPM
5.0 - 50 L/min 100 - 1000 NLPM
Adaptor Size and Adaptor Material
3/4"
Male Thread BSPT UPVC / PP
NPT UPVC / PP
Female Thread BSPT UPVC / PP
NPT UPVC / PP
Socket CNS UPVC
JIS UPVC
ANS UPVC
DIN UPVC
Butt Weld ISO  PPHPVDF
Socket Weld ISO PPHPVDF
Adaptor Size and Adaptor Material
1/2"
Male Thread BSPT UPVC / PP
NPT UPVC / PP
Female Thread BSPT UPVC / PP
NPT UPVC / PP
Socket CNS UPVC
JIS UPVC
ANS UPVC
DIN UPVC
Butt Weld ISO  PPHPVDF
Socket Weld ISO PPHPVDF
  • Liquid flow meters are calibrated for 20°C water. Gas flow meters are calibrated for normal conditions. ( 0°C , 1 atm)
  • All adaptors can be manufactured to order, please contact us for price and lead time. Specs: adaptor 1/2" NPT male/ female thread (UPVC / PP / PSU) type is custom made, please contact us for details. Please refer to the chemical resistance chart for understanding if our flowmeters body and parts are acceptable for your solution.
  • Above temperature information is for reference only and may not be applicable for all environments.
  • Above flow rate range and materials is for standard specs. Please choose proper products according to your usage and environment conditions. You are welcome to contact us directly for any requests and advice.
  • Our company refrains from offering model recommendations or suggestions, as diverse industries have unique application scopes and design conditions. We encourage you to select the most suitable model based on your specific design conditions.

Size

Unit:mm

Adapter Spec A B C D E
3/4"Male Thread 192 102 45 51 56
3/4"CNS 194 102 46 51 56
3/4"ASTM 195 102 46.5 51 56
3/4"JIS 194 102 46 51 56
3/4"DIN 195 102 46.5 51 56
1/2"Male Thread 182 102 40 51 56
1/2" Female Thread 192 102 45 51 56
1/2" PP Female Thread 192 102 45 51 56
1/2"CNS 184 102 41 51 56
1/2"ASTM 184 102 41 51 56
1/2"JIS 184 102 41 51 56
1/2"DIN 187 102 42.5 51 56
PP OD20
ID15.3
192 102 41 51 56.5


Installation

Three easy steps! Effortlessly install the rotameter!

Step1
Step1

Ensure the main line is vertically installed and that there is ample space to accommodate the flow meter size.

Step2
Step2

Loosen the upper and lower interfaces, including the nuts, and affix them to the pipe using adhesive until the glue sets.

Step3
Step3

Position the body in the center and secure the upper and lower unions.

Applications

PCBs

PCBs

Flow meters in PCB electroplating, developing, and etching processes monitor precise chemical and cleaning fluid flow; nozzles control chemical coating and rinsing

Wastewater Treatment

Wastewater Treatment

Flow meters monitor the flow of inlet and outlet water, enhancing treatment efficiency and accuracy; nzzles spray chemicals in wastewater treatment, meeting environmental standards

Purified Water Industries

Purified Water Industries

Flow meters monitor water usage at each stage to control process efficiency; nozzles optimize water spray to ensure water purification efficiency and reduce treatment costs

Working with sulfuric acid, caustic soda, or unique specialty chemicals? Explore our tailored specific gravity scale customization services

Diverse chemicals, varying specific gravity. LORRIC offers bespoke specific gravity customization to match your chemical needs. No more on-site manual height adjustments!

Working with sulfuric acid, caustic soda, or unique specialty chemicals? Explore our tailored specific gravity scale customization services

What we customize

  • Different measure unit (LPM, LPH, CMPM and more)
  • Main and secondary scale
  • Different liquid proportion
  • Different gas molecular weights
  • Different measuring ranges
What we customize

Customizing Flow Meter Scales: A Step-by-Step Guide

  • Range of customized flow capacity should be stayed within the capacity of existing products.
  • Customizable capacity will be affected by customization of proportion and viscosity, please contact us directly for this service.
  • To customize too compressed flow scales is not suggested, and leads difficulty of on-site observation
