QUANTM Electric Diaphragm Pump (EODD)

QUANTM pumps feature a patented FLUXCORE motor with integrated control, offering high torque, low energy consumption, remote control, plug-and-play installation, quiet operation, energy efficiency, and dry-run capability for demanding environments.

Brand：	GRACO
Pump：	Electric Diaphragm Pump (EODD)

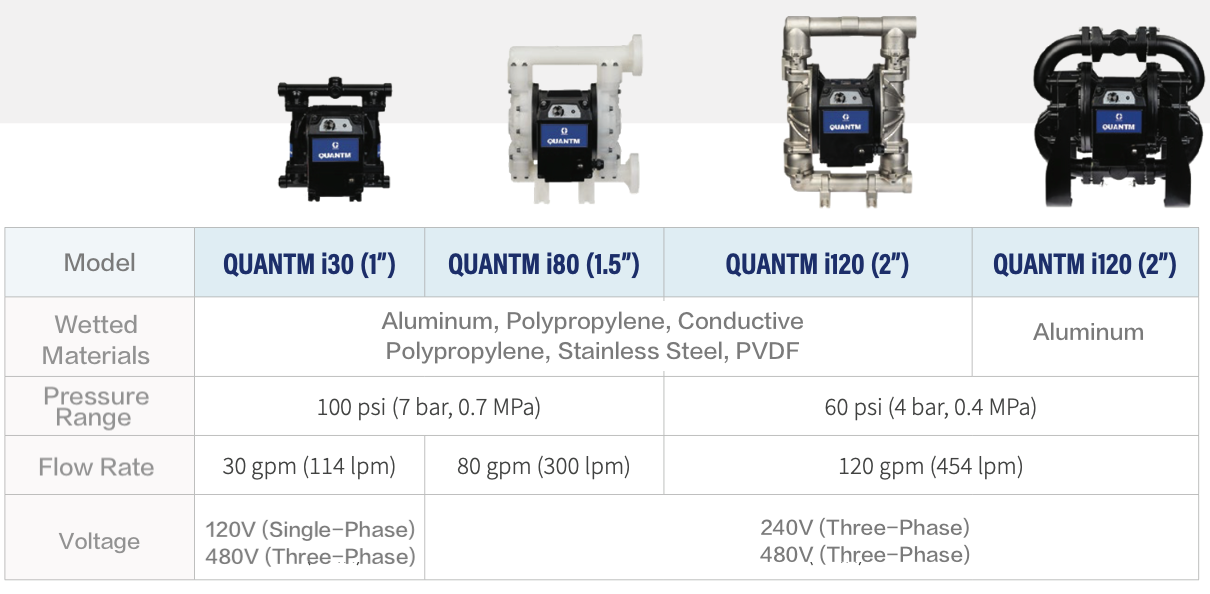

Size：	1"	1.5"	2"
Voltage：	100-120V Single-Phase / 380-480V Three-Phase	200-240V Three-Phase / 380-480V Three-Phase	200-240V Three-Phase / 380-480V Three-Phase
Pressure Range：	7 bar	7 bar	4 bar
Flow Range：	114 LPM	300 LPM	454 LPM

File download

Catalog Manual Cable Technical manual

Inquire now

Electric Diaphragm Pumps

Electric Operated Double Diaphragm Pumps (EODD) use an electric motor to drive flexible diaphragms, providing smooth fluid transfer with low noise and energy efficiency, making them ideal for long-duration continuous operation in automated smart production lines. Graco's Quantm auto shutoff under back pressure, eliminating air compressor needs and reducing energy and noise.

Difference Between Air-Operated and Electric Pumps

Diaphragm pumps come in two main types: Air-Operated Double Diaphragm (AODD) and Electric Operated Double Diaphragm (EODD).
AODD pumps use compressed air to drive diaphragms back and forth, resulting in high energy consumption and loud exhaust noise.
EODD pumps, in contrast, use an electric motor for precise speed control, continuous flow, and quiet, energy-efficient operation, with VFD and I/O support for smart production integration.

8x Continuous Torque – More Power, Less Wear

Quantm pumps use a patented FluxCore direct-drive motor, integrating a flux-concentrated stator and direct-drive eccentric shaft for higher torque without a gearbox. This design reduces wear, noise, and maintenance, delivering quieter, more efficient performance in the same compact size.

Smart Back-Pressure Shutdown Protection

The only EODD pump on the market with automatic back-pressure shutdown, stopping the pump when idle without the need for pressure sensors or external controls, preventing damage from pipeline blockages or closed valves.

Quieter Operation, Smaller Footprint

Unlike air pumps, which generate loud exhaust noise and compressor hum, electric pumps run quietly with only motor rotation, eliminating the need for noisy air supply. Tests show up to 23 dBA noise reduction, cutting sound intensity by 90%, significantly improving workplace conditions.

Real-Time Leak Protection System

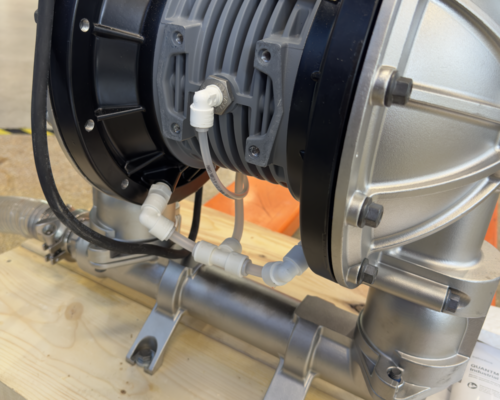

The QUANTM electric double diaphragm pump is equipped with a leak detector installed inside the pump’s control housing. It is connected to the pump’s diaphragm chamber via a dedicated line. When a diaphragm rupture causes leakage, fluid enters the sensor area of the detector, immediately triggering the yellow LED warning light on the pump and automatically stopping pump operation to prevent further leakage or equipment damage.

Multiple Sizes and Wetted Material Options

Quantm pumps are available in various sizes and wetted materials:
• Aluminum – Ideal for oils and coolants
• Stainless Steel – Suitable for corrosive liquids or particle-laden fluids
• Polypropylene (PP) – Great for acids, alkalis, and explosive environments
• PVDF – Designed for high-corrosion and high-purity chemicals

High Efficiency, Quick Payback in 12–24 Months

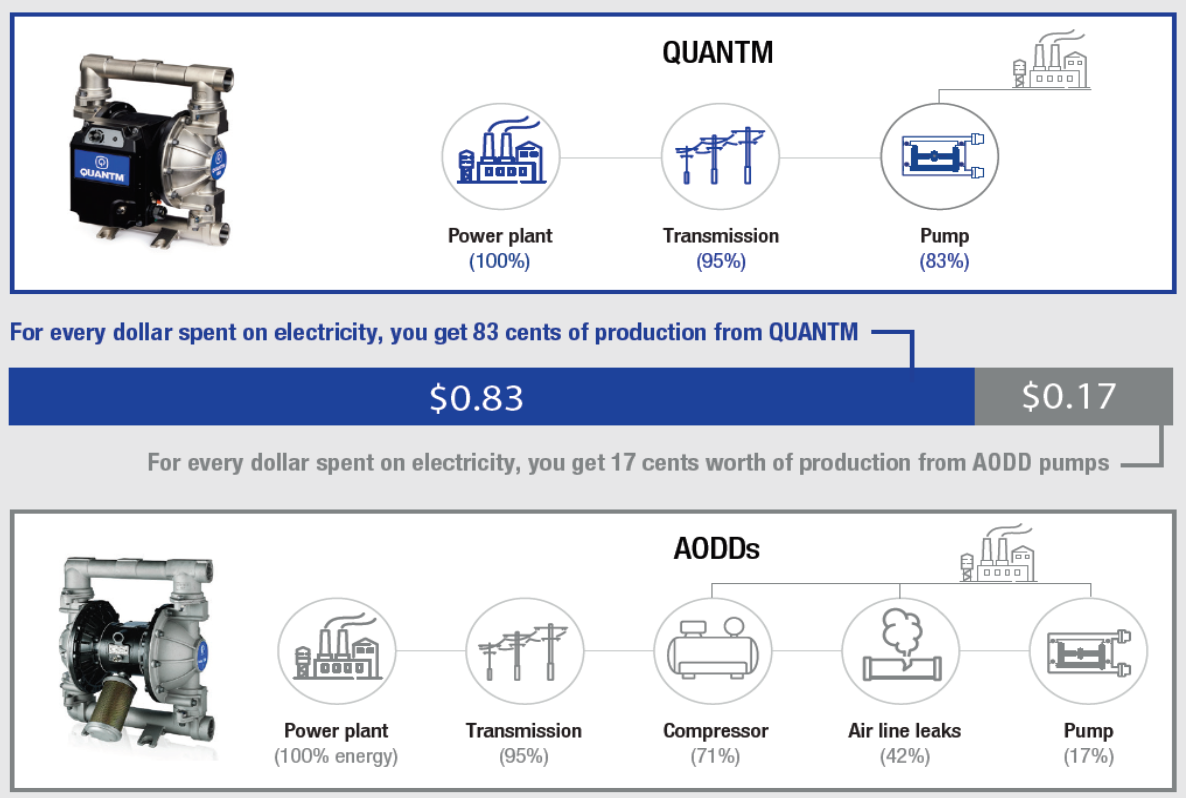

According to Graco's energy comparison, Quantm EODD pumps achieve an 83% energy efficiency, generating $0.83 of effective output per $1 of electricity – about 5 times more efficient than traditional AODD pumps.
For example, a 2" i120 Quantm pump has a rated power of just 1.8 kW, while a similar flow AODD system typically requires a 4-6 kW air compressor. Over 4,000 hours of annual operation, this can save 12-17 MWh in energy costs alone. Factoring in compressor maintenance, noise control, and cooling costs, most customers recover the initial investment within 12-24 months, despite a higher upfront cost.
Estimate your savings now: Quantm ROI Calculator

Feel free to leave a message or call us for model inquiries, or click the link below to select the right model: Quantm Model Selector

Dimensions for i30 (QTC) Models with Metal Wetted Parts

Reference No.	Wetted Parts Material AL		SS
Reference No.	in.	cm	in.	cm
A	14.70	37.34	13.90	35.31
B	7.35	18.67	6.58	16.71
C	13.25	33.66	13.25	33.66
D	4.57	11.61	4.57	11.61
E	15.94	40.49	13.70	34.80
F	14.44	36.68	12.90	32.77
G	1.76	4.47	1.10	2.79
H	3.70	9.40	2.20	5.59
J	5.00	12.70	5.00	12.70
K	5.50	13.97	5.50	13.97

Dimensions for i30 (QTC) Models with Plastic Wetted Parts (End Flange)

Reference No.	Wetted Parts Material CP		PP		PV
Reference No.	in.	cm	in.	cm	in.	cm
A	15.20	38.61	15.20	38.61	15.20	38.61
C	13.25	33.66	13.25	33.66	13.25	33.66
D	4.57	11.61	4.57	11.61	4.57	11.61
E	17.80	45.21	17.80	45.21	17.80	45.21
F	15.70	39.88	15.70	39.88	15.70	39.88
G	2.50	6.35	2.50	6.35	2.50	6.35
H	4.69	11.91	4.69	11.91	4.69	11.91
J	5.00	12.70	5.00	12.70	5.00	12.70
K	10.55	26.8	10.42	26.50	10.37	26.34

Dimensions for i30 (QTC) Models with Plastic Wetted Parts (Center Flange)

Reference No.	Wetted Parts Material CP		PP		PV
Reference No.	in.	cm	in.	cm	in.	cm
A	16.0	40.60	16.0	40.60	16.0	40.60
B	8.00	20.32	8.00	20.32	8.00	20.32
C	13.25	33.66	13.25	33.66	13.25	33.66
D	4.57	11.61	4.57	11.61	4.57	11.61
E	17.80	45.21	17.80	45.21	17.80	45.21
F	15.70	39.88	15.70	39.88	15.70	39.88
G	2.50	6.35	2.50	6.35	2.50	6.35
H	4.69	11.91	4.69	11.91	4.69	11.91
J	5.00	12.70	5.00	12.70	5.00	12.70
K	10.55	26.80	10.42	26.50	10.37	26.34

Dimensions for i80 (QTD) Models with Metal Wetted Parts

Reference No.	Wetted Parts Material AL		SS
Reference No.	in.	cm	in.	cm
A	15.07	38.28	16.10	40.89
C	13.81	35.08	13.85	35.18
D	5.17	13.13	5.21	13.23
E	19.60	49.78	18.97	48.18
F	18.30	46.48	17.75	45.09
G	1.50	3.81	1.44	3.66
H	4.55	11.56	4.55	11.56
J	6.00	15.24	6.00	15.24
K	6.00	15.24	6.00	15.24

Dimensions for i80 (QTD) Models with Plastic Wetted Parts

Reference No.	Wetted Parts Material PP, PV
Reference No.	in.	cm
A	17.60	44.70
C	13.87	35.23
D	5.23	13.28
E	22.00	55.88
F	19.30	49.02
G	3.00	7.62
H	5.85	14.86
J	6.00	15.24
K	6.00	15.24

Dimensions for i120 (QTE) Models with Metal Wetted Parts (Ball Type)

Reference No.	Wetted Parts Material AL		CI, SS
Reference No.	in.	cm	in.	cm
A	17.50	44.45	18.13	46.05
B	9.00	22.86	9.40	23.88
C	14.89	37.82	14.89	37.82
D	6.25	15.88	6.25	15.88
E	23.60	59.94	26.34	66.90
F	21.90	55.63	24.79	62.97
G	2.00	5.08	2.50	6.35
H	6.72	17.07	9.01	22.89
J	6.00	15.24	6.00	15.24
K	6.00	15.24	6.50	16.51

Dimensions for i120 (QTE) Models with Plastic Wetted Parts (Ball Type)

Reference No.	Wetted Parts Material CP, PP, PV
	in.	cm
A	19.70	50.04
C	14.89	37.82
D	6.25	15.88
E	25.70	65.28
F	22.70	57.66
G	3.50	8.89
H	7.53	19.13
J	6.00	15.24
K	6.00	15.24

Dimensions for i120 (QTE) Models with Metal Wetted Parts (Flap Type)

Reference No.	Wetted Parts Material AL
	in.	cm
A	23.31	59.2
B	20.86	53.0
C	17.73	45.0
D	3.16	8.0
E	13.40	34.0
F	6.70	17.0
G*	23.29	59.2
H*	11.64	29.6
J	7.91	20.1
K*	17.89	44.9
L	11.01	28.0
M*	13.95	35.4
N	8.89	22.6

* Size tolerances can be up to 0.25 in. (6.3 mm), depending on the diaphragm material installed in the unit.

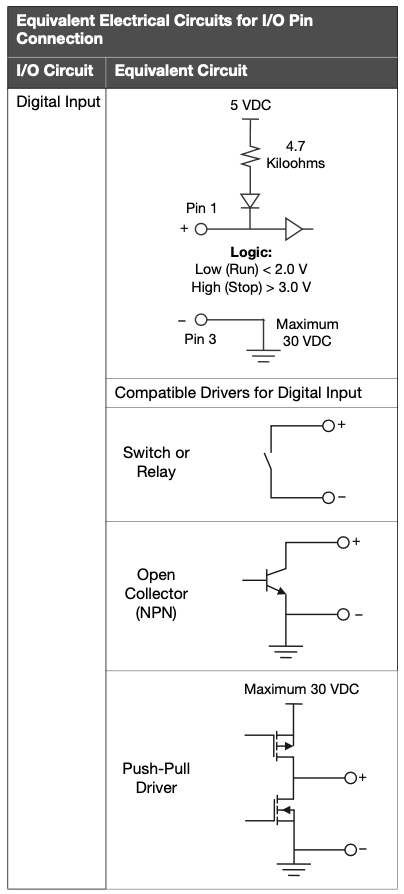

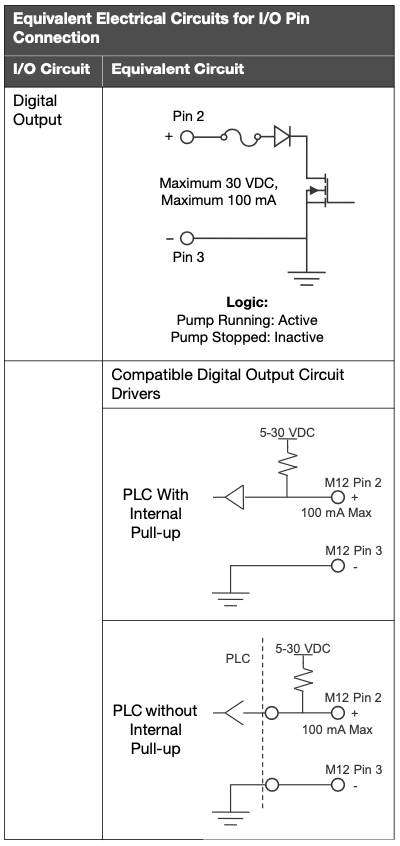

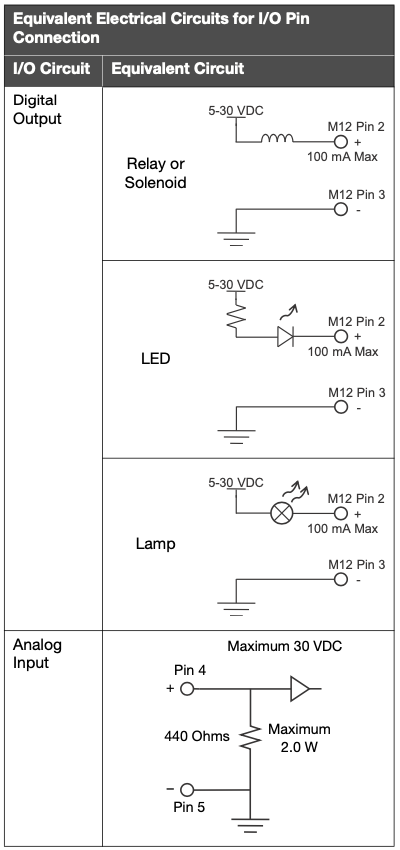

Connect I/O Cable Leads

Reference No.	Wire Color	Connector Type	Internal Pin Connection
L1	White	Digital Input	Pin 1
L2	Orange	Digital Output	Pin 2
L3	Blue	Ground / Common	Pin 3
L4	Red	Analog Input, Positive	Pin 4
L5	Black	Analog Input, Negative	Pin 5
L6	Green	Ground	Ground
