Flow meters are indispensable instruments in fluid handling systems, widely recognized for their effectiveness in measuring flow rates. They serve a crucial role across various industries, including agricultural chemical production and water treatment facilities, where they provide reliable monitoring of operational efficiency and offer tangible data for identifying potential issues within piping systems. Consequently, selecting the appropriate flow meter for your specific application is of utmost importance.
Making the wrong choice in flow meters can lead to inaccurate flow monitoring, resulting in decreased overall system efficiency and unexpected financial burdens. To avoid such setbacks, this article aims to shed light on several commonly used flow meter types and their respective applications. Additionally, we will present a series of key considerations that users must keep in mind when choosing a flow meter tailored to their specific application requirements. By being well-informed and considering these factors, you can make a confident decision in selecting a flow meter that aligns perfectly with your needs.
How to choose a suitable flowmeter: What aspects should be considered when choosing a flowmeter?
- Accuracy and repeatability of the flowmeter
Flow meters play a vital role in industrial automation systems, where accuracy and repeatability are crucial for ensuring operational stability and product quality. Repeatability and reproducibility are two important concepts to consider when evaluating the performance of flow meters.
Repeatability refers to the ability of a flow meter to consistently display the same flow indication when measuring under identical conditions. This requires maintaining consistent environmental factors such as temperature, pressure, and flow rate. Repeatability is a key indicator used to assess the reliability of flow meters.
On the other hand, reproducibility refers to the variation observed when different flow meters or operators measure the same flow conditions over extended periods. Factors such as instrument drift, environmental changes, and operator expertise can contribute to this variation. Regular calibration and maintenance are necessary to ensure the accuracy and reliability of flow meters over time.
In practical applications, repeatability and reproducibility are fundamental performance indicators for measuring instruments, directly impacting measurement accuracy. Improving accuracy is essential for enhancing product quality, reducing production costs, and optimizing industrial automation systems.
In conclusion, flow meters are indispensable instruments in modern industrial automation systems. The repeatability and reproducibility of flow meters are critical indicators of measurement accuracy. By evaluating and calibrating the performance of flow meters, we can ensure the operational stability of the system and the quality of the products being measured.
▲Go back to the Outline of this Article
- Installation of flow meters
When installing flow meters, it is important to consider the following key points:
1. Orientation of the flow meter installation:
- Horizontal pipe installation: In horizontal pipes, there is a possibility of incomplete pipe filling if the pressure is insufficient, leading to inaccurate flow measurement. In such cases, it is recommended to install the flow meter in a recessed section of a U-shaped pipe. This lower position ensures that the pipe is filled with liquid, resulting in more accurate measurement results.
- Vertical pipe installation: It is preferable to install the flow meter on a vertical pipe where the liquid flows from bottom to top. When the liquid flows from top to bottom, the segmented flow pattern and unstable flow rate can affect the accuracy of the measured flow data. Conversely, in a pipeline where the liquid flows from bottom to top, the flow rate is relatively stable due to gravity, and any bubbles tend to accumulate at the top of the pipeline. This configuration allows for more precise measurement results.
Considering these installation considerations ensures that the flow meter is positioned optimally to achieve accurate flow measurement in different pipe orientations.
2. When choosing a flow meter, it is important to consider whether piping work is required. This decision depends on factors such as installation feasibility, ease of maintenance and replacement, and the ability of the production line to accommodate temporary shutdowns.
Some flow meters may necessitate cutting the pipes for installation, which can be a more cost-effective option. On the other hand, installations that do not require cutting pipes may incur higher expenses. If the selected flow meter requires specific pipe size or shape, it is crucial to ensure that the existing piping meets the requirements to achieve the most accurate measurement results.
Considering the need for piping work helps determine the practicality and cost-effectiveness of installing a flow meter, and ensures compatibility between the chosen meter and the existing piping system.
3. When installing a flow meter, it is important to consider the pressure loss associated with the installation. The presence of a flow meter creates resistance to the movement of fluid, which leads to a decrease in pressure. The magnitude of this pressure loss is influenced by factors such as the model of the flow meter, pipe diameter, fluid properties, and installation method.
Choosing a flow meter with a well-designed structure can help minimize the pressure loss and improve the overall efficiency of fluid flow. By selecting a flow meter that is optimized for the specific application and properly sizing the pipe diameter, you can reduce the impact of pressure loss and ensure accurate and efficient measurement of the fluid flow.
4. Weight: The weight of a flow meter is an important consideration during the selection process. It is crucial to assess whether the weight of the flow meter is compatible with the carrying capacity of the pipeline. This is necessary to prevent potential issues such as pipeline deformation or water leakage that can arise from excessive weight.
When choosing a flow meter, it is important to consider the weight of the instrument and ensure that it can be safely installed without compromising the integrity of the pipeline. By assessing the carrying capacity of the pipeline and selecting a flow meter that aligns with the weight limitations, you can avoid potential damage and ensure a secure installation.
5. Pipe diameter: The choice of pipe diameter is an important factor to consider when selecting a flow meter. Different flow meters have specific pipe diameter restrictions, and the diameter of the pipe directly affects the flow rate and pressure of the fluid.
If the selected flow meter has a diameter that is too small for the pipe, it can result in a fast flow rate that exceeds the capacity of the pump in the piping system. This can lead to inaccurate measurement results due to the inability of the pump to provide sufficient flow rate. On the other hand, if the selected pipe diameter is too large, it can result in a slow flow rate that also leads to inaccurate measurements.
Therefore, it is essential to carefully consider the pipe size and the characteristics of the fluid when choosing a flow meter. This ensures that the appropriate pipe diameter is selected to achieve accurate and reliable measurement results. By selecting a flow meter that matches the pipe diameter and fluid characteristics, you can optimize the performance of the flow measurement system and obtain precise data.
In conclusion, when installing a flow meter, it is crucial to consider several key factors that directly impact its measurement accuracy and suitability. These factors include the installation location (horizontal or vertical), the need for piping, pressure loss, weight, and pipe diameter.
The installation location, whether horizontal or vertical, affects the flow meter's performance and accuracy. The requirement for piping work should be evaluated based on installation feasibility, maintenance considerations, and the ability to temporarily shut down the production line if needed.
Pressure loss is an important consideration as the flow meter introduces resistance to fluid movement, resulting in a loss of pressure. Choosing a properly designed flow meter can minimize pressure loss and enhance fluid efficiency.
The weight of the flow meter should be assessed to ensure it does not exceed the carrying capacity of the pipeline, preventing issues such as deformation or water leakage during installation.
Additionally, the selection of the appropriate pipe diameter is critical. A flow meter with a diameter too small or too large for the pipe can lead to inaccurate measurements. Careful consideration of the pipe size and fluid characteristics is necessary to choose the correct pipe diameter for precise and reliable flow measurement.
In summary, a comprehensive evaluation of these factors and adherence to installation requirements are essential when selecting and installing a flow meter. By doing so, reliable and accurate flow measurement results can be achieved, ensuring the efficiency and effectiveness of fluid handling systems.
▲Go back to the Outline of this Article
What are the types of fluids? How to tell?
- What are the types of fluids? How to tell?
Fluids are substances that can flow and take the shape of their containers. They can exist in two main forms: gases and liquids. Understanding the characteristics and distinctions between these fluid types is essential in various fields, including engineering, science, and everyday applications. In the following sections, we will explore the different types of fluids and learn how to differentiate between them.
- Gas: A gas is a state of matter characterized by its lack of a fixed shape and volume. Gas molecules are widely spaced and move randomly at high velocities. Gases can be compressed and have low densities compared to liquids and solids. Examples of common gases include oxygen, nitrogen, carbon dioxide, and others.
- Liquid: A liquid is a state of matter that has a fixed volume but no fixed shape. The molecules in a liquid are closer together compared to a gas, and they move at a relatively slower speed. Liquids have a relatively higher density and are less compressible compared to gases. Common examples of liquids include water, oil, alcohol, and various other substances.
Ways to distinguish fluids:
- Viscosity: Viscosity is a property that quantifies the internal resistance of a fluid and indicates its ability to resist flow. It characterizes the fluid's thickness or stickiness. Fluids with high viscosity have stronger internal friction and flow more slowly, while fluids with low viscosity flow more easily. Examples of high viscosity fluids include resins and heavy oils. Viscosity can be determined by measuring the velocity and stress of a fluid flowing between two parallel plates, which allows for the calculation of the fluid's resistance to flow.
- Density: Density is a property that represents the mass per unit volume of a fluid and indicates how closely packed the molecules of the fluid are. Denser fluids have a higher mass within a given volume. Examples of denser fluids include solutions of metals or heavy starches. Density can be determined by measuring both the mass and volume of a fluid and then calculating the ratio between them. By comparing the mass and volume, we can quantify the compactness of the fluid's molecular structure and determine its density.
- Pressure: Pressure is the force that a fluid exerts on the walls of its container and is influenced by factors such as the fluid's mass and its elevation. Changes in pressure can significantly impact the flow characteristics and velocity of a fluid. To measure pressure accurately, specialized instruments like manometers or pressure transmitters are used. These devices can gauge the force exerted by the fluid and provide valuable information about the fluid's pressure levels. By monitoring and understanding pressure variations, we can gain insights into the behavior and dynamics of the fluid system.
- Flow rate: Flow rate refers to the amount of fluid, either in terms of volume or mass, that passes through a given area within a specified time frame. It provides information about the speed and characteristics of fluid flow. There are various methods to measure flow rate, including the use of flow meters that directly measure the quantity of fluid passing through a specific point, or by measuring the time it takes for a known volume of fluid to pass through a designated area. These measurement techniques allow us to accurately determine the flow rate and understand the dynamics of fluid movement in a system.
By utilizing the aforementioned methods, we can differentiate and characterize fluids. Measuring physical properties like viscosity, density, pressure, and flow velocity enables us to comprehend and regulate fluid behavior. These measurements find application in various fields, including industrial process control, environmental monitoring, and fluid mechanics research.
Nonetheless, it is important to acknowledge that fluid properties extend beyond the mentioned physical quantities and encompass temperature, chemical composition, and flow behavior. Hence, when identifying and characterizing fluids, a comprehensive consideration of multiple factors becomes necessary, and the selection of appropriate measurement methods and tools is crucial.
▲Go back to the Outline of this Article
- Which flowmeters are suitable for measuring liquids and what are the considerations?
Flow meters are essential instruments in industry and science, providing accurate measurement of fluid flow and crucial data for process control and monitoring. When selecting a flow meter suitable for liquid measurement, the following factors should be considered:
- Differential pressure flow meters: These flow meters determine flow rate by measuring the pressure difference in the pipeline. They are suitable for measuring low viscosity liquids and gases. The advantages of this type of flow meter are relatively low cost and, in certain applications, good accuracy.
- Magnetic flow meters: Magnetic flow meters calculate flow by measuring the velocity of a liquid in a magnetic field. They are suitable for liquids with good conductivity, such as water and solutions. Magnetic flow meters offer good accuracy and stability, without causing pressure loss to the fluid.
- Ultrasonic flow meters: Ultraso nic flow meters calculate flow rate by measuring the speed of ultrasonic waves in a liquid. They are suitable for high viscosity liquids and liquids containing solid particles. Ultrasonic flow meters do not require direct contact with the fluid, eliminating contamination concerns and pressure loss.
- Thermal mass flow meters: Thermal mass flow meters determine flow rate by measuring the average temperature of the liquid in the pipe. They are suitable for low viscosity liquids such as gases and clean liquids. The principle of this flow meter is based on heat conduction, but the influence of ambient temperature on the measurement results should be taken into account.
By carefully considering these different types of flow meters and their suitability for specific applications, one can choose the most appropriate flow meter to ensure accurate and reliable flow measurement.
When considering the selection of a suitable flow meter for liquid measurement, it is important to take into account the following factors:
- Flow rate range: Different flow meters have specific flow rate ranges they can accurately measure. It is essential to choose a flow meter that can cover the required flow rate range of the application.
- Viscosity: When dealing with high-viscosity liquids such as pasty materials or fluids with high viscosity, it is necessary to select a flow meter that is capable of accurately measuring such fluids. Ultrasonic flow meters are particularly effective in measuring the flow of highly viscous liquids.
- Measurement accuracy: Flow meters vary in their measurement accuracy capabilities. Depending on the application's requirements and the desired level of accuracy, it is crucial to select a flow meter that can provide the necessary measurement precision.
- Ambient temperature: Thermal flow meters are sensitive to changes in ambient temperature. When choosing a flow meter, it is important to consider the potential impact of ambient temperature on the measurement results to ensure accurate and stable measurements.
In summary, when selecting a flow meter for liquid measurement, it is necessary to consider factors such as flow rate range, viscosity, measurement accuracy, and ambient temperature. Differential pressure flow meters are suitable for low-viscosity liquids and gases, electromagnetic flow meters are ideal for liquids with good conductivity, ultrasonic flow meters are well-suited for measuring high-viscosity liquids and liquids with solid particles, and thermal flow meters are suitable for low-viscosity liquids. The specific choice of flow meter should be based on the specific requirements and conditions of the application, ensuring accurate flow measurement and optimal operational results.
▲Go back to the Outline of this Article
- Which flow meters are suitable for measuring gases and what are the considerations?
Gas flow measurement is crucial in various industrial fields, and selecting the right flow meter technology is essential for accurate measurements. There are several options available, including thermal mass flow meters, differential pressure flow meters, ultrasonic flow meters, Coriolis mass flow meters, and mechanical flow meters. Each technology has its own advantages and applications.
- Thermal mass flow meters measure flow by detecting the heat generated by the gas passing through the instrument. They are suitable for low flow ranges and non-corrosive gases, but they can be sensitive to changes in gas temperature.
- Differential pressure flow meters determine the flow rate by measuring the pressure difference created as the gas flows through the instrument. These meters are applicable to various gases and medium flow ranges, based on Bernoulli's principle.
- Ultrasonic flow meters transmit and receive ultrasonic signals to calculate the gas flow rate by analyzing the changes in sound wave propagation time. They are suitable for a wide range of gas types and large flow ranges without affecting the fluid.
- Coriolis mass flow meters measure mass flow by detecting the Coriolis force generated when the gas passes through the instrument. They utilize the Coriolis effect in curved pipes to determine fluid mass. Coriolis mass flow meters are insensitive to changes in gas density and are suitable for high-precision mass flow measurement.
When selecting a gas flow meter, several factors need to be considered:
- Gas properties: Understanding the characteristics of the gas being measured, such as density, viscosity, and compressibility, is essential for choosing the appropriate flow meter technology.
- Gas pressure: Different flow meter technologies may be suitable for high-pressure or low-pressure gases. It is important to ensure that the selected flow meter can provide accurate measurements within the expected pressure range.
- Gas temperature: The temperature of the gas can affect the performance of the flow meter. Consider selecting a flow meter that can operate reliably over a wide range of temperatures.
- Flow range: Determine the desired flow range for the application. Different flow meters have varying minimum and maximum measurement capabilities. Select a flow meter that can cover the required range to achieve accurate and reliable measurements.
- Application requirements: Consider the level of accuracy required for the specific application. Some applications demand high precision in flow measurement, while others may have less stringent requirements.
By taking all these factors into account, you can choose the most suitable flow meter technology for accurate gas flow measurement. Consulting with a professional flow meter supplier or engineer can provide valuable advice and support during the selection process. Whether it is for industrial control or scientific research, selecting the appropriate flow meter technology ensures reliable and accurate measurement results.
▲Go back to the Outline of this Article
Comparison of various flowmeters: What are the principles of flowmeters? What are their advantages and disadvantages?

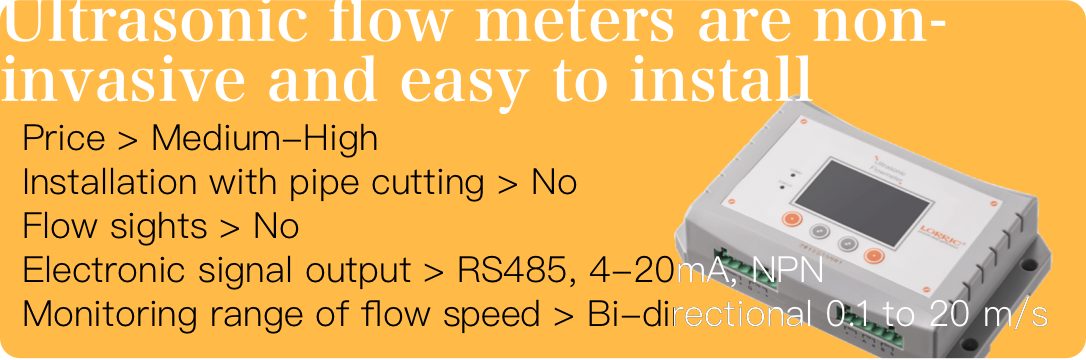

- Advantages and disadvantages of ultrasonic flowmeter
Ultrasonic flowmeters are an advanced fluid measurement technology with several advantages, but they also have limitations. Here is a description of the advantages and disadvantages of ultrasonic flowmeters:
Advantages:
- Unimpeded flow channel: Ultrasonic flowmeters have an unobstructed flow channel, allowing fluid to pass without interference, which improves measurement accuracy.
- No moving parts: Since ultrasonic flow meters have no moving parts, there is no need for lubrication or maintenance, reducing the risk of failure and repair costs.
- No additional pressure loss: Installing an ultrasonic flowmeter in a fluid system does not cause additional pressure loss, ensuring energy efficiency.
- Suitable for chemically aggressive liquids: Ultrasonic flow meters can be made with materials suitable for measuring chemically aggressive liquids, providing a safe and reliable measurement solution.
- Linear relationship: The measurement variable of ultrasonic flowmeters has a linear relationship with the flow rate, enhancing the reliability and accuracy of measurement results.
- Low maintenance cost: Ultrasonic flowmeters have low maintenance costs and do not require frequent calibration and adjustment, saving time and cost.
- Bi-directional operation: Ultrasonic flow meters can measure flow in both forward and reverse directions, offering greater flexibility and application range.
- Insensitivity to temperature, density, and concentration (transit time flowmeter): Ultrasonic transit time flowmeters are unaffected by changes in temperature, density, and concentration, ensuring measurement stability.
- Retrofittable on existing pipelines: Ultrasonic flow meters can be retrofitted into existing pipelines, but on-site calibration is necessary to ensure accuracy.
Limitations:
- Challenges in liquid and gas measurement: Ultrasonic flowmeters still face some difficulties in measuring liquids and gases, requiring further improvement and research.
- Representative cross section required: Measurement results of ultrasonic flowmeters are influenced by the fluid cross section, necessitating a representative cross section for sound waves during measurement. This requires installing the flowmeter with sufficient inlet and outlet sections for full and even fluid flow.
- Errors from deposits: Ultrasonic flowmeters may produce measurement errors in the presence of deposits, requiring regular cleaning and maintenance for accurate and reliable measurements.
- Clean liquid required (transit time flowmeter): Ultrasonic transit time flowmeters have high requirements for clean liquids to avoid contamination that could affect measurement results.
- Doppler flowmeter suitable for light pollution or few air bubbles: Doppler flowmeters can only measure accurately in the presence of light pollution or a small number of air bubbles, making them unsuitable for heavily polluted liquids.
- Sensitivity to changes in sound velocity (Doppler flowmeter): Doppler flowmeter measurements are affected by changes in sound velocity due to temperature, density, and concentration variations. These factors should be considered in applications, and correction and compensation should be applied.
- Unsuitability for heavily contaminated liquids: Ultrasonic flow meters are not suitable for heavily contaminated liquids, as this may result in measurement errors and inaccuracies.
- Measurement errors caused by air bubbles: The presence of air bubbles can cause measurement errors in ultrasonic flowmeters, especially if there are numerous bubbles in the liquid.
- Ongoing challenges in liquid and gas measurement: Ultrasonic flowmeters still face difficulties in measuring liquids and gases, necessitating ongoing research and improvement.
Despite the advantages, it is important to be aware of these limitations when considering the application of ultrasonic flowmeters.
▲Go back to the Outline of this Article

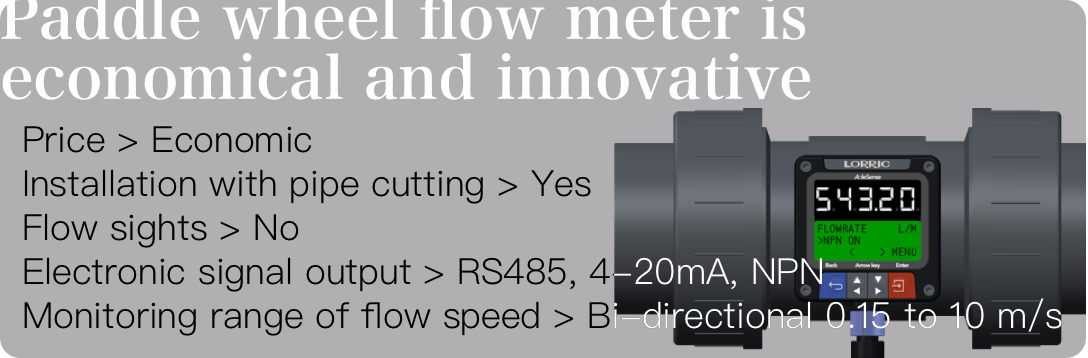

- Advantages and disadvantages of paddle wheel flowmeter
The paddle wheel flow meter is a commonly used flow measurement technology with its own unique advantages and disadvantages. Here are the pros and cons of paddle wheel flow meters:
Advantages:
- Excellent reproducibility and responsiveness: Paddle wheel flow meters provide stable flow measurement results and respond quickly to changes in fluid flow.
- Simple structure and low cost: Paddle wheel flow meters have a simple structure consisting of a rotating paddle wheel and a sensor. This simplicity reduces manufacturing costs and makes the flow meter economically affordable.
- Compact size for large volume measurement: Paddle wheel flow meters are compact, making them convenient for flow measurement in limited spaces. They also allow for accurate measurement of large volume fluids.
Disadvantages:
- Less accuracy compared to other flow meters: Paddle wheel flow meters are generally less accurate than other types of flow meters. Factors such as fluid viscosity and flow velocity distribution can affect the rotation speed of the paddle wheel, making it unsuitable for applications requiring high accuracy.
- Not suitable for low flow rates: Paddle wheel flow meters are not suitable for measuring low flow rates. Insufficient fluid flow through the paddle wheel can lead to unstable rotation, compromising measurement accuracy.
- Not suitable for high-viscosity fluids: Paddle wheel flow meters are not suitable for measuring high-viscosity fluids. The resistance caused by high-viscosity fluids hinders the rotation of the paddle wheel, affecting measurement accuracy.
In summary, paddle wheel flow meters offer excellent reproducibility, responsiveness, a simple structure, and affordability, making them widely used in flow measurement. Their compact size allows for large volume measurement in limited spaces. However, paddle wheel flow meters have limitations, including lower accuracy compared to other flow meters, unsuitability for low flow rates, and inability to measure high-viscosity fluids effectively.
When considering the use of a paddle wheel flow meter, the following factors should be taken into account:
- Application requirements: Determine the required accuracy and flow range to assess if the paddle wheel flow meter meets the application's needs.
- Fluid properties: Understand the viscosity and flow velocity distribution of the fluid being measured to assess the performance of the paddle wheel under these conditions.
- Budget constraints: Paddle wheel flow meters are cost-effective, making them suitable for applications with limited budgets.
- Installation requirements: Consider the size and installation requirements of the flow meter to ensure compatibility with the existing piping system.
Overall, paddle wheel flow meters are practical and cost-effective in many applications. Despite their lower accuracy and limitations for low flow rates and high-viscosity fluids, they remain reliable and economical choices within their capabilities. By selecting the most suitable flow meter based on specific application needs and fluid properties, accurate flow measurement and reliable operation can be achieved.
▲Go back to the Outline of this Article

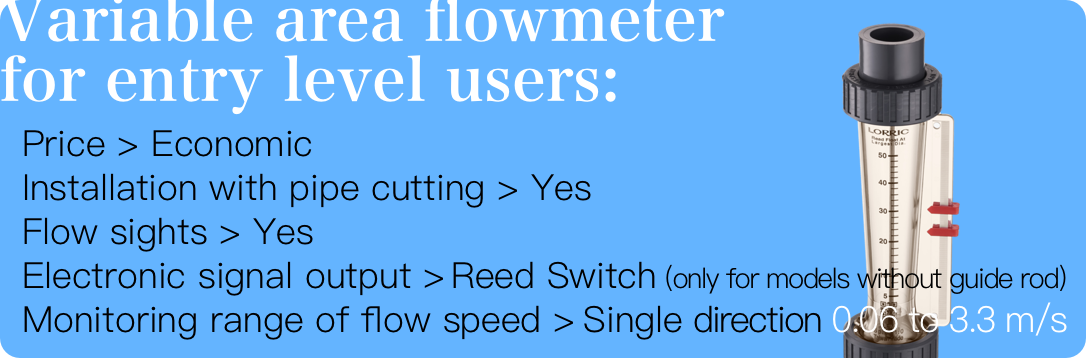

- Advantages and disadvantages of area flow meters
Area flow meters are a commonly used and widely adopted flow measurement technology. They offer a range of advantages and disadvantages, which are discussed below.
Advantages:
- Reasonable price and simple structure: Area flow meters are relatively affordable and have a straightforward design, making them cost-effective options.
- No need for auxiliary energy: Area flow meters operate based on the pressure difference of the fluid, eliminating the need for additional energy supply and reducing energy consumption.
- Suitable for liquids and gases: These flow meters can measure various types of liquid and gaseous fluids, making them versatile in applications.
- No requirement for inlet and outlet straight sections: Unlike some other flow meters, area meters do not require additional straight sections for inlet and outlet, enabling measurements in limited installation spaces.
- Assembly and maintenance-friendly: Area flow meters are easy to assemble and maintain due to their simple design, small number of parts, and user-friendly operation.
Disadvantages:
- Not suitable for high-viscosity fluids: Area flow meters are not suitable for measuring high-viscosity fluids as viscosity affects measurement accuracy and reliability.
- Not suitable for low flow rates: Area flow meters have limitations when it comes to measuring fluids at low flow rates. The small change in area at low flow rates can impact measurement accuracy.
In summary, area flow meters are practical and cost-effective for flow measurement. They offer advantages such as a simple structure, no need for additional energy supply, and applicability to various fluids. However, they have limitations in measuring high-viscosity fluids and low flow rates.
When selecting an area flow meter, the following factors should be considered:
- Fluid properties: Area flow meters are suitable for most liquids and gases but may not be suitable for high-viscosity fluids. Ensure that the selected model is appropriate for the specific fluid properties.
- Flow range: Area meters have a limited measuring range, so select a flow meter that matches the required flow range for accurate measurements.
- Measurement accuracy: Compared to high-precision flow meters, area flow meters have relatively lower measurement accuracy. For applications requiring high precision, consider other types of flow meters.
- Installation requirements: While area flow meters do not require straight sections for inlet and outlet, proper installation considerations should still be taken into account to avoid disturbances, eddy currents, and pressure losses.
- Maintenance and calibration: Area flow meters generally have low maintenance requirements, but regular calibration is essential to maintain accuracy. Ensure timely calibration and maintenance to uphold the reliability of the flow meter.
In conclusion, area flow meters offer significant advantages such as affordable pricing, simple structure, and suitability for various fluids. However, they have limitations regarding high-viscosity fluids and low flow rates. When selecting an area flow meter, carefully consider fluid properties, flow range, accuracy requirements, installation needs, and maintenance requirements to ensure it meets the specific application needs.
▲Go back to the Outline of this Article
- Advantages and disadvantages of Coriolis mass flowmeter
The Coriolis mass flow meter, also known as the Aurora mass flow meter, is an advanced technology used for measuring the mass flow of fluids. It utilizes the Coriolis force effect to determine mass flow by measuring the frequency of oscillations produced when fluid flows. Let's explore the advantages and disadvantages of Coriolis mass flow meters:
Advantages:
- True mass flow measurement: The Coriolis mass flow meter directly measures the mass flow of the fluid without being affected by changes in fluid density. This makes it highly suitable for applications that require accurate mass flow measurement.
- Additional temperature and density measurement: Coriolis mass flow meters often have the capability to simultaneously measure the temperature and density of a fluid. This provides a more comprehensive understanding of fluid properties and enables more accurate assessment.
- Very high measurement accuracy of mass flow: Coriolis mass flow meters offer exceptional measurement accuracy and can achieve highly precise mass flow measurement. This makes them well-suited for applications that demand high precision measurements.
- Highly accurate density measurement: Coriolis mass flow meters provide accurate fluid density measurement, which is crucial for process control and quality assurance in various fluid applications.
- Not affected by pressure, temperature, and viscosity: The measurement results of Coriolis mass flow meters remain unaffected by fluid pressure, temperature, and viscosity. This ensures stability and reliability in measurement environments with changing conditions.
- No need for specific inlet and outlet sections: Unlike some other flow meter types, Coriolis mass flow meters do not require specific inlet and outlet straight sections. This flexibility makes installation more convenient.
Disadvantage:
- Large pressure loss: Coriolis mass flow meters may cause significant pressure loss during the measurement process. Particularly when measuring liquids with high saturated vapor pressure, this pressure loss can lead to vaporization and cavitation of the liquid, potentially affecting system stability and reliability.
In summary, Coriolis mass flow meters offer numerous advantages, making them suitable for a wide range of applications. They provide true mass flow measurement with high accuracy and accurate density measurement. Additionally, they are unaffected by pressure, temperature, and viscosity, and offer flexible installation options. However, it is important to note that Coriolis mass flow meters may generate significant pressure loss, especially when measuring liquids with high saturated vapor pressure. Careful consideration of application requirements and system characteristics is necessary when choosing to use a Coriolis mass flow meter, with proper attention given to address the issue of pressure loss.
▲Go back to the Outline of this Article
- Advantages and disadvantages of positive displacement flowmeter
A volumetric flowmeter is a commonly used device for measuring flow by calculating the volumetric flow rate of a fluid. Positive displacement flow meters offer several advantages:
Advantages:
- Unobstructed flow channel: Positive displacement flow meters have a smooth flow channel without protruding parts, ensuring fluid flows smoothly with reduced resistance.
- No moving parts: Positive displacement flow meters operate without any mechanical moving parts, resulting in stable operation and eliminating the need for regular maintenance and inspections.
- No additional pressure loss: These flow meters do not introduce additional pressure loss during the measurement process, helping to maintain system efficiency.
- Insensitivity to flow field distribution: Positive displacement flow meters are insensitive to flow field distribution, requiring only short inlet and outlet sections to achieve accurate measurement results.
- Insensitivity to temperature, density, viscosity, concentration, and conductivity: Positive displacement flow meters provide measurement results unaffected by changes in fluid temperature, density, viscosity, concentration, and conductivity. This broadens their applicability in various scenarios.
- Suitable for chemically aggressive media: Positive displacement flow meters can be selected with appropriate materials to handle chemically aggressive fluids.
However, positive displacement flow meters also have some disadvantages:
- Volumetric flow rate measurement affected by temperature and pressure changes: Since positive displacement flow meters measure volumetric flow rate, changes in fluid temperature and pressure can affect measurement results. This requires corresponding corrections and compensations when using positive displacement flow meters for measurement.
In conclusion, positive displacement flow meters play an important role in various application scenarios and offer advantages such as unobstructed flow channels, absence of moving parts, and no additional pressure loss. However, it's important to consider that temperature and pressure changes can impact the measurement results. Therefore, temperature and pressure corrections are necessary for accurate measurements. Additionally, positive displacement flow meters have limitations when measuring high-viscosity fluids and low flow rates. Hence, the fluid viscosity and the expected flow rate range should be considered when selecting a flow meter.
▲Go back to the Outline of this Article
- Advantages and disadvantages of vortex flowmeter
Vortex flow meters are widely used for fluid measurement and offer several advantages and limitations. Let's explore them below:
Advantages:
- No moving parts: One of the main benefits of vortex flow meters is their lack of moving parts. This design enhances reliability and lifespan while eliminating the need for routine maintenance, resulting in cost and time savings.
- Robust structure: Vortex flow meters are built to withstand different industrial environments. They are typically made of high-strength materials capable of withstanding external conditions such as pressure, temperature, and vibration.
- Applicable to liquids, gases, and steam: Vortex flow meters have a broad range of applications and can measure various fluids, including liquids, gases, and steam. Their versatility makes them a common choice for flow measurement in many industries.
- Easy to sanitize: Vortex flow meters generally have smooth surfaces, allowing for easy cleaning and sanitization. This makes them suitable for hygienic measurement requirements, particularly in industries like food and pharmaceuticals.
- Insensitivity to changes in pressure, temperature, and density: Vortex flow meters provide stable and reliable measurement results regardless of parameters like pressure, temperature, and density. This characteristic ensures consistent performance under different operating conditions.
Limitations:
- Inlet and outlet sections required: Vortex flow meters necessitate a certain length of inlet and outlet sections before measurement to ensure stable flow characteristics near the measurement point. This may require additional installation space in certain application scenarios.
- Minimum Reynolds number requirement: Vortex flow meters require sufficient flow energy in the fluid, which is determined by meeting the minimum Reynolds number condition. At low flow rates, the accuracy of vortex flow meters may be affected because the fluid's flow characteristics may not generate enough swirl effect to ensure precise measurements.
In summary, vortex flow meters offer several advantages, such as the absence of moving parts, durability, compatibility with various fluids, ease of sanitization, and insensitivity to pressure, temperature, and density changes. However, they also have limitations, including the need for inlet and outlet sections and a minimum Reynolds number requirement. When selecting a vortex flow meter, it is crucial to consider the specific requirements and limitations of the application scenario to ensure accurate and reliable measurements. Additionally, proper installation and operation are vital for obtaining accurate measurement results.
▲Go back to the Outline of this Article
- Advantages and disadvantages of turbine flowmeter
The turbine flowmeter is a widely used equipment for flow measurement, which utilizes the principle of turbine rotation to measure fluid flow. Let's discuss the advantages and limitations of turbine flowmeters:
Advantages:
- No external power source required for rotating vane and Woltmann turbine meters: These types of turbine flowmeters utilize the pressure differential generated by the fluid's passage to drive the rotating vanes, eliminating the need for an external power source. This saves energy costs and simplifies the setup process.
- Suitable for cryogenic liquids: Turbine flowmeters are applicable for measuring cryogenic liquids, including refrigerated liquids and cryogenic process fluids. They find extensive use in refrigeration technology, liquefied natural gas, and other related fields.
- Capable of withstanding extreme temperature and pressure: Turbine flowmeters can operate under extreme temperature and pressure conditions, displaying high tolerance and suitability for special industrial environments.
Limitations:
- Limited material selection: Turbine flowmeters have certain restrictions on material selection, particularly when dealing with corrosive media, high temperature, and high-pressure conditions. It is necessary to choose materials with corrosion resistance and high-temperature/high-pressure performance.
- Suitable for low-viscosity liquids: Turbine flowmeters are sensitive to the viscosity of liquids and are primarily suitable for measuring low-viscosity liquids. Their effectiveness may not be as ideal as other measuring devices when it comes to high-viscosity liquids.
- Presence of moving parts and wear: Turbine flowmeters contain moving parts like rotating blades, which can undergo wear and damage with prolonged operation. Regular maintenance and replacement are necessary.
- Sensitivity to pollutants: Turbine flowmeters are sensitive to pollutants present in the fluid. Solid particles or impurities can affect measurement accuracy. Therefore, regular cleaning and maintenance are essential to ensure accuracy.
- Impact of flow contours on axial flowmeters: Some turbine flowmeters with axial flow can be affected by fluid flow contours during measurement. Proper length of the inlet and outlet sections should be considered during installation to ensure flow stability and accuracy.
- Inlet and outlet sections required (except rotary vane types): Most turbine flowmeters require a specific length of inlet and outlet sections for steady fluid entry and exit, ensuring accurate measurements. However, rotary vane turbine meters offer more flexibility in this regard and do not require specific inlet and outlet sections.
- Affected by overload and high differential pressure: Turbine flowmeters may be influenced by overload and rapid changes in high differential pressure, posing a risk of overspeed. Thus, caution should be exercised when using turbine flowmeters under high differential pressure conditions, taking into account the impact of pressure changes on the measurement.
- Sensitivity to vibration: Turbine flowmeters are sensitive to vibration, necessitating appropriate anti-vibration measures during installation to ensure measurement stability and reliability.
In summary, turbine flowmeters offer several advantages such as no external power requirement and suitability for special conditions. However, they also have limitations, including restricted material selection and sensitivity to liquid viscosity. Therefore, when selecting and applying a turbine flowmeter, careful consideration of its characteristics and limitations is necessary to ensure suitability for specific measurement needs. Additionally, proper installation and maintenance are crucial for obtaining accurate and reliable measurement results.
▲Go back to the Outline of this Article
- Advantages and disadvantages of differential pressure flowmeter
A differential pressure flow meter is a commonly used flow measurement device that offers several advantages along with some limitations. Let's explore these pros and cons to gain a better understanding of the characteristics and applications of differential pressure flow meters.
Advantages:
- High Accuracy: Differential pressure flow meters provide precise flow measurement, making them suitable for applications that require accurate flow control and monitoring.
- Wide Range of Applications: These flow meters are versatile and can measure the flow of both liquids and gases, making them suitable for various application scenarios, including industrial process control and laboratory research.
- Suitable for High Temperature and High Pressure Applications: Differential pressure flow meters are capable of operating effectively under high temperature and high pressure conditions, delivering accurate flow measurement. This makes them ideal for handling media with elevated temperature and pressure.
- Cost-Effective: Compared to other flow measurement technologies, differential pressure flow meters are relatively affordable, making them a cost-effective option for applications with budget constraints.
Limitations:
- Regular Maintenance Required: Differential pressure flow meters require periodic maintenance to ensure proper operation and accuracy. This may involve tasks such as cleaning, calibration, and parts replacement. The frequency and specific requirements of maintenance depend on the application and usage environment.
- Prone to Wear and Damage: The presence of moving parts in differential pressure flow meters makes them susceptible to wear and damage. This can result in decreased measurement accuracy or even the malfunctioning of the flow meter. Therefore, it is necessary to regularly inspect and replace damaged parts.
- Limited Accuracy at Low Flow Rates: Differential pressure flow meters have limited accuracy at low flow rates. The measurement principle of these flow meters may not provide highly accurate results at low flow rates. The small differential pressure signal at low flow rates can be influenced by noise and uncertainty, affecting the accuracy of the measurement.
In summary, differential pressure flow meters offer advantages such as high accuracy, wide applicability, suitability for high temperature and high pressure conditions, and cost-effectiveness. However, they also have limitations, including the need for regular maintenance, susceptibility to wear and damage, and limited accuracy at low flow rates. Therefore, when selecting and using a differential pressure flow meter, it is important to consider these pros and cons and ensure proper maintenance and usage conditions to ensure accuracy and reliability.
▲Go back to the Outline of this Article
- Advantages and disadvantages of laminar flow meters
Advantages:
- High Precision: Laminar flow meters offer exceptional measurement accuracy, making them popular in applications that require precise flow data, such as laboratory research and scientific experiments.
- Suitable for Low Flow Rates: Laminar flow meters excel in measuring low flow rates, making them ideal for applications that demand accurate measurements in low-flow scenarios. They ensure reliable flow monitoring and control, contributing to the stable operation of fluid handling systems.
- Low Pressure Drop: Laminar flow meters exhibit relatively low pressure drop as fluids pass through them. This advantage is valuable in applications where minimizing energy consumption and fluid loss is crucial.
- No Moving Parts: Laminar flow meters do not contain any moving parts, enhancing their durability and reducing the need for frequent maintenance and part replacements.
- Ability to Measure Liquids and Gases: Laminar flow meters are versatile and can measure the flow of various liquids and gases, making them suitable for a wide range of fluid handling applications.
Limitations:
- Limited Range of Applications: Laminar flow meters have a narrower range of applications and are primarily suited for low flow rates. Their measurement accuracy may decrease at high flow rates, so it is essential to consider their flow rate limitations when choosing a flow meter.
- Susceptibility to Clogging: Laminar flow meters are prone to clogging when used with fluids containing solid particles or viscous liquids. This can result in measurement errors or even system malfunctions. Therefore, it is important to consider the fluid characteristics and implement appropriate cleaning and maintenance measures when using laminar flow meters.
In summary, laminar flow meters offer the advantages of high accuracy, suitability for low flow rates, low pressure drop, absence of moving parts, and the ability to measure different types of fluids. They provide reliable flow monitoring and control in various applications, especially those requiring high accuracy and low flow rates. However, they also have limitations, including a limited application range and vulnerability to clogging. Choosing a suitable laminar flow meter requires careful consideration of the application requirements and fluid properties, along with the necessary maintenance and cleaning to ensure accurate and reliable operation.
Understanding the pros and cons of laminar flow meters is crucial for users to make informed decisions when selecting the appropriate flow meter. Whether in medical equipment, laboratory applications, or other fluid processing fields, users should carefully consider the advantages and disadvantages of laminar flow meters based on their specific needs and application requirements to ensure accurate and reliable flow measurement results.
▲Go back to the Outline of this Article
- Advantages and disadvantages of electromagnetic flowmeters:
Advantages:
- Unobstructed flow path with no protruding parts: Electromagnetic flowmeters have a design without protruding parts, allowing fluid to flow through without hindrance or additional pressure loss.
- No moving parts: Electromagnetic flowmeters are highly reliable and durable since they have no moving parts, reducing the need for maintenance and the risk of failure.
- No pressure loss: The use of electromagnetic flowmeters does not introduce additional pressure loss, resulting in reduced energy consumption and operating costs.
- Insensitivity to flow field characteristics: Electromagnetic flowmeters are not sensitive to flow field characteristics, requiring only a short inlet and outlet section for measurement. This provides more flexibility in installation options.
- Insensitivity to changes in temperature, density, viscosity, concentration, and conductivity: Electromagnetic flowmeters are not affected by changes in the temperature, density, viscosity, concentration, and conductivity of fluids, ensuring accurate flow measurement results.
- Applicable to chemically aggressive or abrasive measuring media: Electromagnetic flowmeters can be constructed with suitable materials to handle chemically aggressive or abrasive measuring media, ensuring measurement accuracy and durability.
- Not affected by pollution and deposits: Electromagnetic flowmeters are not easily affected by pollution and deposits, resulting in relatively stable and reliable measurement results.
- Especially suitable for solid-liquid transportation: Electromagnetic flowmeters are particularly suitable for the transportation of liquid-solid two-phase fluids, providing accurate flow measurement results.
Limitations:
- Limited to liquid applications: Electromagnetic flowmeters can only measure the flow of liquids and are not suitable for measuring gases.
- Lower conductivity limit: Electromagnetic flowmeters have specific requirements regarding fluid conductivity. The lower limit is typically around 0.05 μS/cm, and measurements below this limit may result in errors.
- Error caused by gas content: The presence of gas content in the liquid during electromagnetic flowmeter measurement can lead to measurement errors.
In summary, electromagnetic flowmeters offer numerous advantages, including a smooth flow path without protruding parts, absence of moving parts, no pressure loss, insensitivity to flow field characteristics, and resistance to changes in temperature, density, viscosity, concentration, and conductivity. They are also suitable for chemically aggressive or abrasive measuring media and are not easily affected by pollution and deposits, making them well-suited for solid-liquid transportation. However, electromagnetic flowmeters can only measure liquids and may produce errors for fluids with low conductivity or gas content. Therefore, when selecting and using an electromagnetic flowmeter, it is important to consider its application scope and limitations to ensure accurate and reliable measurement results.
▲Go back to the Outline of this Article
- Advantages and disadvantages of thermal mass flowmeter
Advantages and disadvantages of thermal mass flow meters:
Advantages:
- Direct gas mass flow measurement: Thermal mass flow meters can directly measure the mass flow of gas without the need for pressure and temperature compensation, providing accurate flow data.
- No additional pressure and temperature compensation required: Unlike other flow meters, thermal mass flow meters do not require additional pressure and temperature compensation, simplifying the operation and calibration process.
- Low pressure loss: Thermal mass flow meters have minimal pressure loss, resulting in minimal energy loss for the fluid passing through the flow meter during the measurement process.
- High measurement accuracy: Thermal mass flow meters offer highly accurate measurements, making them suitable for applications requiring precise flow data.
- Wide measurement range: Thermal mass flow meters have a large measurement range and can accurately measure flow rates ranging from low to high.
- No moving parts: Thermal mass flow meters do not have any moving parts, resulting in a longer lifespan and reduced maintenance requirements.
- Sturdy construction: Thermal mass flow meters have a robust and durable structure, capable of withstanding high pressure and vibration, making them suitable for harsh working environments.
- Short response time: Thermal mass flow meters have a fast response time, instantly detecting and responding to changes in gas flow.
- Easy sanitization: Thermal mass flow meters can be easily sanitized and cleaned, ensuring safe and hygienic use in applications requiring sanitary conditions.
Limitations:
- Limited to gas measurement: Thermal mass flow meters can only measure the flow of gases and are not suitable for liquids or other substances.
- Inlet and outlet sections required: To ensure accurate measurement, specific inlet and outlet sections must be provided for thermal mass flow meters. This includes the use of long straight pipe sections to ensure the stability and uniformity of fluid flow, minimizing interference with measurement results.
In summary, thermal mass flow meters offer numerous advantages, including direct gas mass flow measurement, no additional pressure and temperature compensation requirements, low pressure loss, high measurement accuracy, wide measurement range, absence of moving parts, rugged construction, short response time, and ease of sanitization. However, they are limited to gas flow measurement and require specific inlet and outlet sections for accurate measurements. Understanding the advantages and limitations of thermal mass flow meters can assist in selecting the appropriate flow meter for specific application needs.
▲Go back to the Outline of this Article
Epilogue
When it comes to industrial applications, choosing the right flow meter is crucial. To make an informed decision, it is essential to understand your specific application requirements and thoroughly research the available options. Simply considering the price, whether high or low, is not sufficient; instead, compare all relevant costs in the short and long term.
One of the most important factors is understanding the characteristics of the media and the specific requirements of your application. Choosing an inappropriate flow meter can result in inaccurate measurements or other issues. Additionally, it is vital to consider the flow meter's lifespan, maintenance needs, and calibration requirements.
If you have any questions regarding flow meter selection, we encourage you to contact LORRIC by clicking the button below or giving us a direct call. With over 30 years of experience in the field and technical expertise, we can help you choose the ideal flow meter for your needs. Our commitment lies in providing top-notch products and services, ensuring optimal performance and accuracy for your application.
▲Go back to the Outline of this Article
Contact Us
Citations
1. Flowmeter Repeatability & Reproducibility (2014-08-21)
2. Thermal mass flow meter working principle and Applications (2021-05-09)
3. Flow Meter Installation Guidelines (2022-11-28)
4. What is a Flow Meter and Its Types
5. GAS FLOW 2 – MEASUREMENT (2017-11-30)
7. Flow Measurement (2020)
8. Wikipedia-Fluid (2022-07)
9. Different Types of Flow Meters for Gas Flow Measurement (2022-10-20)
10. What is an Ultrasonic Flow Meter : Types and Its Applications
11. Working Principle of Paddle Wheel Flow Meters (2016-05-30)
12. What are the advantages and disadvantages of Variable Area Flowmeter? (2016-03)
13. Advantages & Disadvantages of Different Flow Meters (2016-06-09)
14. Laminar Flowmeters
15. Flow Measurement (2001)
16. The Differences Between Laminar vs. Turbulent Flow
17. What are the Strengths and Weaknesses of Differential Pressure Flow Devices?
18. Part III: The pros and cons of mass flowmeters for volumetric flow measurement (2015-05-11)
19. Coriolis Flowmeter Advantages and Limitations
20. Coriolis mass flow meter advantages and disadvantages
