EB+HB Angle Adjustable Flat Fan Pipe Clamp Nozzle

Easy to adjust, easy to install, easy to maintain, anti-clogging, and evenly distributed fan spray single-fluid nozzle, commonly used in pre-treatment processes in the coating industry.

Brand: LORRIC
Spray Pattern: Fan-shaped
Fluid: Single-fluid
Nozzle Installation Drilling Diameter:
● Ø 15 (14.3~15 mm)
● Ø 17 (16.4~17 mm)
● Ø 20 (19.0~20 mm)
Pipe Clamp Size:
● 1" (OD 34 ±0.3 mm)
● 1-1/4" (OD 42 ±0.3 mm)
● 1-1/2" (OD 48 ±0.4 mm)
Applicable Pipe Standard: Taiwan Standard PVC
Material: Nozzle-PP, Base, Nut-Glass Fiber Reinforced PP, Pipe Clamp-SS316, Gasket-NBR

File download

Catalogue



About flat fan nozzles

Spray Type and Patterns

Spray Type and Patterns

Spray type: fan, single-line shape with tapered sides. Nozzle forms bell curve flow, stronger center.

Flow Distribution

Flow Distribution

The nozzle presents a bell curve shape flow field distribution with weaker ends compared to the middle.

Three-piece structure design

Three-piece structure design

Three-piece structure design, divided into nozzle part (HB), base part (EB) and nuts, which facilitates maintenance cleaning and replacement, and can save the cost of replacing the nozzle head.

Material Options

  • Tip: PP
  • Clamp, nut: Strengthened Fiberglass PP (FRPP)
  • Pipe clamp: SS316
  • Sealing ring: NBR
Material Options

About engineering tolerance

Flowrate tolerance

Flowrate tolerance

The flow tolerance is within a range of plus or minus 5% of the standard flow rate.

Angle tolerance

Angle tolerance

Angle tolerance is within a range of plus or minus 5% of the standard angle.

Material Guarantees

Metal
Metal

We take high quality smithing metal to produce solid and durable nozzles by detail turning.

Plastic
Plastic

We promise never to use recycled materials.

High Quality
High Quality

All material is purchased from world top providers.

Please place your order according below instruction.

  • Please choose the nozzle that best suits your requirements based on the selection guidelines provided below.
    • Choose the nozzle diameter (thread size) and specifications that meet your requirements.
    • To choose the spray flow rate of each nozzle, refer to the following "Flow Rate vs. Angle Chart".
    • To select the spray coverage area of each nozzle, please refer to the "Flow Rate vs. Angle Chart" below.
    • Choose the nozzle material; different application environments require different materials. Select the nozzle material that suits your application environment.
    • To determine the nozzle angle that meets your requirements, which corresponds to the spray coverage area of each nozzle based on your needs, please consult the "Flow Rate and Angle Comparison Chart" below.
    • Choose the right nozzle material to match your needs, as different environments demand specific materials. Select accordingly based on your usage context.

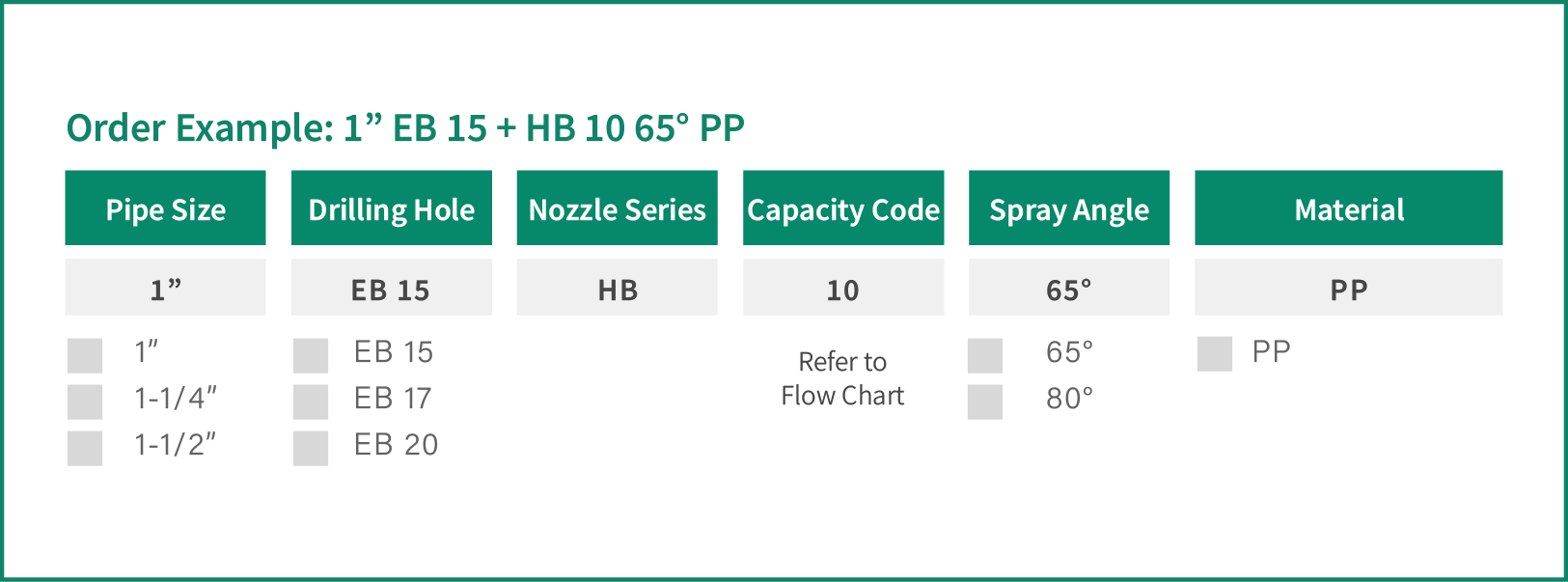

  • Specification example: 1” EB 15 + HB 10-65 PP, the following explains the options and meanings corresponding to each number.
Select
Unit
  • *
  • *
  • *
  • *
Spray Angle Capacity Code Color of HB Capacity at Pressure Capacity at Pressure
0.5
kgf/cm²
0.7
kgf/cm²
1.0
kgf/cm²
1.5
kgf/cm²
2.0
kgf/cm²
2.5
kgf/cm²
3.0
kgf/cm²
3.5
kgf/cm²
4.0
kgf/cm²
65° 10 Sky Blue
1.60 1.89 2.26 2.77 3.20 3.57 3.91 4.23 4.52
65° 20 Red
3.20 3.78 4.52 5.54 6.39 7.15 7.83 8.46 9.04
65° 30 Orange
4.79 5.66 6.77 8.29 9.57 10.70 11.73 12.67 13.54
65° 35 Black
5.59 6.61 7.90 9.68 11.17 12.49 13.68 14.78 15.80
65° 40 Yellow
6.39 7.56 9.03 11.06 12.77 14.28 15.64 16.89 18.06
65° 50 Blue
7.98 9.45 11.29 13.83 15.97 17.85 19.55 21.12 22.58
65° 60 Green
9.58 11.34 13.55 16.60 19.16 21.42 23.74 25.35 27.10
80° 10 Sky Blue
1.60 1.89 2.26 2.77 3.20 3.57 3.91 4.23 4.52
80° 20 Red
3.20 3.78 4.52 5.54 6.39 7.15 7.83 8.46 9.04
80° 30 Orange
4.79 5.66 6.77 8.29 9.57 10.70 11.73 12.67 13.54
80° 35 Black
5.59 6.61 7.90 9.68 11.17 12.49 13.68 14.78 15.80
80° 40 Yellow
6.39 7.56 9.03 11.06 12.77 14.28 15.64 16.89 18.06
80° 50 Blue
7.98 9.45 11.29 13.83 15.97 17.85 19.55 21.12 22.58
80° 60 Green
9.58 11.34 13.55 16.60 19.16 21.42 23.74 25.35 27.10
Spray Angle Capacity Code Color of HB Capacity at Pressure Capacity at Pressure
0.05
MPa
0.07
MPa
0.1
MPa
0.15
MPa
0.2
MPa
0.25
MPa
0.3
MPa
0.35
MPa
0.4
MPa
65° 10 Sky Blue
1.61 1.91 2.28 2.80 3.23 3.61 3.95 4.27 4.56
65° 20 Red
3.23 3.82 4.56 5.59 6.45 7.22 7.91 8.54 9.13
65° 30 Orange
4.83 5.72 6.84 8.37 9.67 10.81 11.84 12.79 13.67
65° 35 Black
5.64 6.67 7.98 9.77 11.28 12.61 13.82 14.92 15.95
65° 40 Yellow
6.45 7.63 9.12 11.17 12.90 14.42 15.79 17.06 18.24
65° 50 Blue
8.06 9.54 11.40 13.96 16.12 18.03 19.75 21.33 22.80
65° 60 Green
9.68 11.45 13.68 16.76 19.35 21.63 23.70 25.60 27.37
80° 10 Sky Blue
1.61 1.91 2.28 2.80 3.23 3.61 3.95 4.27 4.56
80° 20 Red
3.23 3.82 4.56 5.59 6.45 7.22 7.91 8.54 9.13
80° 30 Orange
4.83 5.72 6.84 8.37 9.67 10.81 11.84 12.79 13.67
80° 35 Black
5.64 6.67 7.98 9.77 11.28 12.61 13.82 14.92 15.95
80° 40 Yellow
6.45 7.63 9.12 11.17 12.90 14.42 15.79 17.06 18.24
80° 50 Blue
8.06 9.54 11.40 13.96 16.12 18.03 19.75 21.33 22.80
80° 60 Green
9.68 11.45 13.68 16.76 19.35 21.63 23.70 25.60 27.37
Spray Angle Capacity Code Color of HB Capacity at Pressure Capacity at Pressure
0.5
bar
0.7
bar
1.0
bar
1.5
bar
2.0
bar
2.5
bar
3.0
bar
3.5
bar
4.0
bar
65° 10 Sky Blue
1.61 1.91 2.28 2.80 3.23 3.61 3.95 4.27 4.56
65° 20 Red
3.23 3.82 4.56 5.59 6.45 7.22 7.91 8.54 9.13
65° 30 Orange
4.83 5.72 6.84 8.37 9.67 10.8 11.8 12.8 13.7
65° 35 Black
5.64 6.67 7.98 9.77 11.3 12.6 13.8 14.9 16.0
65° 40 Yellow
6.45 7.63 9.12 11.2 12.9 14.4 15.8 17.1 18.2
65° 50 Blue
8.06 9.54 11.4 14.0 16.1 18.0 19.7 21.3 22.8
65° 60 Green
9.68 11.4 13.7 16.8 19.4 21.6 23.7 25.6 27.4
80° 10 Sky Blue
1.61 1.91 2.28 2.80 3.23 3.61 3.95 4.27 4.56
80° 20 Red
3.23 3.82 4.56 5.59 6.45 7.22 7.91 8.54 9.13
80° 30 Orange
4.83 5.72 6.84 8.37 9.67 10.8 11.8 12.8 13.7
80° 35 Black
5.64 6.67 7.98 9.77 11.3 12.6 13.8 14.9 16.0
80° 40 Yellow
6.45 7.63 9.12 11.2 12.9 14.4 15.8 17.1 18.2
80° 50 Blue
8.06 9.54 11.4 14.0 16.1 18.0 19.7 21.3 22.8
80° 60 Green
9.68 11.4 13.7 16.8 19.4 21.6 23.7 25.6 27.4
Spray Angle Capacity Code Color of HB Capacity at Pressure Capacity at Pressure
7
psi
10
psi
15
psi
20
psi
25
psi
30
psi
40
psi
50
psi
60
psi
65° 10 Sky Blue
0.42 0.50 0.61 0.71 0.79 0.87 1.00 1.12 1.23
65° 20 Red
0.84 1.00 1.23 1.42 1.58 1.73 2.00 2.24 2.45
65° 30 Orange
1.25 1.50 1.84 2.12 2.37 2.60 3.00 3.35 3.67
65° 35 Black
1.46 1.75 2.14 2.47 2.77 3.03 3.50 3.91 4.29
65° 40 Yellow
1.67 2.00 2.45 2.83 3.16 3.46 4.00 4.47 4.90
65° 50 Blue
2.09 2.50 3.06 3.54 3.95 4.33 5.00 5.59 6.13
65° 60 Green
2.51 3.00 3.68 4.24 4.75 5.20 6.00 6.71 7.35
80° 10 Sky Blue
0.42 0.50 0.61 0.71 0.79 0.87 1.00 1.12 1.23
80° 20 Red
0.84 1.00 1.23 1.42 1.58 1.73 2.00 2.24 2.45
80° 30 Orange
1.25 1.50 1.84 2.12 2.37 2.60 3.00 3.35 3.67
80° 35 Black
1.46 1.75 2.14 2.47 2.77 3.03 3.50 3.91 4.29
80° 40 Yellow
1.67 2.00 2.45 2.83 3.16 3.46 4.00 4.47 4.90
80° 50 Blue
2.09 2.50 3.06 3.54 3.95 4.33 5.00 5.59 6.13
80° 60 Green
2.51 3.00 3.68 4.24 4.75 5.20 6.00 6.71 7.35
  • * Standard Pressure: Column in red.
  • * For mobile friendly, only 3 column with 3 kinds of pressure will be displayed. For more pressure data, please check the chart on PC or laptop.
  • Due to the large number of product specifications, we primarily offer products based on our factory's current product lineup. If you need to confirm whether a specific specification is still in production, please contact us.

Applications

Auto Body Paint

Auto Body Paint

Flow meters ensure precise paint-solvent ratios for quality and eco-friendliness, while nozzles guarantee paint quality and environmental compliance by controlling the mixture

Size

Size(mm) Weight(g)
A B C  62.5
52  62   70

Installation

Easy installing with 6 simple steps !

Step 1
Step 1

Drill a installation hole in the pipe which match the size of the EB installation hole

Step 2
Step 2

Aim and snap on the installation hole of the EB clamp at the pipe installation hole

Step 3
Step 3

Fasten with the pipe clamp

Step 4
Step 4

Release the union nut to adjust angle of the TB ball

Step 5
Step 5

Confirm the spray direction

Step 6
Step 6

Tighten the union and finished

Unable to find the nozzle you require?

Unable to find the nozzle you require?

With over 30 years of nozzle development and manufacturing experience, along with extensive customer site knowledge, allow us to assist in creating the ideal product for your needs!

Tailored nozzles to match your requirements.

LORRIC can customize "flow rate," "angle," and "flow distribution" to suit your specific usage scenarios. We also offer support for unique situations like special impact force or ultra-fine spray needs. Feel free to reach out to LORRIC's team for more information and assistance.

Customizable Capacity
Customizable Capacity

Under fixed pressure, the volume of liquid or gas sprayed by nozzles within a certain period of time.

Customizable Spray Angle
Customizable Spray Angle

It is the angle by orifice and the loop of gas or liquid sprayed out.

Customizable Distribution
Customizable Distribution

The distribution of particle on surface by sprayed up liquid.

CFD improves our work outcomes

CFD improves our work outcomes

Testing in extreme environments demands data to aid nozzle development.



Working Process and matters need attention of Nozzle Customization



Working Process and matters need attention of Nozzle Customization
