SPP Series - Spiral Nozzle for Scrubber

Easy installed, Clog-resistant, spiral spray
Wide range of flow rates and spray angles
for
Gas cleaning│Fire Control│Cooling

Download Product Catalogue

Features
  • Spray patterns: Full Cone. Spray shape is multi-layered concentric circles.
  • Unibody design with no internal parts. To compare with general full cone nozzles, It has a larger minimum free passage for effectively avoiding clogging.
  • The spray angle is from 120° to 170°. This large spray angle design provides larger coverage than general fan and full cone nozzles.
  • It is possible to work when under 0.5kgf/cm²
  • Recommended working pressure: 2.0 kgf/cm²
  • Flowrate tolerance: ± 5% @ 2.0 ± 0.1 kgf/cm²
  • Angle tolerance: ± 5° @ 2.0 ± 0.1 kgf/cm²
  • Applications:

      ● Cleaning: scrubber, off-gas treatment, etc.

      ● Cooling: cooling tower, etc.

      ● Dispersion: firefighting.




Spray pattern & Flow distribution

Specs

Please place your order according below information.


How to pleace an order for LORRIC nozzles?

  • • You can find the exact Capacity Code according to your requirement of pressure, flow, and spray angle as the capacity & angle chart we provided above.
  • • Please refer to following order example for placing order to LORRIC.
  •   Example :

Select
Unit
  • *
  • *
  • *
  • *
Spray Angle Capacity Code Thread Size Capacity at Pressure Min. Free Passage (mm) Eq. Orifice(mm)
1/4" 3/8" 1/2" 3/4" 0.5
kgf/cm²
0.7
kgf/cm²
1.0
kgf/cm²
2.0
kgf/cm²
3.0
kgf/cm²
4.0
kgf/cm²
5.0
kgf/cm²
120° 4.5 v


2.25 2.66 3.18 4.50 5.51 6.36 7.12 1.55 2.38
120° 12.8 v


6.40 7.57 9.05 12.8 15.7 18.1 20.2 2.53 3.97
170° 52.7
v

26.4 31.2 37.3 52.7 64.5 74.5 83.3 3.00 7.94
170° 105

v
52.5 62.1 74.2 105 129 148 166 4.75 11.1
170° 134


v 67.0 79.3 94.8 134 164 190 212 4.75 12.7
Spray Angle Capacity Code Thread Size Capacity at Pressure Min. Free Passage (mm) Eq. Orifice(mm)
1/4" 3/8" 1/2" 3/4" 0.05
MPa
0.1
MPa
0.15
MPa
0.2
MPa
0.3
MPa
0.4
MPa
0.5
MPa
120° 4.5 v


2.27 2.69 3.21 4.54 5.57 6.43 7.18 1.55 2.38
120° 12.8 v


6.46 9.14 11.2 12.9 15.8 18.3 20.4 2.53 3.97
170° 52.7
v

26.6 31.5 37.6 53.2 65.2 75.3 84.1 3.00 7.94
170° 105

v
53.0 62.7 75.0 106 130 150 168 4.75 11.1
170° 134


v 67.7 80.1 95.7 135 166 191 214 4.75 12.7
Spray Angle Capacity Code Thread Size Capacity at Pressure Min. Free Passage (mm) Eq. Orifice(mm)
1/4" 3/8" 1/2" 3/4" 0.5
bar
0.7
bar
1.0
bar
2.0
bar
3.0
bar
4.0
bar
5.0
bar
120° 4.5 v


2.27 2.69 3.21 4.54 5.57 6.43 7.18 1.55 2.38
120° 12.8 v


6.46 9.14 11.2 12.9 15.8 18.3 20.4 2.53 3.97
170° 52.7
v

26.6 31.5 37.6 53.2 65.2 75.3 84.1 3.00 7.94
170° 105

v
53.0 62.7 75.0 106 130 150 168 4.75 11.1
170° 134


v 67.7 80.1 95.7 135 166 191 214 4.75 12.7
Spray Angle Capacity Code Thread Size Capacity at Pressure Min. Free Passage (inch) Eq. Orifice (inch)
1/4" 3/8" 1/2" 3/4" 5
psi
10
psi
20
psi
30
psi
40
psi
50
psi
60
psi
120° 4.5 v


0.49 0.71 0.99 1.22 1.41 1.58 1.73 0.060 0.093
120° 12.8 v


1.42 2.00 2.84 3.47 4.01 4.48 4.91 0.099 0.155
170° 52.7
v

5.84 8.25 11.7 14.3 16.5 18.5 20.2 0.117 0.310
170° 105

v
11.6 16.4 23.3 28.5 32.9 36.8 40.3 0.185 0.433
170° 134


v 14.8 21.0 29.7 36.4 42.0 46.9 51.4 0.185 0.495
  • * Standard Pressure: Column in red.
  • * For mobile friendly, only 3 column with 3 kinds of pressure will be displayed. For more pressure data, please check the chart on PC or laptop.
Material
  • UPVC (for temperature up to 60°C)

  • PEEK (for temperature up to 260°C/482°F and highly corrosive chemicals)






Material Guarantees
Metal
We take high quality smithing metal to produce solid and durable nozzles by detail turning.
Plastic
We promise never using recycled materials
High Quality
All material is purchased from world top providers.

Product Size
Thread
(BSPT)
 Unit(mm)  Weight(g)
  A     B   UPVC PEEK
1/4"Male
16 52 6.5 6.5
3/8"Male
20 61 16 16
1/2"Male
22 77 13 13
3/4"Male
28 90 30 30

Installation
Easy installing with 2 simple steps !

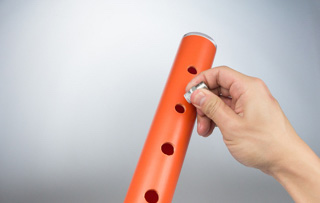

Step 1

Drill corresponding female threads on your pipe.

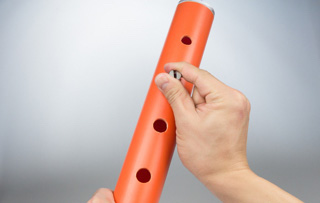

Step 2

For better leakproofness, please use Teflon seal tape on nozzle thread.

Aim the thread of nozzle at the female thread. Tighten the nozzle clockwise.

Finished

Finished.
