Mini-ED

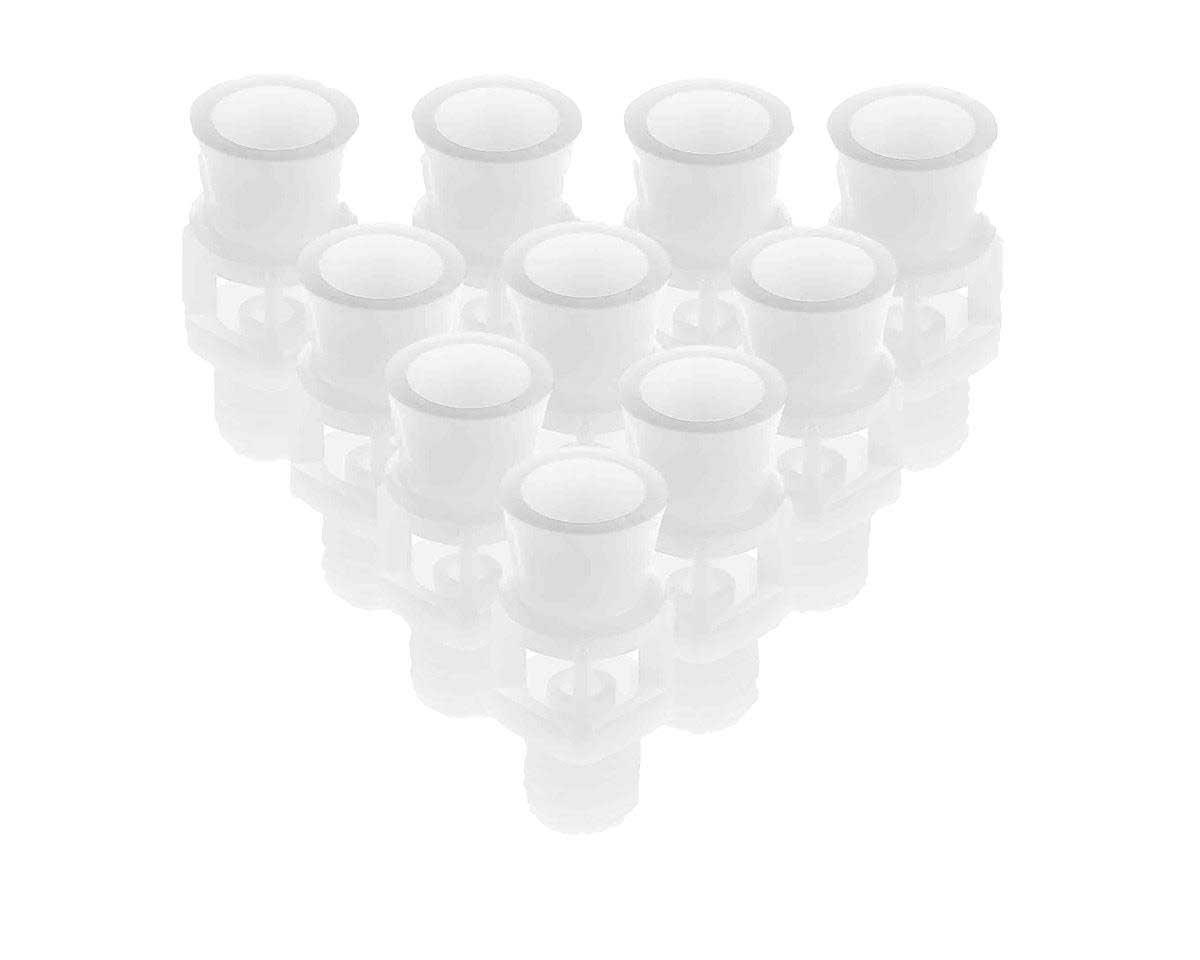

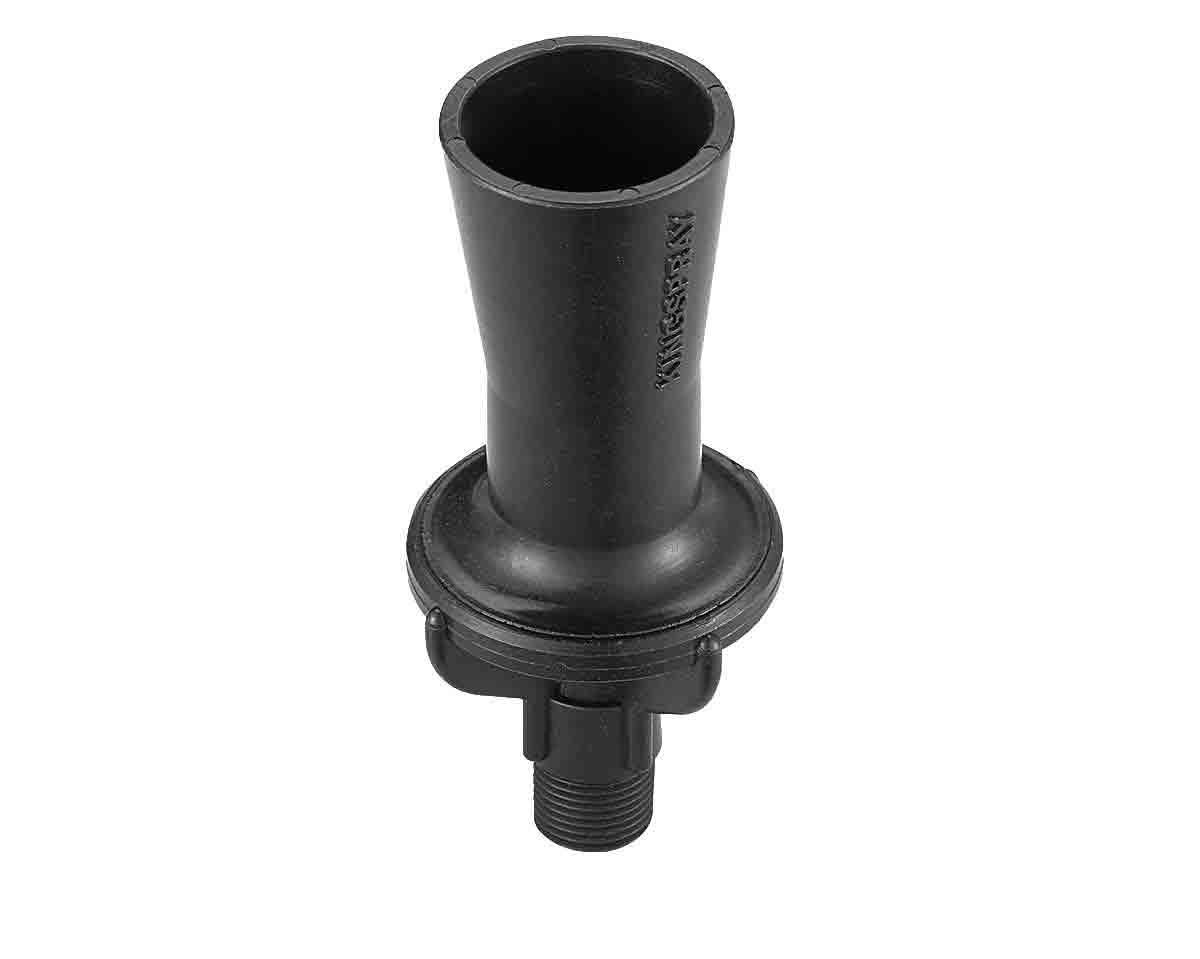

Mini-ED Patented Plastic Tank Mixing & Plating Nozzle

Tank mixing and plating nozzle, Hand installable

Apply for
Automobile Coating│Painting
Phosphatic Tank
Paint Stirring Tank
C.I.P Tanks│CoolingTower
Anodizing Tank Mixing
Ionic-Exchange Facility

Features

Used for liquid stirring under the liquid surface. Specially designed nozzle that creates a stirring and circulating effect. This nozzle can mix chemicals, direct the suspended substances to a filter and prevent precipitation.

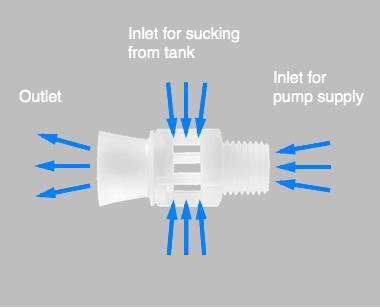

Energy-efficiency of liquid stirring: the eductor nozzles are designed to suck and spray liquid through the amplified nozzle tube to increase liquid flow rate up to 4 times which provides more efficient stirring than aeration or robot arms (Quantity supplied+Intake=Total Flow).
Single piece structure and hand installable without any tools.

Applications:
● Cleaning: scrubber, off-gas treatment, etc.
● Cooling: cooling tower, etc.
● Dispersion: firefighting.

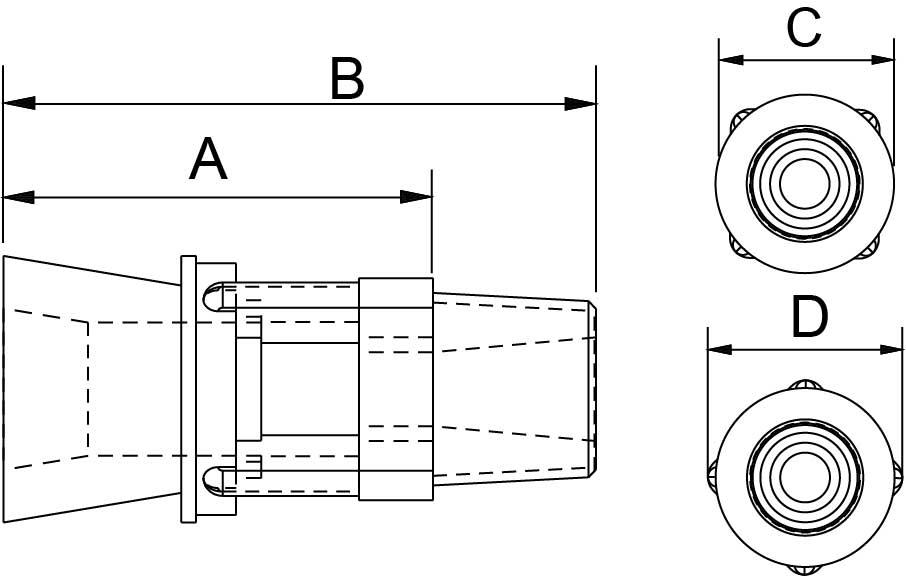

Specs

• You can find the exact Capacity Code according to your requirement of pressure, flow, and spray angle as the capacity & angle chart we provided above. Click to understand how to use the capacity & angle.
• Please refer to the following order example for placing order to LORRIC.
Example :

Select
Unit

Capacity Code	Magnification	Definition of flow	Capacity at Pressure
Capacity Code	Magnification	Definition of flow	0.1 kgf/cm²	0.25 kgf/cm²	0.5 kgf/cm²	0.75 kgf/cm²	1 kgf/cm²	1.5 kgf/cm²	2 kgf/cm²	3 kgf/cm²	4 kgf/cm²
3	2.4	Quantity supplied	1.36	2.14	3.03	3.71	4.29	5.25	6.06	7.42	8.57
3	2.4	Intake	1.88	2.97	4.20	5.14	5.94	7.27	8.40	10.29	11.88
3	2.4	Total Flow	3.23	5.11	7.23	8.85	10.22	12.52	14.46	17.71	20.45
9	1.6	Quantity supplied	4.02	6.36	9.00	11.02	12.73	15.59	18.00	22.05	25.46
9	1.6	Intake	2.41	75.0	5.40	6.61	7.64	9.35	10.80	13.23	15.27
9	1.6	Total Flow	6.44	95.7	14.40	17.64	20.36	24.94	28.80	35.27	40.73

Capacity Code	Magnification	Definition of flow	Capacity at Pressure
Capacity Code	Magnification	Definition of flow	0.01 MPa	0.025 MPa	0.05 MPa	0.075 MPa	0.1 MPa	0.15 MPa	0.2 MPa	0.3 MPa	0.4 MPa
3	2.4	Quantity supplied	1.37	2.16	3.06	3.75	4.33	5.30	6.12	7.49	8.65
3	2.4	Intake	1.90	3.00	4.24	5.19	6.00	7.35	8.48	10.39	12.00
3	2.4	Total Flow	3.27	5.16	7.30	8.94	10.33	12.65	14.60	17.88	20.65
9	1.6	Quantity supplied	4.06	6.43	9.09	11.13	12.85	15.74	18.18	22.26	25.71
9	1.6	Intake	2.44	3.86	5.45	6.68	7.71	9.44	10.91	13.36	15.42
9	1.6	Total Flow	6.50	10.28	14.54	17.81	20.56	25.19	29.08	35.62	41.13

Capacity Code	Magnification	Definition of flow	Capacity at Pressure
Capacity Code	Magnification	Definition of flow	0.1 bar	0.25 bar	0.5 bar	0.75 bar	1 bar	1.5 bar	2 bar	3 bar	4 bar
3	2.4	Quantity supplied	1.37	2.16	3.06	3.75	4.33	5.30	6.12	7.49	8.65
3	2.4	Intake	1.9	3.00	4.24	5.19	6.00	7.35	8.48	10.39	12.00
3	2.4	Total Flow	3.27	5.16	7.30	8.94	10.33	12.6	14.6	17.9	20.7
9	1.6	Quantity supplied	4.06	6.43	9.09	11.13	12.9	15.7	18.2	22.3	25.7
9	1.6	Intake	2.44	3.86	5.45	6.7	7.7	9.4	10.9	13.4	15.4
9	1.6	Total Flow	6.50	10.28	14.5	17.8	20.6	25.2	29.1	35.6	41.1

Capacity Code	Magnification	Definition of flow	Capacity at Pressure
Capacity Code	Magnification	Definition of flow	3 psi	5 psi	7 psi	10 psi	15 psi	20 psi	25 psi	30 psi	40 psi
3	2.4	Quantity supplied	0.52	0.67	0.79	0.95	1.16	1.34	1.50	1.64	1.90
3	2.4	Intake	0.72	0.93	1.10	1.32	1.61	1.86	2.08	2.28	2.63
3	2.4	Total Flow	1.24	1.60	1.89	2.26	2.77	3.20	3.58	3.92	4.53
9	1.6	Quantity supplied	1.54	1.99	2.36	2.82	3.45	3.99	4.46	4.88	5.64
9	1.6	Intake	0.93	1.20	1.42	1.69	2.07	2.39	2.67	2.93	66.4
9	1.6	Total Flow	2.47	3.19	3.77	4.51	5.52	6.38	7.13	7.81	9.02

* Standard Pressure: Column in red.
* For mobile friendly, only 3 column with 3 kinds of pressure will be displayed. For more pressure data, please check the chart on PC or laptop.

Material

Material Options
