KG X-Shaped Axial Cone Nozzle for Steel and Other Industries

KG stainless steel solid cone nozzles are clog-resistant, offer uniform impact, and are easy to clean. KG nozzles are ideal for steel industry use, as well as for exhaust and dust cleaning, gas tank cooling, dust suppression, wetting, and firefighting.

Brand：	LORRIC
Nozzle Type：	Solid Cone
Fluid Type：	Single-fluid
Materials：	SS303, Brass
Thread Sizes：	1/8", 1/4", 3/8"

File download

Inquire now

X-Shaped Axial Full Cone Nozzle

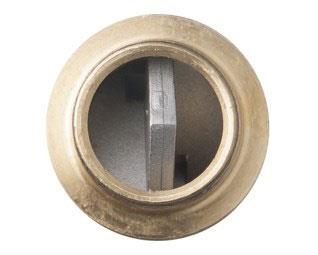

Liquid passes through multi-porous or X-shaped baffles, creating rotating streams. As it exits, centrifugal force forms a circular spray pattern. The solid cone nozzle works well at low pressure, providing wide coverage and uniform droplets, ideal for semiconductor processes, chemical distribution, and coating.

Full Cone Spray Nozzle Spray Pattern

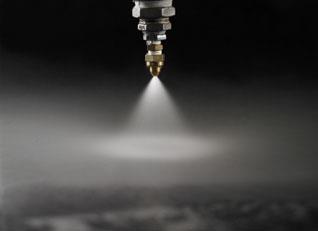

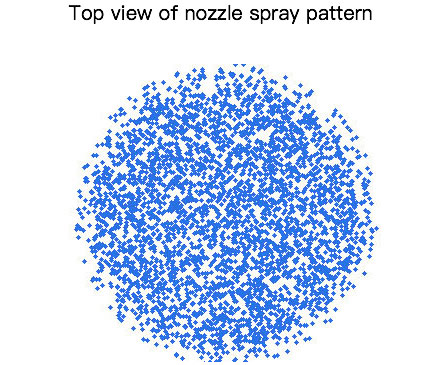

Single-fluid nozzles produce a conical spray pattern, commonly referred to as full cone nozzles in the industry. The coverage shape (as seen from above after spraying onto the target) is circular.
Learn more: Nozzle Spray Patterns

Bell-shaped Flow Distribution

The spray volume peaks at the center and tapers off towards the edges, forming a mound-shaped distribution. Ideal for concentrated impact applications like surface cleaning. For uniform coverage, reduce nozzle spacing to overlap spray areas and enhance consistency.
Learn more: Nozzle Flow Field Distribution

Material Options

SS303
BRASS

About engineering tolerance

Flowrate tolerance

The flow tolerance is within a range of plus or minus 5% of the standard flow rate.

Angle tolerance

Angle tolerance is within a range of plus or minus 5% of the standard angle.

Material Guarantees

Metal

We take high quality smithing metal to produce solid and durable nozzles by detail turning.

Plastic

We promise never to use recycled materials.

High Quality

All material is purchased from world top providers.

Please place your order according below information.

Please choose the nozzle that best suits your requirements based on the selection guidelines provided below.
- Choose the nozzle diameter (thread size) and specifications that meet your requirements.
- Choose the spray flow rate for each nozzle, please refer to the chart below.
- Select the spray angle for each nozzle, please refer to the chart below.
- Choose the nozzle material. Different application environments require different materials. Please select the appropriate nozzle material based on your usage environment.

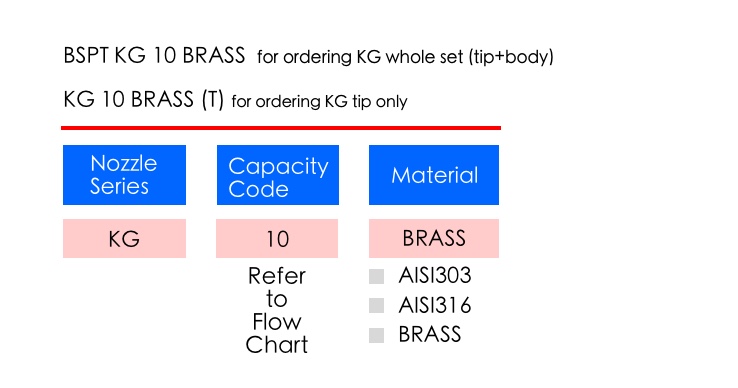

Example specification: BSPT KG 10 BRASS - (tip-body) KG 10 BRASS (T) - (tip). Each number corresponds to the following options and meanings.

Select
Unit

Spray Angle	Capacity Code	Capacity at Pressure									Capacity at Pressure
Spray Angle	Capacity Code	0.5 kgf/cm²	0.7 kgf/cm²	1.0 kgf/cm²	1.5 kgf/cm²	2.0 kgf/cm²	2.5 kgf/cm²	3.0 kgf/cm²	5.0 kgf/cm²	10 kgf/cm²
70°	10	3.10	3.67	4.38	5.37	6.20	6.93	7.59	9.80	13.86

Spray Angle	Capacity Code	Capacity at Pressure									Capacity at Pressure
Spray Angle	Capacity Code	0.05 MPa	0.07 MPa	0.1 MPa	0.15 MPa	0.2 MPa	0.25 MPa	0.3 MPa	0.5 MPa	1 MPa
70°	10	3.13	3.70	4.43	5.42	6.26	7.00	7.67	9.90	14.00

Spray Angle	Capacity Code	Capacity at Pressure									Capacity at Pressure
Spray Angle	Capacity Code	0.5 bar	0.7 bar	1.0 bar	1.5 bar	2.0 bar	2.5 bar	3.0 bar	5.0 bar	10 bar
70°	10	3.13	3.70	4.43	5.42	6.26	7.00	7.67	9.90	14.00

Spray Angle	Capacity Code	Capacity at Pressure									Capacity at Pressure
Spray Angle	Capacity Code	7 psi	10 psi	15 psi	20 psi	28 psi	30 psi	40 psi	80 psi	150 psi
70°	10	0.81	0.97	1.19	1.37	1.62	1.68	1.94	2.75	3.76

* Standard Pressure: Column in red.
* This product for spray angle 90° and 120° is able to be made to order.
* For mobile friendly, only 3 column with 3 kinds of pressure will be displayed. For more pressure data, please check the chart on PC or laptop.
* Due to the large number of product specifications, we primarily offer products based on our factory's current product lineup. If you need to confirm whether a specific specification is still in production, please contact us.

Applications

Steel Industries

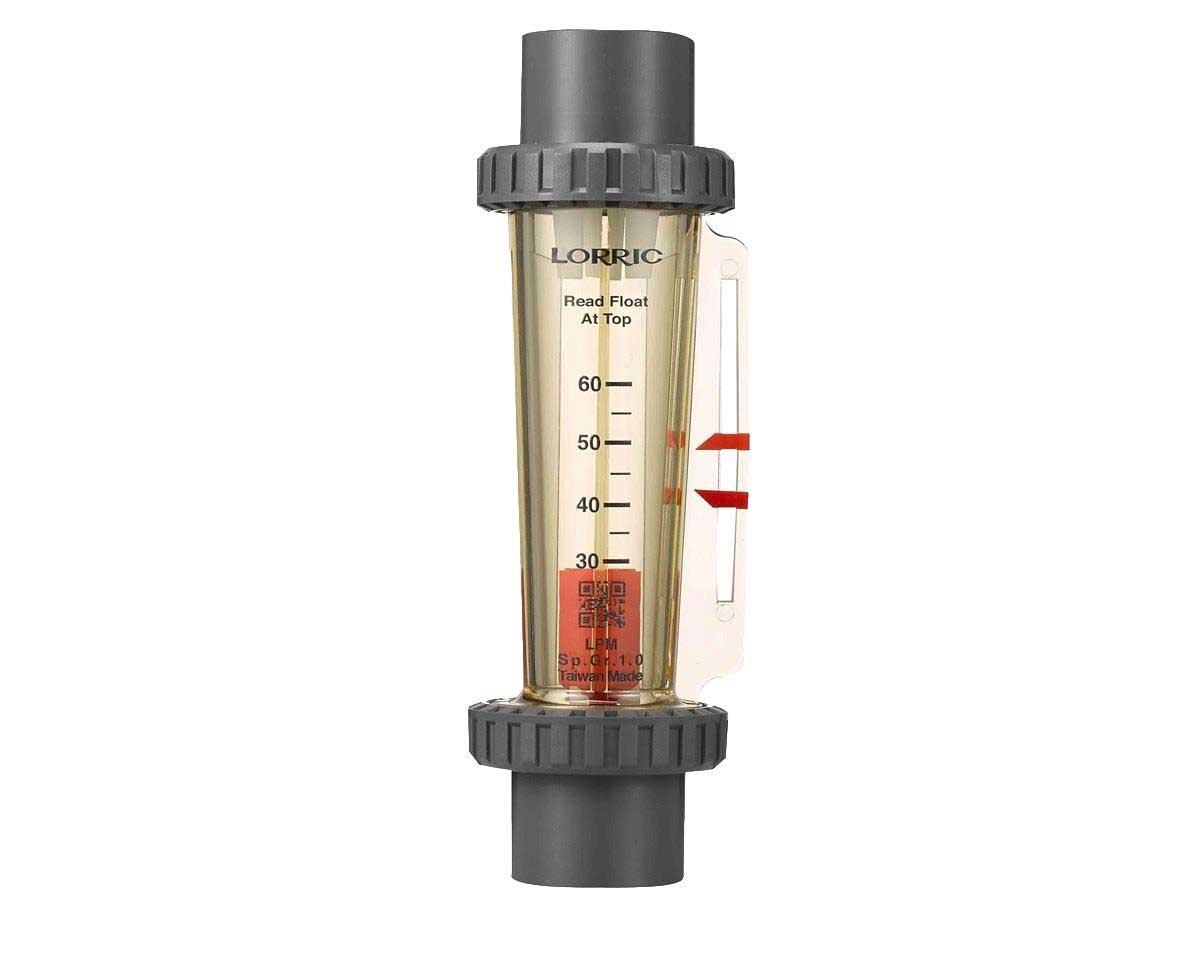

Flow meters monitor cooling water and gas flow, ensuring accuracy and optimal efficiency; nozzles precisely control chemical liquid spraying, making even coating and stable quality

Size

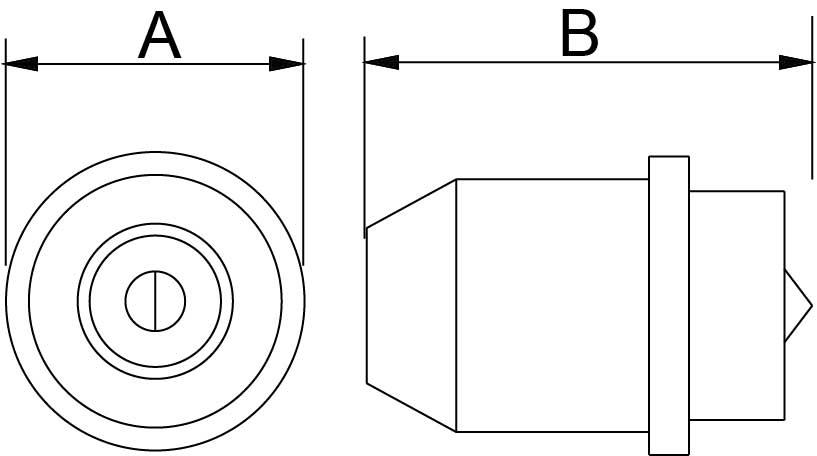

Thread(BSPT)	Size(mm)		Weight(g)
Thread(BSPT)	A	B	SS303	SS316	Brass
3/8"外牙	21	46.9	10.4	10.6	11.5
