GRACO 1:1 Fast-Flo Air Operated Piston Pump

The 1:1 Fast-Flo air-operated piston pump is designed with a 1:1 ratio, where the liquid outlet pressure equals the air inlet pressure. It operates stably at air pressures up to 1.2 MPa. Available in drum length and stubby models, it is suitable for drum transfer or wall-mounted applications. The immersed inlet enables faster priming of heavier fluids, while the air-powered design ensures high reliability and low operating cost.

Brand:	GRACO
Pump Type:	Air-Operated Piston Pump
Sizes:	Drum length, Stubby
Max Pressure:	Up to 1.2 MPa (12 bar / 180 psi)
Max Flow Rate:	Approx. 15 L/min (depending on model)

File download

Catalog

Inquire now

What is a Piston Pump?

A piston pump is a type of positive displacement pump that uses the reciprocating motion of a piston inside a cylinder to draw in and expel fluid. These pumps have a robust structure that effectively reduces fluid pulsations, making them ideal for applications requiring rapid liquid transfer or stable material feeding. Piston pumps are especially well-suited for handling low to medium-viscosity fluids such as motor oil, solvents, and paints.

Advantages of the Fast-Flo Piston Pump

The Fast-Flo piston pump is designed for applications requiring simple, fast, high-volume transfer without high-pressure demands. Its simplified internal structure and minimal moving parts enable quick maintenance. With a durable, lightweight design, a single operator can easily install and remove the pump, offering long-lasting reliability and excellent cost-performance.

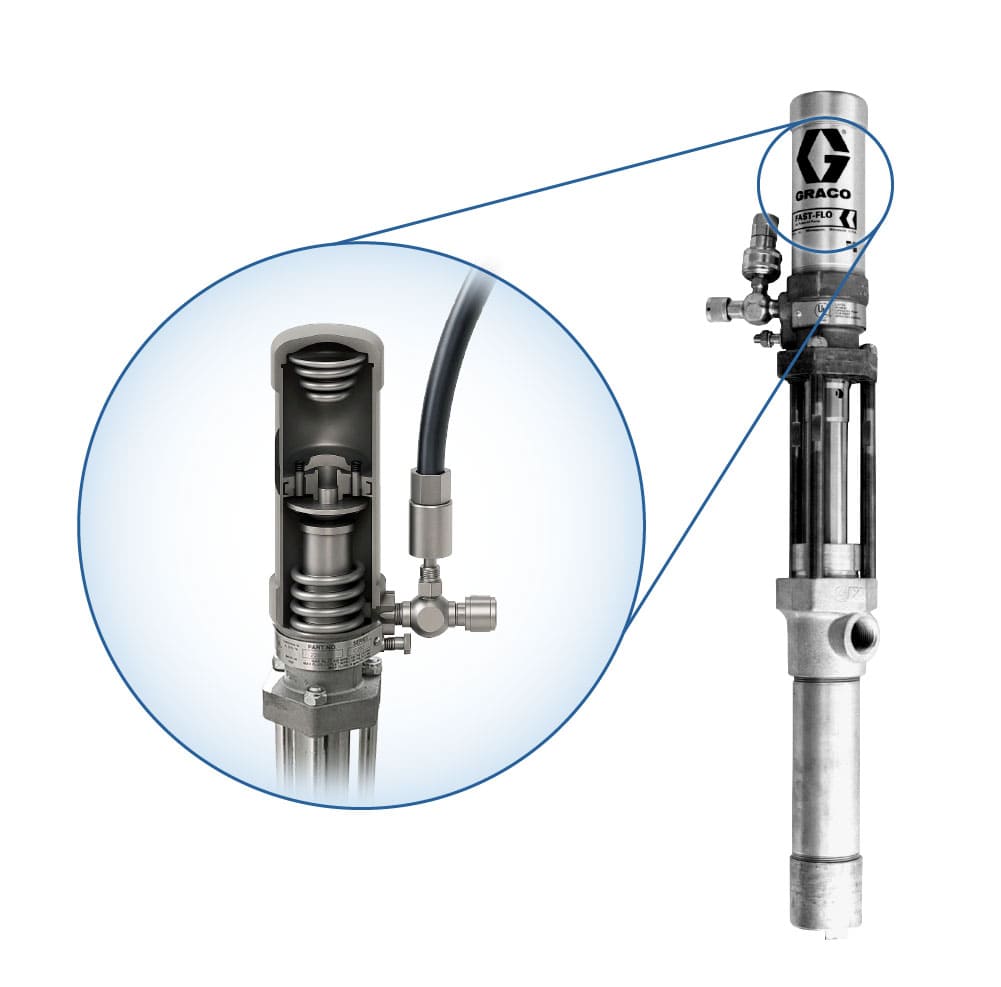

Exclusive Fast-Flo Air Motor

The Fast-Flo air motor allows you to easily control the flow rate by simply regulating the air supply. This makes it ideal for low-flow applications moving low- to medium-viscosity fluids. Additionally, UL-listed models are available, enabling the safe transfer of flammable liquids like lacquers, paints, varnishes, and thinners.

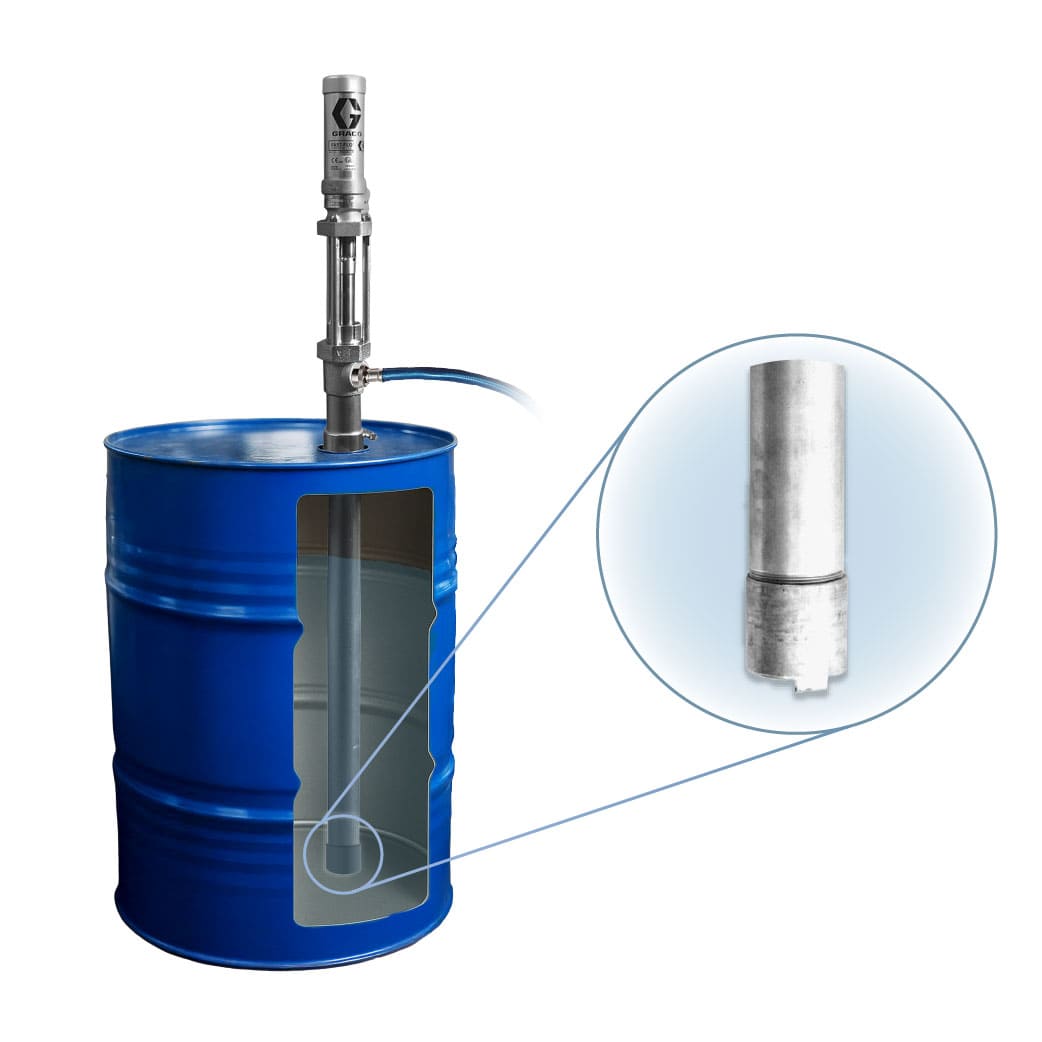

Submersible Inlet and Suction Tube

The Fast-Flo piston pump can be submerged directly in a drum or tank, allowing smooth suction of high-viscosity or semi-solid materials. This reduces supply interruptions, minimizes air intake, and prevents cavitation for stable flow and pressure.

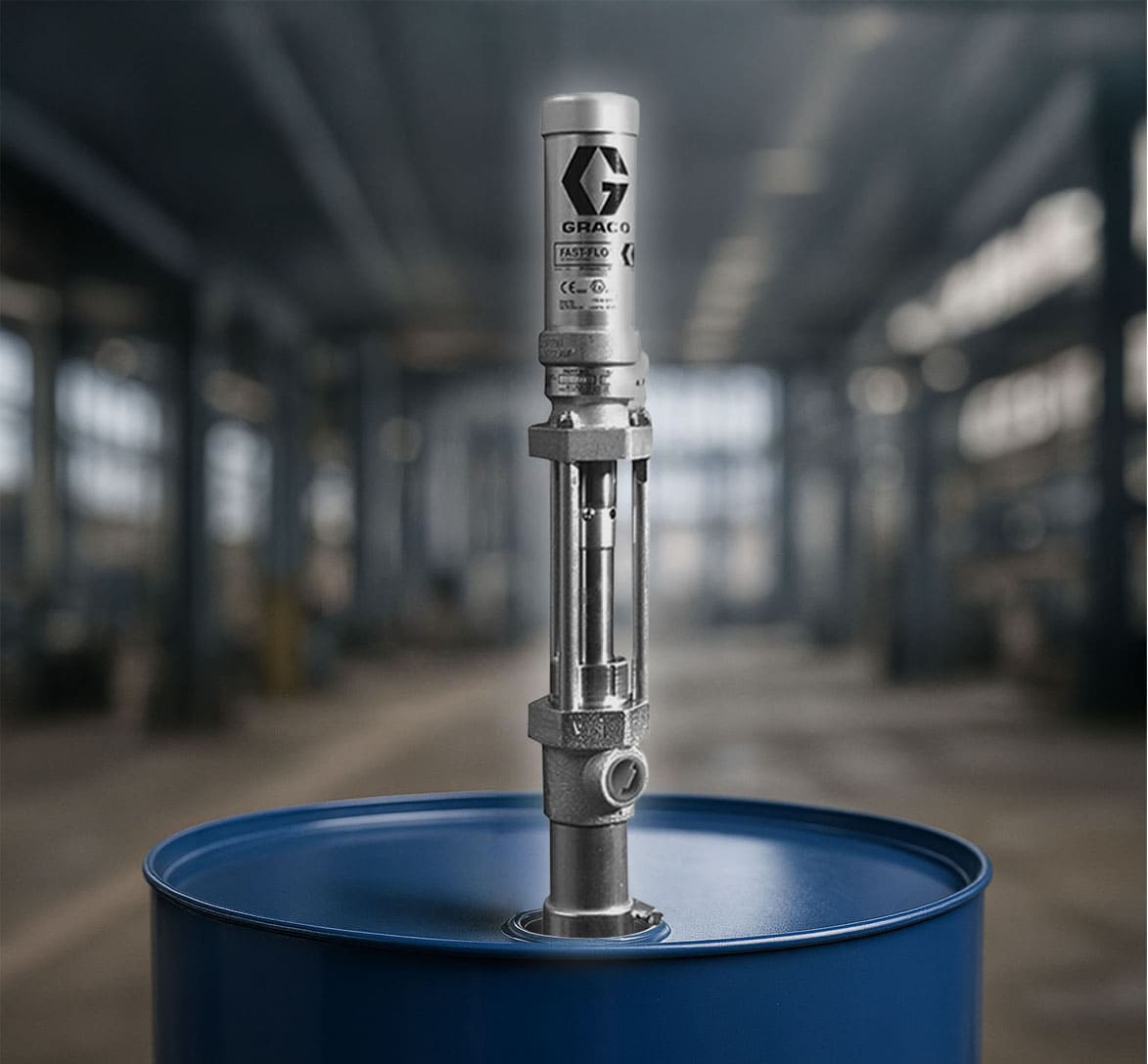

Fast-Flo Piston Transfer Pump

The Fast-Flo piston transfer pump is designed for easy on-site operation. Its lightweight, slender design allows a single operator to install and remove the pump effortlessly, quickly inserting it into drums or tanks. The pump’s durable construction enhances work efficiency while reducing physical strain, particularly in applications that require frequent drum changes, significantly improving the operator experience.

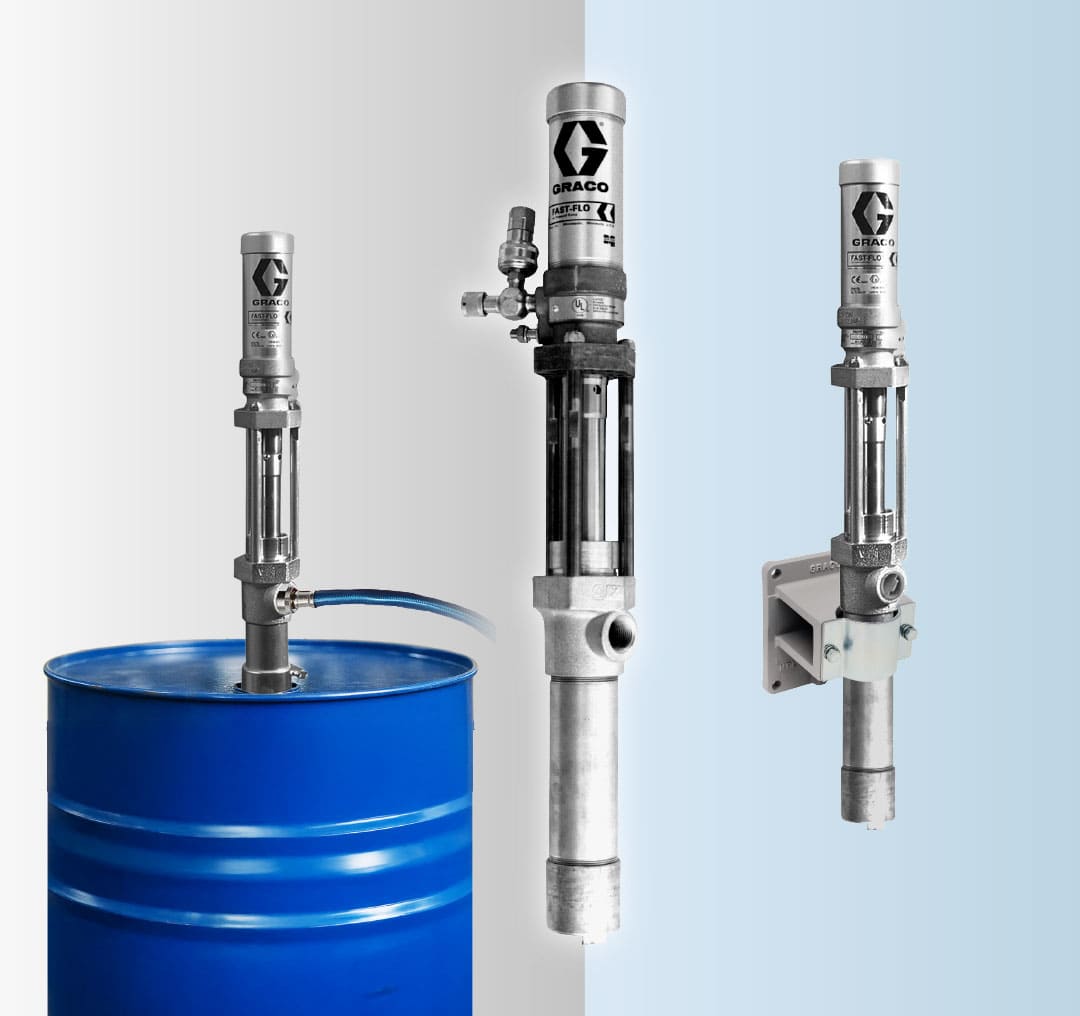

Versatile Applications: Direct Drum or Wall-Mounted Suction

The Fast-Flo piston transfer pump is available in two lengths: the drum-length model (1,315 mm / 51.7 in.) fits standard 200 L drums for direct insertion and transfer, while the stubby model (615 mm / 34 in.) is ideal for wall-mounted siphon feeding applications.

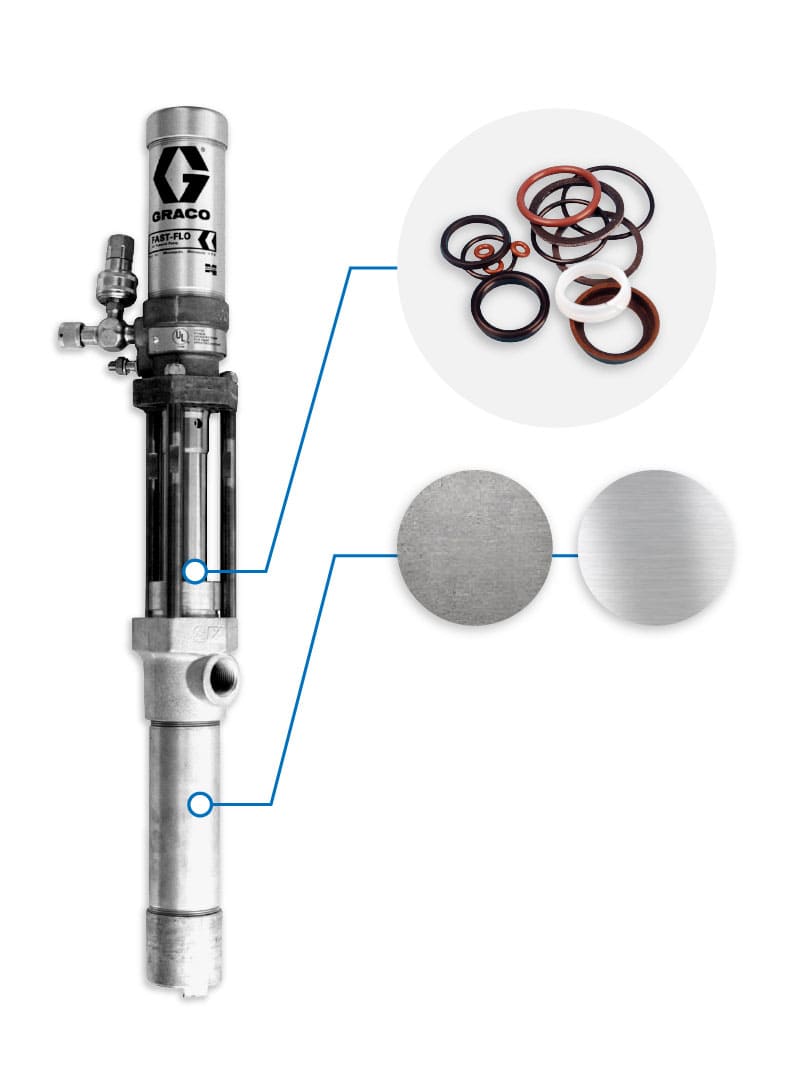

Multiple Material Options

Pump Body: Available in carbon steel or stainless steel. Carbon steel is suitable for non-corrosive fluids, while stainless steel is designed for handling corrosive fluids.
Seals: Piston seals come in various materials, including leather, polyethylene, PTFE, and rubber, providing flexible options to handle different chemical properties.

For Short Drum Height


Model	226944	226943	237132	226945
Suitable Drum Height	7.1 in (approx. 18 cm)		9.8 in (approx. 24.9 cm)
Pump Material	Carbon Steel		Stainless Steel
Seal Material	Polyethylene (PE)	Leather	PTFE	Polyethylene (PE)
Pump Ratio	1:1
Drive Type	Pneumatic
Air Inlet Size	1/4 in (6.35 mm)
Fluid Outlet Size	3/4 in (19.05 mm), NPT Female
Max. Air Inlet Pressure	180 psi (12.41 bar / 1241 kPa)
Max. Working Pressure	1.2 MPa (12.4 bar / 1240 kPa)
Max. Continuous Cycle Rate	100 CPM
Max. Intermittent Cycle Rate	4 CPM
Max. Flow Rate	15.1 L/min
Portable	No
Suitable Fluids	Antifreeze, Asphalt, Glass Cleaner, Motor Oil, Waste Oil, Hydraulic Oil, Oils, Ink

For Tall Drum Height


Model	226914	226946	226940	226942	237129
Suitable Drum Height	34.6 in (approx. 87.9 cm)
Pump Material	Carbon Steel			Stainless Steel
Seal Material	Polyethylene (PE)	PTFE	PTFE, Leather (T&L Packing)	Polyethylene (PE)	PTFE (T Packing)
Pump Ratio	1:1
Drive Type	Pneumatic
Air Inlet Size	1/4 in (6.35 mm)
Fluid Outlet Size	3/4 in (19.05 mm), NPT Female
Max. Air Inlet Pressure	180 psi (12.41 bar / 1241 kPa)
Max. Working Pressure	1.2 MPa (12.4 bar / 1240 kPa)
Max. Continuous Cycle Rate	100 CPM
Max. Intermittent Cycle Rate	4 CPM
Max. Flow Rate	15.1 L/min
Portable	No
Suitable Fluids	Antifreeze, Asphalt, Glass Cleaner, Motor Oil, Waste Oil, Hydraulic Oil, Oils, Ink

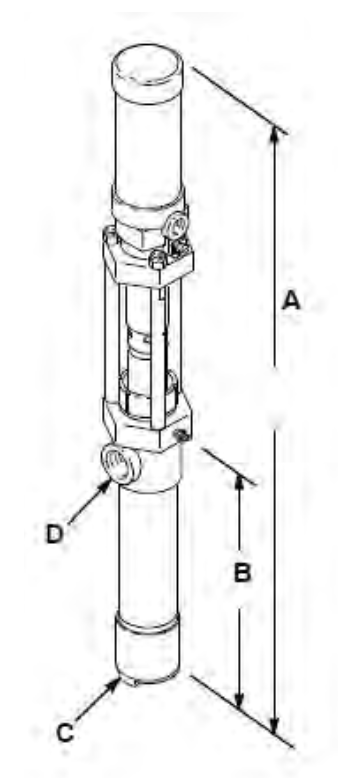

For Short Drum Height, Models 226944 / 226943 / 237132 / 226945

Model	Overall Length A		Pump Length B		Fluid Inlet C	Fluid Outlet D
Model	mm	in.	mm	in.	in.	in.
226943 / 226944	615	34	181	7.1	1-1/2" NPT Female	3/4" NPT Female
237132 / 226945	685	27	250	9.8	1-1/2" NPT Female	3/4" NPT Female

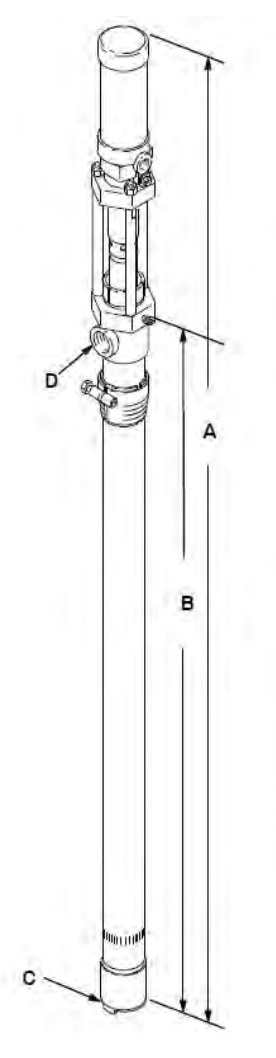

For Tall Drum Height, Models 226914 / 226946 / 226940 / 226942 / 237129

Model	Overall Length A		Pump Length B		Fluid Inlet C	Fluid Outlet D
Model	mm	in.	mm	in.	in.	in.
226914 / 226946 / 226940 / 226942 / 237129	1315	51.7	880	34.6	1-1/2" NPT Female	3/4" NPT Female
