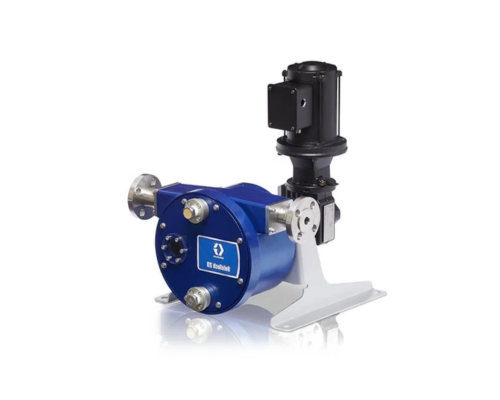

GRACO SoloTech Peristaltic Pump

SoloTech Peristaltic Hose Pump features an innovative single-roller design that reduces roller wear and extends hose life. A wide range of hose materials are available to handle corrosive, abrasive, or shear-sensitive fluids. Options include AC or DC motors, supporting different gear ratios and batch dispensing modes. With smooth operation, simple maintenance, low wear, and high efficiency, it is an ideal solution for chemical processing, food & beverage, pharmaceutical, and water treatment applications.

Brand:	GRACO
Pump Type:	Peristaltic Hose Pump
Hose Size:	10 mm	23 mm	26 mm	30 mm
Max Flow Rate:	9.5 lpm	25.4 lpm	60.6 lpm	146 lpm
Displacement per Revolution:	0.0265 l/rev	0.190 l/rev	0.412 l/rev	0.662 l/rev
Max Working Pressure:	8.6 bar (125 psi)
Max Suction Lift:	8.9 m (29.2 ft)

File download

Catalog

Inquire now

What is a Peristaltic Pump?

A peristaltic pump is a positive displacement pump that moves fluids by compressing a flexible hose with rollers. Since only the hose contacts the medium, it can handle viscous, corrosive, or particle-laden fluids with low risk of contamination. Easy to maintain and reliable, it is widely used in chemical, food, pharmaceutical, and water treatment applications.

Exclusive Single-Roller Design – Extended Hose Life

Unlike conventional peristaltic pumps that compress the hose multiple times per revolution, the SoloTech peristaltic pump features an exclusive single-roller design combined with 360° full-rotation compression. This ensures the hose experiences only one compression per revolution, effectively extending hose life while delivering greater displacement per revolution. By reducing the number of compressions, it minimizes heat build-up and friction, enabling low-wear, high-efficiency operation. In addition, the use of a metal roller and precision bearings ensures stable and consistent flow output.

A Low-Maintenance Solution for Challenging Fluids

The SoloTech peristaltic pump features an innovative design with no valves, seals, or packing, eliminating common failure points and significantly reducing maintenance complexity and costs. Since only the hose contacts the fluid, there is no need for check valves, making it especially suited for handling corrosive, abrasive, shear-sensitive, or gas-entrained fluids. This design minimizes downtime and ensures reliable performance even in the most demanding applications.

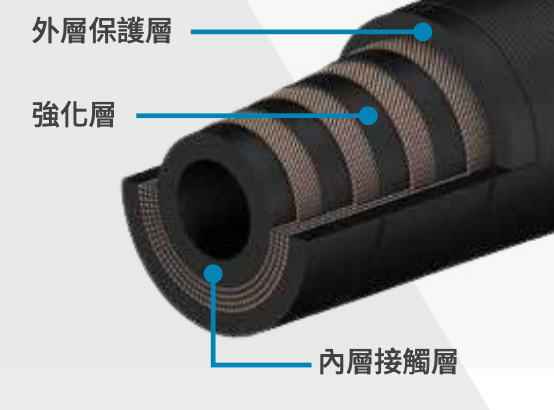

Multiple Hose Materials Available

SoloTech Peristaltic Pumps offer a wide selection of hose materials for both general fluids and specialized chemicals:
▪️ Natural Rubber – Excellent abrasion resistance, ideal for handling highly abrasive fluids.
▪️ EPDM – Outstanding resistance to acids, alkalis, ketones, and other chemical solvents.
▪️ Nitrile Rubber (Buna-N) – Specially designed for oily fluids, suitable for oils, solvents, and greases.
▪️ CSM Rubber – Superior oxidation and chemical resistance, capable of handling a wide range of aggressive fluids including strong acids.

Thoughtful Design for Appearance and Installation

The pump housing is made of lightweight cast aluminum, offering both durability and easy portability. A removable front cover with a large inspection window allows convenient monitoring of pump operation, and an optional leak detector can be added for enhanced safety. With quick-connect hose clamp assemblies, installation and removal require no special tools, ensuring a simple and fast process. Hose clamps are available in PVDF and stainless steel options to meet different application needs.

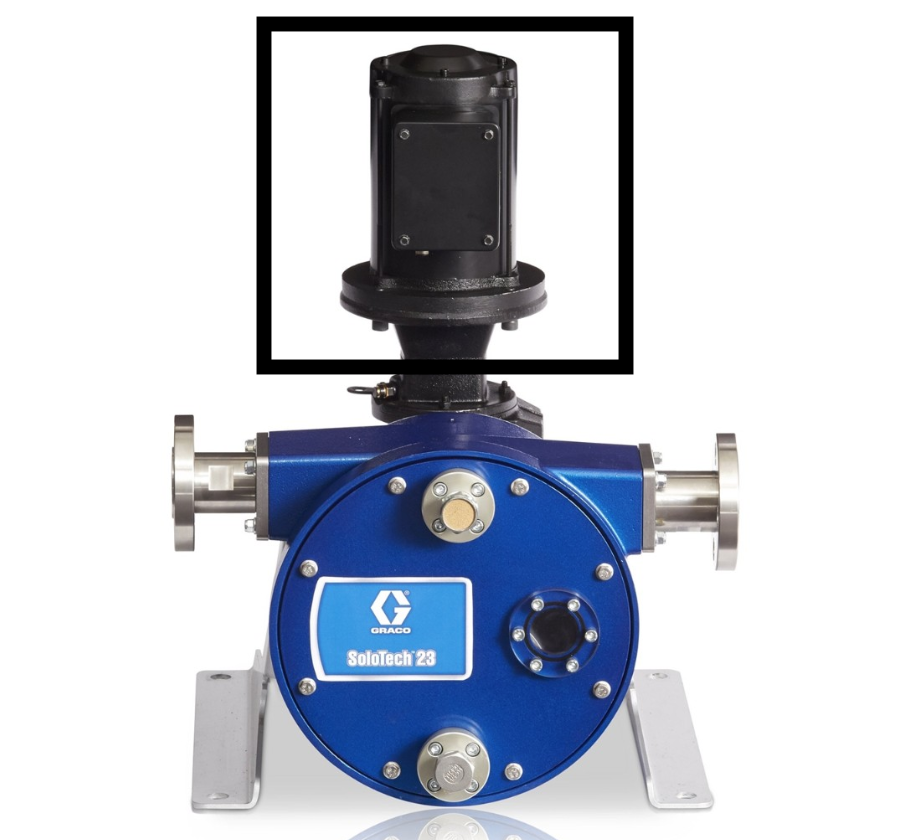

AC or DC Motor Options – Flexible to Your Needs

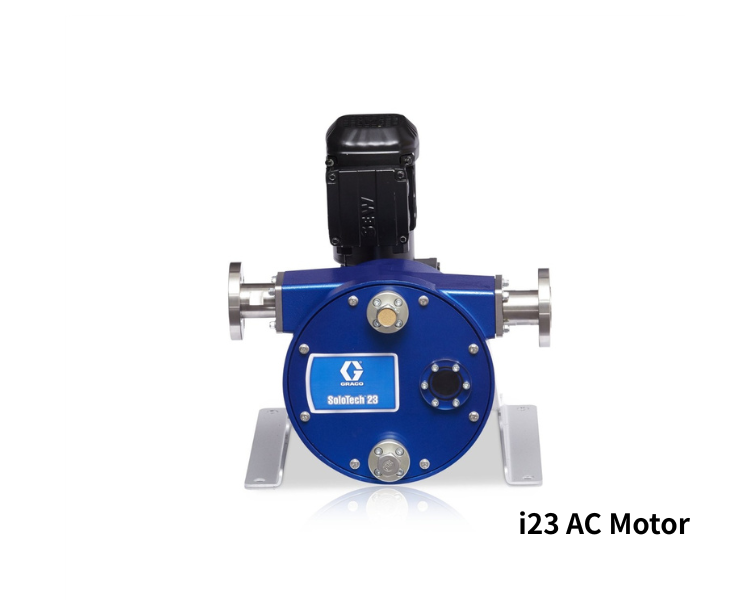

SoloTech peristaltic hose pumps are available with both AC and DC motor options. AC models can be paired with various gearboxes and are also offered in explosion-proof versions. DC models feature pressure control for precise dosing, support batch dispensing, and cover a wide speed range for flexible applications.

AC Motor Specifications by Model


Specifications	SoloTech i10			SoloTech i23			SoloTech i26			SoloTech i30
Hose Size	10 mm			23 mm			26 mm			30 mm
Max Flow Rate lpm(gpm)	92 rpm = 2.60 (0.685)			94 rpm = 17.98 (4.75)			93 rpm = 38.54 (10.18)			91rpm = 60.57 (16.0)
Volume per Revolution l/rev (gal/rev)	0.0265 (0.007)			0.190 (0.050)			0.412 (0.109)			0.662 (0.175)
Max Particle Diameter	5 mm			17.1 mm			20.3 mm			24.5 mm
Max Working Pressure	125 psi (8.6bar)
Maximum Suction Head	29ft (8.9m)
Pump Speed Range	Low	Medium	High	Low	Medium	High	Low	Medium	High	Low	Medium	High
Model	i10LAC	i10MAC	i10HAC	i23LAC	i23MAC	i23HAC	i26LAC	i26MAC	i26HAC	i30LAC	i30MAC	i30HAC
Gearbox Ratio	19.5:1	48:1	157:1	19.13:1	48:1	157:1	19.27:1	47:1	145:1	19.7:1	48:1	150:1
Motor Power (HP)	0.25	0.50	0.75	0.25	0.75	1.00	0.33	1.00	2.00	0.50	1.50	3.00
Pump Speed @60Hz (rpm)	11	37	92	11	37	94	12	38	93	12	37	91
Flow Rate @60Hz (lpm)	0.32	1.02	2.60	2.16	7.15	17.98	5.11	15.82	38.54	7.95	24.80	60.57

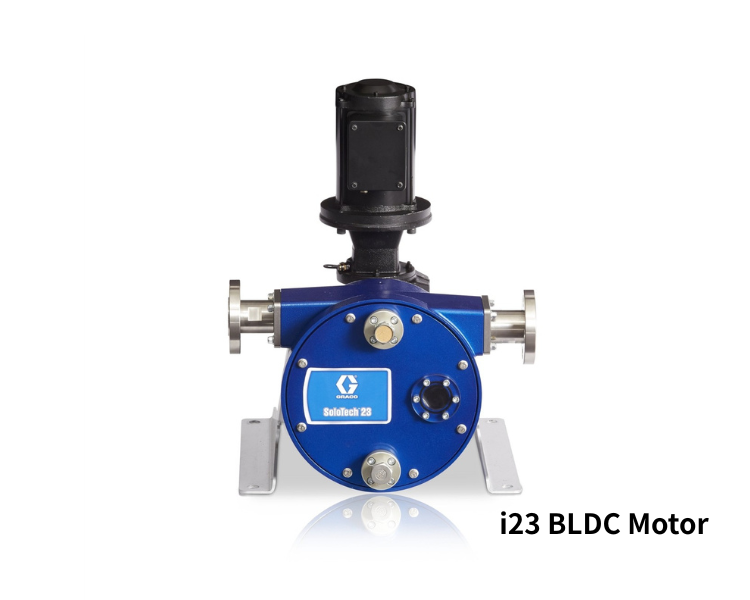

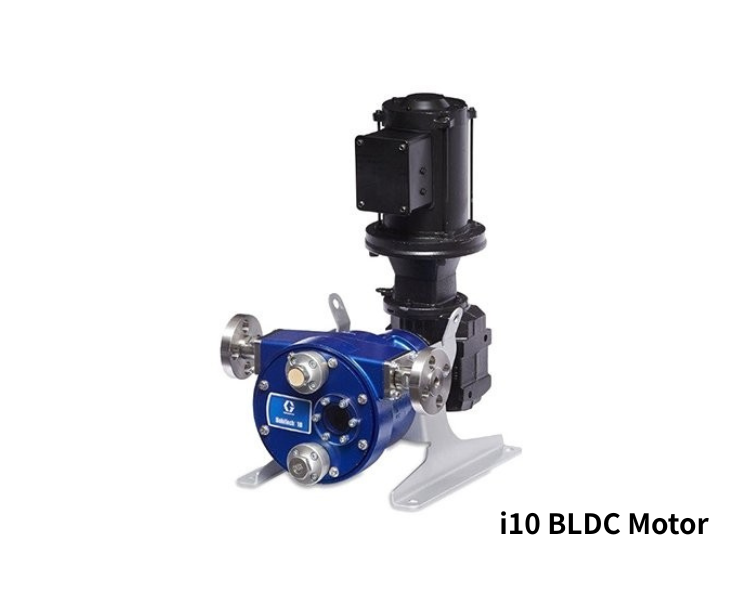

BLDC Motor Specifications by Model


Specifications	SoloTech i10	SoloTech i23	SoloTech i26	SoloTech i30
Model	i10MPM	i23MPM	i26MPM	i30MPM
Hose Size	10 mm (0.4 inch)	23 mm (0.91 inch)	26 mm	30 mm
Max Flow Rate	2.54 lpm(0.67 gpm)	17.03 lpm (4.5 gpm)	37.1 lpm (9.8 gpm)	58.81 lpm (15.8 gpm)
Volume per Revolution l/rev (gal/rev)	26.50 (7)	0.204 (0.054)	0.413 (0.109)	6.814 (1.8)
Min Flow Rate	0.064 lpm(0.017 gpm)	0.454 lpm(0.12 gpm)	0.973 lpm(0.257 gpm)	1.628 lpm(0.43 gpm)
Max Working Pressure	125 psi (8.6bar)	125 psi (8.6bar)	125 psi (8.6bar)	125 psi (8.6bar)
Pump Speed Range	2-93 rpm	2-95 rpm	2-94 rpm	2-92 rpm
Gearbox Ratio	37.66 : 1	37.66 : 1	38.23 : 1	36.61 : 1

Electric Motor Information

Specification	SoloTech i10	SoloTech i23	SoloTech i26	SoloTech i30
Housing Material	Aluminum Alloy	Aluminum Alloy	Aluminum Alloy	Aluminum Alloy
Hose Material	Natural Rubber, CSM, Nitrile Rubber, EPDM	Natural Rubber, CSM, Nitrile Rubber, EPDM	Natural Rubber, CSM, Nitrile Rubber, EPDM	Natural Rubber, CSM, Nitrile Rubber
Fitting Material	Stainless Steel, PVDF, Hastelloy	Stainless Steel, PVDF, Hastelloy	Stainless Steel, PVDF, Hastelloy	Stainless Steel, PVDF, Hastelloy
Connection Type & Size	DIN PN16 010 - 3/8" ANSI 150 1/2 NPS JIS 10K 10	DIN PN16 025 - 1" ANSI 150 1-1/4 NPS JIS 10K 025	DIN PN16 025 - 1" ANSI 150 1-1/4 NPS JIS 10K 025	DIN PN16 025 - 1-1/4" ANSI 150 1-1/2 NPS JIS 10K 032
Motor	AC Motor BLDC Motor	AC Motor BLDC Motor	AC Motor BLDC Motor	AC Motor BLDC Motor
Power Supply	110V, 220V or 480V Single-Phase or Three-Phase	110V, 220V or 480V Single-Phase or Three-Phase	110V, 220V or 480V Single-Phase or Three-Phase	110V, 220V or 480V Single-Phase or Three-Phase

Model Guide

▸ Models SoloTech i10, i23
▸ Model SoloTech i26
▸ Model SoloTech i30

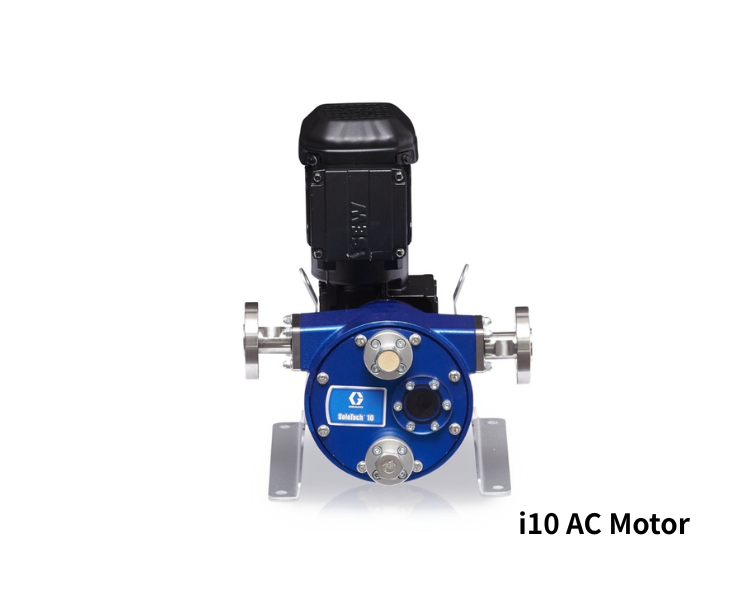

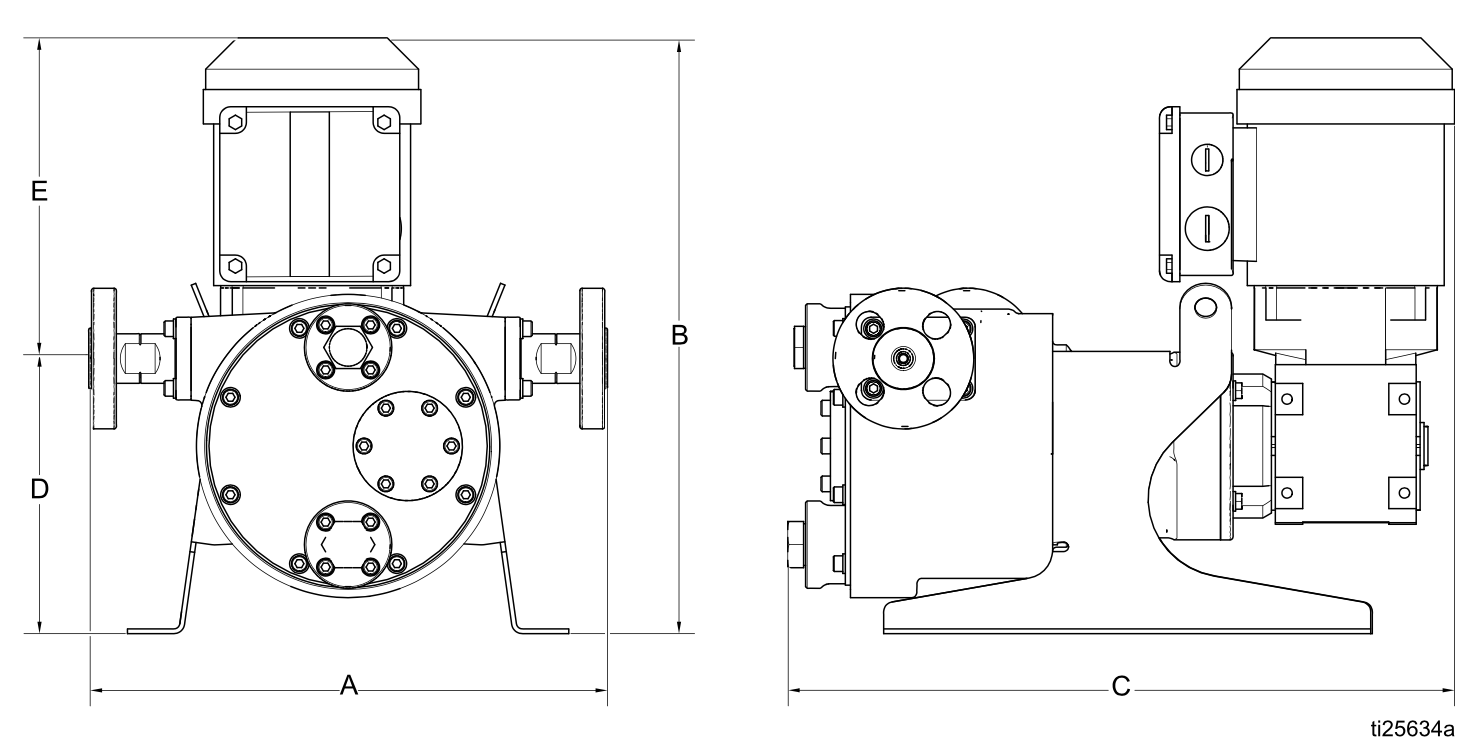

SoloTech i10, i23

Applicable Models: AC Motor – High-Speed i10 (HAC), Medium-Speed i10 (MAC), Low-Speed i10 (LAC); High-Speed i23 (HAC), Medium-Speed i23 (MAC), Low-Speed i23 (LAC)

	A		B		C		D		E
	in.	cm	in.	cm	in.	cm	in.	cm	in.	cm
i10 HAC	13	33	18.2	46.2	16.2	41.1	7.0	17.8	11.2	28.4
i10 MAC	13	33	17.3	43.9	16.2	41.1	7.0	17.8	10.3	26.2
i10 LAC	13	33	16.7	42.4	16.2	41.1	7.0	17.8	9.7	24.6
i23 HAC	17.2	43.7	20.5	52.1	19.8	50.3	10.1	25.7	9.9	25.1
i23 MAC	17.2	43.7	20.5	52.1	19.8	50.3	10.1	25.7	9.9	25.1
i23 LAC	17.2	43.7	18.2	46.2	19.8	50.3	10.1	25.7	8.1	20.6

Applicable Models: BLDC Motor – i10 (MPM), i23 (MPM)

	A		B		C		D		E
	in.	cm	in.	cm	in.	cm	in.	cm	in.	cm
i10 MPM	13	33	21	53.3	16.3	41.4	7	17.8	14.1	35.8
i23 MPM	17.2	43.7	22.8	57.9	19.8	50.3	10.1	25.7	12.8	32.5

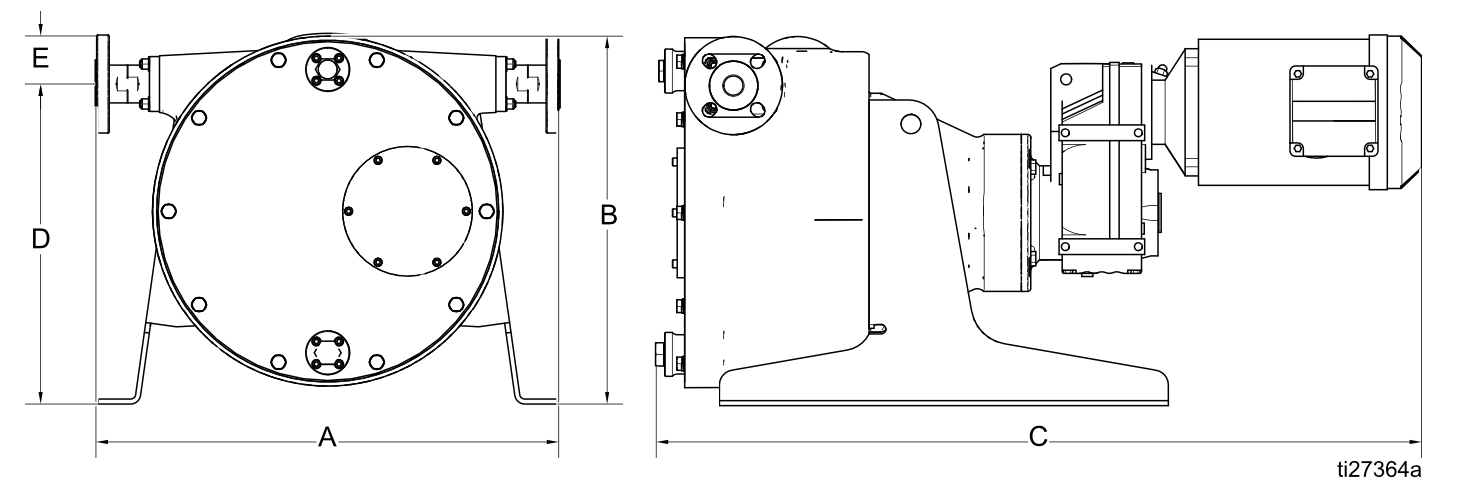

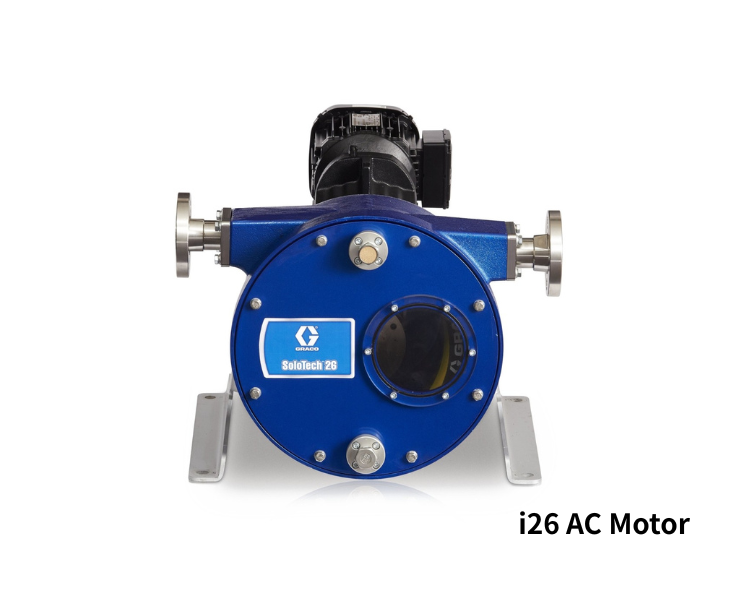

SoloTech i26

Applicable Models: AC Motor – High-Speed i26 (HAC), Medium-Speed i26 (MAC), Low-Speed i26 (LAC)

	A		B		C		D		E
	in.	cm	in.	cm	in.	cm	in.	cm	in.	cm
i26 HAC	21.7	55.1	16.5	41.9	36.1	91.7	14	35.6	2	5.1
i26 MAC	21.7	55.1	16.5	41.9	33.9	86.1	14	35.6	2	5.1
i26 LAC	21.7	55.1	15.5	39.4	33	83.8	14	35.6	2	5.1

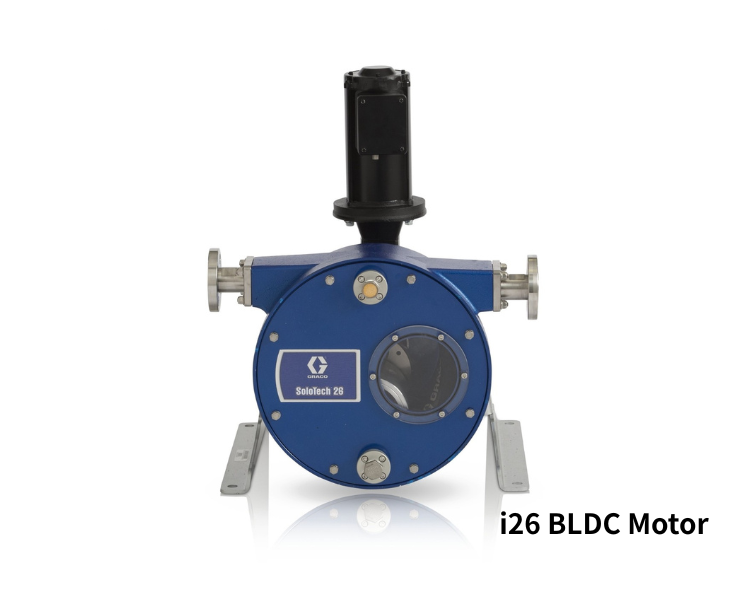

Applicable Models: BLDC Motor – i26 (MPM)

	A		B		C		D		E
	in.	cm	in.	cm	in.	cm	in.	cm	in.	cm
i26 MPM	21.7	55.1	16	40.6	36.8	93.5	14	35.6	2	2.1

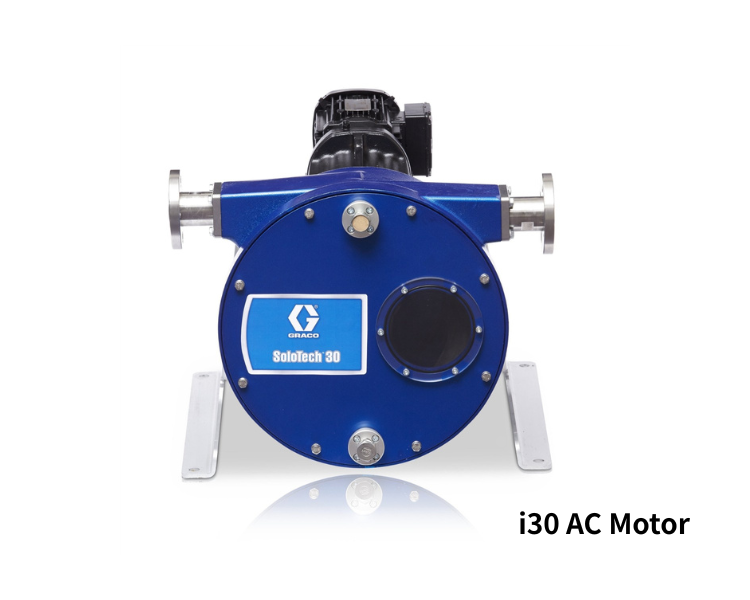

SoloTech i30

Applicable Models: AC Motor – High-Speed i30 (HAC), Medium-Speed i30 (MAC)

	A		B		C		D		E
	in.	cm	in.	cm	in.	cm	in.	cm	in.	cm
i30 HAC	23.3	59.2	30.3	77	26.5	67.3	16.1	40.9	14.2	36.1
i30 MAC	23.3	59.2	29.1	73.9	26.5	67.3	16.1	40.9	13.1	33.3

Applicable Models: AC Motor – Low-Speed i30 (LAC)

	A		B		C		D		E
	in.	cm	in.	cm	in.	cm	in.	cm	in.	cm
i30 LAC	23.3	59.2	20	50.8	34.4	87.4	16.1	40.9	2.5	6.4

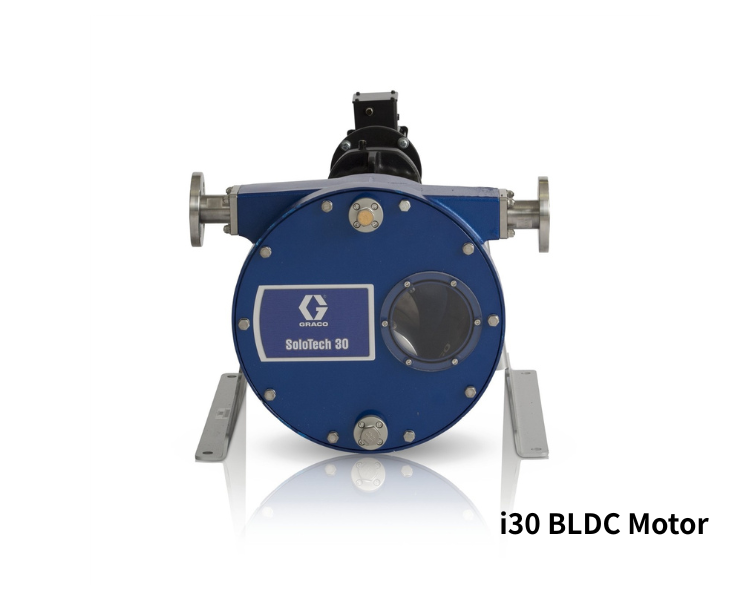

Applicable Models: BLDC Motor – i30 (MPM)

	A		B		C		D		E
	in.	cm	in.	cm	in.	cm	in.	cm	in.	cm
i30 MPM	23.3	59.2	18.5	47	40.4	102.6	16.1	40.9	2.5	6.4

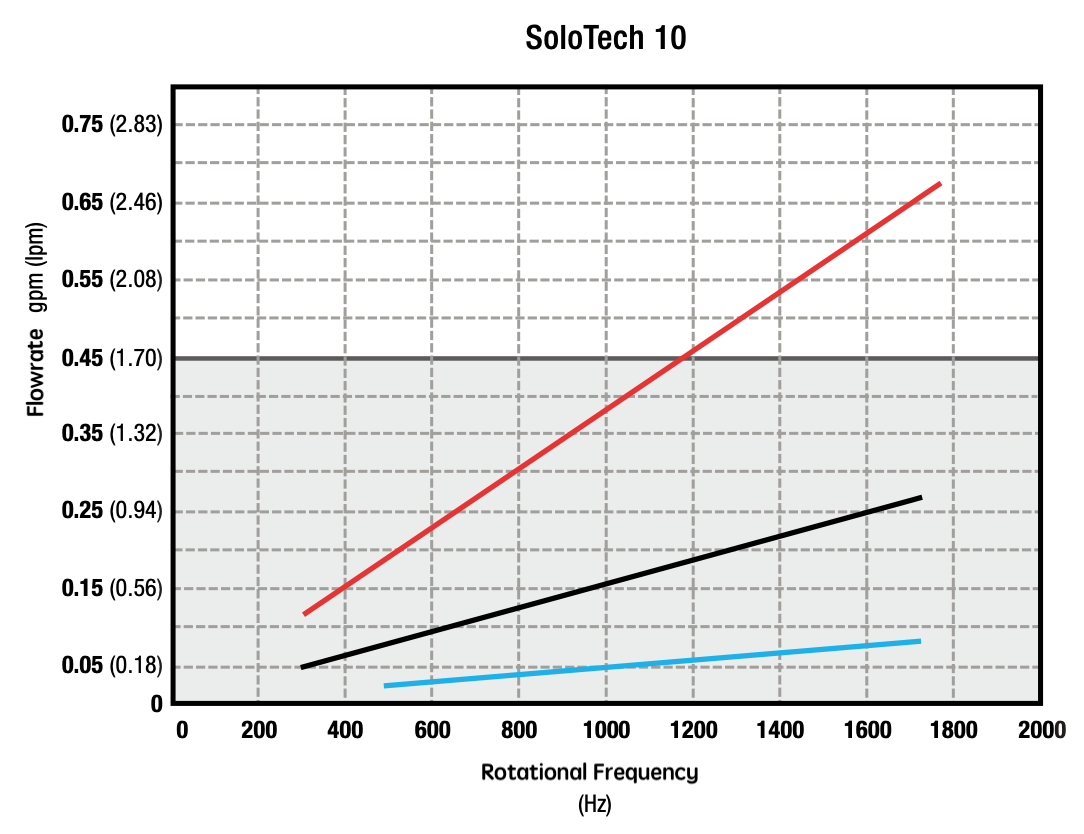

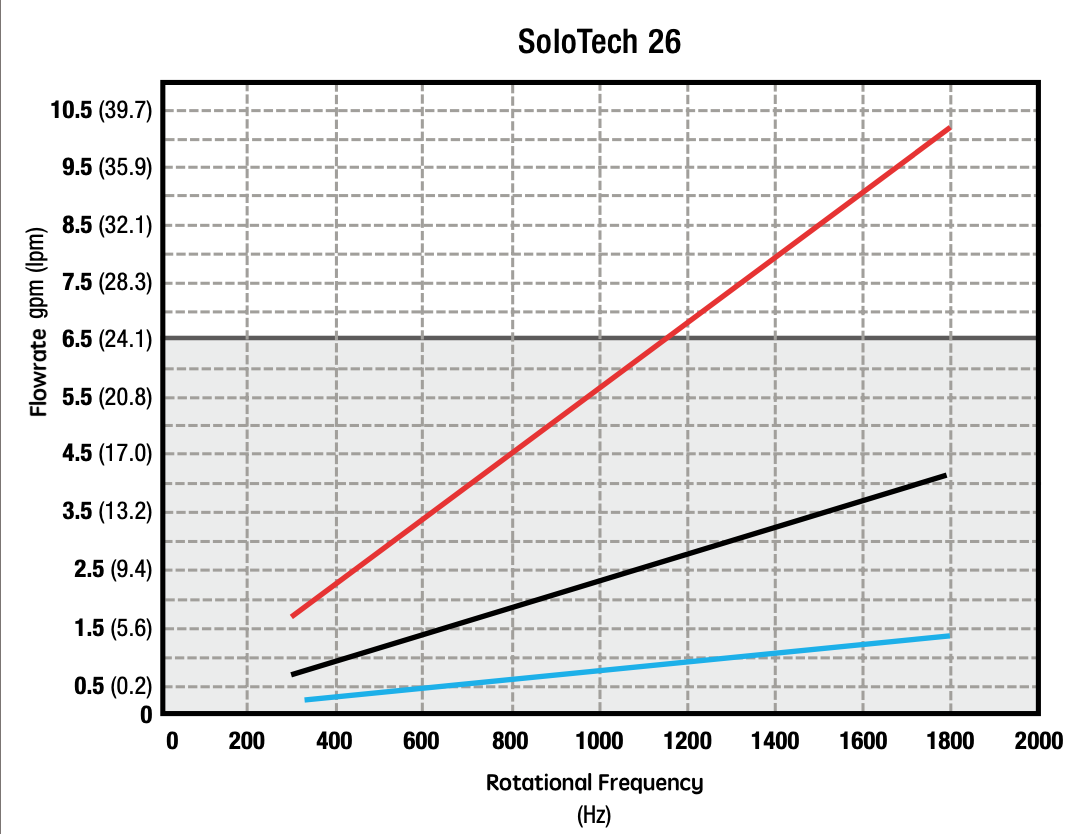

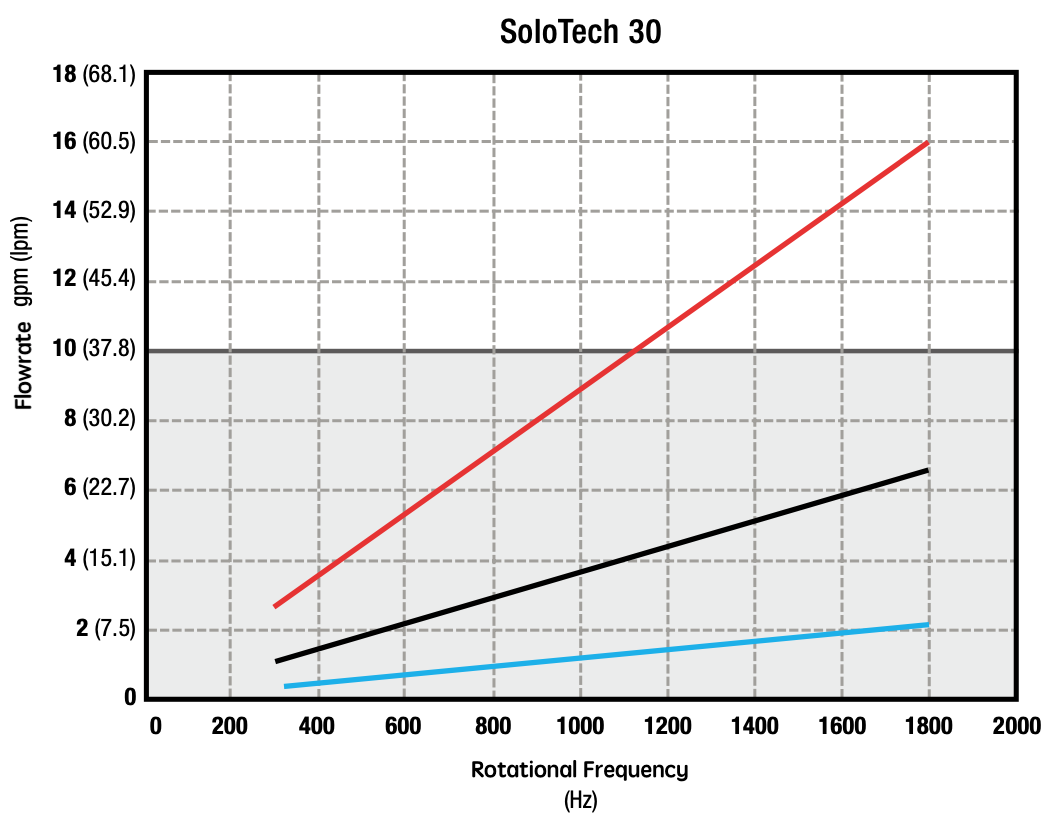

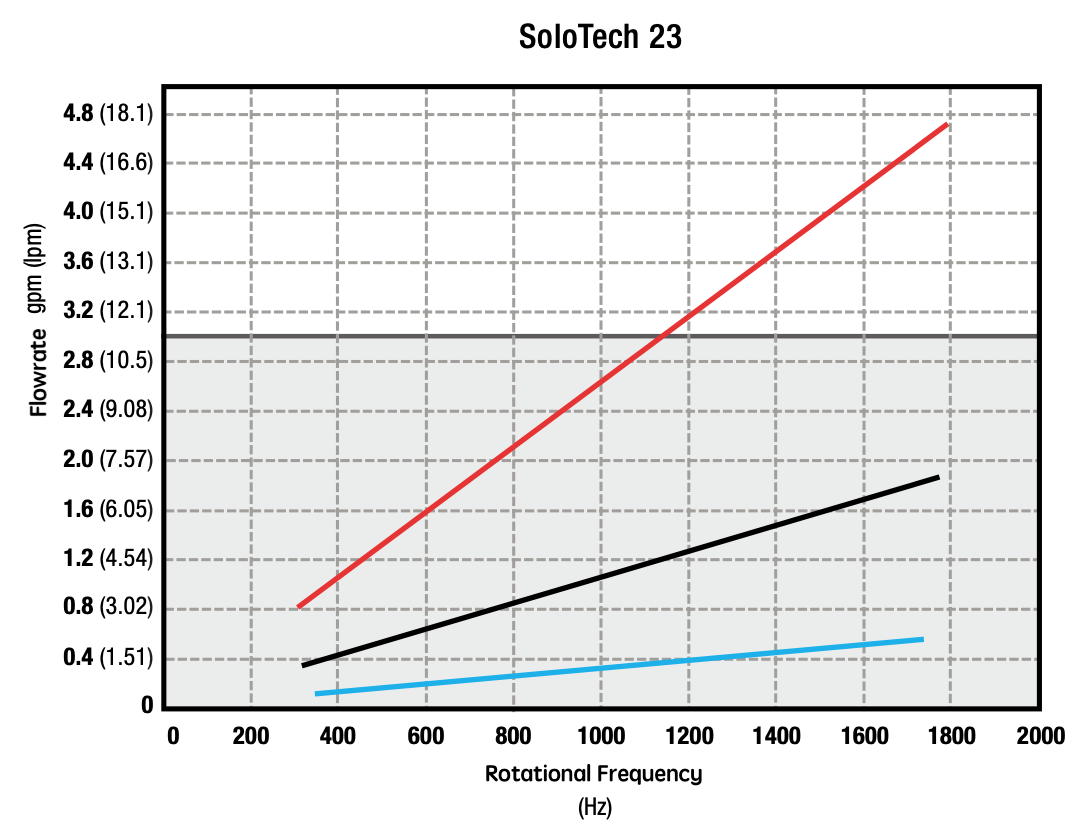

Flow vs. Pump Speed Curve

Red Line – High Gear Ratio Models / Black Line – Medium Gear Ratio Models / Blue Line – Low Gear Ratio Models / Gray Area – Continuous Operating Flow-Speed Range
