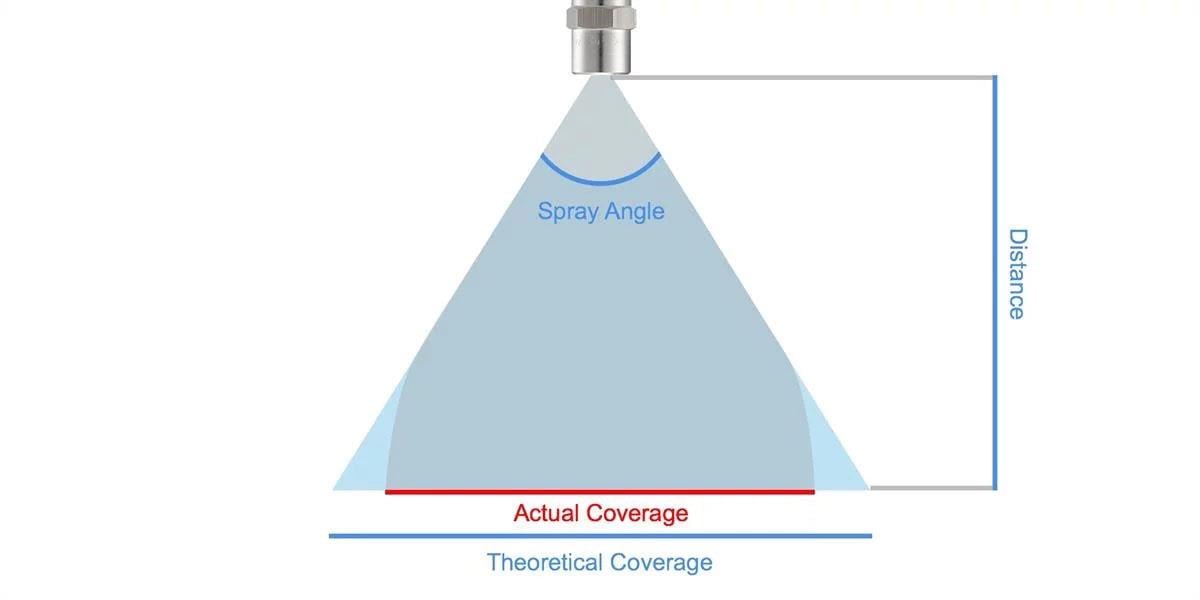

Flat fan nozzle spray coverage is affected by a myriad of factors, such as gravity, acceleration and air resistance. That combined with the technical specifications of the nozzles themselves which dictate spray pressure and viscosity, thus further influencing spray coverage, all lead to the fact that there’s no way to predict nozzle spray coverage in a completely accurate manner. Thus, the following information is a theoretical estimation, prior to the influence of external factors. For further information regarding more practical spray coverage, be sure to contact our sales rep.



Measurement in inches









 Spray Angle (°)


Theoretical Coverage (inch)




40
65
80
90
100
120
170










1.0


0.7
1.3
1.7
2.0
2.4
3.5
23






1.5


1.1
1.9
2.5
3.0
3.6
5.2
34






2.0


1.5
2.5
4.2
4.0
6.0
8.7
57






2.5


1.8
3.2
5.0
5.0
7.2
10
69






3.0


2.2
3.8
5.0
6.0
7.2
10
69






3.5


2.5
4.5
5.9
7.0
8.3
12
80






4.0


2.9
5.1
6.7
8.0
10
14
91






4.5


3.3
5.7
7.6
9.0
11
16
103






5


3.6
6.4
8.4
10
12
17
114






6


4.4
7.6
10
12
14
21
137






7


5.1
8.9
12
14
17
24
160






8


5.8
10
13
16
19
28
183






9


6.6
11
15
18
21
31
206






10


7.3
13
17
20
24
35
229






11


8.0
14
18
22
26
38
251






12


8.7
15
20
24
29
42
274






14


10
18
23
26
33
48
320






16


12
20
27
28
38
55
366






18


13
23
30
32
43
62
411






20


15
25
34
36
48
69
457






22


16
28
37
40
52
76
503






24


17
31
40
44
57
83
549






26


19
33
44
48
62
90
594






28


20
36
47
52
67
97
640






30


22
38
50
56
72
104
686






32


23
41
54
60
76
111
732






34


25
43
57
64
81
118
777






36


26
46
60
60
86
125
823











Measurement in millimeters












 Spray Angle (°)


Theoretical Coverage (mm)




65
80
90
100
120
170










30


38
50
60
72
104
686






40


51
67
80
95
139
914






50


64
84
100
119
173
1143






60


76
101
120
143
208
1372






70


89
117
140
167
242
1600






80


102
134
160
191
277
1829






90


115
151
180
215
312
2057






100


127
168
200
238
346
2286






110


140
185
220
262
381
2515






120


153
201
240
286
416
2743






130


166
218
260
310
450
2972






140


178
235
280
334
485
3200






150


191
252
300
358
520
3429






200


255
336
400
477
693
4572






250


319
420
500
596
866
5715






300


382
503
600
715
1039
6858






50


446
587
700
834
1212
8001






400


510
671
800
953
1386
9144






450


573
755
900
1073
1559
1028






500


637
839
1000
1192
1732
1143






550


701
923
1100
1311
1905
1257






600


764
1007
1200
1430
2078
1371






650


828
1091
1300
1549
2252
1485






700


892
1175
1400
1668
2425
1600






750


956
1259
1500
1788
2598
1714






800


1019
1343
1600
1907
2771
1828






850


1083
1426
1700
2026
2944
1943






900


1147
1510
1800
2145
3118
2057






950


1210
1594
1900
2264
3291
2171






1000


1274
1678
2000
2384
3464
2286











For further information, click the “Contact Us” button or call us directly.
