KPMF Plastic multi-slotted core full cone spray nozzle

Full cone spray, Uniform impact, Easy installed
Apply for
Semicon│PCB
Cleaning│Purging
Cooling Etching│Developing

General Features
  • Full cone spray.
  • Adopts a Holeless ­multi-slotted core, possess a more uniform impact than other standard solid cone nozzles of the same type.
  • PVDF is resistant to temperature and corrosive chemical solutions.
  • Recommended working pressure: 2.0 kgf/cm²
  • Flowrate tolerance: ± 5% @ 2.0 ± 0.1 kgf/cm²
  • Angle tolerance: ± 5° @ 2.0 ± 0.1 kgf/cm²
  • Applications:
    ● Cleaning: Gas, exhaust gas, dust, cleaning device, tank cleaning, etc.
    ● Cooling: gas, tank, machinery, metal, roof etc.
    ● Dispersion: Humidifying, Chemicals, firefighting, dust suppression, aeration, defoaming, sewage treatment.
LORRIC nozzle

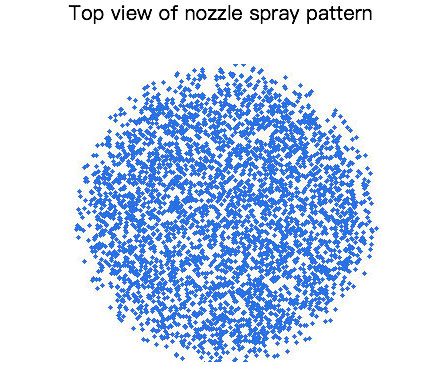

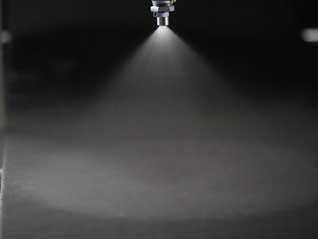

Spray pattern & Flow distribution
LORRIC nozzle
LORRIC nozzle



Specs

Please place your order according below information.


How to pleace an order for LORRIC nozzles?

  • • You can find the exact Capacity Code according to your requirement of pressure, flow, and spray angle as the capacity & angle chart we provided above. Click to understand how to use the capacity & angle.
  • • Please refer to the following order example for placing order to LORRIC.

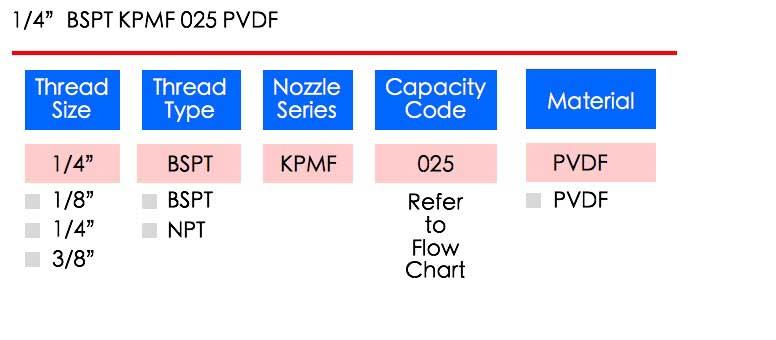

  •   Example :LORRIC nozzle

Select
Unit
  • *
  • *
  • *
  • *
Spray Angle Capacity Code Thread Size Capacity at Pressure Capacity at Pressure
1/8" 1/4" 3/8" 0.7
kgf/cm²		 1.0
kgf/cm²		 1.5
kgf/cm²		 2.0
kgf/cm²		 4.0
kgf/cm²		 6.0
kgf/cm²		 8.0
kgf/cm²		 10.0
kgf/cm²		 15.0
kgf/cm²
60° 020 V
 V
1.18 1.41 1.73 2.00 2.83 3.46 4.00 4.47 5.48
  025 V
 V
1.48 1.77 2.17 2.50 3.54 4.33 5.00 5.59 6.85
  030 V
 V
1.77 2.12 2.60 3.00 4.24 5.20 6.00 6.71 8.22
  035 V
 V
2.07 2.47 3.03 3.50 4.95 6.06 7.00 7.83 9.59

040 V
 V
2.37 2.83 3.46 4.00 5.68 6.93 8.00 8.94 10.95
≀
 050
V
 V 2.96 3.54 4.33 5.00 7.07 8.66 10.00 11.18 13.69

060
V
 V 3.55 4.24 5.20 6.00 8.49 10.39 12.00 13.42 16.43
  070
V
 V 4.14 4.95 6.06 7.00 9.90 12.12 14.00 15.65 19.17
  080
V
 V 4.73 5.66 6.93 8.00 11.31 13.86 16.00 17.89 21.91
  100

V 5.92 7.07 8.66 10.00 14.14 17.32 20.00 22.36 27.39
  120

V
 7.10 8.49 10.39 12.00 16.97 20.78 24.00 26.83 32.86
90° 140

V
 8.28 9.90 12.12 14.00 19.80 24.25 28.00 31.30 38.34
Spray Angle Capacity Code Thread Size Capacity at Pressure Capacity at Pressure
1/8" 1/4" 3/8" 0.07
MPa		 0.1
MPa		 0.15
MPa 		0.2
MPa		 0.4
MPa
 0.6
MPa		 0.8
MPa		 1.0
MPa		 1.5
MPa
60°
 020 V
 V
1.19 1.43 1.75 2.02 2.86 3.50 4.04 4.52 5.53
  025 V
 V
1.49 1.79 2.19 2.52 3.57 4.37 5.05 5.65 6.91
  030 V
 V
1.77 2.14 2.62 3.03 4.28 5.25 6.06 6.77 8.30
  035 V
 V
2.09 2.50 3.06 3.53 5.00 6.12 7.07 7.90 9.68

040 V
 V
2.39 2.86 3.50 4.04 5.71 7.00 8.08 9.03 11.06
≀ 050
V
 V 2.99 3.57 4.37 5.05 7.14 8.75 10.10 11.29 13.93
  060
V
 V 3.58 4.28 5.25 6.06 8.57 10.49 12.12 13.55 16.59
  070
V
 V 4.18 5.00 6.12 7.07 10.00 12.24 14.14 15.81 19.36
  080
V
 V 4.78 5.71 7.00 8.08 11.42 13.99 16.16 18.06 22.12
  100

V 5.97 7.14 8.75 10.10 14.28 17.49 20.20 22.58 27.65
  120

V
 7.17 8.57 10.49 12.12 16.14 20.99 24.24 26.10 33.19
90° 140

V
 8.36 10.00 12.24 14.14 19.99 24.49 28.27 31.61 38.72
Spray Angle Capacity Code Thread Size Capacity at Pressure Capacity at Pressure
1/8" 1/4" 3/8" 0.7
bar
 1.0
bar		 1.5
bar 		2.0
bar		 4.0
bar 		6.0
bar		 8.0
bar		 10.0
bar		 15.0
bar
60°
 020 V
 V
1.19 1.43 1.75 2.02 2.86 3.50 4.04 4.52 5.53
  025 V
 V
1.49 1.79 2.19 2.52 3.57 4.37 5.05 5.65 6.91
  030 V
 V
1.79 2.14 2.62 3.03 4.28 5.25 6.06 6.77 8.30
  035 V
 V
2.09 2.50 3.06 3.53 5.00 6.12 7.07 7.90 9.68

040 V
 V
2.39 2.86 3.50 4.04 5.71 7.00 8.08 9.03 11.06
≀  050
V
 V
 2.99 3.57 4.37 5.05 7.14 8.75 10.10 11.29 13.83
  060
V
 V 3.58 4.28 5.25 6.06 8.57 10.49 12.12 13.55 16.59
  070
V
 V 4.18 5.00 6.12 7.07 10.00 12.24 14.14 15.81 19.36

080
V
 V 4.78 5.71 7.00 8.08 11.42 13.99 16.16 18.06 22.12
  100

V 5.97 7.14 8.75 10.10 14.28 17.49 20.20 22.58 27.65
  120

V
 7.17 8.57 10.49 12.12 17.14 20.99 24.24 27.10 33.19
90° 140

V
 8.36 10.00 12.24 14.14 19.99 24.49 28.27 31.61 38.72
Spray Angle Capacity Code Thread Size Capacity at Pressure Capacity at Pressure
1/8" 1/4" 3/8" 10
psi		 15
psi		 20
psi 		28
psi		 60
psi 		90
psi		 120
psi		 140
psi		 200
psi
60°  020 V
 V
0.31 0.38 0.44 0.52 0.77 0.94 1.09 1.17 1.40
  025 V
 V
0.39 0.48 0.55 0.66 0.96 1.17 1.36 1.47 1.75
  030 V
 V
0.47 0.58 0.66 0.79 1.15 1.41 1.63 1.76 2.10
  035 V
 V
0.55 0.67 0.78 0.92 1.34 1.64 1.90 2.05 2.45

040 V
 V
0.63 0.77 0.89 1.05 1.53 1.88 2.17 2.34 2.80
≀
 050
V
 V
 0.78 0.96 1.11 1.31 1.92 2.35 2.71 2.93 3.50
  060
V
 V
 0.94 1.15 1.33 1.57 2.30 2.82 3.26 3.52 4.20
  070
V
 V
 1.10 1.34 1.55 1.83 2.69 3.29 3.80 4.10 4.90
  080
V
 V 1.25 1.53 1.77 2.10 3.07 3.76 4.34 4.69 5.60

100

V 1.57 1.92 2.22 2.62 3.84 4.70 5.43 5.86 7.00
  120

V
 1.88 2.30 2.66 3.15 4.60 5.64 6.51 7.03 8.41
90° 140

V
 2.19 2.69 3.10 3.67 5.37 6.58 7.60 8.20 9.81
  • * Standard Pressure: Column in red.
  • * This product for spray angle 90° and 120° is able to be made to order.
  • * For mobile friendly, only 3 column with 3 kinds of pressure will be displayed. For more pressure data, please check the chart on PC or laptop.



Material

  • CORE: PVC、PEEK (for temperature up to 250°C/482°F and highly corrosive chemicals, by custom order.)

LORRIC nozzle



Material Guarantees
Metal
We take high quality smithing metal to produce solid and durable nozzles by detail turning.
Plastic
We promise never using recycled materials
High Quality
All material is purchased from world top providers.





Product Size
Thread
(BSPT) 		Size (mm) Weight (g)
  A     B     C
1/8"Male
 11.8 10.3 19 1.5
1/4"Male
 15 10.5 21.4 3.8
3/8"Male
 16.7 13 24.6 6.0

LORRIC nozzle



Installation
Easy installing with 2 simple steps !
Step 1

Drill correspon-ding female threads on your pipe.

Step 2

For better leakproof-ness, please use Teflon seal tape on nozzle thread.

Aim the thread of nozzle at the female thread. Tighten the nozzle clockwise.

Finished

  Finished.

LORRIC nozzle
LORRIC nozzle
LORRIC nozzle
