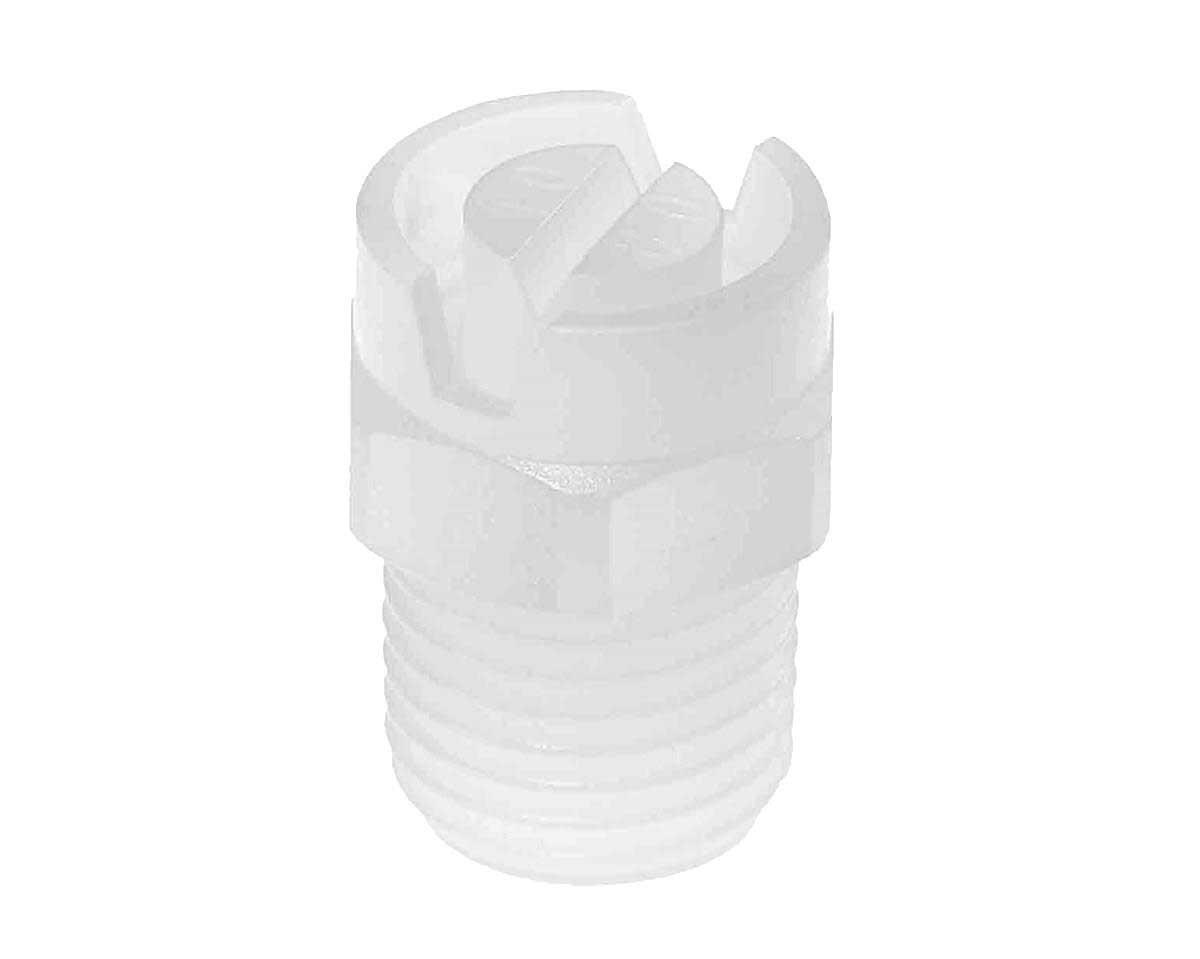

H-Plastic High Quality plastic flat fan spray nozzle

Easy installed, Plastic, Flat fan
Apply for
PCB Wet Processing
Display Panel Wet Processing
High Pressure Cleaning
Dust and Powder Washing
Solution Dispersion
General Humidifying
Gravel Washing│Steel Cooling

Features
  • The spraying type is fan type, and the spray shape is single line and two sides are tapered (tapered edge), which presents a bell curve shape flow field distribution with weaker ends compared to the middle.
  • Single-piece design, if there is frequent maintenance or replacement requirements, it is recommended to use quick install with multiple pieces nozzles.
  • Recommended working pressure: 3.0 kgf/cm²
  • Jet angle tolerance: 3°
    • Flowrate tolerance:
      ● PP Material: ± 10% @ 3.0 ± 0.1 kgf/cm²
      ● Other Material: ± 5% @ 3.0 ± 0.1 kgf/cm²
    • Angle tolerance:
      ● PP Material: ± 10° @ 3.0 ± 0.1 kgf/cm²
      ● Other Material: ± 5° @ 3.0 ± 0.1 kgf/cm²
    • Applications:
      ● Cleaning: Vehicles, Containers, Filters, Dust, Gravel, Metals, Metal Parts, Machinery, Steel Plates, Various Containers, High Pressure Cleaning, Wet, Processing Display Pane, machine tool cleaning, etc.
      ● Cooling: gas, tank, machinery, metal, roof etc.;
      ● Dispersion: Humidifying, Chemicals (etching solution, lubricants, insect repellent, etc.), water screens (fire, dust, deodorization etc.).
      • Fan nozzle angle can be 0°~110°, 0° spray angle spray type is straight column, spray Fog shape is a single point, providing the best impact in all nozzle types.
      • When the fan nozzle is used in high pressure environment, choose HSS material (hardened stainless steel Steel), can operate under 200Kg/cm² pressure.



LORRIC nozzle

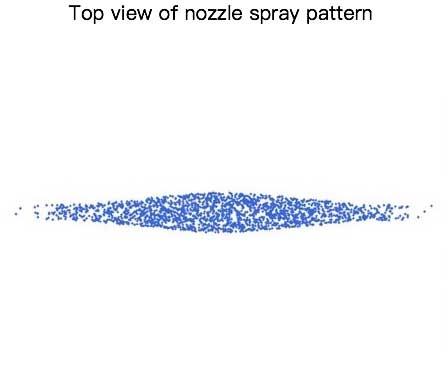

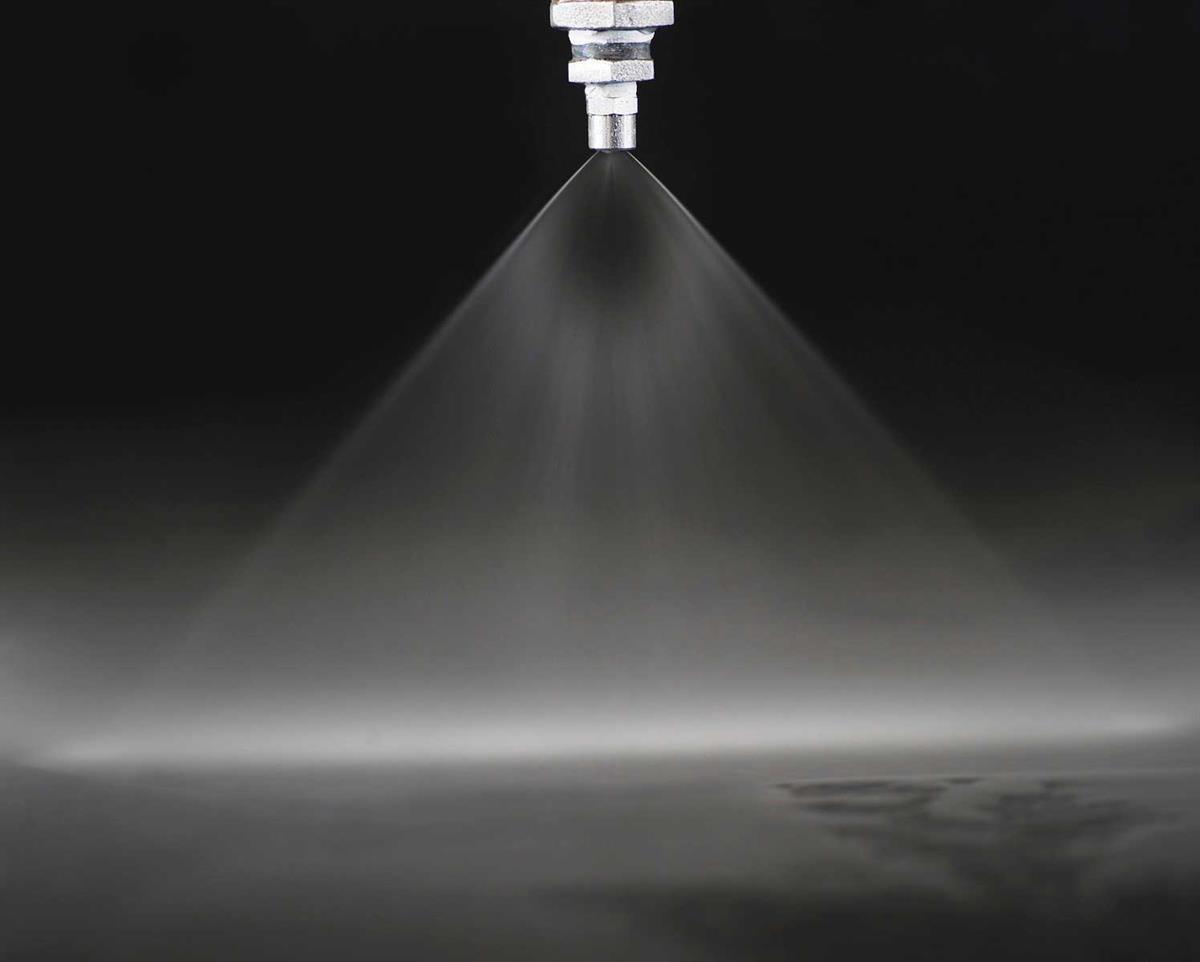

Spray pattern & Flow distribution
LORRIC nozzle
LORRIC nozzle



Specs

Please place your order according below information.


How to pleace an order for LORRIC nozzles?

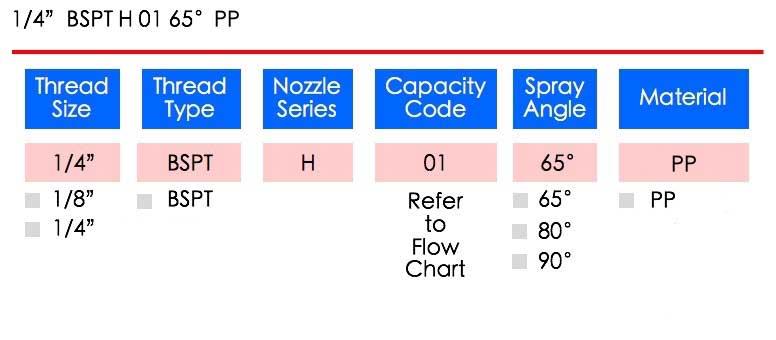

  • • You can find the exact Capacity Code according to your requirement of pressure, flow, and spray angle as the capacity & angle chart we provided above.
  • • Please refer to following order example for placing order to LORRIC.
  •   Example :LORRIC nozzle

Select
Unit
  • *
  • *
  • *
  • *
Spray Angle Capacity Code Thread Size Capacity at Pressure Capacity at Pressure
1/8" 1/4" 0.5
kgf/cm²		 1.0
kgf/cm²		 2.0
kgf/cm²		 3.0
kgf/cm²		 4.0
kgf/cm²		 6.0
kgf/cm²		 8.0
kgf/cm²		 10.0
kgf/cm²		 15.0
kgf/cm²
65° 01 V
 V
 0.16 0.23 0.32 0.39 0.45 0.55 0.64 0.71 0.87
65° 02 V
 V
 0.32 0.45 0.64 0.78 0.90 1.11 1.28 1.43 1.75
65° 2.5 V
 V
 0.40 0.56 0.80 0.98 1.13 1.38 1.60 1.78 2.19
65° 03 V
 V
 0.48 0.68 0.96 1.17 1.35 1.66 1.92 2.14 2.62
65° 04 V
 V
 0.64 0.90 1.28 1.56 1.81 2.21 2.55 2.86 3.50
65° 05 V
 V
 0.80 1.13 1.60 1.96 2.26 2.76 3.19 3.57 4.37
65° 06 V
 V
 0.96 1.35 1.92 2.35 2.71 3.32 3.83 4.28 5.25
65° 07 V V
 1.12 1.58 2.23 2.74 3.16 3.87 4.47 5.00 6.12
65° 7.5 V V
 1.20 1.69 2.39 2.93 3.39 4.15 4.79 5.35 6.56
65° 08 V V
 1.28 1.81 2.55 3.13 3.61 4.42 5.11 5.71 6.99
65° 09 V V
 1.44 2.03 2.87 3.52 4.06 4.98 5.75 6.42 7.87
65° 10 V V 1.60 2.26 3.19 3.91 4.51 5.53 6.39 7.14 8.74
65° 12.5 V V 2.00 2.82 3.99 4.89 5.64 6.91 7.98 8.92 10.93
65° 15 V V 2.39 3.39 4.79 5.87 6.77 8.29 9.58 10.71 13.11
65° 20 V V 3.19 4.51 6.39 7.82 9.03 11.06 12.77 14.28 17.49
65° 25
V 3.99 5.64 7.98 9.78 11.29 13.82 15.96 17.85 21.86
65° 30
V 4.79 6.77 9.58 11.73 13.54 16.59 19.16 21.42 26.23
65° 35
V 5.59 7.90 11.17 13.69 15.80 19.35 22.35 24.99 30.60
65° 40
V 6.39 9.03 12.77 15.64 18.06 22.12 25.54 28.55 34.97
65° 50
V 7.98 11.29 15.96 19.55 22.57 27.65 31.93 35.69 43.72
65° 60

9.58 13.54 19.16 23.46 27.09 33.18 38.31 42.83 52.46
65° 80

12.77 18.06 25.54 31.38 36.12 44.24 51.08 57.11 69.94
65° 100

15.96 22.57 31.93 39.10 45.15 55.30 63.85 71.39 87.43
80° 01 V
 V
 0.16 0.23 0.32 0.39 0.45 0.55 0.64 0.71 0.87
80° 02 V
 V
 0.32 0.45 0.64 0.78 0.90 1.11 1.28 1.43 1.75
80° 2.5 V
 V
 0.40 0.56 0.80 0.98 1.13 1.38 1.60 1.78 2.19
80° 03 V
 V
 0.48 0.68 0.96 1.17 1.35 1.66 1.92 2.14 2.62
80° 04 V
 V
 0.64 0.90 1.28 1.56 1.81 2.21 2.55 2.86 3.50
80° 05 V
 V
 0.80 1.13 1.60 1.96 2.26 2.76 3.19 3.57 4.37
80° 06 V
 V
 0.96 1.35 1.92 2.35 2.71 3.32 3.83 4.28 5.25
80° 07 V V
 1.12 1.58 2.23 2.74 3.16 3.87 4.47 5.00 6.12
80° 7.5 V V
 1.20 1.69 2.39 2.93 3.39 4.15 4.79 5.35 6.56
80° 08 V V
 1.28 1.81 2.55 3.13 3.61 4.42 5.11 5.71 6.99
80° 09 V V
 1.44 2.03 2.87 3.52 4.06 4.98 5.75 6.42 7.87
80° 10 V V 1.60 2.26 3.19 3.91 4.51 5.53 6.39 7.14 8.74
80° 12.5 V V 2.00 2.82 3.99 4.89 5.64 6.91 7.98 8.92 10.93
80° 15 V V 2.39 3.39 4.79 5.87 6.77 8.29 9.58 10.71 13.11
80° 20 V V 3.19 4.51 6.39 7.82 9.03 11.06 12.77 14.28 17.49
80° 25
V 3.99 5.64 7.98 9.78 11.29 13.82 15.96 17.85 21.86
80° 30
V 4.79 6.77 9.58 11.73 13.54 16.59 19.16 21.42 26.23
80° 35
V 5.59 7.90 11.17 13.69 15.80 19.35 22.35 24.99 30.60
80° 40
V 6.39 9.03 12.77 15.64 18.06 22.12 25.54 28.55 34.97
80° 50
V 7.98 11.29 15.96 19.55 22.57 27.65 31.93 35.69 43.72
80° 60

9.58 13.54 19.16 23.46 27.09 33.18 38.31 42.83 52.46
80° 80

12.77 18.06 25.54 31.38 36.12 44.24 51.08 57.11 69.94
80° 100

15.96 22.57 31.93 39.10 45.15 55.30 63.85 71.39 87.43
90° 01 V
 V
 0.16 0.23 0.32 0.39 0.45 0.55 0.64 0.71 0.87
90° 02 V
 V
 0.32 0.45 0.64 0.78 0.90 1.11 1.28 1.43 1.75
90° 2.5 V
 V
 0.40 0.56 0.80 0.98 1.13 1.38 1.60 1.78 2.19
90° 03 V
 V
 0.48 0.68 0.96 1.17 1.35 1.66 1.92 2.14 2.62
90° 04 V
 V
 0.64 0.90 1.28 1.56 1.81 2.21 2.55 2.86 3.50
90° 05 V
 V
 0.80 1.13 1.60 1.96 2.26 2.76 3.19 3.57 4.37
90° 06 V
 V
 0.96 1.35 1.92 2.35 2.71 3.32 3.83 4.28 5.25
90° 07 V V
 1.12 1.58 2.23 2.74 3.16 3.87 4.47 5.00 6.12
90° 7.5 V V
 1.20 1.69 2.39 2.93 3.39 4.15 4.79 5.35 6.56
90° 08 V V
 1.28 1.81 2.55 3.13 3.61 4.42 5.11 5.71 6.99
90° 09 V V
 1.44 2.03 2.87 3.52 4.06 4.98 5.75 6.42 7.87
90° 10 V V 1.60 2.26 3.19 3.91 4.51 5.53 6.39 7.14 8.74
90° 12.5 V V 2.00 2.82 3.99 4.89 5.64 6.91 7.98 8.92 10.93
90° 15 V V 2.39 3.39 4.79 5.87 6.77 8.29 9.58 10.71 13.11
90° 20 V V 3.19 4.51 6.39 7.82 9.03 11.06 12.77 14.28 17.49
90° 25
V 3.99 5.64 7.98 9.78 11.29 13.82 15.96 17.85 21.86
90° 30
V 4.79 6.77 9.58 11.73 13.54 16.59 19.16 21.42 26.23
90° 35
V 5.59 7.90 11.17 13.69 15.80 19.35 22.35 24.99 30.60
90° 40
V 6.39 9.03 12.77 15.64 18.06 22.12 25.54 28.55 34.97
90° 50
V 7.98 11.29 15.96 19.55 22.57 27.65 31.93 35.69 43.72
90° 60

9.58 13.54 19.16 23.46 27.09 33.18 38.31 42.83 52.46
90° 80

12.77 18.06 25.54 31.38 36.12 44.24 51.08 57.11 69.94
90° 100

15.96 22.57 31.93 39.10 45.15 55.30 63.85 71.39 87.43
Spray Angle Capacity Code Thread Size Capacity at Pressure Capacity at Pressure
1/8" 1/4" 0.05
MPa		 0.1
MPa		 0.2
MPa 		0.3
MPa		 0.4
MPa
 0.6
MPa		 0.8
MPa		 1.0
MPa		 1.5
MPa
65° 01 V
 V
 0.16 0.23 0.32 0.39 0.46 0.56 0.64 0.72 0.88
65° 02 V
 V
 0.32 0.45 0.64 0.79 0.91 1.12 1.29 1.44 1.77
65° 2.5 V
 V
 0.40 0.57 0.81 0.99 1.14 1.40 1.61 1.80 2.21
65° 03 V
 V
 0.48 0.68 0.97 1.18 1.37 1.68 1.93 2.16 2.65
65° 04 V
 V
 0.64 0.91 1.29 1.58 1.82 2.23 2.58 2.88 3.53
65° 05 V
 V
 0.81 1.14 1.61 1.97 2.28 2.79 3.22 3.60 4.41
65° 06 V
 V
 0.97 1.37 1.93 2.37 2.74 3.35 3.87 4.33 5.30
65° 07 V V
 1.13 1.60 2.26 2.76 3.19 3.91 4.51 5.05 6.18
65° 7.5 V V
 1.21 1.71 2.42 2.96 3.42 4.19 4.81 5.41 6.62
65° 08 V V
 1.29 1.82 2.58 3.16 3.65 4.47 5.16 5.77 7.06
65° 09 V V
 1.45 2.05 2.90 3.55 4.10 5.03 5.80 6.49 7.95
65° 10 V V 1.61 2.28 3.22 3.95 4.56 5.58 6.45 7.21 8.83
65° 12.5 V V 2.01 2.85 4.03 4.94 5.70 6.98 8.06 9.01 11.04
65° 15 V V 2.42 3.42 4.84 5.92 6.84 8.38 9.67 10.81 13.24
65° 20 V V 3.22 4.56 6.45 7.90 9.12 11.17 12.90 14.42 17.66
65° 25
V 4.03 5.70 8.06 9.87 11.40 13.96 16.12 18.02 22.07
65° 30
V 4.84 6.84 9.67 11.85 13.68 16.75 19.34 21.63 26.49
65° 35
V 5.64 7.98 11.28 13.82 15.96 19.54 22.57 25.23 30.90
65° 40
V 6.45 9.12 12.90 15.79 18.24 22.34 25.79 28.83 35.52
65° 50
V 8.06 11.40 16.12 19.74 22.80 27.92 32.24 36.04 44.14
65° 60

9.67 13.68 19.34 23.69 27.36 33.50 38.69 43.25 52.97
65° 80

12.90 18.24 25.79 31.59 36.47 44.67 51.58 57.67 70.63
65° 100

16.12 22.80 32.24 39.48 45.59 55.84 64.48 72.09 88.29
80° 01 V
 V
 0.16 0.23 0.32 0.39 0.46 0.56 0.64 0.72 0.88
80° 02 V
 V
 0.32 0.45 0.64 0.79 0.91 1.12 1.29 1.44 1.77
80° 2.5 V
 V
 0.40 0.57 0.81 0.99 1.14 1.40 1.61 1.80 2.21
80° 03 V
 V
 0.48 0.68 0.97 1.18 1.37 1.68 1.93 2.16 2.65
80° 04 V
 V
 0.64 0.91 1.29 1.58 1.82 2.23 2.58 2.88 3.53
80° 05 V
 V
 0.81 1.14 1.61 1.97 2.28 2.79 3.22 3.60 4.41
80° 06 V
 V
 0.97 1.37 1.93 2.37 2.74 3.35 3.87 4.33 5.30
80° 07 V V
 1.13 1.60 2.26 2.76 3.19 3.91 4.51 5.05 6.18
80° 7.5 V V
 1.21 1.71 2.42 2.96 3.42 4.19 4.81 5.41 6.62
80° 08 V V
 1.29 1.82 2.58 3.16 3.65 4.47 5.16 5.77 7.06
80° 09 V V
 1.45 2.05 2.90 3.55 4.10 5.03 5.80 6.49 7.95
80° 10 V V 1.61 2.28 3.22 3.95 4.56 5.58 6.45 7.21 8.83
80° 12.5 V V 2.01 2.85 4.03 4.94 5.70 6.98 8.06 9.01 11.04
80° 15 V V 2.42 3.42 4.84 5.92 6.84 8.38 9.67 10.81 13.24
80° 20 V V 3.22 4.56 6.45 7.90 9.12 11.17 12.90 14.42 17.66
80° 25
V 4.03 5.70 8.06 9.87 11.40 13.96 16.12 18.02 22.07
80° 30
V 4.84 6.84 9.67 11.85 13.68 16.75 19.34 21.63 26.49
80° 35
V 5.64 7.98 11.28 13.82 15.96 19.54 22.57 25.23 30.90
80° 40
V 6.45 9.12 12.90 15.79 18.24 22.34 25.79 28.83 35.52
80° 50
V 8.06 11.40 16.12 19.74 22.80 27.92 32.24 36.04 44.14
80° 60

9.67 13.68 19.34 23.69 27.36 33.50 38.69 43.25 52.97
80° 80

12.90 18.24 25.79 31.59 36.47 44.67 51.58 57.67 70.63
80° 100

16.12 22.80 32.24 39.48 45.59 55.84 64.48 72.09 88.29
90° 01 V
 V
 0.16 0.23 0.32 0.39 0.46 0.56 0.64 0.72 0.88
90° 02 V
 V
 0.32 0.45 0.64 0.79 0.91 1.12 1.29 1.44 1.77
90° 2.5 V
 V
 0.40 0.57 0.81 0.99 1.14 1.40 1.61 1.80 2.21
90° 03 V
 V
 0.48 0.68 0.97 1.18 1.37 1.68 1.93 2.16 2.65
90° 04 V
 V
 0.64 0.91 1.29 1.58 1.82 2.23 2.58 2.88 3.53
90° 05 V
 V
 0.81 1.14 1.61 1.97 2.28 2.79 3.22 3.60 4.41
90° 06 V
 V
 0.97 1.37 1.93 2.37 2.74 3.35 3.87 4.33 5.30
90° 07 V V
 1.13 1.60 2.26 2.76 3.19 3.91 4.51 5.05 6.18
90° 7.5 V V
 1.21 1.71 2.42 2.96 3.42 4.19 4.81 5.41 6.62
90° 08 V V
 1.29 1.82 2.58 3.16 3.65 4.47 5.16 5.77 7.06
90° 09 V V
 1.45 2.05 2.90 3.55 4.10 5.03 5.80 6.49 7.95
90° 10 V V 1.61 2.28 3.22 3.95 4.56 5.58 6.45 7.21 8.83
90° 12.5 V V 2.01 2.85 4.03 4.94 5.70 6.98 8.06 9.01 11.04
90° 15 V V 2.42 3.42 4.84 5.92 6.84 8.38 9.67 10.81 13.24
90° 20 V V 3.22 4.56 6.45 7.90 9.12 11.17 12.90 14.42 17.66
90° 25
V 4.03 5.70 8.06 9.87 11.40 13.96 16.12 18.02 22.07
90° 30
V 4.84 6.84 9.67 11.85 13.68 16.75 19.34 21.63 26.49
90° 35
V 5.64 7.98 11.28 13.82 15.96 19.54 22.57 25.23 30.90
90° 40
V 6.45 9.12 12.90 15.79 18.24 22.34 25.79 28.83 35.52
90° 50
V 8.06 11.40 16.12 19.74 22.80 27.92 32.24 36.04 44.14
90° 60

9.67 13.68 19.34 23.69 27.36 33.50 38.69 43.25 52.97
90° 80

12.90 18.24 25.79 31.59 36.47 44.67 51.58 57.67 70.63
90° 100

16.12 22.80 32.24 39.48 45.59 55.84 64.48 72.09 88.29
Spray Angle Capacity Code Thread Size Capacity at Pressure Capacity at Pressure
1/8" 1/4" 0.5
bar
 1.0
bar		 2.0
bar 		3.0
bar		 4.0
bar 		6.0
bar		 8.0
bar		 10.0
bar		 15.0
bar
65° 01 V
 V
 0.16 0.23 0.32 0.39 0.46 0.56 0.64 0.72 0.88
65° 02 V
 V
 0.32 0.46 0.64 0.79 0.91 1.12 1.29 1.44 1.77
65° 2.5 V
 V
 0.40 0.57 0.81 0.99 1.14 1.40 1.61 1.80 2.21
65° 03 V
 V
 0.48 0.68 0.97 1.18 1.37 1.68 1.93 2.16 2.65
65° 04 V
 V
 0.64 0.91 1.29 1.58 1.82 2.23 2.58 2.88 3.53
65° 05 V
 V
 0.81 1.14 1.61 1.97 2.28 2.79 3.22 3.60 4.41
65° 06 V
 V
 0.97 1.37 1.93 2.37 2.74 3.35 3.87 4.33 5.30
65° 07 V V
 1.13 1.60 2.26 2.76 3.19 3.91 4.51 5.05 6.18
65° 7.5 V V
 1.21 1.71 2.42 2.96 3.42 4.19 4.84 5.41 6.62
65° 08 V V
 1.29 1.82 2.58 3.16 3.65 4.47 5.16 5.77 7.06
65° 09 V V
 1.45 2.05 2.90 3.55 4.10 5.03 5.80 6.49 7.95
65° 10 V V 1.61 2.28 3.22 3.95 4.56 5.58 6.45 7.21 8.83
65° 12.5 V V 2.01 2.85 4.03 4.94 5.70 6.98 8.06 9.01 11.04
65° 15 V V 2.42 3.42 4.84 5.92 6.84 8.38 9.67 10.81 13.24
65° 20 V V 3.22 4.56 6.45 7.90 9.12 11.19 12.90 14.42 17.66
65° 25
V 4.03 5.70 8.06 9.87 11.40 13.96 16.12 18.02 22.07
65° 30
V 4.84 6.84 9.67 11.85 13.68 16.75 19.34 21.63 26.49
65° 35
V 5.64 7.98 11.28 13.82 15.96 19.54 22.57 25.23 30.90
65° 40
V 6.45 9.12 12.90 15.79 18.24 22.34 25.75 28.83 35.32
65° 50
V 8.06 11.40 16.12 19.74 22.80 27.92 32.24 36.06 44.14
65° 60

9.67 13.68 19.23 23.69 27.36 33.50 38.69 43.25 52.97
65° 80

12.90 18.24 25.79 31.59 36.47 44.67 51.58 57.67 70.63
65° 100

16.12 22.80 32.24 39.48 45.59 55.84 64.48 72.09 88.29
80° 01 V
 V
 0.16 0.23 0.32 0.39 0.46 0.56 0.64 0.72 0.88
80° 02 V
 V
 0.32 0.46 0.64 0.79 0.91 1.12 1.29 1.44 1.77
80° 2.5 V
 V
 0.40 0.57 0.81 0.99 1.14 1.40 1.61 1.80 2.21
80° 03 V
 V
 0.48 0.68 0.97 1.18 1.37 1.68 1.93 2.16 2.65
80° 04 V
 V
 0.64 0.91 1.29 1.58 1.82 2.23 2.58 2.88 3.53
80° 05 V
 V
 0.81 1.14 1.61 1.97 2.28 2.79 3.22 3.60 4.41
80° 06 V
 V
 0.97 1.37 1.93 2.37 2.74 3.35 3.87 4.33 5.30
80° 07 V V
 1.13 1.60 2.26 2.76 3.19 3.91 4.51 5.05 6.18
80° 7.5 V V
 1.21 1.71 2.42 2.96 3.42 4.19 4.84 5.41 6.62
80° 08 V V
 1.29 1.82 2.58 3.16 3.65 4.47 5.16 5.77 7.06
80° 09 V V
 1.45 2.05 2.90 3.55 4.10 5.03 5.80 6.49 7.95
80° 10 V V 1.61 2.28 3.22 3.95 4.56 5.58 6.45 7.21 8.83
80° 12.5 V V 2.01 2.85 4.03 4.94 5.70 6.98 8.06 9.01 11.04
80° 15 V V 2.42 3.42 4.84 5.92 6.84 8.38 9.67 10.81 13.24
80° 20 V V 3.22 4.56 6.45 7.90 9.12 11.19 12.90 14.42 17.66
80° 25
V 4.03 5.70 8.06 9.87 11.40 13.96 16.12 18.02 22.07
80° 30
V 4.84 6.84 9.67 11.85 13.68 16.75 19.34 21.63 26.49
80° 35
V 5.64 7.98 11.28 13.82 15.96 19.54 22.57 25.23 30.90
80° 40
V 6.45 9.12 12.90 15.79 18.24 22.34 25.75 28.83 35.32
80° 50
V 8.06 11.40 16.12 19.74 22.80 27.92 32.24 36.06 44.14
80° 60

9.67 13.68 19.23 23.69 27.36 33.50 38.69 43.25 52.97
80° 80

12.90 18.24 25.79 31.59 36.47 44.67 51.58 57.67 70.63
80° 100

16.12 22.80 32.24 39.48 45.59 55.84 64.48 72.09 88.29
90° 01 V
 V
 0.16 0.23 0.32 0.39 0.46 0.56 0.64 0.72 0.88
90° 02 V
 V
 0.32 0.46 0.64 0.79 0.91 1.12 1.29 1.44 1.77
90° 2.5 V
 V
 0.40 0.57 0.81 0.99 1.14 1.40 1.61 1.80 2.21
90° 03 V
 V
 0.48 0.68 0.97 1.18 1.37 1.68 1.93 2.16 2.65
90° 04 V
 V
 0.64 0.91 1.29 1.58 1.82 2.23 2.58 2.88 3.53
90° 05 V
 V
 0.81 1.14 1.61 1.97 2.28 2.79 3.22 3.60 4.41
90° 06 V
 V
 0.97 1.37 1.93 2.37 2.74 3.35 3.87 4.33 5.30
90° 07 V V
 1.13 1.60 2.26 2.76 3.19 3.91 4.51 5.05 6.18
90° 7.5 V V
 1.21 1.71 2.42 2.96 3.42 4.19 4.84 5.41 6.62
90° 08 V V
 1.29 1.82 2.58 3.16 3.65 4.47 5.16 5.77 7.06
90° 09 V V
 1.45 2.05 2.90 3.55 4.10 5.03 5.80 6.49 7.95
90° 10 V V 1.61 2.28 3.22 3.95 4.56 5.58 6.45 7.21 8.83
90° 12.5 V V 2.01 2.85 4.03 4.94 5.70 6.98 8.06 9.01 11.04
90° 15 V V 2.42 3.42 4.84 5.92 6.84 8.38 9.67 10.81 13.24
90° 20 V V 3.22 4.56 6.45 7.90 9.12 11.19 12.90 14.42 17.66
90° 25
V 4.03 5.70 8.06 9.87 11.40 13.96 16.12 18.02 22.07
90° 30
V 4.84 6.84 9.67 11.85 13.68 16.75 19.34 21.63 26.49
90° 35
V 5.64 7.98 11.28 13.82 15.96 19.54 22.57 25.23 30.90
90° 40
V 6.45 9.12 12.90 15.79 18.24 22.34 25.75 28.83 35.32
90° 50
V 8.06 11.40 16.12 19.74 22.80 27.92 32.24 36.06 44.14
90° 60

9.67 13.68 19.23 23.69 27.36 33.50 38.69 43.25 52.97
90° 80

12.90 18.24 25.79 31.59 36.47 44.67 51.58 57.67 70.63
90° 100

16.12 22.80 32.24 39.48 45.59 55.84 64.48 72.09 88.29
Spray Angle Capacity Code Thread Size Capacity at Pressure Capacity at Pressure
1/8" 1/4" 7
psi		 10
psi		 28
psi 		40
psi		 60
psi 		80
psi		 100
psi		 150
psi		 200
psi
65° 01 V
 V
 0.04 0.05 0.08 0.10 0.12 0.14 0.16 0.19 0.22
65° 02 V
 V
 0.08 0.10 0.17 0.20 0.24 0.28 0.32 0.39 0.45
65° 2.5 V
 V
 0.10 0.13 0.21 0.25 0.31 0.35 0.40 0.48 0.56
65° 03 V
 V
 0.13 0.15 0.25 0.30 0.37 0.42 0.47 0.58 0.67
65° 04 V
 V
 0.17 0.20 0.33 0.40 0.49 0.57 0.63 0.77 0.89
65° 05 V
 V
 0.21 0.25 0.42 0.50 0.61 0.71 0.79 0.97 1.12
65° 06 V
 V
 0.25 0.30 0.50 0.60 0.73 0.85 0.95 1.16 1.34
65° 07 V V
 0.29 0.35 0.59 0.70 0.86 0.99 1.11 1.36 1.57
65° 7.5 V V
 0.31 0.38 0.63 0.75 0.92 1.06 1.19 1.45 1.68
65° 08 V V
 0.33 0.40 0.67 0.80 0.98 1.13 1.27 1.55 1.79
65° 09 V V
 0.38 0.45 0.75 0.90 1.10 1.27 1.42 1.74 2.01
65° 10 V V 0.42 0.50 0.84 1.00 1.22 1.41 1.58 1.94 2.24
65° 12.5 V V 0.52 0.63 1.05 1.25 1.53 1.77 1.98 2.42 2.80
65° 15 V V 0.63 0.75 1.26 1.50 1.84 2.12 2.37 2.90 3.35
65° 20 V V 0.84 1.00 1.67 2.00 2.45 2.83 3.16 3.87 4.47
65° 25
V 1.05 1.25 2.09 2.50 3.06 3.54 3.95 4.84 5.59
65° 30
V 1.26 1.50 2.51 3.00 3.67 4.24 4.74 5.81 6.71
65° 35
V 1.46 1.75 2.93 3.50 4.29 4.95 5.53 6.78 7.83
65° 40
V 1.67 2.00 3.35 4.00 4.90 5.66 6.33 7.75 8.94
65° 50
V 2.09 2.50 4.18 5.00 6.12 7.07 7.91 9.68 11.18
65° 60

2.51 3.00 5.02 6.00 7.35 8.49 9.49 11.62 13.42
65° 80

3.35 4.00 6.69 8.00 9.80 11.31 12.65 15.49 17.89
65° 100

4.18 5.00 8.37 10.00 12.25 14.14 15.81 19.37 22.36
80° 01 V
 V
 0.04 0.05 0.08 0.10 0.12 0.14 0.16 0.19 0.22
80° 02 V
 V
 0.08 0.10 0.17 0.20 0.24 0.28 0.32 0.39 0.45
80° 2.5 V
 V
 0.10 0.13 0.21 0.25 0.31 0.35 0.40 0.48 0.56
80° 03 V
 V
 0.13 0.15 0.25 0.30 0.37 0.42 0.47 0.58 0.67
80° 04 V
 V
 0.17 0.20 0.33 0.40 0.49 0.57 0.63 0.77 0.89
80° 05 V
 V
 0.21 0.25 0.42 0.50 0.61 0.71 0.79 0.97 1.12
80° 06 V
 V
 0.25 0.30 0.50 0.60 0.73 0.85 0.95 1.16 1.34
80° 07 V V
 0.29 0.35 0.59 0.70 0.86 0.99 1.11 1.36 1.57
80° 7.5 V V
 0.31 0.38 0.63 0.75 0.92 1.06 1.19 1.45 1.68
80° 08 V
 V
 0.33 0.40 0.67 0.80 0.98 1.13 1.27 1.55 1.79
80° 09 V V
 0.38 0.45 0.75 0.90 1.10 1.27 1.42 1.74 2.01
80° 10 V V 0.42 0.50 0.84 1.00 1.22 1.41 1.58 1.94 2.24
80° 12.5 V V 0.52 0.63 1.05 1.25 1.53 1.77 1.98 2.42 2.80
80° 15 V V 0.63 0.75 1.26 1.50 1.84 2.12 2.37 2.90 3.35
80° 20 V V 0.84 1.00 1.67 2.00 2.45 2.83 3.16 3.87 4.47
80° 25 V
 V 1.05 1.25 2.09 2.50 3.06 3.54 3.95 4.84 5.59
80° 30
V 1.26 1.50 2.51 3.00 3.67 4.24 4.74 5.81 6.71
80° 35
V 1.46 1.75 2.93 3.50 4.29 4.95 5.53 6.78 7.83
80° 40
V 1.67 2.00 3.35 4.00 4.90 5.66 6.33 7.75 8.94
80° 50
V 2.09 2.50 4.18 5.00 6.12 7.07 7.91 9.68 11.18
80° 60

2.51 3.00 5.02 6.00 7.35 8.49 9.49 11.62 13.42
80° 80

3.35 4.00 6.69 8.00 9.80 11.31 12.65 15.49 17.89
80° 100

4.18 5.00 8.37 10.00 12.25 14.14 15.81 19.37 22.36
90° 01 V
 V
 0.04 0.05 0.08 0.10 0.12 0.14 0.16 0.19 0.22
90° 02 V
 V
 0.08 0.10 0.17 0.20 0.24 0.28 0.32 0.39 0.45
90° 2.5 V
 V
 0.10 0.13 0.21 0.25 0.31 0.35 0.40 0.48 0.56
90° 03 V
 V
 0.13 0.15 0.25 0.30 0.37 0.42 0.47 0.58 0.67
90° 04 V
 V
 0.17 0.20 0.33 0.40 0.49 0.57 0.63 0.77 0.89
90° 05 V
 V
 0.21 0.25 0.42 0.50 0.61 0.71 0.79 0.97 1.12
90° 06 V
 V
 0.25 0.30 0.50 0.60 0.73 0.85 0.95 1.16 1.34
90° 07 V V
 0.29 0.35 0.59 0.70 0.86 0.99 1.11 1.36 1.57
90° 7.5 V V
 0.31 0.38 0.63 0.75 0.92 1.06 1.19 1.45 1.68
90° 08 V V
 0.33 0.40 0.67 0.80 0.98 1.13 1.27 1.55 1.79
90° 09 V V
 0.38 0.45 0.75 0.90 1.10 1.27 1.42 1.74 2.01
90° 10 V V 0.42 0.50 0.84 1.00 1.22 1.41 1.58 1.94 2.24
90° 12.5 V V 0.52 0.63 1.05 1.25 1.53 1.77 1.98 2.42 2.80
90° 15 V V 0.63 0.75 1.26 1.50 1.84 2.12 2.37 2.90 3.35
90° 20 V V 0.84 1.00 1.67 2.00 2.45 2.83 3.16 3.87 4.47
90° 25
V 1.05 1.25 2.09 2.50 3.06 3.54 3.95 4.84 5.59
90° 30
V 1.26 1.50 2.51 3.00 3.67 4.24 4.74 5.81 6.71
90° 35
V 1.46 1.75 2.93 3.50 4.29 4.95 5.53 6.78 7.83
90° 40
V 1.67 2.00 3.35 4.00 4.90 5.66 6.33 7.75 8.94
90° 50
V 2.09 2.50 4.18 5.00 6.12 7.07 7.91 9.68 11.18
90° 60

2.51 3.00 5.02 6.00 7.35 8.49 9.49 11.62 13.42
90° 80

3.35 4.00 6.69 8.00 9.80 11.31 12.65 15.49 17.89
90° 100

4.18 5.00 8.37 10.00 12.25 14.14 15.81 19.37 22.36
  • * Standard Pressure: Column in red.
  • * This product for spray angle 0°, 15°, 25°, 40°, 50°, 100° and 110° is able to be made to order.
  • * For mobile friendly, only 3 column with 3 kinds of pressure will be displayed. For more pressure data, please check the chart on PC or laptop.



Material
Material Options
LORRIC nozzle






Material Guarantees
Metal
We take high quality smithing metal to produce solid and durable nozzles by detail turning.
Plastic
We promise never using recycled materials.
High Quality
All material is purchased from world top providers.





Product Size
Thread
(BSPT) 		Size (mm)  Weight (g)
  A     B     C
1/8"Male
 11.9
 10.4 19.4
1/4"Male 13.6 13.4 25 2.5
* 1/8" Male product was a few left in stock and no longer produced. Please choose VH to get the same the product with the same spec.

LORRIC nozzle













Comparison of H series nozzles
Type   Product photo   Difference
H LORRIC nozzle Standard flat fan nozzle
NH LORRIC nozzle
 Flat fan nozzle for wide angle spray
AH LORRIC nozzle
 This is small orifice model and provides parallel symmetry side alignment for each nozzle to be in the same spray direction. It was replaced by NH, currently with only a few quantity in stock. Once it's sold out, LORRIC will only accept order-made request for this model.
ANH LORRIC nozzle This is small orifice model and provides parallel symmetry side alignment for each nozzle to be in the same spray direction. It was replaced by NH, currently with only a few quantity in stock. Once it's sold out, LORRIC will only accept order-made request for this model.



Installation
Easy installing with 2 simple steps !
Step 1

Drill correspon-ding female threads on your pipe.

Step 2

For better leakproof-ness, please use Teflon seal tape on nozzle thread.

Aim the thread of nozzle at the female thread. Tighten the nozzle clockwise.

Finished

  Finished.

LORRIC nozzle
LORRIC nozzle
LORRIC nozzle






+886-978-005-235
[email protected]
