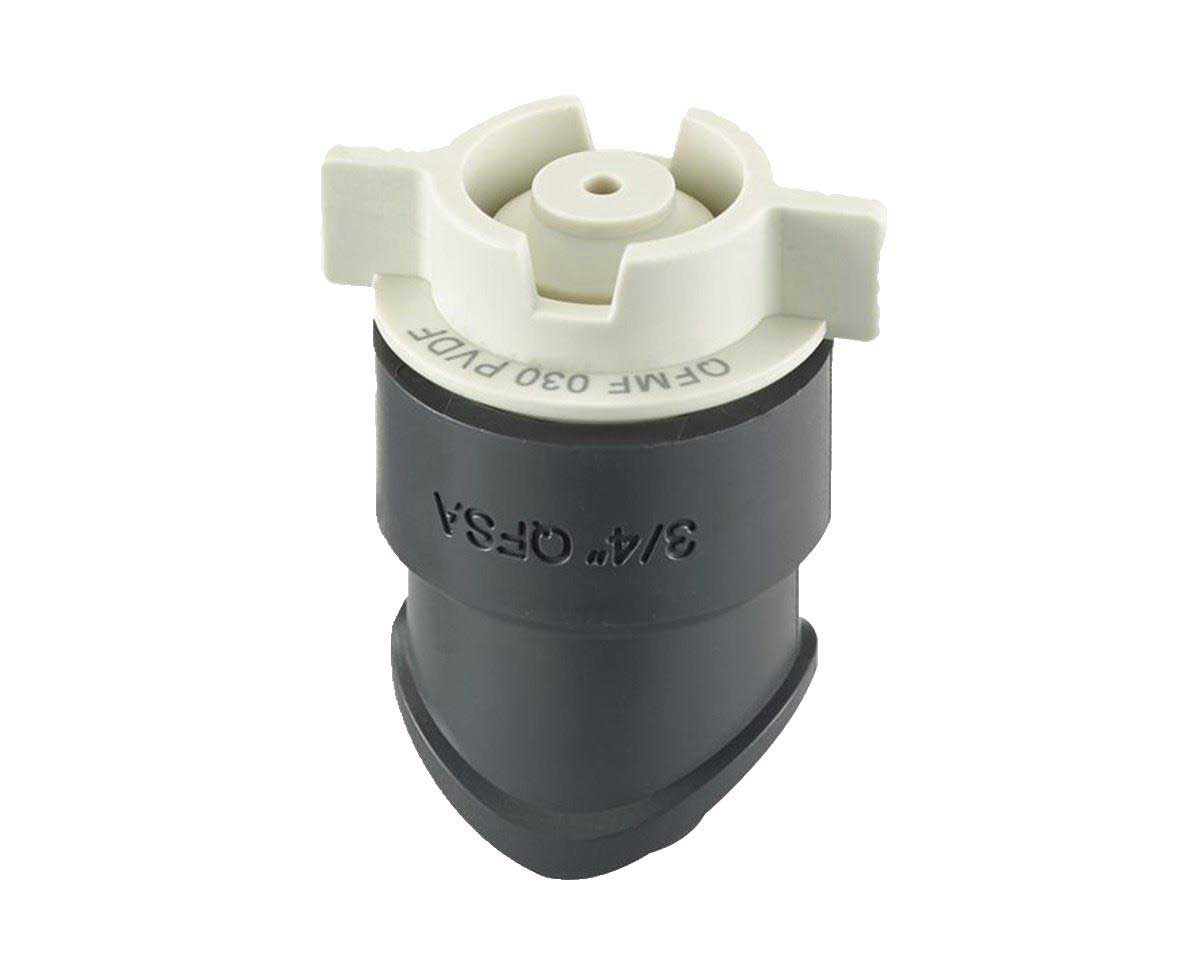

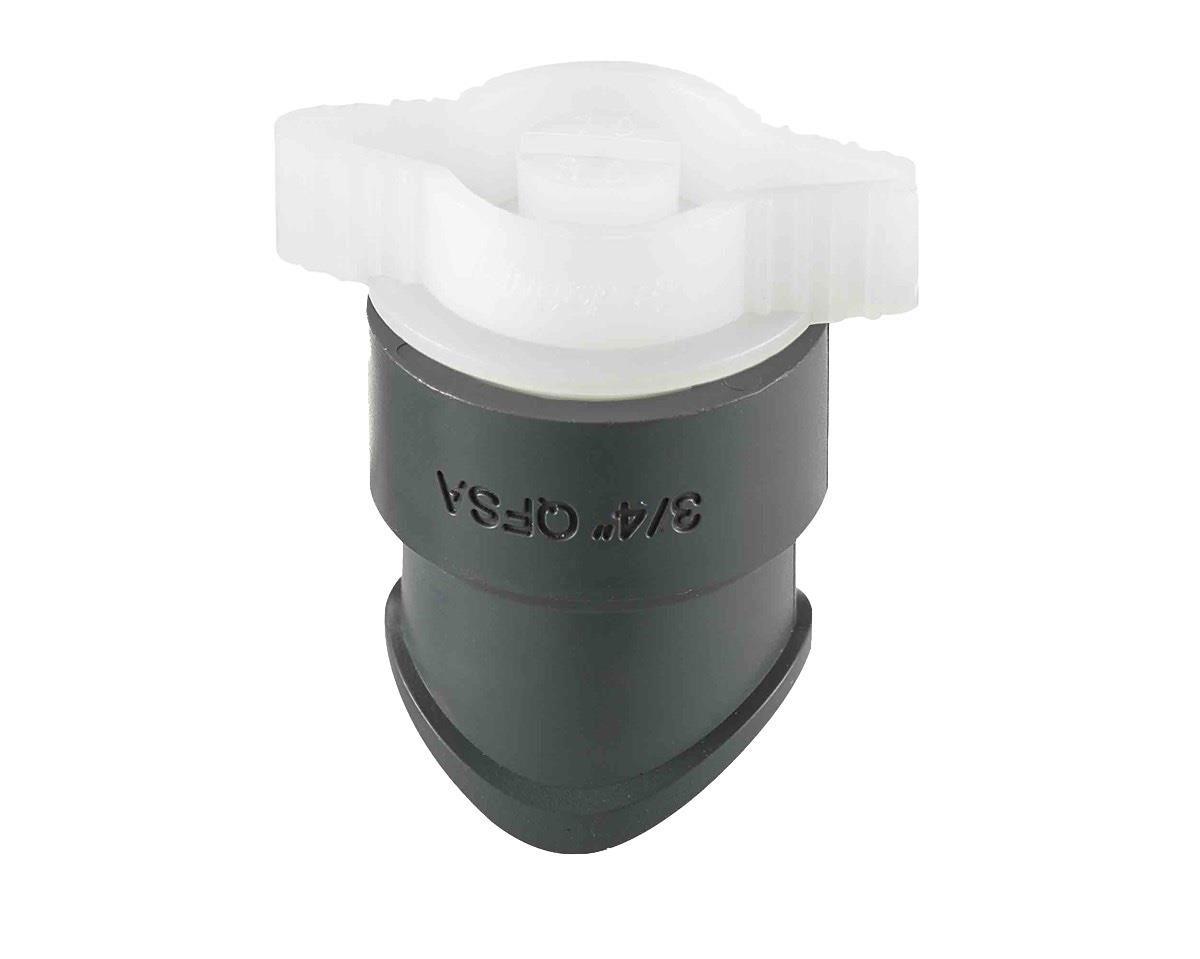

QFYH High impact easy connect water curtain nozzle

Two piece design,Quick install,Plastic,Flat fan nozzle
Apply for
Washing│Cleaning│Humidifying
Distribution│Cooling│Water Curtain

Download Product Catalogue

Features
  • The spraying type is fan type, and the spray shape is single line and two sides are tapered (tapered edge), which presents a bell curve shape flow field distribution with weaker ends compared to the middle. Products with special flow field distribution can be customized.

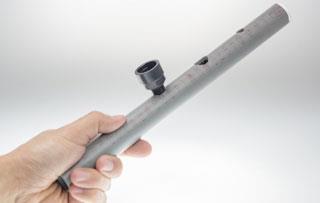

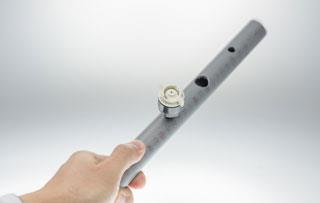

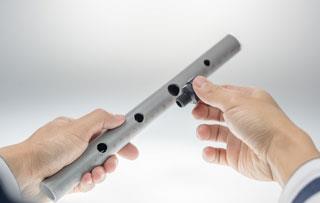

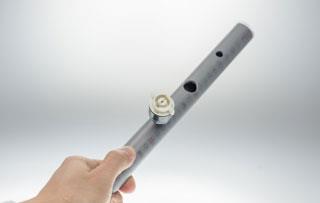

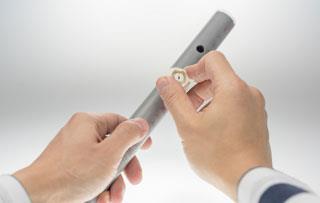

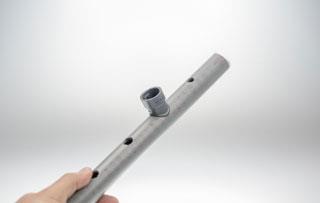

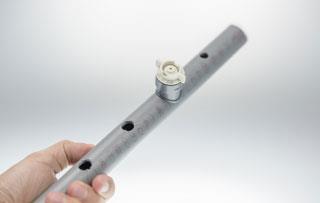

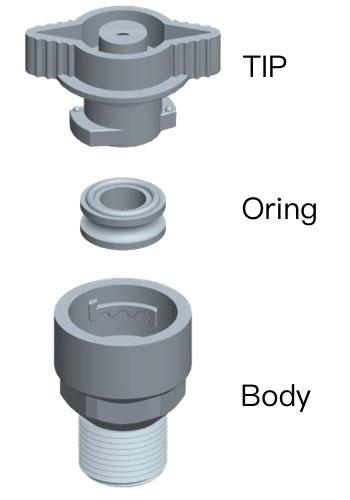

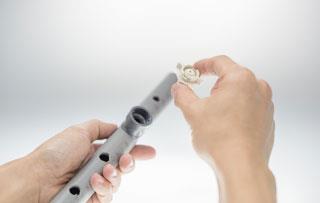

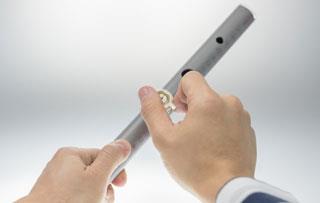

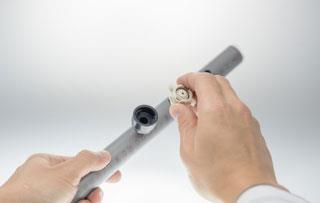

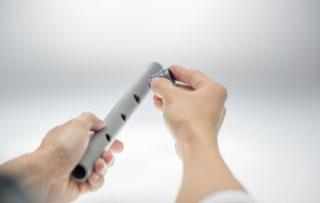

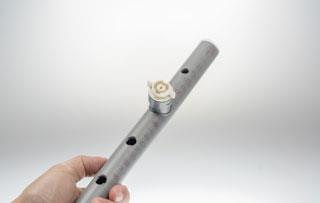

  • Two piece nozzle design which includes nozzle and the body allows quick and accurate installation by hand. It is convenient for on-site management. Nozzle tip is secured into the body and fastened by three buckle points to avoid the nozzle tip loosening and ensure the performance quality.
  • The internal gaskets are available in various options such as EPDM, Viton and FEPM, which can be adapted to various chemical processes. The special structural design allows the nozzles and the base to fit closely and avoid water leakage.
  • Y-shaped rotary handle design leads to easier dismantling.
  • PVDF is resistant to temperature and corrosive chemical solutions.

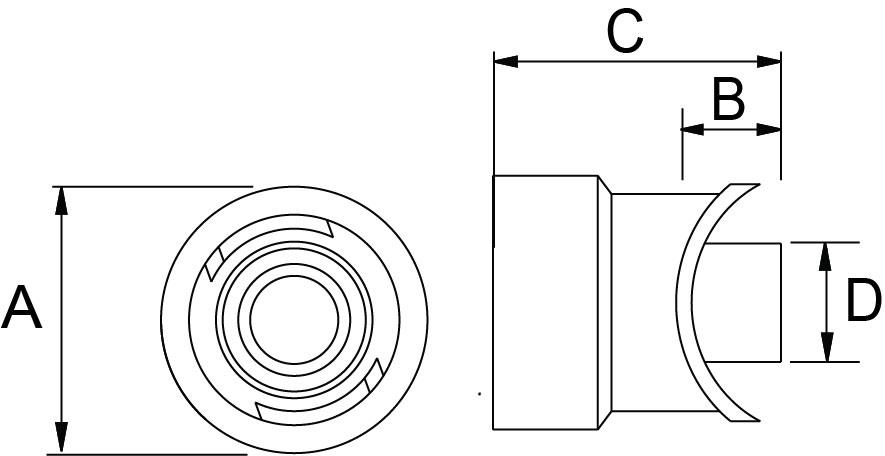

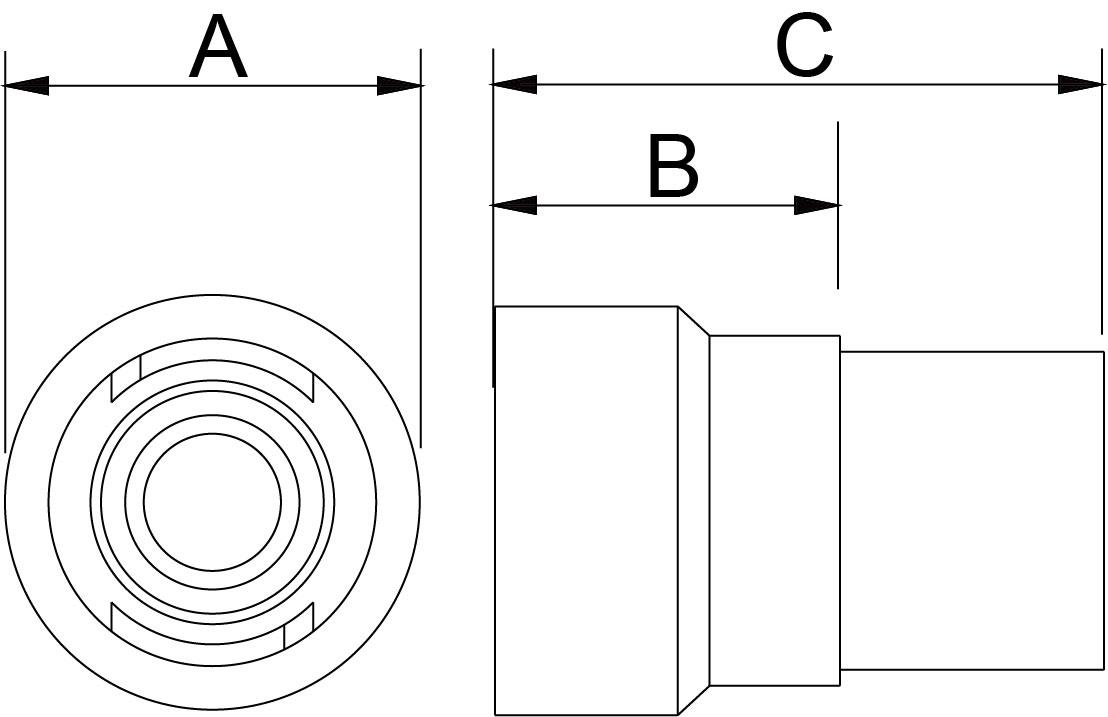

    • According to the working environment, the body has two choices of thread type and welding type
  • Recommended working pressure: 3.0 kgf/cm²
  • Flowrate tolerance: ± 5% @ 3.0 ± 0.1kgf/cm²
  • Angle tolerance: ± 5° @ 3.0 ± 0.1kgf/cm²
  • Jet angle tolerance: 3°
  • Applications:

      ● Cleaning: Vehicles, Containers, Filters, Dust, Gravel, Metals, Metal Parts,

         Machinery, Steel Plates, Various Containers etc.

      ● Cooling: Tank, machinery, metal, roof etc.

      ● Dispersion: Humidifying, Chemicals (etching solution, developer, insect

         repellent, etc.), firefighting, dedust, deodorization, etc.

      ● Printed circuit board: etching process, developing process, water washing

        process.

LORRIC nozzle

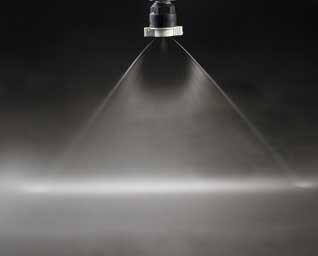

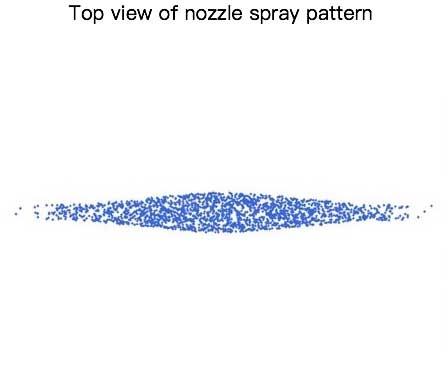

Spray pattern & Flow distribution
LORRIC nozzle
LORRIC nozzle

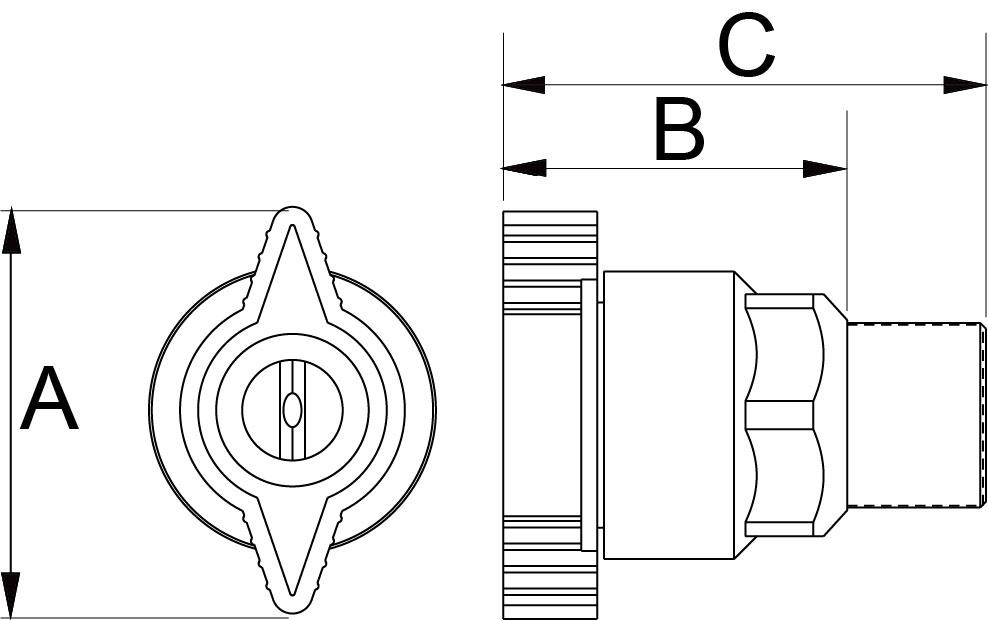

Specs

Please place your order according below information.

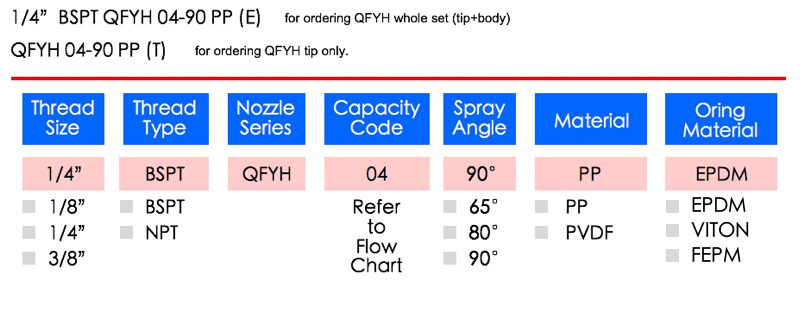

How to pleace an order for LORRIC nozzles?

  • • You can find the exact Capacity Code according to your requirement of pressure, flow, and spray angle as the capacity & angle chart we provided above. Click to understand how to use the capacity & angle.
  • • Please refer to following order example for placing order to LORRIC.
  •   Example :

  •

  •                 LORRIC nozzle

Select
Unit
  • *
  • *
  • *
  • *
Spray Angle Capacity Code Capacity at Pressure Capacity at Pressure
0.5
kgf/cm²		 1.0
kgf/cm²		 1.5
kgf/cm²		 2.0
kgf/cm²		 3.0
kgf/cm²		 4.0
kgf/cm²		 5.0
kgf/cm²		 6.0
kgf/cm²		 8.0
kgf/cm²
65° 02 0.32 0.45 0.55 0.64 0.78 0.90 1.01 1.11 1.28
65° 2.5 0.40 0.56 0.69 0.80 0.98 1.13 1.26 1.38 1.60
65° 03 0.48 0.68 0.83 0.96 1.17 1.35 1.51 1.66 1.92
65° 04 0.64 0.90 1.11 1.28 1.56 1.81 2.02 2.21 2.55
65° 05 0.80 1.13 1.38 1.60 1.96 2.26 2.52 2.76 3.19
65° 06 0.96 1.35 1.66 1.92 2.35 2.71 3.03 3.32 3.83
65° 07 1.12 1.58 1.94 2.23 2.74 3.16 3.53 3.87 4.47
65° 7.5 1.20 1.69 2.07 2.39 2.93 3.39 3.79 4.15 4.79
65° 08 1.28 1.81 2.21 2.55 3.13 3.61 4.04 4.42 5.11
65° 09 1.44 2.03 2.49 2.87 3.52 4.06 4.54 4.98 5.75
65° 10 1.60 2.26 2.76 3.19 3.91 4.51 5.05 5.53 6.39
65° 12.5 2.00 2.82 3.46 3.99 4.89 5.64 6.31 6.91 7.98
65° 15 2.39 3.39 4.15 4.79 5.87 6.77 7.57 8.29 9.58
65° 20 3.19 4.51 5.53 6.39 7.82 9.03 10.10 11.06 12.77
65° 25 3.99 5.64 6.91 7.98 9.78 11.29 12.62 13.82 15.96
65° 30 4.79 6.77 8.29 9.58 11.73 13.54 15.14 16.59 19.16
80° 02 0.32 0.45 0.55 0.64 0.78 0.90 1.01 1.11 1.28
80° 2.5 0.40 0.56 0.69 0.80 0.98 1.13 1.26 1.38 1.60
80° 03 0.48 0.68 0.83 0.96 1.17 1.35 1.51 1.66 1.92
80° 04 0.64 0.90 1.11 1.28 1.56 1.81 2.02 2.21 2.55
80° 05 0.80 1.13 1.38 1.60 1.96 2.26 2.52 2.76 3.19
80° 06 0.96 1.35 1.66 1.92 2.35 2.71 3.03 3.32 3.83
80° 07 1.12 1.58 1.94 2.23 2.74 3.16 3.53 3.87 4.47
80° 7.5 1.20 1.69 2.07 2.39 2.93 3.39 3.79 4.15 4.79
80° 08 1.28 1.81 2.21 2.55 3.13 3.61 4.04 4.42 5.11
80° 09 1.44 2.03 2.49 2.87 3.52 4.06 4.54 4.98 5.75
80° 10 1.60 2.26 2.76 3.19 3.91 4.51 5.05 5.53 6.39
80° 12.5 2.00 2.82 3.46 3.99 4.89 5.64 6.31 6.91 7.98
80° 15 2.39 3.39 4.15 4.79 5.87 6.77 7.57 8.29 9.58
80° 20 3.19 4.51 5.53 6.39 7.82 9.03 10.10 11.06 12.77
80° 25 3.99 5.64 6.91 7.98 9.78 11.29 12.62 13.82 15.96
80° 30 4.79 6.77 8.29 9.58 11.73 13.54 15.14 16.59 19.16
90° 02 0.32 0.45 0.55 0.64 0.78 0.90 1.01 1.11 1.28
90° 2.5 0.40 0.56 0.69 0.80 0.98 1.13 1.26 1.38 1.60
90° 03 0.48 0.68 0.83 0.96 1.17 1.35 1.51 1.66 1.92
90° 04 0.64 0.90 1.11 1.28 1.56 1.81 2.02 2.21 2.55
90° 05 0.80 1.13 1.38 1.60 1.96 2.26 2.52 2.76 3.19
90° 06 0.96 1.35 1.66 1.92 2.35 2.71 3.03 3.32 3.83
90° 07 1.12 1.58 1.94 2.23 2.74 3.16 3.53 3.87 4.47
90° 7.5 1.20 1.69 2.07 2.39 2.93 3.39 3.79 4.15 4.79
90° 08 1.28 1.81 2.21 2.55 3.13 3.61 4.04 4.42 5.11
90° 09 1.44 2.03 2.49 2.87 3.52 4.06 4.54 4.98 5.75
90° 10 1.60 2.26 2.76 3.19 3.91 4.51 5.05 5.53 6.39
90° 12.5 2.00 2.82 3.46 3.99 4.89 5.64 6.31 6.91 7.98
90° 15 2.39 3.39 4.15 4.79 5.87 6.77 7.57 8.29 9.58
90° 20 3.19 4.51 5.53 6.39 7.82 9.03 10.10 11.06 12.77
90° 25 3.99 5.64 6.91 7.98 9.78 11.29 12.62 13.82 15.96
90° 30 4.79 6.77 8.29 9.58 11.73 13.54 15.14 16.59 19.16
Spray Angle Capacity Code Capacity at Pressure Capacity at Pressure
0.05
MPa		 0.1
MPa		 0.15
MPa		 0.2
MPa		 0.3
MPa		 0.4
MPa		 0.5
MPa		 0.6
MPa		 0.8
MPa
65° 02 0.32 0.45 0.56 0.64 0.79 0.91 1.02 1.12 1.29
65° 2.5 0.40 0.57 0.64 0.81 0.99 1.14 1.27 1.40 1.61
65° 03 0.48 0.68 0.84 0.97 1.18 1.37 1.53 1.68 1.93
65° 04 0.64 0.91 1.12 1.29 1.58 1.82 2.04 2.23 2.58
65° 05 0.81 1.14 1.40 1.61 1.97 2.28 2.55 2.79 3.22
65° 06 0.97 1.37 1.68 1.93 2.37 2.74 3.06 3.35 3.87
65° 07 1.13 1.60 1.95 2.26 2.76 3.19 3.57 3.91 4.51
65° 7.5 1.21 1.71 2.09 2.42 2.96 3.42 3.82 4.19 4.81
65° 08 1.29 1.82 2.23 2.58 3.16 3.65 4.08 4.47 5.16
65° 09 1.45 2.05 2.51 2.90 3.55 4.10 4.59 5.03 5.80
65° 10 1.61 2.28 2.79 3.22 3.95 4.56 5.10 5.58 6.45
65° 12.5 2.01 2.85 3.49 4.03 4.94 5.70 6.37 6.98 8.06
65° 15 2.42 3.42 4.19 4.84 5.92 6.84 7.65 8.38 9.67
65° 20 3.22 4.56 5.58 6.45 7.90 9.12 10.19 11.17 12.90
65° 25 4.03 5.70 6.98 8.06 9.87 11.40 12.74 13.96 16.12
65° 30 4.84 6.84 8.38 9.67 11.85 13.68 15.29 16.75 19.34
80° 02 0.32 0.45 0.56 0.64 0.79 0.91 1.02 1.12 1.29
80° 2.5 0.40 0.57 0.64 0.81 0.99 1.14 1.27 1.40 1.61
80° 03 0.48 0.68 0.84 0.97 1.18 1.37 1.53 1.68 1.93
80° 04 0.64 0.91 1.12 1.29 1.58 1.82 2.04 2.23 2.58
80° 05 0.81 1.14 1.40 1.61 1.97 2.28 2.55 2.79 3.22
80° 06 0.97 1.37 1.68 1.93 2.37 2.74 3.06 3.35 3.87
80° 07 1.13 1.60 1.95 2.26 2.76 3.19 3.57 3.91 4.51
80° 7.5 1.21 1.71 2.09 2.42 2.96 3.42 3.82 4.19 4.81
80° 08 1.29 1.82 2.23 2.58 3.16 3.65 4.08 4.47 5.16
80° 09 1.45 2.05 2.51 2.90 3.55 4.10 4.59 5.03 5.80
80° 10 1.61 2.28 2.79 3.22 3.95 4.56 5.10 5.58 6.45
80° 12.5 2.01 2.85 3.49 4.03 4.94 5.70 6.37 6.98 8.06
80° 15 2.42 3.42 4.19 4.84 5.92 6.84 7.65 8.38 9.67
80° 20 3.22 4.56 5.58 6.45 7.90 9.12 10.19 11.17 12.90
80° 25 4.03 5.70 6.98 8.06 9.87 11.40 12.74 13.96 16.12
80° 30 4.84 6.84 8.38 9.67 11.85 13.68 15.29 16.75 19.34
90° 02 0.32 0.45 0.56 0.64 0.79 0.91 1.02 1.12 1.29
90° 2.5 0.40 0.57 0.64 0.81 0.99 1.14 1.27 1.40 1.61
90° 03 0.48 0.68 0.84 0.97 1.18 1.37 1.53 1.68 1.93
90° 04 0.64 0.91 1.12 1.29 1.58 1.82 2.04 2.23 2.58
90° 05 0.81 1.14 1.40 1.61 1.97 2.28 2.55 2.79 3.22
90° 06 0.97 1.37 1.68 1.93 2.37 2.74 3.06 3.35 3.87
90° 07 1.13 1.60 1.95 2.26 2.76 3.19 3.57 3.91 4.51
90° 7.5 1.21 1.71 2.09 2.42 2.96 3.42 3.82 4.19 4.81
90° 08 1.29 1.82 2.23 2.58 3.16 3.65 4.08 4.47 5.16
90° 09 1.45 2.05 2.51 2.90 3.55 4.10 4.59 5.03 5.80
90° 10 1.61 2.28 2.79 3.22 3.95 4.56 5.10 5.58 6.45
90° 12.5 2.01 2.85 3.49 4.03 4.94 5.70 6.37 6.98 8.06
90° 15 2.42 3.42 4.19 4.84 5.92 6.84 7.65 8.38 9.67
90° 20 3.22 4.56 5.58 6.45 7.90 9.12 10.19 11.17 12.90
90° 25 4.03 5.70 6.98 8.06 9.87 11.40 12.74 13.96 16.12
90° 30 4.84 6.84 8.38 9.67 11.85 13.68 15.29 16.75 19.34
Spray Angle Capacity Code Capacity at Pressure Capacity at Pressure
0.5
bar
 1.0
bar		 1.5
bar		 2.0
bar		 3.0
bar		 4.0
bar		 5.0
bar		 6.0
bar		 8.0
bar
65° 02 0.32 0.45 0.56 0.64 0.79 0.91 1.02 1.12 1.29
65° 2.5 0.40 0.57 0.64 0.81 0.99 1.14 1.27 1.40 1.61
65° 03 0.48 0.68 0.84 0.97 1.18 1.37 1.53 1.68 1.93
65° 04 0.64 0.91 1.12 1.29 1.58 1.82 2.04 2.23 2.58
65° 05 0.81 1.14 1.40 1.61 1.97 2.28 2.55 2.79 3.22
65° 06 0.97 1.37 1.68 1.93 2.37 2.74 3.06 3.35 3.87
65° 07 1.13 1.60 1.95 2.26 2.76 3.19 3.57 3.91 4.51
65° 7.5 1.21 1.71 2.09 2.42 2.96 3.42 3.82 4.19 4.81
65° 08 1.29 1.82 2.23 2.58 3.16 3.65 4.08 4.47 5.16
65° 09 1.45 2.05 2.51 2.90 3.55 4.10 4.59 5.03 5.80
65° 10 1.61 2.28 2.79 3.22 3.95 4.56 5.10 5.58 6.45
65° 12.5 2.01 2.85 3.49 4.03 4.94 5.70 6.37 6.98 8.06
65° 15 2.42 3.42 4.19 4.84 5.92 6.84 7.65 8.38 9.67
65° 20 3.22 4.56 5.58 6.45 7.90 9.12 10.19 11.17 12.90
65° 25 4.03 5.70 6.98 8.06 9.87 11.40 12.74 13.96 16.12
65° 30 4.84 6.84 8.38 9.67 11.85 13.68 15.29 16.75 19.34
80° 02 0.32 0.45 0.56 0.64 0.79 0.91 1.02 1.12 1.29
80° 2.5 0.40 0.57 0.64 0.81 0.99 1.14 1.27 1.40 1.61
80° 03 0.48 0.68 0.84 0.97 1.18 1.37 1.53 1.68 1.93
80° 04 0.64 0.91 1.12 1.29 1.58 1.82 2.04 2.23 2.58
80° 05 0.81 1.14 1.40 1.61 1.97 2.28 2.55 2.79 3.22
80° 06 0.97 1.37 1.68 1.93 2.37 2.74 3.06 3.35 3.87
80° 07 1.13 1.60 1.95 2.26 2.76 3.19 3.57 3.91 4.51
80° 7.5 1.21 1.71 2.09 2.42 2.96 3.42 3.82 4.19 4.81
80° 08 1.29 1.82 2.23 2.58 3.16 3.65 4.08 4.47 5.16
80° 09 1.45 2.05 2.51 2.90 3.55 4.10 4.59 5.03 5.80
80° 10 1.61 2.28 2.79 3.22 3.95 4.56 5.10 5.58 6.45
80° 12.5 2.01 2.85 3.49 4.03 4.94 5.70 6.37 6.98 8.06
80° 15 2.42 3.42 4.19 4.84 5.92 6.84 7.65 8.38 9.67
80° 20 3.22 4.56 5.58 6.45 7.90 9.12 10.19 11.17 12.90
80° 25 4.03 5.70 6.98 8.06 9.87 11.40 12.74 13.96 16.12
80° 30 4.84 6.84 8.38 9.67 11.85 13.68 15.29 16.75 19.34
90° 02 0.32 0.45 0.56 0.64 0.79 0.91 1.02 1.12 1.29
90° 2.5 0.40 0.57 0.64 0.81 0.99 1.14 1.27 1.40 1.61
90° 03 0.48 0.68 0.84 0.97 1.18 1.37 1.53 1.68 1.93
90° 04 0.64 0.91 1.12 1.29 1.58 1.82 2.04 2.23 2.58
90° 05 0.81 1.14 1.40 1.61 1.97 2.28 2.55 2.79 3.22
90° 06 0.97 1.37 1.68 1.93 2.37 2.74 3.06 3.35 3.87
90° 07 1.13 1.60 1.95 2.26 2.76 3.19 3.57 3.91 4.51
90° 7.5 1.21 1.71 2.09 2.42 2.96 3.42 3.82 4.19 4.81
90° 08 1.29 1.82 2.23 2.58 3.16 3.65 4.08 4.47 5.16
90° 09 1.45 2.05 2.51 2.90 3.55 4.10 4.59 5.03 5.80
90° 10 1.61 2.28 2.79 3.22 3.95 4.56 5.10 5.58 6.45
90° 12.5 2.01 2.85 3.49 4.03 4.94 5.70 6.37 6.98 8.06
90° 15 2.42 3.42 4.19 4.84 5.92 6.84 7.65 8.38 9.67
90° 20 3.22 4.56 5.58 6.45 7.90 9.12 10.19 11.17 12.90
90° 25 4.03 5.70 6.98 8.06 9.87 11.40 12.74 13.96 16.12
90° 30 4.84 6.84 8.38 9.67 11.85 13.68 15.29 16.75 19.34
Spray Angle Capacity Code Capacity at Pressure Capacity at Pressure
7
psi		 10
psi		 20
psi		 28
psi		 40
psi		 60
psi 		80
psi		 100
psi		 110
psi
65° 02 0.08 0.10 0.14 0.17 0.20 0.24 0.28 0.32 0.33
65° 2.5 0.10 0.13 0.18 0.21 0.25 0.31 0.35 0.40 0.41
65° 03 0.13 0.15 0.21 0.25 0.30 0.37 0.42 0.47 0.50
65° 04 0.17 0.20 0.28 0.33 0.40 0.49 0.56 0.63 0.66
65° 05 0.21 0.25 0.35 0.42 0.50 0.61 0.71 0.79 0.83
65° 06 0.25 0.30 0.42 0.50 0.60 0.73 0.85 0.95 1.00
65° 07 0.29 0.35 0.50 0.59 0.70 0.86 0.99 1.11 1.16
65° 7.5 0.31 0.38 0.53 0.63 0.75 0.92 1.06 1.19 1.24
65° 08 0.33 0.40 0.57 0.67 0.80 0.98 1.13 1.27 1.33
65° 09 0.38 0.45 0.64 0.75 0.90 1.10 1.27 1.42 1.49
65° 10 0.42 0.50 0.71 0.84 1.00 1.22 1.41 1.58 1.66
65° 12.5 0.52 0.63 0.88 1.05 1.25 1.53 1.77 1.98 2.07
65° 15 0.63 0.75 1.06 1.26 1.50 1.84 2.12 2.37 2.49
65° 20 0.84 1.00 1.41 1.67 2.00 2.45 2.83 3.16 3.32
65° 25 1.05 1.25 1.77 2.09 2.50 3.06 3.54 3.95 4.15
65° 30 1.26 1.50 2.12 2.51 3.00 3.67 4.24 4.74 4.98
80° 02 0.08 0.10 0.14 0.17 0.20 0.24 0.28 0.32 0.33
80° 2.5 0.10 0.13 0.18 0.21 0.25 0.31 0.35 0.40 0.41
80° 03 0.13 0.15 0.21 0.25 0.30 0.37 0.42 0.47 0.50
80° 04 0.17 0.20 0.28 0.33 0.40 0.49 0.56 0.63 0.66
80° 05 0.21 0.25 0.35 0.42 0.50 0.61 0.71 0.79 0.83
80° 06 0.25 0.30 0.42 0.50 0.60 0.73 0.85 0.95 1.00
80° 07 0.29 0.35 0.50 0.59 0.70 0.86 0.99 1.11 1.16
80° 7.5 0.31 0.38 0.53 0.63 0.75 0.92 1.06 1.19 1.24
80° 08 0.33 0.40 0.57 0.67 0.80 0.98 1.13 1.27 1.33
80° 09 0.38 0.45 0.64 0.75 0.90 1.10 1.27 1.42 1.49
80° 10 0.42 0.50 0.71 0.84 1.00 1.22 1.41 1.58 1.66
80° 12.5 0.52 0.63 0.88 1.05 1.25 1.53 1.77 1.98 2.07
80° 15 0.63 0.75 1.06 1.26 1.50 1.84 2.12 2.37 2.49
80° 20 0.84 1.00 1.41 1.67 2.00 2.45 2.83 3.16 3.32
80° 25 1.05 1.25 1.77 2.09 2.50 3.06 3.54 3.95 4.15
80° 30 1.26 1.50 2.12 2.51 3.00 3.67 4.24 4.74 4.98
90° 02 0.08 0.10 0.14 0.17 0.20 0.24 0.28 0.32 0.33
90° 2.5 0.10 0.13 0.18 0.21 0.25 0.31 0.35 0.40 0.41
90° 03 0.13 0.15 0.21 0.25 0.30 0.37 0.42 0.47 0.50
90° 04 0.17 0.20 0.28 0.33 0.40 0.49 0.56 0.63 0.66
90° 05 0.21 0.25 0.35 0.42 0.50 0.61 0.71 0.79 0.83
90° 06 0.25 0.30 0.42 0.50 0.60 0.73 0.85 0.95 1.00
90° 07 0.29 0.35 0.50 0.59 0.70 0.86 0.99 1.11 1.16
90° 7.5 0.31 0.38 0.53 0.63 0.75 0.92 1.06 1.19 1.24
90° 08 0.33 0.40 0.57 0.67 0.80 0.98 1.13 1.27 1.33
90° 09 0.38 0.45 0.64 0.75 0.90 1.10 1.27 1.42 1.49
90° 10 0.42 0.50 0.71 0.84 1.00 1.22 1.41 1.58 1.66
90° 12.5 0.52 0.63 0.88 1.05 1.25 1.53 1.77 1.98 2.07
90° 15 0.63 0.75 1.06 1.26 1.50 1.84 2.12 2.37 2.49
90° 20 0.84 1.00 1.41 1.67 2.00 2.45 2.83 3.16 3.32
90° 25 1.05 1.25 1.77 2.09 2.50 3.06 3.54 3.95 4.15
90° 30 1.26 1.50 2.12 2.51 3.00 3.67 4.24 4.74 4.98
  • * Standard Pressure: Column in red.
  • * This product for spray angle 0°, 15°, 25°, 40°, 50°, 100° and 110° is able to be made to order.
  • * For mobile friendly, only 3 column with 3 kinds of pressure will be displayed. For more pressure data, please check the chart on PC or laptop.
Material
LORRIC nozzle

 * Any inquiries or question to QFSA and QFWG base, please leave message to LORRIC by click "inquiry now" button.



Material Guarantees
Metal
We take high quality smithing metal to produce solid and durable nozzles by detail turning.
Plastic
We promise never using recycled materials
High Quality
All material is purchased from world top providers.



Product Size
Thread
(BSPT) 		Size (mm) Weight (g)
  A     B     C
1/8"Male
 36 27.5 39 17.7
1/4"Male
 36 27.5 42.6 18.1
3/8"Male
 36 27.5 42.6 19.8



LORRIC nozzle



















Size of QFSA body

Size (mm) Weight (g)
  A     B     C     D
26.5 10.1 12.0 31.4 8.6

LORRIC nozzle

























Size of QFWG body

Size (mm) Weight (g)
  A     B     C     D
25.6
 16.5 20.4 38.3 12.0

LORRIC nozzle







* Any inquiries or question to QFSA and QFWG base, please leave message to LORRIC by click "inquiry now" button.

Installation
For nozzle with QF Body (thread)
Step 1

Drill corresponding female threads on your pipe

Aim the thread of nozzle body at the female thread

Step 2

Tightening the body clockwise at the pipe hole

Step 3

Aim QFYH nozzle tip to nozzle body

LORRIC nozzle
LORRIC nozzle
LORRIC nozzle
Step 4

Put QFYH nozzle tip into nozzle body

Step 5

Fasten the tip and the body clockwise to finish the nozzle installation

Finished If the neighboring nozzles stagger with each other, you should place the nozzles at least 5 degrees of declination. Otherwise, the performance might be affected

Step 6

Installation completed

LORRIC nozzle
LORRIC nozzle
LORRIC nozzle
For nozzle with QFSA Body (welding)
Step 1

Drill corresponding hole on your pipe

Aim the bottom of QFSA nozzle body at the hole

Step 2

Use welding torch to fix QFSA nozzle body in the pipe hole

Step 3

Aim QFYH nozzle tip to nozzle body

LORRIC nozzle
LORRIC nozzle
LORRIC nozzle
Step 4

Put QFYH nozzle tip into nozzle body

Step 5

Fasten the tip and the body clockwise to finish the nozzle installation

Finished If the neighboring nozzles stagger with each other, you should place the nozzles at least 5 degrees of declination. Otherwise, the performance might be affected

Step 6

Installation completed

LORRIC nozzle
LORRIC nozzle
LORRIC nozzle
  * Any inquiries or question to QFSA and QFWG base, please leave message to LORRIC by click "inquiry now" button.






+886-978-005-235
[email protected]
