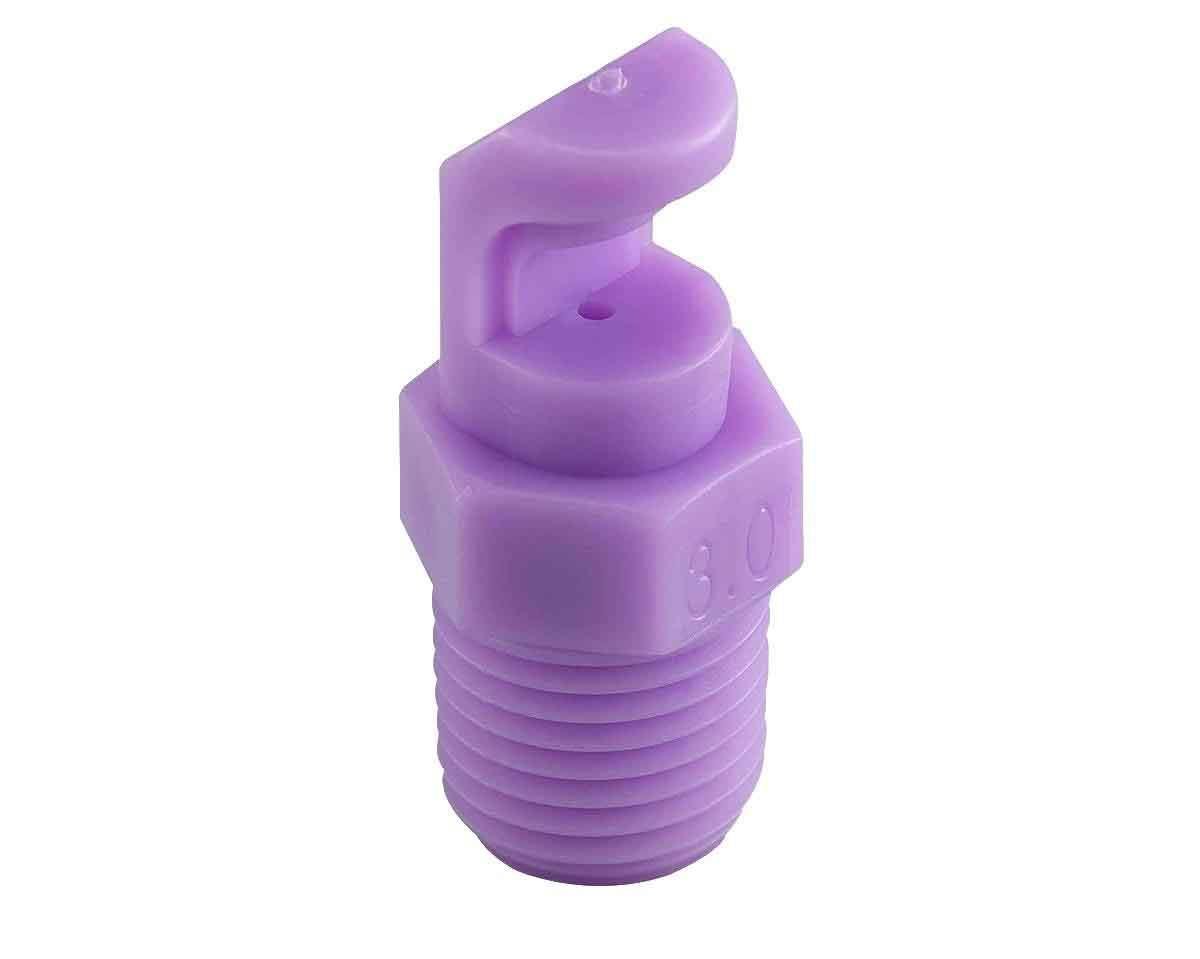

PF Plastic Low Pressure Flat Fan Flood Nozzle

Single design, Low pressure, Wide angle
Apply for
Washing│Cleaning
Humidifying│Distribution
Cooling│Water Curtain

Features
  • The spray pattern is fan type, and the spray shape is single-line.
  • Low-pressure wide-angle nozzle realizes a large angle coverage under 1.5kgf/cm² pressure, which is lower than standard fan type 3kgf/cm² operating pressure and is more suitable for low-pressure working environment.
  • Spray the nozzle at an angle of 75° with respect to the axis of the nozzle. Check that the environment is suitable.
  • The hooked nozzle tip is designed to reflect the water into a fan shape nozzle and greaten particle passage to prevent clogging.
  • Operation pressure is greater than 4kgf/cm² may cause the liquid to overflow without fogging.
  • Recommended working pressure: 1.5 kgf/cm²
  • Flowrate tolerance: ± 10% @ 1.5 ± 0.1 kgf/cm²
  • Angle tolerance: ± 10° @ 1.5 ± 0.1 kgf/cm²
  • Applications:
    ● Cleaning: Conveyor belt, film, copper, paper, glass,All kinds of plates,filters,          dust and debris, machine tool cleaning.
    ●  Cooling: Conveyor belts, tanks, machinery, metal, roofs, etc.
    ● Dispersion: Humidifying, Chemicals, Water Curtain (fire, dust,deodorization, etc.), defoaming, etc.
LORRIC nozzle

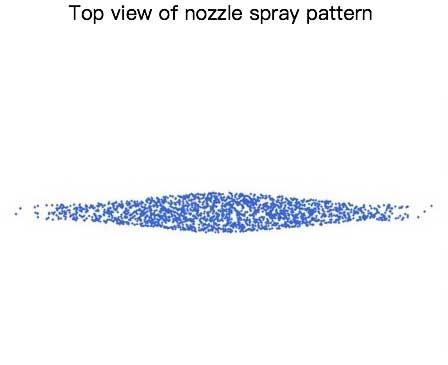

Spray pattern & Flow distribution
LORRIC nozzle
LORRIC nozzle



Specs

Please place your order according below information.


How to pleace an order for LORRIC nozzles?

  • • You can find the exact Capacity Code according to your requirement of pressure, flow, and spray angle as the capacity & angle chart we provided above. Click to understand how to use the capacity & angle.
  • • Please refer to the following order example for placing order to LORRIC.

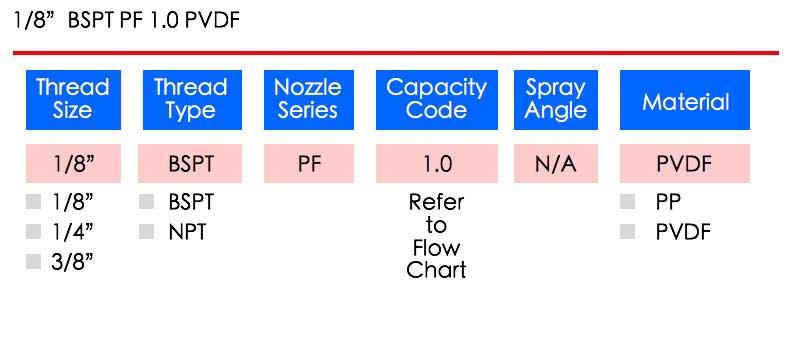

  •   Example :LORRIC nozzle

Select
Unit
  • *
  • *
  • *
  • *
Spray Angle Capacity Code Thread Size Capacity at Pressure Capacity at Pressure
1/8" 1/4" 0.5
kgf/cm²		 0.7
kgf/cm²		 1.0
kgf/cm²		 1.5
kgf/cm²		 2.0
kgf/cm²		 2.5
kgf/cm²		 3.0
kgf/cm²		 4.0
kgf/cm²		 6.0
kgf/cm²
- 0.5 V
0.16 0.19 0.23 0.28 0.32 0.36 0.40 0.46 0.56
- 0.75 V
0.24 0.29 0.34 0.42 0.48 0.54 0.59 0.69 0.84
145° 1.0 V
0.32 0.38 0.46 0.56 0.65 0.72 0.79 0.91 1.12
- 1.25 V
0.40 0.48 0.57 0.70 0.81 0.90 0.99 1.14 1.40
- 1.5 V
0.48 0.57 0.69 0.84 0.97 1.08 1.19 1.37 1.68
160° 1.75 V
0.57 0.67 0.80 0.98 1.13 1.27 1.39 1.60 1.96
- 2.0 V
 V
 0.65 0.77 0.91 1.12 1.29 1.45 1.58 1.83 2.24
- 2.5 V
 V
 0.81 0.96 1.14 1.40 1.62 1.81 1.98 2.29 2.80
145° 3.0 V
 V
 0.97 1.15 1.37 1.68 1.94 2.17 2.38 2.74 3.36
- 4.0 V
 V
 1.29 1.53 1.83 2.24 2.59 2.89 3.17 3.66 4.48
- 5.0 V
 V
 1.62 1.91 2.29 2.80 3.23 3.61 3.96 4.57 5.60
- 6.0 V
 V
 1.94 2.30 2.74 3.36 3.88 4.34 4.75 5.49 6.72
- 7.0 V
 V
 2.26 2.68 3.20 3.92 4.53 5.06 5.54 6.40 7.84
- 7.5 V
 V
 2.42 2.87 3.43 4.20 4.85 5.42 5.94 6.86 8.40
- 8.0 V
 V
 2.59 3.06 3.66 4.48 5.17 5.78 6.34 7.32 8.96
- 9.0 V
 V
 2.91 3.44 4.12 5.04 5.82 6.51 7.13 8.23 10.08
- 10 V
 V
 3.23 3.83 4.57 5.60 6.47 7.23 7.92 9.14 11.20
- 12.5 V
 V
 4.04 4.78 5.72 7.00 8.08 9.04 9.90 11.43 14.00
- 15 V
 V
 4.85 5.74 6.86 8.40 9.70 10.84 11.88 13.72 16.80
- 20 V
 V
 6.47 7.65 9.14 11.20 12.93 14.46 15.84 18.29 22.40
Spray Angle Capacity Code Thread Size Capacity at Pressure Capacity at Pressure
1/8" 1/4" 0.05
MPa		 0.07
MPa		 0.1
MPa 		0.15
MPa		 0.2
MPa
 0.25
MPa		 0.3
MPa		 0.4
MPa		 0.6
MPa
- 0.5 V
0.16 0.19 0.23 0.28 0.33 0.37 0.40 0.46 0.57
- 0.75 V
0.24 0.29 0.35 0.42 0.49 0.55 0.60 0.69 0.85
145° 1.0 V
0.33 0.39 0.46 0.57 0.65 0.73 0.80 0.92 1.13
- 1.25 V
0.41 0.48 0.58 0.71 0.82 0.91 1.00 1.15 1.41
- 1.5 V
0.49 0.58 0.69 0.85 0.98 1.10 1.20 1.39 1.70
160° 1.75 V
0.57 0.68 0.81 0.99 1.14 1.28 1.40 1.62 1.98
- 2.0 V
 V
 0.65 0.77 0.92 1.13 1.31 1.46 1.60 1.85 2.26
- 2.5 V
 V
 0.82 0.97 1.15 1.41 1.63 1.83 2.00 2.31 2.83
145° 3.0 V
 V
 0.98 1.16 1.39 1.70 1.96 2.19 2.40 2.77 3.39
- 4.0 V
 V
 1.31 1.55 1.85 2.26 2.61 2.92 3.20 3.69 4.52
- 5.0 V
 V
 1.63 1.93 2.31 2.83 3.26 3.65 4.00 4.62 5.65
- 6.0 V
 V
 1.96 2.32 2.77 3.39 3.92 4.38 4.80 5.54 6.79
- 7.0 V
 V
 2.29 2.70 3.23 3.96 4.57 5.11 5.60 6.46 7.92
- 7.5 V
 V
 2.45 2.90 3.46 4.24 4.90 5.48 6.00 6.93 8.48
- 8.0 V
 V
 2.61 3.09 3.69 4.52 5.22 5.84 6.40 7.39 9.05
- 9.0 V
 V
 2.94 3.48 4.16 5.09 5.88 6.57 7.20 8.31 10.18
- 10 V
 V
 3.26 3.86 4.62 5.65 6.53 7.30 8.00 9.23 11.31
- 12.5 V
 V
 4.08 4.83 5.77 7.07 8.16 9.13 10.00 11.54 14.14
- 15 V
 V
 4.90 5.79 6.93 8.48 9.79 10.95 12.00 13.85 16.96
- 20 V
 V
 6.53 7.73 9.23 11.31 13.06 14.60 15.99 18.47 22.62
Spray Angle Capacity Code Thread Size Capacity at Pressure Capacity at Pressure
1/8" 1/4" 0.5
bar
 0.7
bar		 1.0
bar 		1.5
bar		 2.0
bar 		2.5
bar		 3.0
bar		 4.0
bar		 6.0
bar
- 0.5 V
0.16 0.19 0.23 0.28 0.33 0.37 0.40 0.46 0.57
- 0.75 V
0.24 0.29 0.35 0.42 0.49 0.55 0.60 0.69 0.85
145° 1.0 V
0.33 0.39 0.46 0.57 0.65 0.73 0.80 0.92 1.13
- 1.25 V
0.41 0.48 0.58 0.71 0.82 0.91 1.00 1.15 1.41
- 1.5 V
0.49 0.58 0.69 0.85 0.98 1.10 1.20 1.39 1.70
160° 1.75 V
0.57 0.68 0.81 0.99 1.14 1.28 1.40 1.62 1.98
- 2.0 V
 V
 0.65 0.77 0.92 1.13 1.31 1.46 1.60 1.85 2.26
- 2.5 V
 V
 0.82 0.97 1.15 1.41 1.63 1.83 2.00 2.31 2.83
145° 3.0 V
 V
 0.98 1.16 1.39 1.70 1.96 2.19 2.40 2.77 3.39
- 4.0 V
 V
 1.31 1.55 1.85 2.26 2.61 2.92 3.20 3.69 4.52
- 5.0 V
 V
 1.63 1.93 2.31 2.83 3.26 3.65 4.00 4.62 5.65
- 6.0 V
 V
 1.96 2.32 2.77 3.39 3.92 4.38 4.80 5.54 6.79
- 7.0 V
 V
 2.29 2.70 3.23 3.96 4.57 5.11 5.60 6.46 7.92
- 7.5 V
 V
 2.45 2.90 3.46 4.24 4.90 5.48 6.00 6.93 8.48
- 8.0 V
 V
 2.61 3.09 3.69 4.52 5.22 5.84 6.40 7.39 9.05
- 9.0 V
 V
 2.94 3.48 4.16 5.09 5.88 6.57 7.20 8.31 10.18
- 10 V
 V
 3.26 3.86 4.62 5.65 6.53 7.30 8.00 9.23 11.31
- 12.5 V
 V
 4.08 4.83 5.77 7.07 8.16 9.13 10.00 11.54 14.14
- 15 V
 V
 4.90 5.79 6.93 8.48 9.79 10.95 12.00 13.85 16.96
- 20 V V
 6.53 7.73 9.23 11.31 13.06 14.60 15.99 18.47 22.62
Spray Angle Capacity Code Thread Size Capacity at Pressure Capacity at Pressure
1/8" 1/4" 7
psi		 10
psi		 15
psi 		21
psi		 30
psi 		40
psi		 50
psi		 70
psi		 90
psi
- 0.5 V
0.04 0.05 0.06 0.07 0.09 0.10 0.11 0.13 0.15
- 0.75 V
0.06 0.08 0.09 0.11 0.13 0.15 0.17 0.20 0.23
145° 1.0 V
0.08 0.10 0.12 0.15 0.18 0.20 0.23 0.27 0.30
- 1.25 V
0.11 0.13 0.16 0.18 0.22 0.25 0.28 0.33 0.38
- 1.5 V
0.13 0.15 0.19 0.22 0.26 0.30 0.34 0.40 0.46
160° 1.75 V
0.15 0.18 0.22 0.26 0.31 0.35 0.40 0.47 0.53
- 2.0 V
 V
 0.17 0.20 0.25 0.29 0.35 0.41 0.45 0.54 0.61
- 2.5 V
 V
 0.21 0.25 0.31 0.37 0.44 0.51 0.57 0.67 0.76
145° 3.0 V
 V
 0.25 0.30 0.37 0.44 0.53 0.61 0.68 0.80 0.91
- 4.0 V
 V
 0.34 0.41 0.50 0.59 0.70 0.81 0.91 1.07 1.22
- 5.0 V
 V
 0.42 0.51 0.62 0.73 0.88 1.01 1.13 1.34 1.52
- 6.0 V
 V
 0.51 0.61 0.74 0.88 1.05 1.22 1.36 1.61 1.82
- 7.0 V
 V
 0.59 0.71 0.87 1.03 1.23 1.42 1.59 1.88 2.13
- 7.5 V
 V
 0.64 0.76 0.93 1.10 1.32 1.52 1.70 2.01 2.28
- 8.0 V
 V
 0.68 0.81 0.99 1.17 1.40 1.62 1.81 2.14 2.43
- 9.0 V
 V
 0.76 0.91 1.12 1.32 1.58 1.82 2.04 2.41 2.73
- 10 V
 V
 0.85 1.01 1.24 1.47 1.75 2.03 2.26 2.68 3.04
- 12.5 V
 V
 1.06 1.27 1.55 1.83 2.19 2.53 2.83 3.35 3.80
- 15 V
 V
 1.27 1.52 1.86 2.20 2.63 3.04 3.40 4.02 4.56
- 20 V V
 1.69 2.03 2.48 2.94 3.51 4.05 4.53 5.36 6.08
  • * Standard Pressure: Column in red.
  • * For mobile friendly, only 3 column with 3 kinds of pressure will be displayed. For more pressure data, please check the chart on PC or laptop.



Material






Material Guarantees
Metal
We take high quality smithing metal to produce solid and durable nozzles by detail turning.
Plastic
We promise never using recycled materials
High Quality
All material is purchased from world top providers.





Product Size
Thread
(BSPT) 		Size (mm) Weight (g)
  A     B     C   PVDF   PP
1/8"Male
 9.8 17 24 1.6 0.8
1/4"Male
 13.9 21.7 33.7 4.8 2.4

LORRIC nozzle



Installation
Easy installing with 2 simple steps !
Step 1

Drill correspon-ding female threads on your pipe.

Step 2

For better leakproof-ness, please use Teflon seal tape on nozzle thread.

Aim the thread of nozzle at the female thread. Tighten the nozzle clockwise.

Finished

  Finished.
