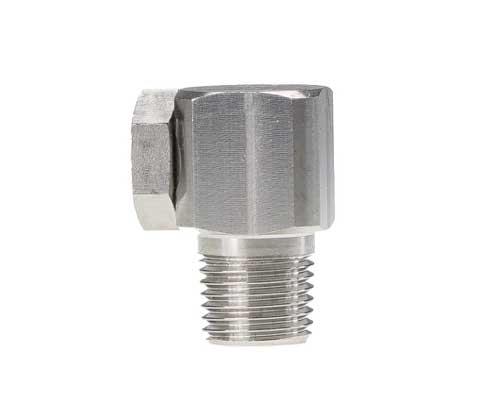

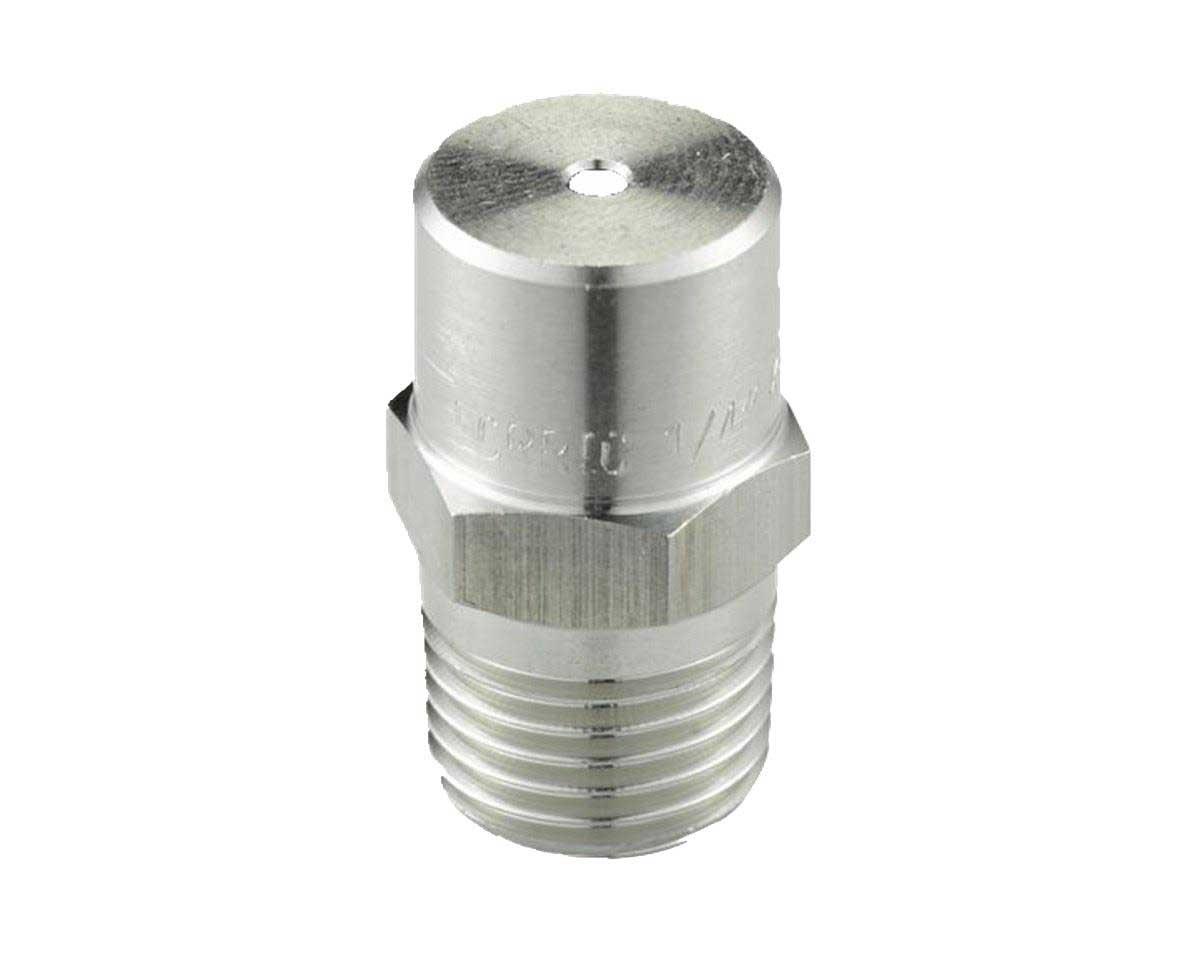

MWT Stainless steel hollow cone spray nozzle

hollow cone spray, Uniform impact, Easy installed
Apply for
PCB
Cleaning│Purging

General Features
  • Spray patterns: Hollow Cone. The shape of the spray is circular (circular Impact).
  • The nozzle flow path has no complicated structure and effectively prevents foreign matter from being blocked.
  • Two piece nozzle design enables easy clean and installation.
  • The direction of the spray is 90 degrees to the mounting direction. Please confirm that the installation environment meets the requirements.
  • Recommended working pressure: 2.0 kgf/cm²
  • Flowrate tolerance: ± 5% @ 2.0 ± 0.1 kgf/cm²
  • Angle tolerance: ± 5° @ 2.0 ± 0.1 kgf/cm²
  • Min. Free Passage: 40mm
  • Applications:
    ● Cleaning: Gas, cleaning etc.
    ● Cooling: Gas, liquid, air conditioning, machinery, metal, plastic molding cooling process.
    ● Dispersion: Humidifying, aeration, firefighting, dedusting, deodorization, etc.
LORRIC nozzle

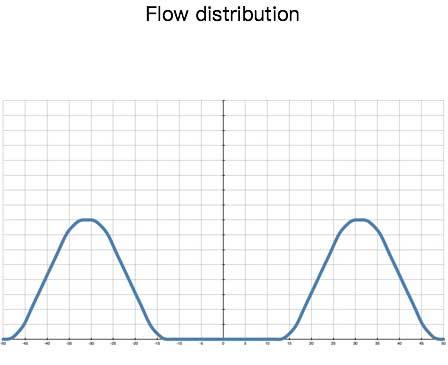

Spray pattern & Flow distribution
LORRIC nozzle
LORRIC nozzle



Specs

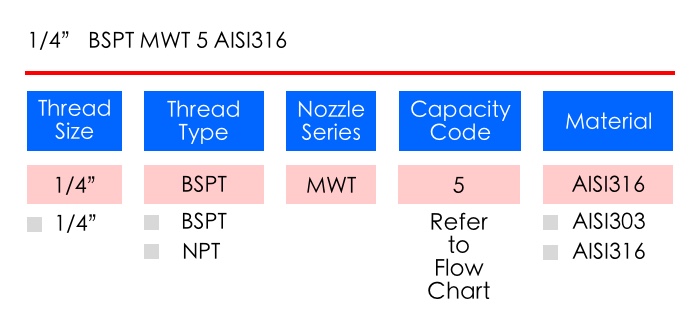

Please place your order according below information.


How to pleace an order for LORRIC nozzles?

  • • You can find the exact Capacity Code according to your requirement of pressure, flow, and spray angle as the capacity & angle chart we provided above. Click to understand how to use the capacity & angle.
  • • Please refer to the following order example for placing order to LORRIC.
  •   Example :

  •

  •                 LORRIC nozzle

Select
Unit
  • *
  • *
  • *
  • *
Spray Angle Capacity Code Capacity at Pressure Capacity at Pressure
0.7
kgf/cm²		 1.0
kgf/cm²		 1.5
kgf/cm²		 2.0
kgf/cm²		 4.0
kgf/cm²		 6.0
kgf/cm²		 8.0
kgf/cm²		 10
kgf/cm²		 15
kgf/cm²
60° 3 1.77 2.12 2.60 3.00 4.24 5.20 6.00 6.71 8.22
60° 5 2.96 3.54 4.33 5.00 7.07 8.66 10.00 11.18 13.69
Spray Angle Capacity Code Capacity at Pressure Capacity at Pressure
0.07
MPa		 0.1
MPa		 0.15
MPa		 0.2
MPa		 0.4
MPa		 0.6
MPa		 0.8
MPa		 1.0
MPa		 1.5
MPa
60° 3 1.79 2.14 2.62 3.03 4.28 5.25 6.06 6.77 8.30
60° 5 2.99 3.57 4.37 5.05 7.14 8.75 10.10 11.29 13.83
Spray Angle Capacity Code Capacity at Pressure Capacity at Pressure
0.7
bar 		1
 bar 		 1.5
 bar 		 2
 bar 		 4
 bar 		 6
 bar 		 8
 bar 		 10
 bar 		 15
 bar
60° 3 1.79 2.14 2.62 3.03 4.28 5.25 6.06 6.77 8.30
60° 5 2.99 3.57 4.37 5.05 7.14 8.75 10.10 11.29 13.83
Spray Angle Capacity Code Capacity at Pressure Capacity at Pressure
10
psi 		 15
psi 		 20
psi		 28
psi		 60
psi		 90
psi		 120
psi		 140
psi		 200
psi
60° 3 0.47 0.58 0.66 0.79 1.15 1.41 1.63 1.76 2.10
60° 5 0.78 0.96 1.11 1.31 1.92 2.35 2.71 2.93 3.50
  • * Standard Pressure: Column in red.
  • * For mobile friendly, only 3 column with 3 kinds of pressure will be displayed. For more pressure data, please check the chart on PC or laptop.



Material



Material Guarantees
Metal
We take high quality smithing metal to produce solid and durable nozzles by detail turning.
Plastic
We promise never using recycled materials.
High Quality
All material is purchased from world top providers.







Product Size
Thread
(BSPT) 		Size (mm) Weight (g)
  A     B     C     D   SS303 SS316
1/8"Male
 13 22.2 15.2 16.2 - -
1/4"Male
 16 28.6 17.6 20.8 39 39.5
3/8"Male
 19 34.9 19.9 24 - -

LORRIC nozzle



Installation
Easy installing with 2 simple steps !
Step 1

Drill correspon-ding female threads on your pipe.

Step 2

For better leakproof-ness, please use Teflon seal tape on nozzle thread.

Aim the thread of nozzle at the female thread. Tighten the nozzle clockwise.

Finished

  Finished.

LORRIC nozzle
LORRIC nozzle
LORRIC nozzle
