MWP Series Plastic PP hollow cone spray nozzle

hollow cone spray, Uniform impact, Easy installed
Apply for
PCB
Cleaning│Purging

General Features
  • Spray patterns: Hollow Cone. (donut shape distribution).

  • Ideal for air washing and extrusion cooling process.
  • Clog-resistant performance with right-angle design.
  • Flow volume tolerance: ±10% at standard working pressure.
  • It includes a body and a removable hexagonal spiral cap, which is easy to install and clog-resistant.

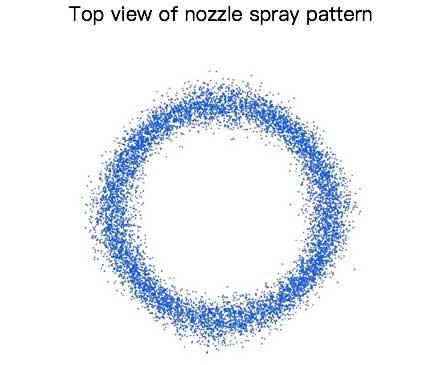

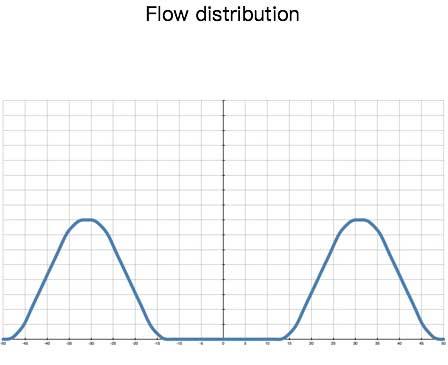

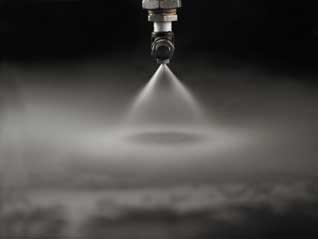

Spray pattern & Flow distribution

Specs

Please place your order according below information.


How to pleace an order for LORRIC nozzles?

  • • You can find the exact Capacity Code according to your requirement of pressure, flow, and spray angle as the capacity & angle chart we provided above.
  • • Please refer to following order example for placing order to LORRIC.
  •   Example :
  •

  •

Select
Unit
  • *
  • *
  • *
  • *
Spray Angle Capacity Code Capacity at Pressure Capacity at Pressure
0.5
kgf/cm²
0.7
kgf/cm²
1.0
kgf/cm²
1.5
kgf/cm²
2.0
kgf/cm²
2.5
kgf/cm²
3.0
kgf/cm²
4.0
kgf/cm²
6.0
kgf/cm²
60° 6 1.00 1.18 1.41 1.73 2.00 2.24 2.45 2.83 3.46
Spray Angle Capacity Code Capacity at Pressure Capacity at Pressure
0.05
MPa
0.07
MPa
0.1
MPa
0.15
MPa
0.2
MPa
0.25
MPa
0.3
MPa
0.4
MPa
0.6
MPa
60° 6 1.01 1.19 1.43 1.75 2.02 2.26 2.47 2.86 3.50
Spray Angle Capacity Code Capacity at Pressure Capacity at Pressure
0.5
bar
0.7
bar
1
 bar
1.5
 bar
2
 bar
2.5
 bar
3
 bar
4
 bar
6
 bar
60° 6 1.01 1.19 1.43 1.75 2.02 2.26 2.47 2.86 3.50
Spray Angle Capacity Code Capacity at Pressure Capacity at Pressure
7
psi
10
psi
15
psi
20
psi
28
psi
40
psi
50
psi
70
psi
90
psi
60° 6 0.26 0.31 0.38 0.44 0.52 0.63 0.70 0.83 0.94
  • * Standard Pressure: Column in red.
  • * This product for spray angle 90° and 120° is able to be made to order.
  • * For mobile friendly, only 3 column with 3 kinds of pressure will be displayed. For more pressure data, please check the chart on PC or laptop.
Material



Material Guarantees
Metal
We take high quality smithing metal to produce solid and durable nozzles by detail turning.
Plastic
We promise never using recycled materials
High Quality
All material is purchased from world top providers.

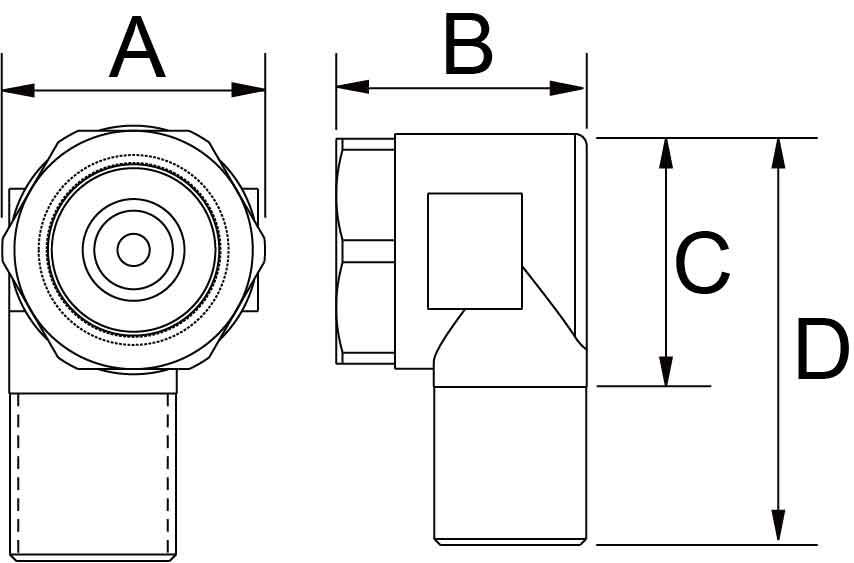

Product Size
Thread
(BSPT)
 Unit(mm)  Weight(g)
  A     B     C     D
1/8"Male
13 22.2 15.2 16.2 5.0
1/4"Male
16 58.6 17.6 20.8
3/8"Male
19 34.9 19.9 23.8



Installation
Easy installing with 2 simple steps !
Step 1

Drill corresponding female threads on your pipe.

Step 2

For better leakproofness, please use Teflon seal tape on nozzle thread.

Aim the thread of nozzle at the female thread. Tighten the nozzle clockwise.

Finished

Finished.
