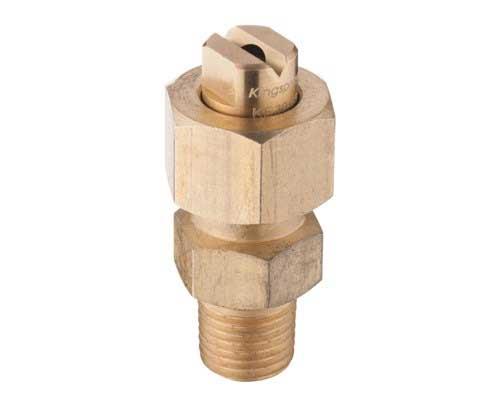

KAD High Quality stainless steel flat fan spray nozzle

Easy installed, Stainless steel, Flat fan
Apply for

PCB Wet Processing
Display Panel Wet Processing
High Pressure Cleaning
Dust and Powder Washing
Solution Dispersion
General Humidifying
Gravel Washing│Steel Cooling

Download Product Catalogue

Features

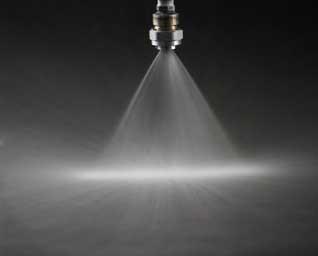

  • The spraying type is fan type, and the spray shape is single line and two sides are tapered (tapered edge), which presents a bell curve shape flow field distribution with weaker ends compared to the middle.

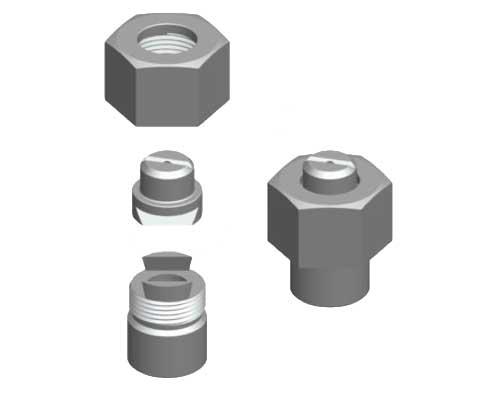

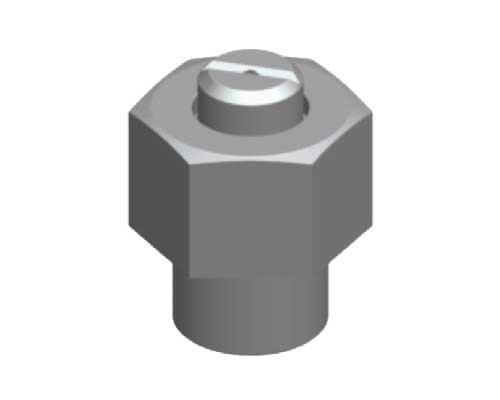

  • Three-piece structure facilitates maintenance cleaning and replacement, and can save the cost of replacing the nozzle head. The base must be connected to the pipeline by welding. Please confirm that the installation environment meets the requirements.
  • The special positioning design of the nozzle and base installation ensures that each spray replacement can be returned to the original positioning.
  • Recommended working pressure: 3.0 kgf/cm2
  • Flowrate tolerance: ± 5% @ 3.0 ± 0.1 kgf/cm2
  • Jet angle tolerance: ±
  • Angle tolerance: ± 5° @ 3.0 ± 0.1 kgf/cm2
  • Applications:

      ● Cleaning: Vehicles, Containers, Filters, Dust, Gravel, Metals, Metal Parts,

         Machinery, Steel Plates, Various Containers, High Pressure Cleaning, Wet

         Processing Display Pane, machinery washing, etc.

      ● Cooling: gas, tank, machinery, metal, roof etc.

      ● Dispersion: Humidifying, Chemicals (etching solution, developer, insect

         repellent, etc.), water curtain (fire, dust, deodorization etc.).

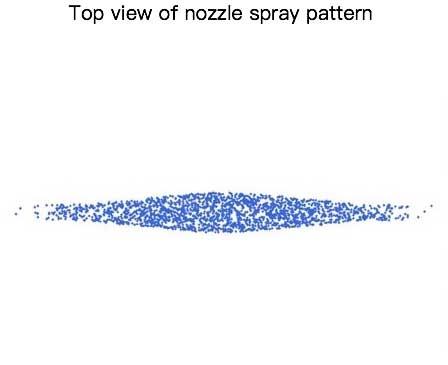

Spray pattern & Flow distribution

Specs

Please place your order according below information.


How to pleace an order for LORRIC nozzles?

  • • You can find the exact Capacity Code according to your requirement of pressure, flow, and spray angle as the capacity & angle chart we provided above.
  • • Please refer to following order example for placing order to LORRIC.
  •   Example :

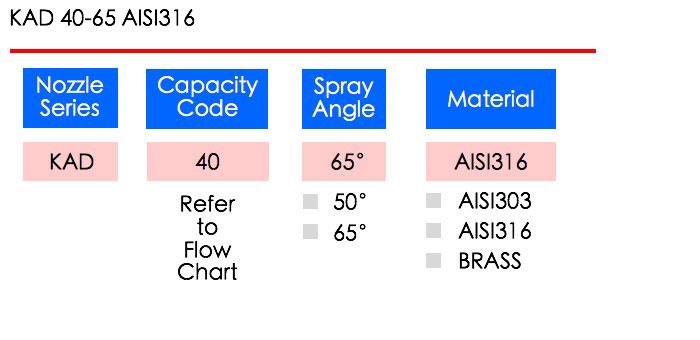

  •   Below is for ordering KAD whole set (tip+body), if you require tip only, the order example will be " KAD 040-65 AISI316 (T) "
  •

Select
Unit
  • *
  • *
  • *
  • *
Spray Angle Capacity Code Capacity at Pressure Capacity at Pressure
0.7
kgf/cm²
1.0
kgf/cm²
1.5
kgf/cm²
2.0
kgf/cm²
3.0
kgf/cm²
4.0
kgf/cm²
5.0
kgf/cm²
6.0
kgf/cm²
8.0
kgf/cm²
65° 40 7.55 9.03 11.06 12.77 15.64 18.06 20.19 22.12 25.54
50° 50 9.44 11.29 13.82 15.96 19.55 22.57 25.24 27.65 31.93
Spray Angle Capacity Code Capacity at Pressure Capacity at Pressure
0.07
MPa
0.1
MPa
0.15
MPa
0.2
MPa
0.3
MPa
0.4
MPa
0.5
MPa
0.6
MPa
0.8
MPa
65° 40 7.63 9.12 11.17 12.90 15.79 18.24 20.39 22.34 25.79
50° 50 9.54 11.40 13.96 16.12 19.74 22.80 25.49 27.92 32.24
Spray Angle Capacity Code Capacity at Pressure Capacity at Pressure
0.7
bar
1
bar
1.5
bar
2.0
bar
3.0
bar
4.0
bar
5.0
 bar
6.0
 bar
8.0
 bar
65° 40 7.63 9.12 11.17 12.90 15.79 18.24 20.39 22.34 25.79
50° 50 9.54 11.40 13.96 16.12 19.74 22.80 25.49 27.92 32.24
Spray Angle Capacity Code Capacity at Pressure Capacity at Pressure
10
psi
15
psi
20
psi
28
psi
40
psi
60
psi
70
psi
80
psi
90
psi
65° 40 2.00 2.45 2.83 3.35 4.00 4.90 5.29 5.66 6.00
50° 50 2.50 3.06 3.54 4.18 5.00 6.12 6.61 7.07 7.50
  • * Standard Pressure: Column in red.
  • * For mobile friendly, only 3 column with 3 kinds of pressure will be displayed. For more pressure data, please check the chart on PC or laptop.
Material






Material Guarantees
Metal
We take high quality smithing metal to produce solid and durable nozzles by detail turning.
Plastic
We promise never using recycled materials
High Quality
All material is purchased from world top providers.

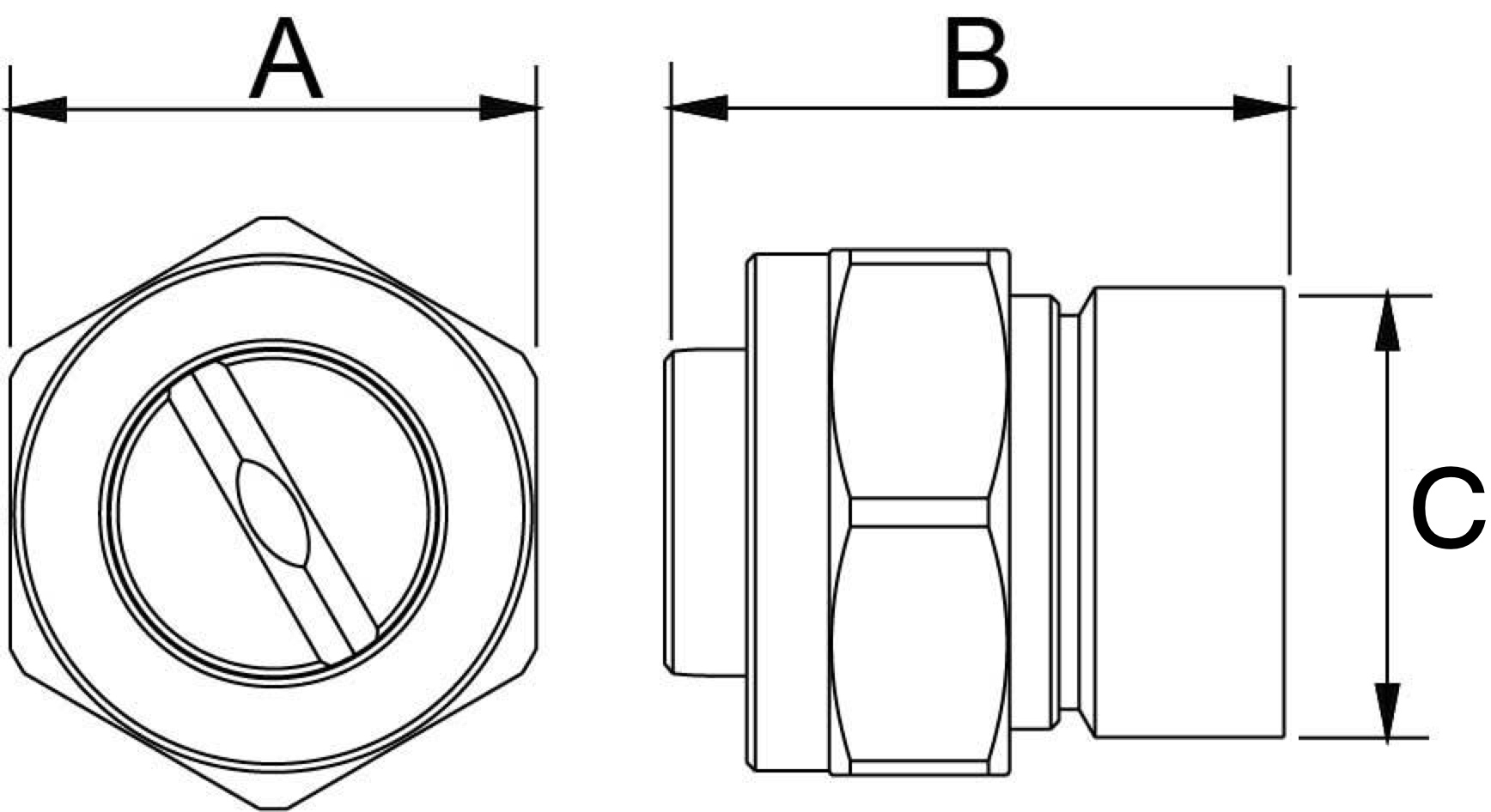

Product Size
 Unit(mm)  Weight(g)
  A     B     C   S303 S316 Brass
32 37.6 27.5 162 165 180
