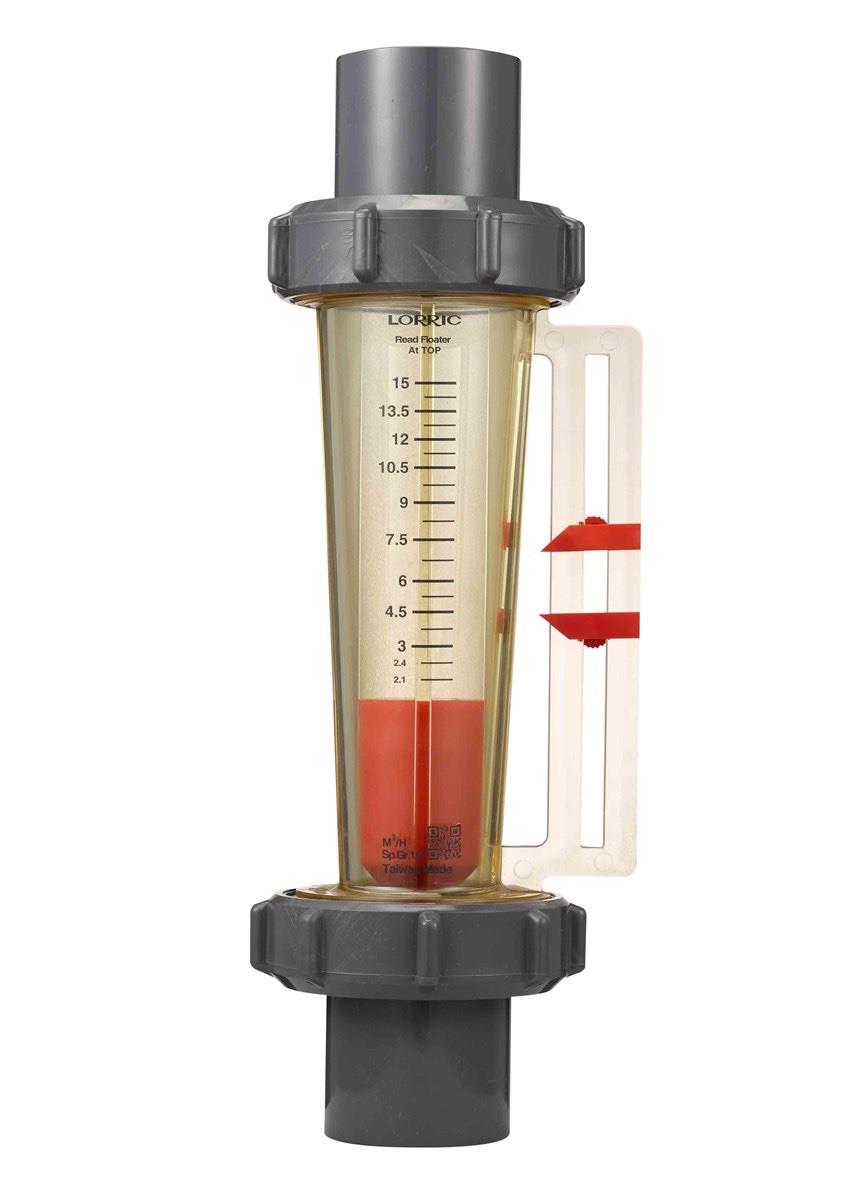

F46 346mm pipe size 1½"-2" flow meter with inductor

Patented dual-indicator
Laser engraved degree scales
Apply for
Water treatment
PCB│Cleaning

Download Product Catalogue

General Features
  • Designed for use with highly corrosive solutions.
  • Patented dual-indicator design for easy and clear flow range management.
  • Laser engraved degree scales provide better readability and longer life.
  • Available in customizable units and specific gravity (SG).
  • Each batch of flow meters will be calibrated before delivery for our best precision guarantee.
  • Operating Conditions

      Full Scale Accuracy: ±5%.

     ● Max. working pressure: 6.0kg/cm²







Why LORRIC Flow Meters?

「ACCURACY」is everything!

Patented dual-indicator

Patented dual-indicator design for easy and clear flow range management.

Laser engraved degree scales

Laser engraved degree scales provide better readability and longer life.

Delicate machining for float

We produce float based on our over 20 years of solid machining experience of producing nozzles. It leads every float got best and stable quality and excellent flow distribution for best on-site performance.



Specs

Please place your order according below information.


How to pleace an order for LORRIC flowmeters?

  • • You can find the exact Capacity Code according to your requirement of pressure, flow, and spray angle as the capacity & angle chart we provided above.
  • • Please refer to following order example for placing order to LORRIC.

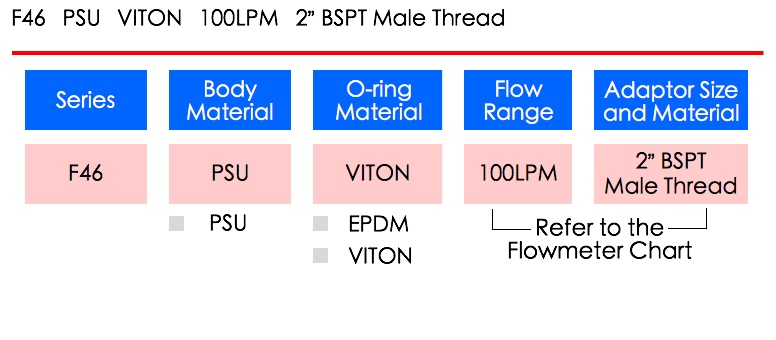

  •   Example :

table


Series F46 PSU
Applicable Fluid
Chemical and Non-organic Solvents
Body Material PSU
Float Material Teflon / PP
O-ring Material
EPDM / VITON
Union Nuts Material UPVC
Guide Rod Bottom Material PP
Scale Range(L/min) 20 - 100 L/min
30 - 150 L/min
35 - 200 L/min
35 - 250 L/min
Adaptor Size and Adaptor Material
1-1/2"
Male Thread BSPT UPVC / PP
NPT UPVC / PP
Female Thread BSPT UPVC
NPT UPVC
Welding Type UPVC
Butt-fusion Adaptor PP
2"
Male Thread BSPT UPVC / PP
Female Thread BSPT UPVC / PP
NPT UPVC
Welding Type UPVC
Butt-fusion Adaptor PP
  • * Liquid flow meters are calibrated for 20°C water. Gas flow meters are calibrate for normal condition. ( 0°C , 1 atm)
  • * All adaptors can be manufactured to order, please contact us for price and lead time.
  • * Above temperature information is for reference only and may not be applicable for all environments.

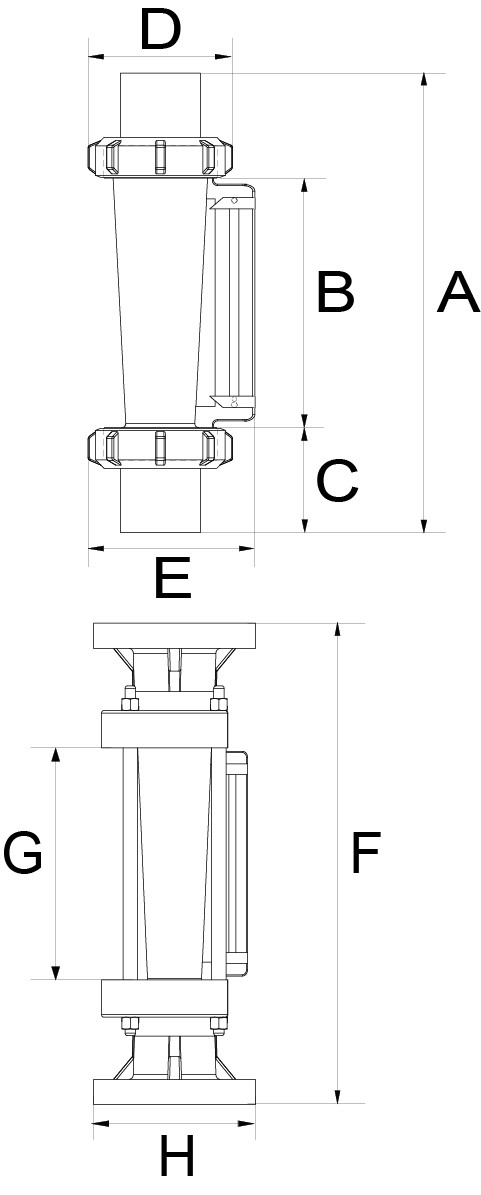

Size
Unit:mm ( * Size of flange type)
Adapter Spec   A / F*   B / G*   C / H*   D     E   Weight
(g)
1-1/2"
Female Thread
346 187 79.5 109 127
1-1/2"CNS 347 187 80 109 127
1-1/2"ASTM 347 187 80 109 127 1400
1-1/2"JIS 345 187 79 109 127
2"Male Thread 345 187 79 109 127
2"Female Thread 345 187 79 109 127
2"CNS 357 187 85 109 127
2"ASTM 345 187 79 109 127
2"JIS 357 187 85 109 127
PP
OD72.7

ID60.1
305 187 59 109 127
PP OD60
ID48.9
345 187 79 109 127
Flange 2" 390 187 155 - -







Installation
Step 1.
Please set up pipes vertically
Step 2.
Disassemble adaptors form flow meter body both ends
Step 3.
Connect adaptors with pipes (include union nuts)



Step 3-1.
Thread type: Wrap up Teflon tape around first for tight connection



Step 3-2.
Welding Type: Gluing adaptors and pipes, connect both together



Step 4.
After glue dried and getting steady, tightly connect adaptor with body with buts by hand



Detailed installation instructions
