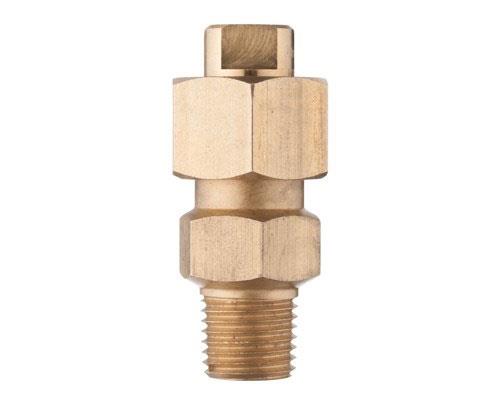

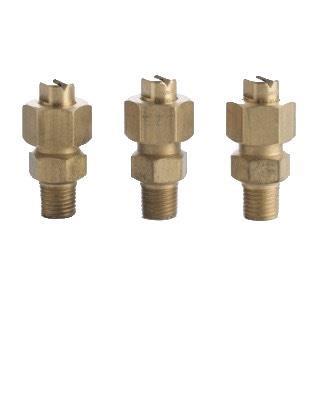

CH High Quality stainless steel flat fan spray nozzle

Easy installed, Stainless steel, Flat fan
Apply for

PCB Wet Processing
Display Panel Wet Processing
High Pressure Cleaning
Dust and Powder Washing
Solution Dispersion
General Humidifying
Gravel Washing│Steel Cooling

Features
  • Spray type is fan type, spray shape is single-lined and tapering on both sides (Tapered Edge), which presents a bell curve shape flow field distribution with weaker ends at the middle.
  • Three-piece structure facilitates maintenance cleaning and replacement, and can save the cost of replacing the nozzle head.
  • The fan nozzle angle can be 0°~110°, and the 0° spray angle spray pattern is a straight column type. The spray shape is a single point, which provides the best impact force among all nozzle types.
  • Recommended working pressure: 3.0 kgf/cm²
  • Flowrate tolerance: ± 5% @ 3.0 ± 0.1 kgf/cm²
  • Angle tolerance: ± 5° @ 3.0 ± 0.1 kgf/cm²
  • Jet angle tolerance: ± 3°
  • Applications:
    ● Cleaning: Vehicles, Containers, Filters, Dust, Gravel, Metals, Metal Parts, Machinery, Steel Plates, Various Containers, High Pressure Cleaning, Wet Processing Display Pane, machine tool cleaning, etc.
    ● Cooling: gas, tank, machinery, metal, roof etc.
    ● Dispersion: Humidifying, Chemicals (etching solution, lubricants, insect repellent, etc.), water screens (fire, dust, deodorization etc.).
LORRIC nozzle

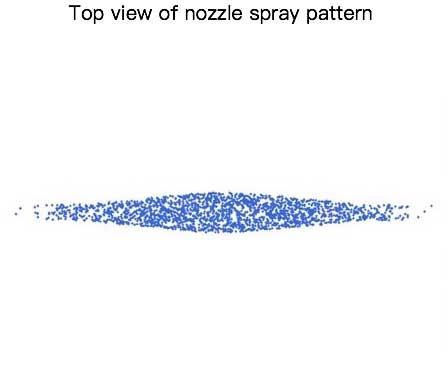

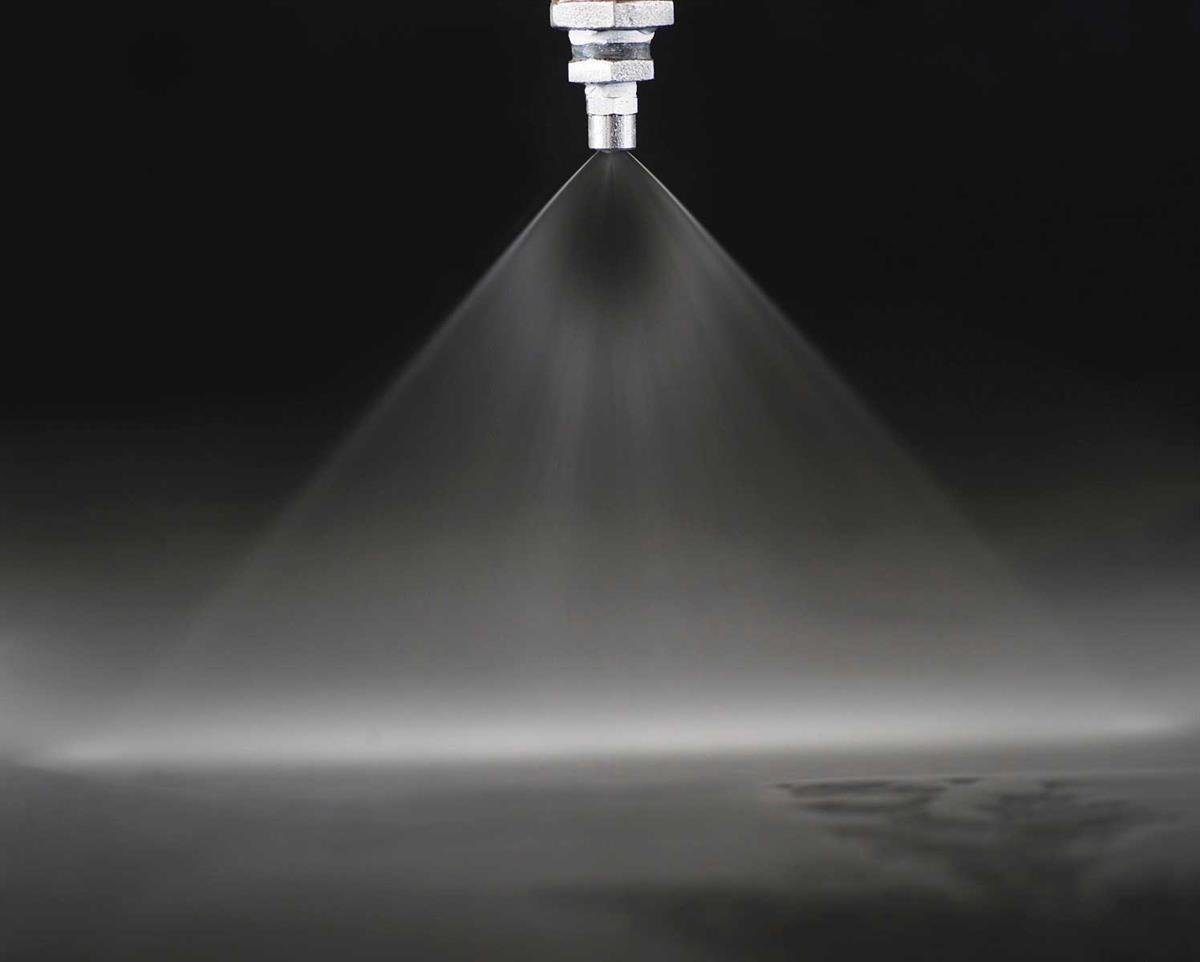

Spray pattern & Flow distribution
LORRIC nozzle
LORRIC nozzle



Specs

Please place your order according below information.

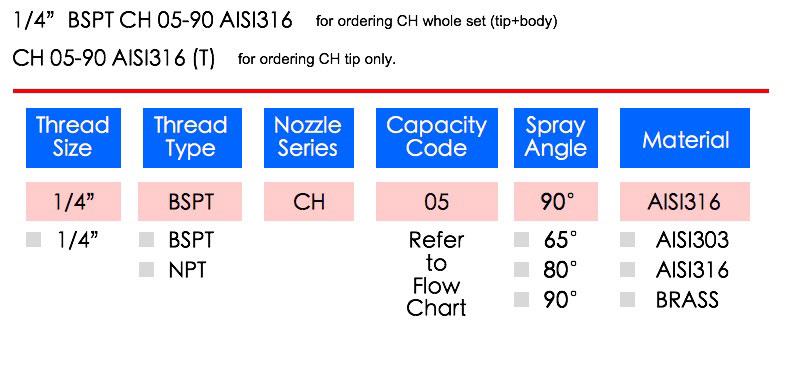

How to pleace an order for LORRIC nozzles?

  • • You can find the exact Capacity Code according to your requirement of pressure, flow, and spray angle as the capacity & angle chart we provided above. Click to understand how to use the capacity & angle.
  • • Please refer to the following order example for placing order to LORRIC.
  •   Example :
  •
  •                LORRIC nozzle

Select
Unit
  • *
  • *
  • *
  • *
Spray Angle Capacity Code Capacity at Pressure Capacity at Pressure
0.5
kgf/cm²		 1.0
kgf/cm²		 2.0
kgf/cm²		 3.0
kgf/cm²		 4.0
kgf/cm²		 6.0
kgf/cm²		 8.0
kgf/cm²		 10.0
kgf/cm²		 15.0
kgf/cm²
65° 01 0.16 0.23 0.32 0.39 0.45 0.55 0.64 0.71 0.87
65° 02 0.32 0.45 0.64 0.78 0.90 1.11 1.28 1.43 1.75
65° 2.5 0.40 0.56 0.80 0.98 1.13 1.38 1.60 1.78 2.19
65° 03 0.48 0.68 0.96 1.17 1.35 1.66 1.92 2.14 2.62
65° 04 0.64 0.90 1.28 1.56 1.81 2.21 2.55 2.86 3.50
65° 05 0.80 1.13 1.60 1.96 2.26 2.76 3.19 3.57 4.37
65° 06 0.96 1.35 1.92 2.35 2.71 3.32 3.83 4.28 5.25
65° 07 1.12 1.58 2.23 2.74 3.16 3.87 4.47 5.00 6.12
65° 7.5 1.20 1.69 2.39 2.93 3.39 4.15 4.79 5.35 6.56
65° 08 1.28 1.81 2.55 3.13 3.61 4.42 5.11 5.71 6.99
65° 09 1.44 2.03 2.87 3.52 4.06 4.98 5.75 6.42 7.87
65° 10 1.60 2.26 3.19 3.91 4.51 5.53 6.39 7.14 8.74
65° 12.5 2.00 2.82 3.99 4.89 5.64 6.91 7.98 8.92 10.93
65° 15 2.39 3.39 4.79 5.87 6.77 8.29 9.58 10.71 13.11
65° 20 3.19 4.51 6.39 7.82 9.03 11.06 12.77 14.28 17.49
65° 25 3.99 5.64 7.98 9.78 11.29 13.82 15.96 17.85 21.86
65° 30 4.79 6.77 9.58 11.73 13.54 16.59 19.16 21.42 26.23
80° 01 0.16 0.23 0.32 0.39 0.45 0.55 0.64 0.71 0.87
80° 02 0.32 0.45 0.64 0.78 0.90 1.11 1.28 1.43 1.75
80° 2.5 0.40 0.56 0.80 0.98 1.13 1.38 1.60 1.78 2.19
80° 03 0.48 0.68 0.96 1.17 1.35 1.66 1.92 2.14 2.62
80° 04 0.64 0.90 1.28 1.56 1.81 2.21 2.55 2.86 3.50
80° 05 0.80 1.13 1.60 1.96 2.26 2.76 3.19 3.57 4.37
80° 06 0.96 1.35 1.92 2.35 2.71 3.32 3.83 4.28 5.25
80° 07 1.12 1.58 2.23 2.74 3.16 3.87 4.47 5.00 6.12
80° 7.5 1.20 1.69 2.39 2.93 3.39 4.15 4.79 5.35 6.56
80° 08 1.28 1.81 2.55 3.13 3.61 4.42 5.11 5.71 6.99
80° 09 1.44 2.03 2.87 3.52 4.06 4.98 5.75 6.42 7.87
80° 10 1.60 2.26 3.19 3.91 4.51 5.53 6.39 7.14 8.74
80° 12.5 2.00 2.82 3.99 4.89 5.64 6.91 7.98 8.92 10.93
80° 15 2.39 3.39 4.79 5.87 6.77 8.29 9.58 10.71 13.11
80° 20 3.19 4.51 6.39 7.82 9.03 11.06 12.77 14.28 17.49
80° 25 3.99 5.64 7.98 9.78 11.29 13.82 15.96 17.85 21.86
80° 30 4.79 6.77 9.58 11.73 13.54 16.59 19.16 21.42 26.23
90° 01 0.16 0.23 0.32 0.39 0.45 0.55 0.64 0.71 0.87
90° 02 0.32 0.45 0.64 0.78 0.90 1.11 1.28 1.43 1.75
90° 2.5 0.40 0.56 0.80 0.98 1.13 1.38 1.60 1.78 2.19
90° 03 0.48 0.68 0.96 1.17 1.35 1.66 1.92 2.14 2.62
90° 04 0.64 0.90 1.28 1.56 1.81 2.21 2.55 2.86 3.50
90° 05 0.80 1.13 1.60 1.96 2.26 2.76 3.19 3.57 4.37
90° 06 0.96 1.35 1.92 2.35 2.71 3.32 3.83 4.28 5.25
90° 07 1.12 1.58 2.23 2.74 3.16 3.87 4.47 5.00 6.12
90° 7.5 1.20 1.69 2.39 2.93 3.39 4.15 4.79 5.35 6.56
90° 08 1.28 1.81 2.55 3.13 3.61 4.42 5.11 5.71 6.99
90° 09 1.44 2.03 2.87 3.52 4.06 4.98 5.75 6.42 7.87
90° 10 1.60 2.26 3.19 3.91 4.51 5.53 6.39 7.14 8.74
90° 12.5 2.00 2.82 3.99 4.89 5.64 6.91 7.98 8.92 10.93
90° 15 2.39 3.39 4.79 5.87 6.77 8.29 9.58 10.71 13.11
90° 20 3.19 4.51 6.39 7.82 9.03 11.06 12.77 14.28 17.49
90° 25 3.99 5.64 7.98 9.78 11.29 13.82 15.96 17.85 21.86
90° 30 4.79 6.77 9.58 11.73 13.54 16.59 19.16 21.42 26.23
Spray Angle Capacity Code Capacity at Pressure Capacity at Pressure
0.05
MPa		 0.1
MPa		 0.2
MPa 		0.3
MPa		 0.4
MPa
 0.6
MPa		 0.8
MPa		 1.0
MPa		 1.5
MPa
65° 01 0.16 0.23 0.32 0.39 0.46 0.56 0.64 0.72 0.88
65° 02 0.32 0.45 0.64 0.79 0.91 1.12 1.29 1.44 1.77
65° 2.5 0.40 0.57 0.81 0.99 1.14 1.40 1.61 1.80 2.21
65° 03 0.48 0.68 0.97 1.18 1.37 1.68 1.93 2.16 2.65
65° 04 0.64 0.91 1.29 1.58 1.82 2.23 2.58 2.88 3.53
65° 05 0.81 1.14 1.61 1.97 2.28 2.79 3.22 3.60 4.41
65° 06 0.97 1.37 1.93 2.37 2.74 3.35 3.87 4.33 5.30
65° 07 1.13 1.60 2.26 2.76 3.19 3.91 4.51 5.05 6.18
65° 7.5 1.21 1.71 2.42 2.96 3.42 4.19 4.81 5.41 6.62
65° 08 1.29 1.82 2.58 3.16 3.65 4.47 5.16 5.77 7.06
65° 09 1.45 2.05 2.90 3.55 4.10 5.03 5.80 6.49 7.95
65° 10 1.61 2.28 3.22 3.95 4.56 5.58 6.45 7.21 8.83
65° 12.5 2.01 2.85 4.03 4.94 5.70 6.98 8.06 9.01 11.04
65° 15 2.42 3.42 4.84 5.92 6.84 8.38 9.67 10.81 13.24
65° 20 3.22 4.56 6.45 7.90 9.12 11.17 12.90 14.42 17.66
65° 25 4.03 5.70 8.06 9.87 11.40 13.96 16.12 18.02 22.07
65° 30 4.84 6.84 9.67 11.85 13.68 16.75 19.34 21.63 26.49
80° 01 0.16 0.23 0.32 0.39 0.46 0.56 0.64 0.72 0.88
80° 02 0.32 0.45 0.64 0.79 0.91 1.12 1.29 1.44 1.77
80° 2.5 0.40 0.57 0.81 0.99 1.14 1.40 1.61 1.80 2.21
80° 03 0.48 0.68 0.97 1.18 1.37 1.68 1.93 2.16 2.65
80° 04 0.64 0.91 1.29 1.58 1.82 2.23 2.58 2.88 3.53
80° 05 0.81 1.14 1.61 1.97 2.28 2.79 3.22 3.60 4.41
80° 06 0.97 1.37 1.93 2.37 2.74 3.35 3.87 4.33 5.30
80° 07 1.13 1.60 2.26 2.76 3.19 3.91 4.51 5.05 6.18
80° 7.5 1.21 1.71 2.42 2.96 3.42 4.19 4.81 5.41 6.62
80° 08 1.29 1.82 2.58 3.16 3.65 4.47 5.16 5.77 7.06
80° 09 1.45 2.05 2.90 3.55 4.10 5.03 5.80 6.49 7.95
80° 10 1.61 2.28 3.22 3.95 4.56 5.58 6.45 7.21 8.83
80° 12.5 2.01 2.85 4.03 4.94 5.70 6.98 8.06 9.01 11.04
80° 15 2.42 3.42 4.84 5.92 6.84 8.38 9.67 10.81 13.24
80° 20 3.22 4.56 6.45 7.90 9.12 11.17 12.90 14.42 17.66
80° 25 4.03 5.70 8.06 9.87 11.40 13.96 16.12 18.02 22.07
80° 30 4.84 6.84 9.67 11.85 13.68 16.75 19.34 21.63 26.49
90° 01 0.16 0.23 0.32 0.39 0.46 0.56 0.64 0.72 0.88
90° 02 0.32 0.45 0.64 0.79 0.91 1.12 1.29 1.44 1.77
90° 2.5 0.40 0.57 0.81 0.99 1.14 1.40 1.61 1.80 2.21
90° 03 0.48 0.68 0.97 1.18 1.37 1.68 1.93 2.16 2.65
90° 04 0.64 0.91 1.29 1.58 1.82 2.23 2.58 2.88 3.53
65° 05 0.81 1.14 1.61 1.97 2.28 2.79 3.22 3.60 4.41
90° 06 0.97 1.37 1.93 2.37 2.74 3.35 3.87 4.33 5.30
90° 07 1.13 1.60 2.26 2.76 3.19 3.91 4.51 5.05 6.18
90° 7.5 1.21 1.71 2.42 2.96 3.42 4.19 4.81 5.41 6.62
90° 08 1.29 1.82 2.58 3.16 3.65 4.47 5.16 5.77 7.06
90° 09 1.45 2.05 2.90 3.55 4.10 5.03 5.80 6.49 7.95
90° 10 1.61 2.28 3.22 3.95 4.56 5.58 6.45 7.21 8.83
90° 12.5 2.01 2.85 4.03 4.94 5.70 6.98 8.06 9.01 11.04
90° 15 2.42 3.42 4.84 5.92 6.84 8.38 9.67 10.81 13.24
90° 20 3.22 4.56 6.45 7.90 9.12 11.17 12.90 14.42 17.66
90° 25 4.03 5.70 8.06 9.87 11.40 13.96 16.12 18.02 22.07
90° 30 4.84 6.84 9.67 11.85 13.68 16.75 19.34 21.63 26.49
Spray Angle Capacity Code Capacity at Pressure Capacity at Pressure
0.5
bar
 1.0
bar		 2.0
bar 		3.0
bar		 4.0
bar 		6.0
bar		 8.0
bar		 10.0
bar		 15.0
bar
65° 01 0.16 0.23 0.32 0.39 0.46 0.56 0.64 0.72 0.88
65° 02 0.32 0.46 0.64 0.79 0.91 1.12 1.29 1.44 1.77
65° 2.5 0.40 0.57 0.81 0.99 1.14 1.40 1.61 1.80 2.21
65° 03 0.48 0.68 0.97 1.18 1.37 1.68 1.93 2.16 2.65
65° 04 0.64 0.91 1.29 1.58 1.82 2.23 2.58 2.88 3.53
65° 05 0.81 1.14 1.61 1.97 2.28 2.79 3.22 3.60 4.41
65° 06 0.97 1.37 1.93 2.37 2.74 3.35 3.87 4.33 5.30
65° 07 1.13 1.60 2.26 2.76 3.19 3.91 4.51 5.05 6.18
65° 7.5 1.21 1.71 2.42 2.96 3.42 4.19 4.84 5.41 6.62
65° 08 1.29 1.82 2.58 3.16 3.65 4.47 5.16 5.77 7.06
65° 09 1.45 2.05 2.90 3.55 4.10 5.03 5.80 6.49 7.95
65° 10 1.61 2.28 3.22 3.95 4.56 5.58 6.45 7.21 8.83
65° 12.5 2.01 2.85 4.03 4.94 5.70 6.98 8.06 9.01 11.04
65° 15 2.42 3.42 4.84 5.92 6.84 8.38 9.67 10.81 13.24
65° 20 3.22 4.56 6.45 7.90 9.12 11.19 12.90 14.42 17.66
65° 25 4.03 5.70 8.06 9.87 11.40 13.96 16.12 18.02 22.07
65° 30 4.84 6.84 9.67 11.85 13.68 16.75 19.34 21.63 26.49
80° 01 0.16 0.23 0.32 0.39 0.46 0.56 0.64 0.72 0.88
80° 02 0.32 0.46 0.64 0.79 0.91 1.12 1.29 1.44 1.77
80° 2.5 0.40 0.57 0.81 0.99 1.14 1.40 1.61 1.80 2.21
80° 03 0.48 0.68 0.97 1.18 1.37 1.68 1.93 2.16 2.65
80° 04 0.64 0.91 1.29 1.58 1.82 2.23 2.58 2.88 3.53
80° 05 0.81 1.14 1.61 1.97 2.28 2.79 3.22 3.60 4.41
80° 06 0.97 1.37 1.93 2.37 2.74 3.35 3.87 4.33 5.30
80° 07 1.13 1.60 2.26 2.76 3.19 3.91 4.51 5.05 6.18
80° 7.5 1.21 1.71 2.42 2.96 3.42 4.19 4.84 5.41 6.62
80° 08 1.29 1.82 2.58 3.16 3.65 4.47 5.16 5.77 7.06
80° 09 1.45 2.05 2.90 3.55 4.10 5.03 5.80 6.49 7.95
80° 10 1.61 2.28 3.22 3.95 4.56 5.58 6.45 7.21 8.83
80° 12.5 2.01 2.85 4.03 4.94 5.70 6.98 8.06 9.01 11.04
80° 15 2.42 3.42 4.84 5.92 6.84 8.38 9.67 10.81 13.24
80° 20 3.22 4.56 6.45 7.90 9.12 11.19 12.90 14.42 17.66
80° 25 4.03 5.70 8.06 9.87 11.40 13.96 16.12 18.02 22.07
80° 30 4.84 6.84 9.67 11.85 13.68 16.75 19.34 21.63 26.49
90° 01 0.16 0.23 0.32 0.39 0.46 0.56 0.64 0.72 0.88
90° 02 0.32 0.46 0.64 0.79 0.91 1.12 1.29 1.44 1.77
90° 2.5 0.40 0.57 0.81 0.99 1.14 1.40 1.61 1.80 2.21
90° 03 0.48 0.68 0.97 1.18 1.37 1.68 1.93 2.16 2.65
90° 04 0.64 0.91 1.29 1.58 1.82 2.23 2.58 2.88 3.53
90° 05 0.81 1.14 1.61 1.97 2.28 2.79 3.22 3.60 4.41
90° 06 0.97 1.37 1.93 2.37 2.74 3.35 3.87 4.33 5.30
90° 07 1.13 1.60 2.26 2.76 3.19 3.91 4.51 5.05 6.18
90° 7.5 1.21 1.71 2.42 2.96 3.42 4.19 4.84 5.41 6.62
90° 08 1.29 1.82 2.58 3.16 3.65 4.47 5.16 5.77 7.06
90° 09 1.45 2.05 2.90 3.55 4.10 5.03 5.80 6.49 7.95
90° 10 1.61 2.28 3.22 3.95 4.56 5.58 6.45 7.21 8.83
90° 12.5 2.01 2.85 4.03 4.94 5.70 6.98 8.06 9.01 11.04
90° 15 2.42 3.42 4.84 5.92 6.84 8.38 9.67 10.81 13.24
90° 20 3.22 4.56 6.45 7.90 9.12 11.19 12.90 14.42 17.66
90° 25 4.03 5.70 8.06 9.87 11.40 13.96 16.12 18.02 22.07
90° 30 4.84 6.84 9.67 11.85 13.68 16.75 19.34 21.63 26.49
Spray Angle Capacity Code Capacity at Pressure Capacity at Pressure
7
psi		 10
psi		 28
psi 		40
psi		 60
psi 		80
psi		 100
psi		 150
psi		 200
psi
65° 01 0.04 0.05 0.08 0.10 0.12 0.14 0.16 0.19 0.22
65° 02 0.08 0.10 0.17 0.20 0.24 0.28 0.32 0.39 0.45
65° 2.5 0.10 0.13 0.21 0.25 0.31 0.35 0.40 0.48 0.56
65° 03 0.13 0.15 0.25 0.30 0.37 0.42 0.47 0.58 0.67
65° 04 0.17 0.20 0.33 0.40 0.49 0.57 0.63 0.77 0.89
65° 05 0.21 0.25 0.42 0.50 0.61 0.71 0.79 0.97 1.12
65° 06 0.25 0.30 0.50 0.60 0.73 0.85 0.95 1.16 1.34
65° 07 0.29 0.35 0.59 0.70 0.86 0.99 1.11 1.36 1.57
65° 7.5 0.31 0.38 0.63 0.75 0.92 1.06 1.19 1.45 1.68
65° 08 0.33 0.40 0.67 0.80 0.98 1.13 1.27 1.55 1.79
65° 09 0.38 0.45 0.75 0.90 1.10 1.27 1.42 1.74 2.01
65° 10 0.42 0.50 0.84 1.00 1.22 1.41 1.58 1.94 2.24
65° 12.5 0.52 0.63 1.05 1.25 1.53 1.77 1.98 2.42 2.80
65° 15 0.63 0.75 1.26 1.50 1.84 2.12 2.37 2.90 3.35
65° 20 0.84 1.00 1.67 2.00 2.45 2.83 3.16 3.87 4.47
65° 25 1.05 1.25 2.09 2.50 3.06 3.54 3.95 4.84 5.59
65° 30 1.26 1.50 2.51 3.00 3.67 4.24 4.74 5.81 6.71
80° 01 0.04 0.05 0.08 0.10 0.12 0.14 0.16 0.19 0.22
80° 02 0.08 0.10 0.17 0.20 0.24 0.28 0.32 0.39 0.45
80° 2.5 0.10 0.13 0.21 0.25 0.31 0.35 0.40 0.48 0.56
80° 03 0.13 0.15 0.25 0.30 0.37 0.42 0.47 0.58 0.67
80° 04 0.17 0.20 0.33 0.40 0.49 0.57 0.63 0.77 0.89
80° 05 0.21 0.25 0.42 0.50 0.61 0.71 0.79 0.97 1.12
80° 06 0.25 0.30 0.50 0.60 0.73 0.85 0.95 1.16 1.34
80° 07 0.29 0.35 0.59 0.70 0.86 0.99 1.11 1.36 1.57
80° 7.5 0.31 0.38 0.63 0.75 0.92 1.06 1.19 1.45 1.68
80° 08 0.33 0.40 0.67 0.80 0.98 1.13 1.27 1.55 1.79
80° 09 0.38 0.45 0.75 0.90 1.10 1.27 1.42 1.74 2.01
80° 10 0.42 0.50 0.84 1.00 1.22 1.41 1.58 1.94 2.24
80° 12.5 0.52 0.63 1.05 1.25 1.53 1.77 1.98 2.42 2.80
80° 15 0.63 0.75 1.26 1.50 1.84 2.12 2.37 2.90 3.35
80° 20 0.84 1.00 1.67 2.00 2.45 2.83 3.16 3.87 4.47
80° 25 1.05 1.25 2.09 2.50 3.06 3.54 3.95 4.84 5.59
80° 30 1.26 1.50 2.51 3.00 3.67 4.24 4.74 5.81 6.71
90° 01 0.04 0.05 0.08 0.10 0.12 0.14 0.16 0.19 0.22
90° 02 0.08 0.10 0.17 0.20 0.24 0.28 0.32 0.39 0.45
90° 2.5 0.10 0.13 0.21 0.25 0.31 0.35 0.40 0.48 0.56
90° 03 0.13 0.15 0.25 0.30 0.37 0.42 0.47 0.58 0.67
90° 04 0.17 0.20 0.33 0.40 0.49 0.57 0.63 0.77 0.89
90° 05 0.21 0.25 0.42 0.50 0.61 0.71 0.79 0.97 1.12
90° 06 0.25 0.30 0.50 0.60 0.73 0.85 0.95 1.16 1.34
90° 07 0.29 0.35 0.59 0.70 0.86 0.99 1.11 1.36 1.57
90° 7.5 0.31 0.38 0.63 0.75 0.92 1.06 1.19 1.45 1.68
90° 08 0.33 0.40 0.67 0.80 0.98 1.13 1.27 1.55 1.79
90° 09 0.38 0.45 0.75 0.90 1.10 1.27 1.42 1.74 2.01
90° 10 0.42 0.50 0.84 1.00 1.22 1.41 1.58 1.94 2.24
90° 12.5 0.52 0.63 1.05 1.25 1.53 1.77 1.98 2.42 2.80
90° 15 0.63 0.75 1.26 1.50 1.84 2.12 2.37 2.90 3.35
90° 20 0.84 1.00 1.67 2.00 2.45 2.83 3.16 3.87 4.47
90° 25 1.05 1.25 2.09 2.50 3.06 3.54 3.95 4.84 5.59
90° 30 1.26 1.50 2.51 3.00 3.67 4.24 4.74 5.81 6.71
  • * Standard Pressure: Column in red.
  • * This product for spray angle 0°, 15°, 25°, 40°, 50°, 100° and 110° is able to be made to order.
  • * For mobile friendly, only 3 column with 3 kinds of pressure will be displayed. For more pressure data, please check the chart on PC or laptop.



Material






Material Guarantees
Metal
We take high quality smithing metal to produce solid and durable nozzles by detail turning.
Plastic
We promise never using recycled materials
High Quality
All material is purchased from world top providers.

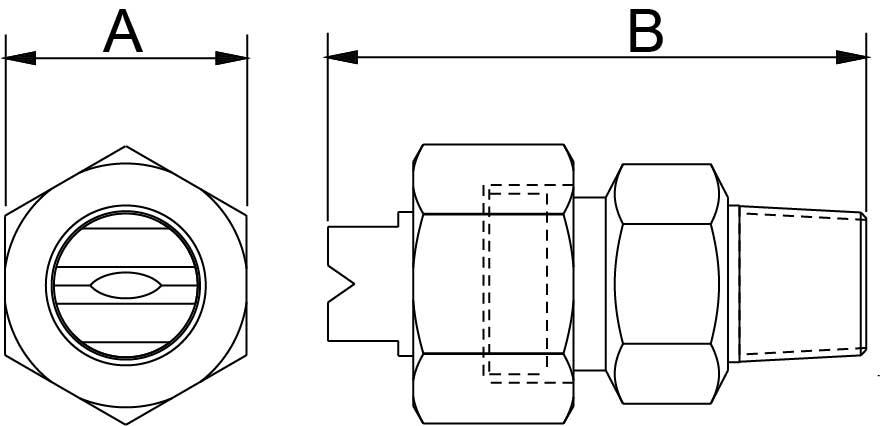

Product Size
Thread
(BSPT) 		Size (mm) Weight (g)
  A     B   SS303 SS316 Brass
1/8"Male
 21 41.3 - - -
1/4"Male
 21 43 - - -
3/8"Male
 21 43 70 71 77.2

LORRIC nozzle



Installation
Easy installing with 2 simple steps !
Step 1

Drill correspon-ding female threads on your pipe.

Step 2

For better leakproof-ness, please use Teflon seal tape on nozzle thread.

Aim the thread of nozzle at the female thread. Tighten the nozzle clockwise.

Finished

  Finished.

LORRIC nozzle
LORRIC nozzle
LORRIC nozzle






+886-978-005-235
[email protected]
