EB+HB Angle Adjustable Flat Fan Pipe Clamp Nozzle

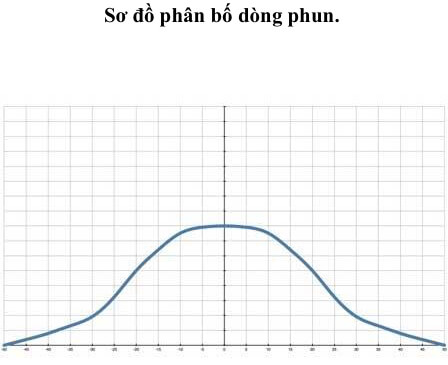

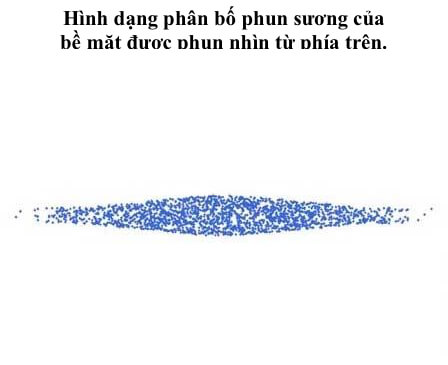

Easy to adjust, easy to install, easy to maintain, non-clogging, and even distribution fan-shaped single-fluid nozzles, commonly used in the pre-treatment processes of the painting industry.

Brand：	LORRIC
Spray Type：	Fan-shaped
Base Clamp Size：	1", 1-1/4", 1-1/2"

File download

Inquire now

Simple Installation Design

The simple clamp design allows for tool-free nut removal. Just drill a hole in the water pipe, and the nozzle can be securely attached without any additional tools.

Three-piece structure design

EB+HB is a three-piece clamp-type nozzle, designed for easy assembly and maintenance.

Nut:	Reinforced Fiberglass (FRPP)
HB Fan Spray Nozzle:	PP
EB Base:	FRPP
Oring:	NBR
Pipe clamp:	SS316

HB Fan Nozzle

The HB nozzle, used with the EB+HB ball assembly, provides a fan-shaped spray with 65° and 80° angles. At 1 Kg/cm², flow rates range from 2.26 Lpm to 13.55 Lpm. (For other flow rates, see the specification sheet or contact us.)

Material Options

The EB base offers various pipe and hole sizes. The most commonly selected option is a 1" EB clamp, Ø 15 drilling, paired with an HB 65° flat fan nozzle, flow code 10.

•Clamp Pipe Size：
1"（OD34 +/-0.3mm）
1-1/4"（OD42 +/-0.3mm）
1-1/2"（OD48 +/-0.4mm）
•Nozzle Bore Diameter：
Ø 15 (14.3~1/m)
Ø 17 (16.4~17m/m)
Ø 20 (19.0~20m/m)

About engineering tolerance

Flowrate tolerance

The flow tolerance is within a range of plus or minus 5% of the standard flow rate.

Angle tolerance

Angle tolerance is within a range of plus or minus 5% of the standard angle.

Material Guarantees

Metal

We take high quality smithing metal to produce solid and durable nozzles by detail turning.

Plastic

We promise never to use recycled materials.

High Quality

All material is purchased from world top providers.

Please place your order according below instruction.

Please choose the nozzle that best suits your requirements based on the selection guidelines provided below.
- Choose the nozzle diameter (thread size) and specifications that meet your requirements.
- To choose the spray flow rate of each nozzle, refer to the following "Flow Rate vs. Angle Chart".
- To select the spray coverage area of each nozzle, please refer to the "Flow Rate vs. Angle Chart" below.
- Choose the nozzle material; different application environments require different materials. Select the nozzle material that suits your application environment.
- To determine the nozzle angle that meets your requirements, which corresponds to the spray coverage area of each nozzle based on your needs, please consult the "Flow Rate and Angle Comparison Chart" below.
- Choose the right nozzle material to match your needs, as different environments demand specific materials. Select accordingly based on your usage context.
Specification example: 1” EB 15 + HB 10-65 PP, the following explains the options and meanings corresponding to each number.

Select
Unit

Spray Angle	Capacity Code	Color of HB	Capacity at Pressure
Spray Angle	Capacity Code	Color of HB	0.5 kgf/cm²	0.7 kgf/cm²	1.0 kgf/cm²	1.5 kgf/cm²	2.0 kgf/cm²	2.5 kgf/cm²	3.0 kgf/cm²	3.5 kgf/cm²	4.0 kgf/cm²
65°	10	Sky Blue	1.60	1.89	2.26	2.77	3.20	3.57	3.91	4.23	4.52
65°	20	Red	3.20	3.78	4.52	5.54	6.39	7.15	7.83	8.46	9.04
65°	30	Orange	4.79	5.66	6.77	8.29	9.57	10.70	11.73	12.67	13.54
65°	35	Black	5.59	6.61	7.90	9.68	11.17	12.49	13.68	14.78	15.80
65°	40	Yellow	6.39	7.56	9.03	11.06	12.77	14.28	15.64	16.89	18.06
65°	50	Blue	7.98	9.45	11.29	13.83	15.97	17.85	19.55	21.12	22.58
65°	60	Green	9.58	11.34	13.55	16.60	19.16	21.42	23.74	25.35	27.10
80°	10	Sky Blue	1.60	1.89	2.26	2.77	3.20	3.57	3.91	4.23	4.52
80°	20	Red	3.20	3.78	4.52	5.54	6.39	7.15	7.83	8.46	9.04
80°	30	Orange	4.79	5.66	6.77	8.29	9.57	10.70	11.73	12.67	13.54
80°	35	Black	5.59	6.61	7.90	9.68	11.17	12.49	13.68	14.78	15.80
80°	40	Yellow	6.39	7.56	9.03	11.06	12.77	14.28	15.64	16.89	18.06
80°	50	Blue	7.98	9.45	11.29	13.83	15.97	17.85	19.55	21.12	22.58
80°	60	Green	9.58	11.34	13.55	16.60	19.16	21.42	23.74	25.35	27.10

Spray Angle	Capacity Code	Color of HB	Capacity at Pressure
Spray Angle	Capacity Code	Color of HB	0.05 MPa	0.07 MPa	0.1 MPa	0.15 MPa	0.2 MPa	0.25 MPa	0.3 MPa	0.35 MPa	0.4 MPa
65°	10	Sky Blue	1.61	1.91	2.28	2.80	3.23	3.61	3.95	4.27	4.56
65°	20	Red	3.23	3.82	4.56	5.59	6.45	7.22	7.91	8.54	9.13
65°	30	Orange	4.83	5.72	6.84	8.37	9.67	10.81	11.84	12.79	13.67
65°	35	Black	5.64	6.67	7.98	9.77	11.28	12.61	13.82	14.92	15.95
65°	40	Yellow	6.45	7.63	9.12	11.17	12.90	14.42	15.79	17.06	18.24
65°	50	Blue	8.06	9.54	11.40	13.96	16.12	18.03	19.75	21.33	22.80
65°	60	Green	9.68	11.45	13.68	16.76	19.35	21.63	23.70	25.60	27.37
80°	10	Sky Blue	1.61	1.91	2.28	2.80	3.23	3.61	3.95	4.27	4.56
80°	20	Red	3.23	3.82	4.56	5.59	6.45	7.22	7.91	8.54	9.13
80°	30	Orange	4.83	5.72	6.84	8.37	9.67	10.81	11.84	12.79	13.67
80°	35	Black	5.64	6.67	7.98	9.77	11.28	12.61	13.82	14.92	15.95
80°	40	Yellow	6.45	7.63	9.12	11.17	12.90	14.42	15.79	17.06	18.24
80°	50	Blue	8.06	9.54	11.40	13.96	16.12	18.03	19.75	21.33	22.80
80°	60	Green	9.68	11.45	13.68	16.76	19.35	21.63	23.70	25.60	27.37

Spray Angle	Capacity Code	Color of HB	Capacity at Pressure
Spray Angle	Capacity Code	Color of HB	0.5 bar	0.7 bar	1.0 bar	1.5 bar	2.0 bar	2.5 bar	3.0 bar	3.5 bar	4.0 bar
65°	10	Sky Blue	1.61	1.91	2.28	2.80	3.23	3.61	3.95	4.27	4.56
65°	20	Red	3.23	3.82	4.56	5.59	6.45	7.22	7.91	8.54	9.13
65°	30	Orange	4.83	5.72	6.84	8.37	9.67	10.8	11.8	12.8	13.7
65°	35	Black	5.64	6.67	7.98	9.77	11.3	12.6	13.8	14.9	16.0
65°	40	Yellow	6.45	7.63	9.12	11.2	12.9	14.4	15.8	17.1	18.2
65°	50	Blue	8.06	9.54	11.4	14.0	16.1	18.0	19.7	21.3	22.8
65°	60	Green	9.68	11.4	13.7	16.8	19.4	21.6	23.7	25.6	27.4
80°	10	Sky Blue	1.61	1.91	2.28	2.80	3.23	3.61	3.95	4.27	4.56
80°	20	Red	3.23	3.82	4.56	5.59	6.45	7.22	7.91	8.54	9.13
80°	30	Orange	4.83	5.72	6.84	8.37	9.67	10.8	11.8	12.8	13.7
80°	35	Black	5.64	6.67	7.98	9.77	11.3	12.6	13.8	14.9	16.0
80°	40	Yellow	6.45	7.63	9.12	11.2	12.9	14.4	15.8	17.1	18.2
80°	50	Blue	8.06	9.54	11.4	14.0	16.1	18.0	19.7	21.3	22.8
80°	60	Green	9.68	11.4	13.7	16.8	19.4	21.6	23.7	25.6	27.4

Spray Angle	Capacity Code	Color of HB	Capacity at Pressure
Spray Angle	Capacity Code	Color of HB	7 psi	10 psi	15 psi	20 psi	25 psi	30 psi	40 psi	50 psi	60 psi
65°	10	Sky Blue	0.42	0.50	0.61	0.71	0.79	0.87	1.00	1.12	1.23
65°	20	Red	0.84	1.00	1.23	1.42	1.58	1.73	2.00	2.24	2.45
65°	30	Orange	1.25	1.50	1.84	2.12	2.37	2.60	3.00	3.35	3.67
65°	35	Black	1.46	1.75	2.14	2.47	2.77	3.03	3.50	3.91	4.29
65°	40	Yellow	1.67	2.00	2.45	2.83	3.16	3.46	4.00	4.47	4.90
65°	50	Blue	2.09	2.50	3.06	3.54	3.95	4.33	5.00	5.59	6.13
65°	60	Green	2.51	3.00	3.68	4.24	4.75	5.20	6.00	6.71	7.35
80°	10	Sky Blue	0.42	0.50	0.61	0.71	0.79	0.87	1.00	1.12	1.23
80°	20	Red	0.84	1.00	1.23	1.42	1.58	1.73	2.00	2.24	2.45
80°	30	Orange	1.25	1.50	1.84	2.12	2.37	2.60	3.00	3.35	3.67
80°	35	Black	1.46	1.75	2.14	2.47	2.77	3.03	3.50	3.91	4.29
80°	40	Yellow	1.67	2.00	2.45	2.83	3.16	3.46	4.00	4.47	4.90
80°	50	Blue	2.09	2.50	3.06	3.54	3.95	4.33	5.00	5.59	6.13
80°	60	Green	2.51	3.00	3.68	4.24	4.75	5.20	6.00	6.71	7.35

* Standard Pressure: Column in red.
* For mobile friendly, only 3 column with 3 kinds of pressure will be displayed. For more pressure data, please check the chart on PC or laptop.
* Due to the large number of product specifications, we primarily offer products based on our factory's current product lineup. If you need to confirm whether a specific specification is still in production, please contact us.

Applications

Auto Car Paint

Flow meters ensure precise paint-solvent ratios for quality and eco-friendliness, while nozzles guarantee paint quality and environmental compliance by controlling the mixture

Size

Size(mm)			Weight(g)
A	B	C	62.5
52	62	70	62.5

Installation

Easy installing with 6 simple steps !

Step 1

Drill a installation hole in the pipe which match the size of the EB installation hole

Step 2

Aim and snap on the installation hole of the EB clamp at the pipe installation hole

Step 3

Fasten with the pipe clamp

Step 4

Release the union nut to adjust angle of the TB ball

Step 5

Confirm the spray direction

Step 6

Tighten the union and finished

Unable to find the nozzle you require?

With over 30 years of nozzle development and manufacturing experience, along with extensive customer site knowledge, allow us to assist in creating the ideal product for your needs!

Tailored nozzles to match your requirements.

LORRIC can customize "flow rate," "angle," and "flow distribution" to suit your specific usage scenarios. We also offer support for unique situations like special impact force or ultra-fine spray needs. Feel free to reach out to LORRIC's team for more information and assistance.
